DC12V WS2818 8mm Dual Data Signal Dream Color RGB Addressable LED Strip - 96LEDs/m
WS2818 4-wire breakpoint resume series addressable led strip, includes a GND(negative), a VCC(positive), a data line, and a back up line. When the transmission of the data line fails, the back up line will automatically work instead of the data line, and will not affect the use of other LEDs. Only if the circuit of the two consecutive LEDs is damaged will cause the lights behind them not to light up.

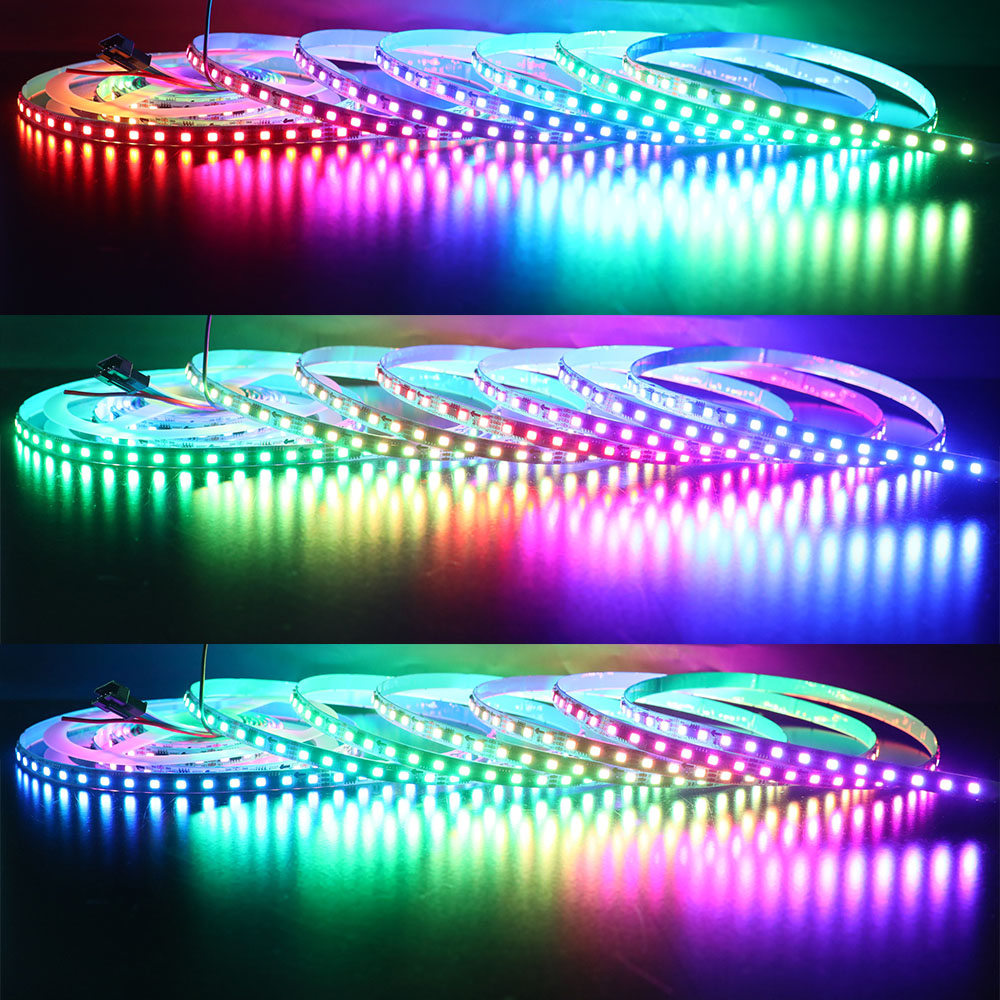

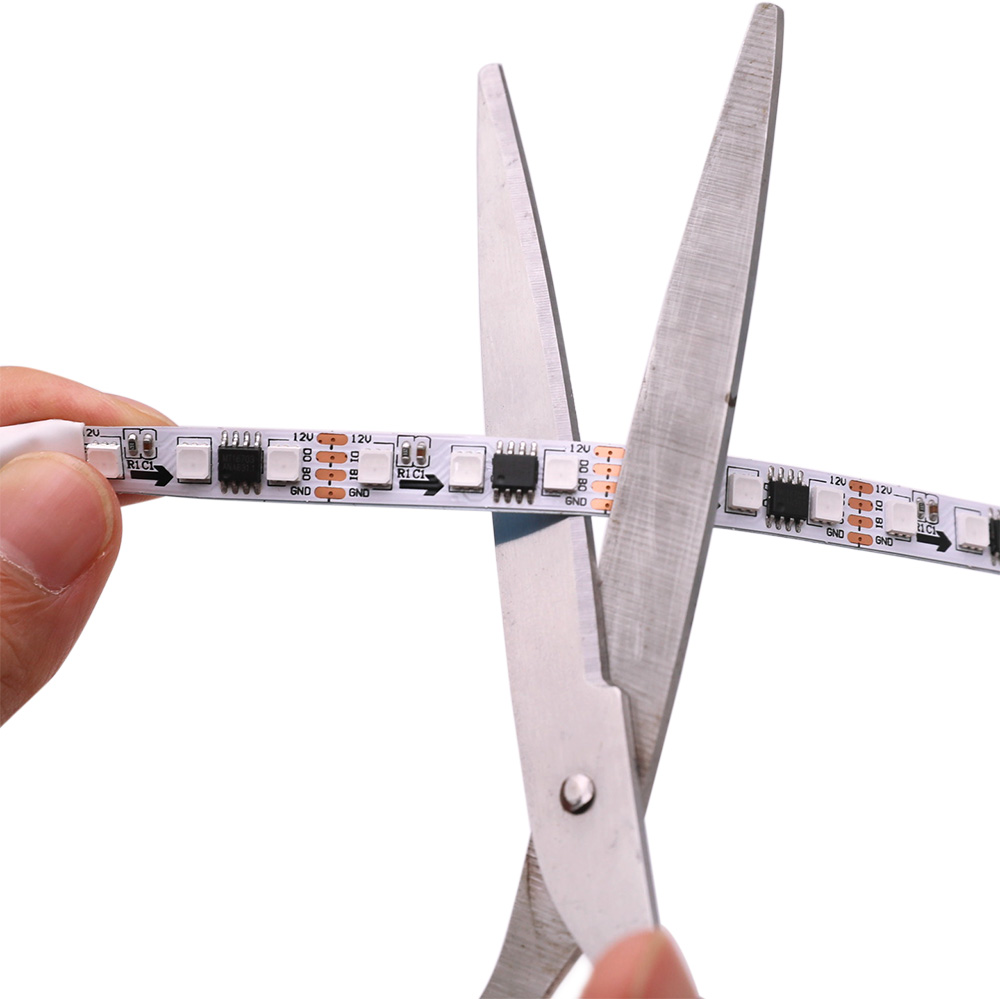

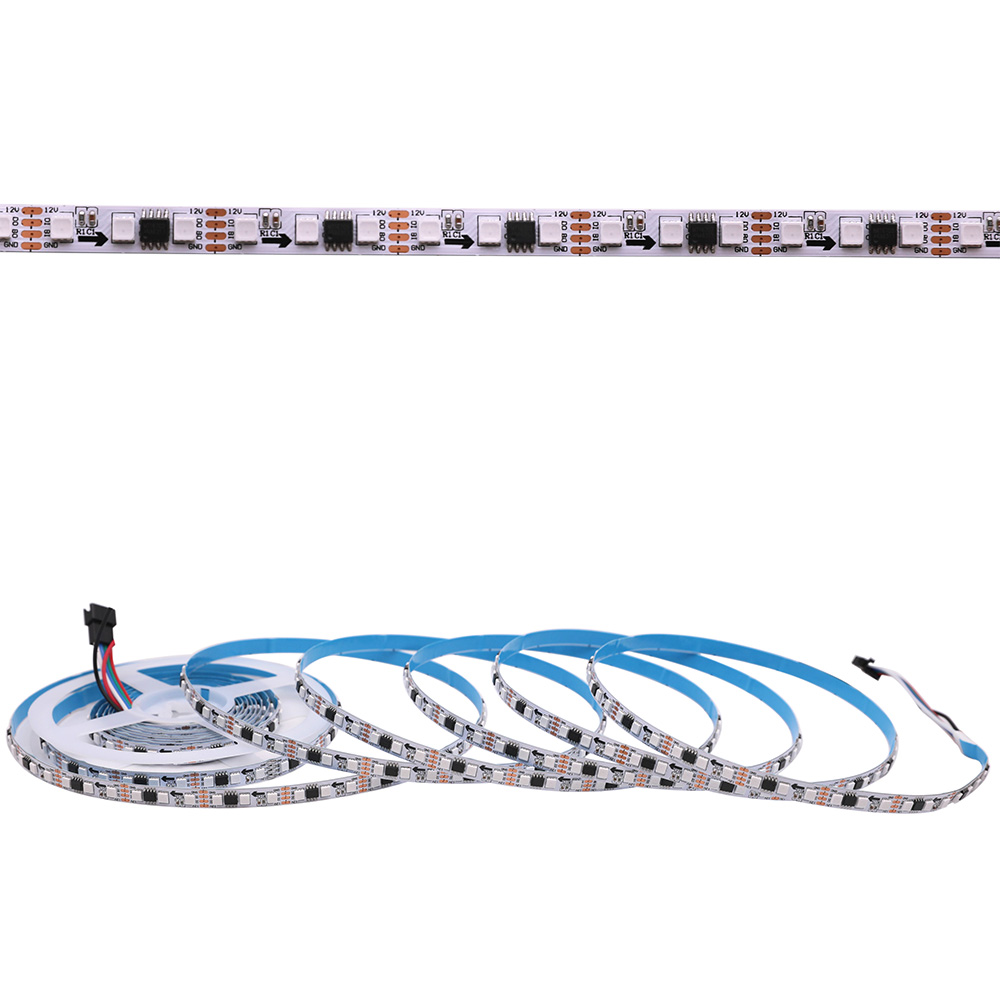

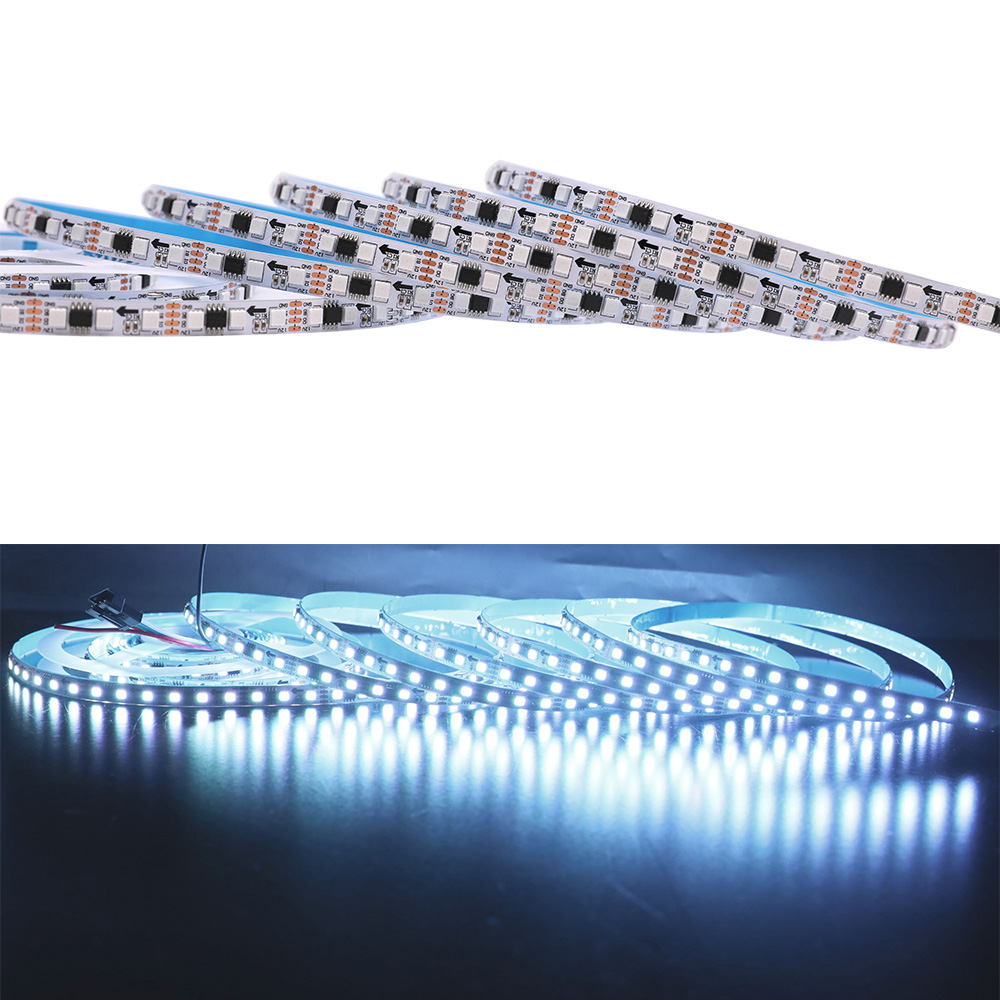

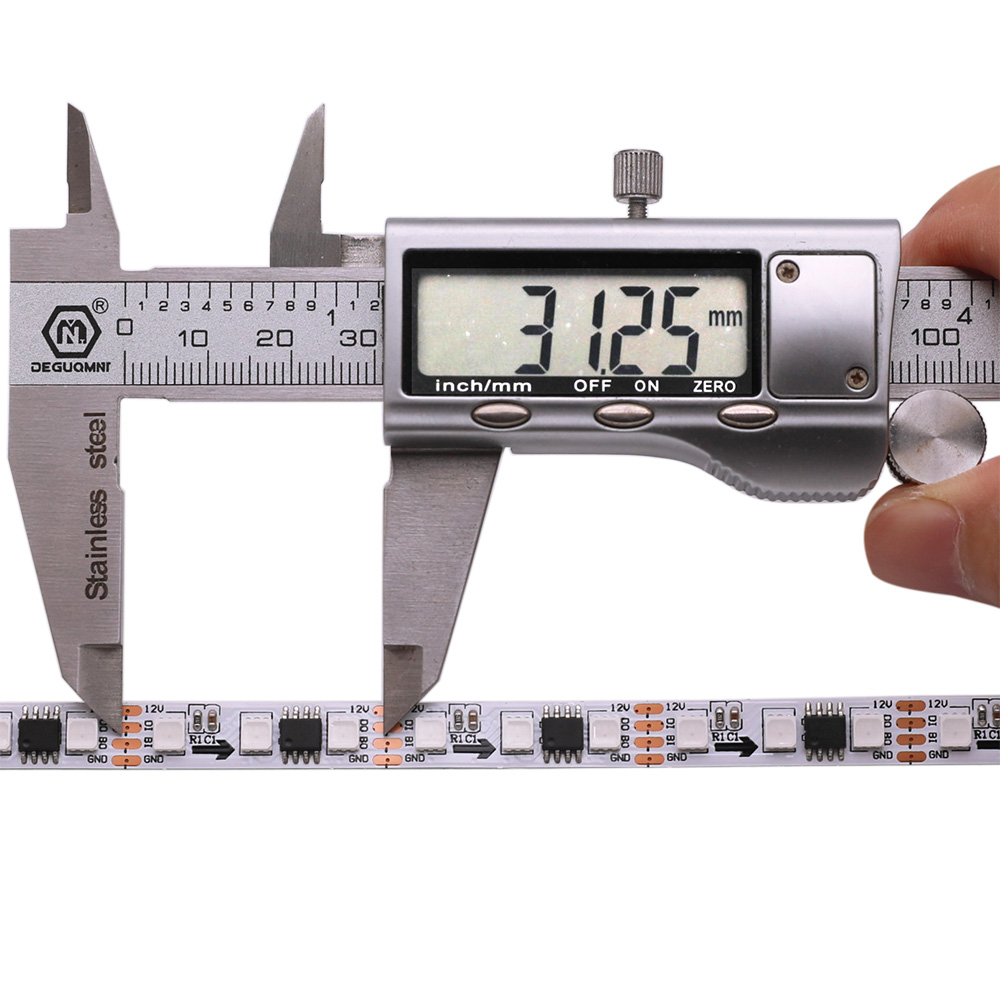

8mm led strip width, 96 RGB lights per meter, the WS2818 IC is placed on the FPCB board, and one WS2818 IC controls three 5050SMD RGB LEDs, each 31.25mm (three lights) can be cut. The LED lights controlled by each IC can be of different colors and brightness, forming a dream color led strip light to achieve 256-level grayscale adjustment and 16 million dynamic effects.

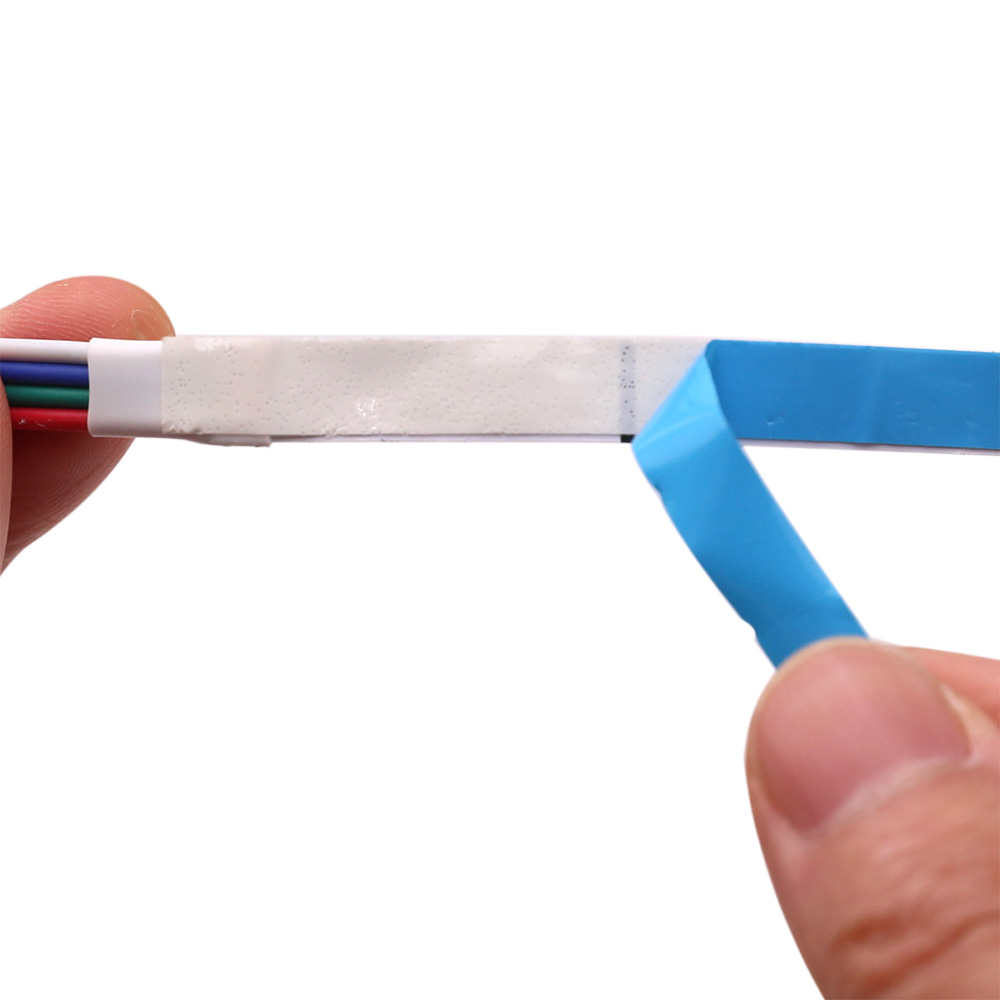

12V low voltage power, this addressable led strip needs to be used with 24V SPI controller and 24V led power supply. The back of the addressable LED strip uses high-quality 3M tape, which has good adhesion and adheres to the wall surface without damaging the wall, easy to install. Both ends of the LED strip light adopt JST connectors for easy connection. And you can install this strip in the silicone led diffuser tube to make led neon lights.
What is WS2818?
WS2818 LED chip is an upgraded version of the WS2811LED chip, as a unique existence in the breakpoint resume series, WS2818 LED adopts an external IC control method and supports DC12V voltage input; the internal LED chip contains a smart digital interface data latch signal shaping amplifier drive circuit, high-precision internal oscillator, 12V high-voltage programmable constant current output driver and high-precision constant current control module.
1* 5m/16.4Ft WS2818 addressable RGB LED strip light
If you choose the LED controller in the kit, we will send you CONFULL-SP108E(support DC5-24V, smartphone APP control)
If you choose the LED power supply in the kit, we will send you PSPS-12V-150W
What you can read:
Standards and Certifications
Input Voltage: DC12V
Power: 23watt/meter, 115watt/roll
LED Model: SMD 5050 RGB
LED Chip: WS2818
Q'ty of LED: 96LEDs/m
Q'ty of IC: 32 pixels/meter
Cuttable: every 3 LEDs is cuttable (1 IC drives 3 LEDs)

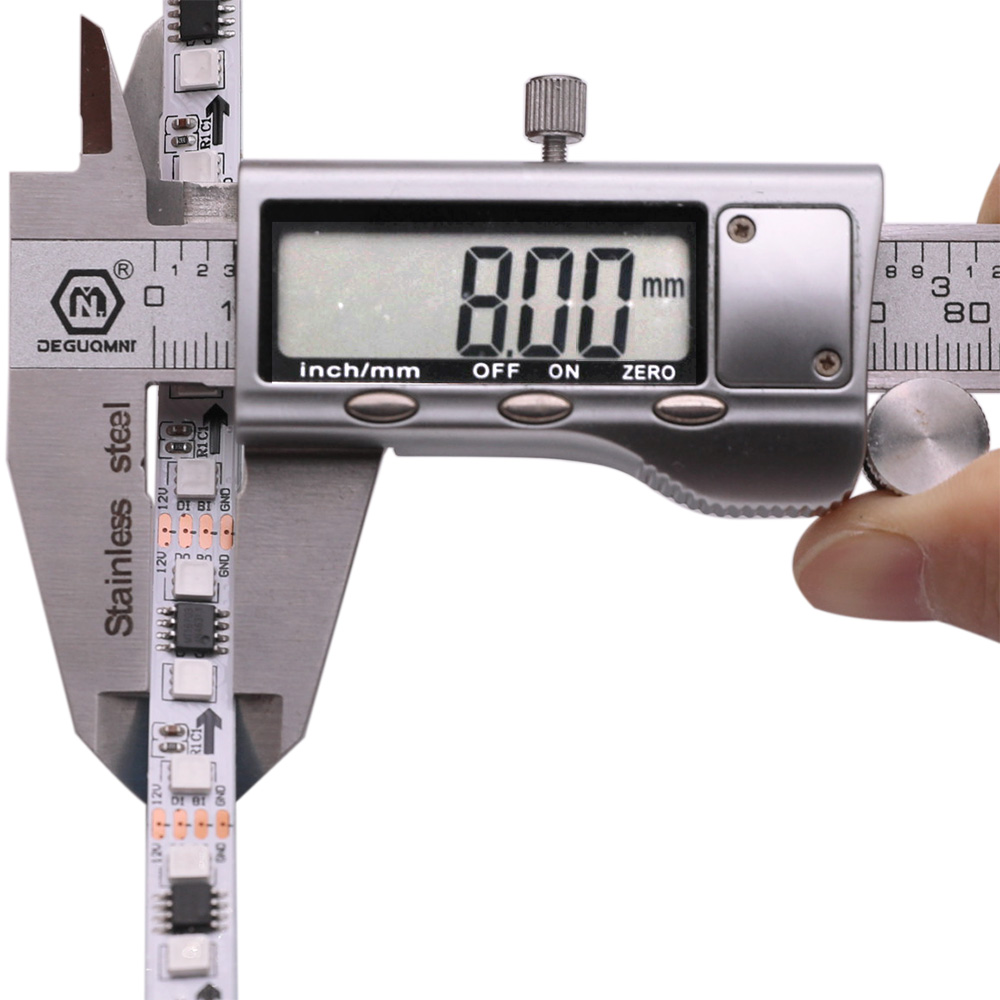

PCB Wide: 8mm/0.31in
Protection Rate: Non-waterproof IP20, Waterproof IP67

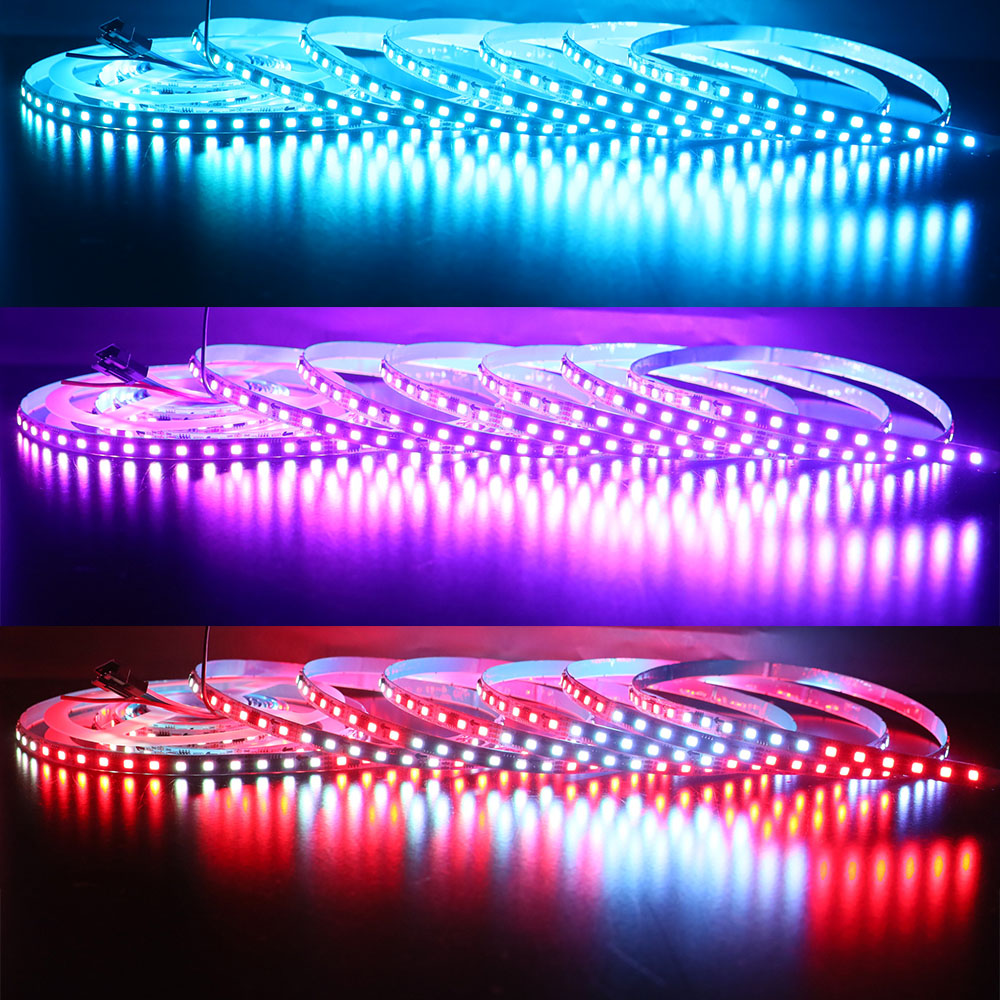

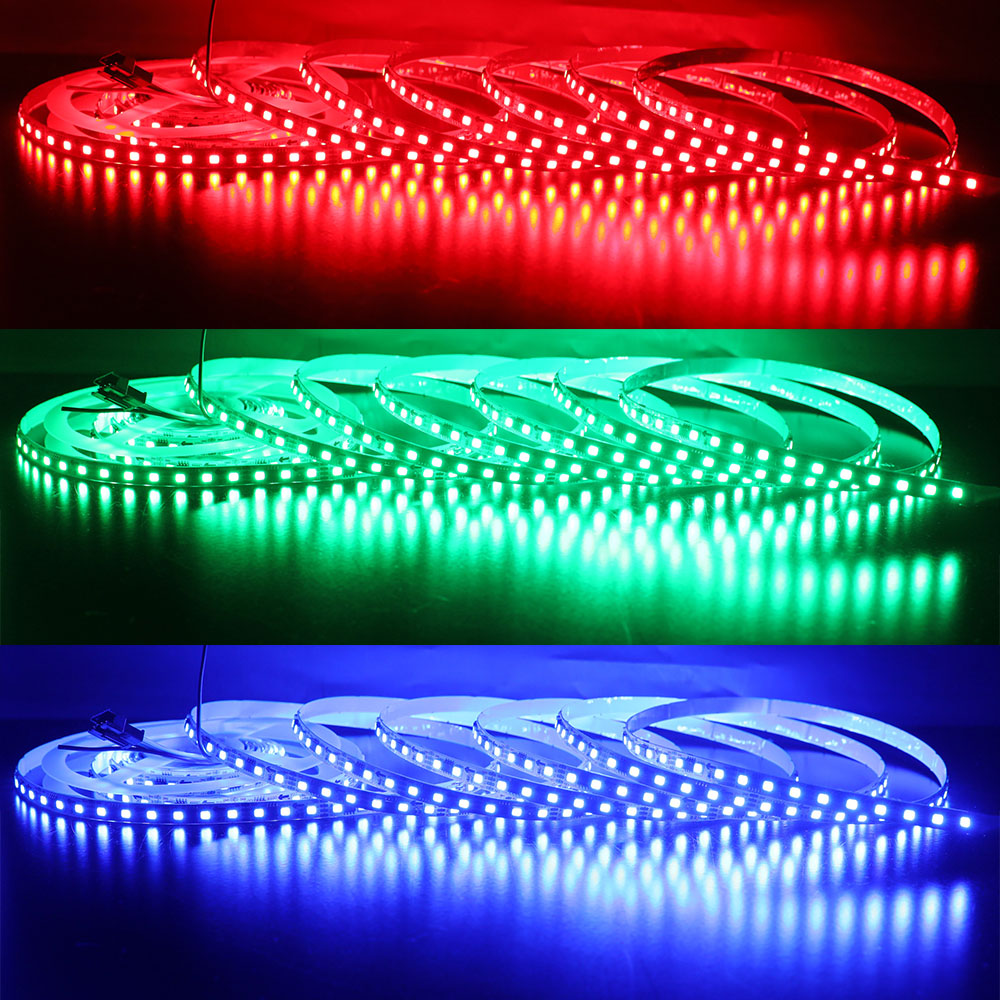

Colors: Full color RGB, dream color changing
Grey Scale: 256
Bits/Color: 8-bits/color;total 24bit for RGB color
Average Life (hrs): 50000Hours+
Beam Angle: 120 degrees
Connection Diagram - How to Wire Addressable LED Strip Lights?
For the DI date line, you can connect it to the DAT port; for the D2 date line, you can connect it to the DAT port or the CLK port.
These digital Addressable LED Strips are Applicable to people who would like to pursue fashion and romance, for individual creativity and the new apartment decoration, as its soft, light and thin features very suitable for DIY personal space.
LED programmable digital screen
Hotels decoration lighting
Concealed lighting, Cove decoration
led wall, advertising board
Outdoor advertising signs,
Hotel, KTV, bars,
Wedding party lighting.
