WS2818 WWA Addressable White LED Strip Lights - 24V 120LEDs/m 2835 LED

Name: WS2818 WWA Addressable White LED Strip Lights - 24V 120LEDs/m 2835 LED
Brand: SuperLightingLED
SKU: WS2818-WWA-24V-120W10
Price: 24.99 CAD
Availability: InStock

Model: WS2818-WWA-24V-120W10 Review stars

0.0 (0 Reviews) Various options in stock

Starting at: Can.$35.29

Qty Discounts Off Price
1-19 Can.$35.29	20-49 Can.$34.59	50-99 Can.$34.06	100+ Can.$33.53
* Discounts may vary based on options below

Select Specifications:

Select Kit:

Select PCB Width:

10mm (0.39in)

Select Length:

Select Waterproof Rating:

Select PCB Thickness:

Qty: -+

Free shipping over $299Ships via DHL / UPSWarranty covered

Accept the project customization, please contact us for commercial offers and technical support.

Product Information

What does WWA mean in LED lights?

WWA = White + Warm White + Amber. WWA means that this led strip lighting is a white light color, and each LED is a 2in1 CCT LED with two color temperatures, soft white 1800K/3000K light and 6000K pure white light are in one SMD LED. Addressable WWA led strip can control the LED light change through ICs, display dynamic white light effects.

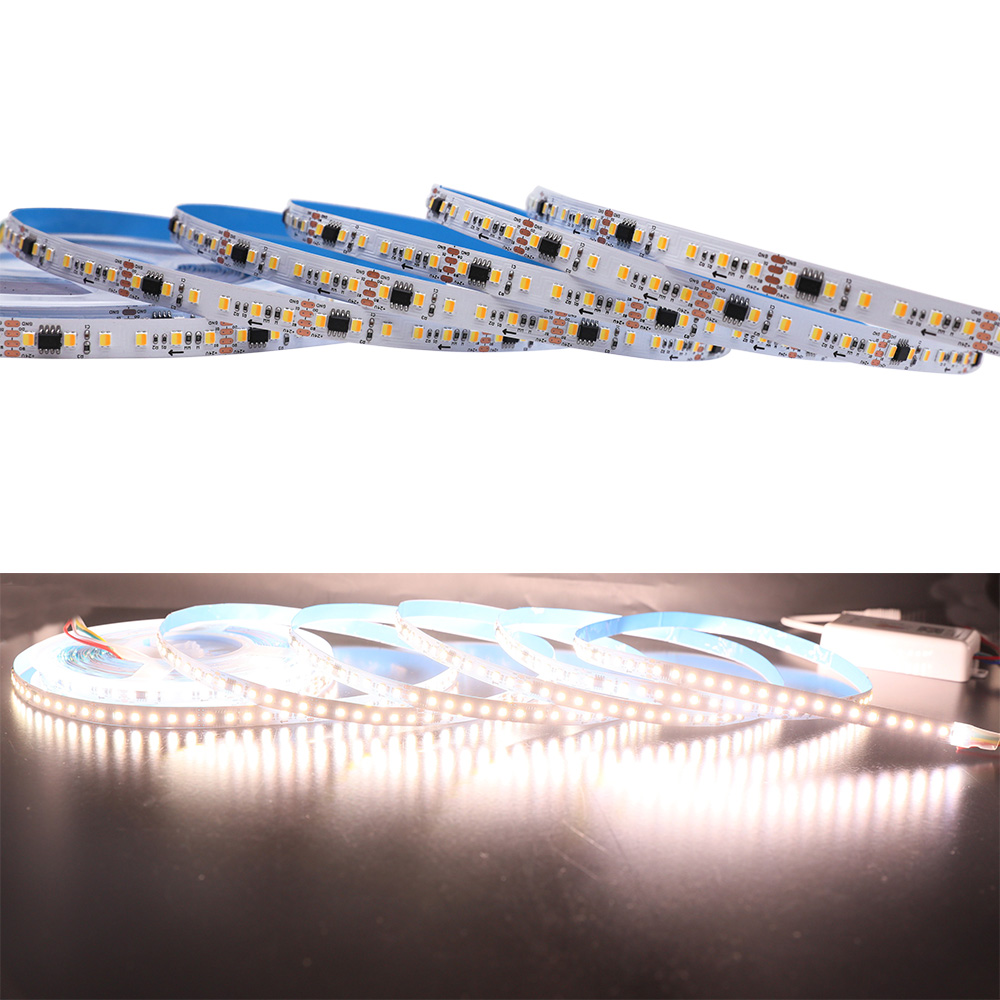

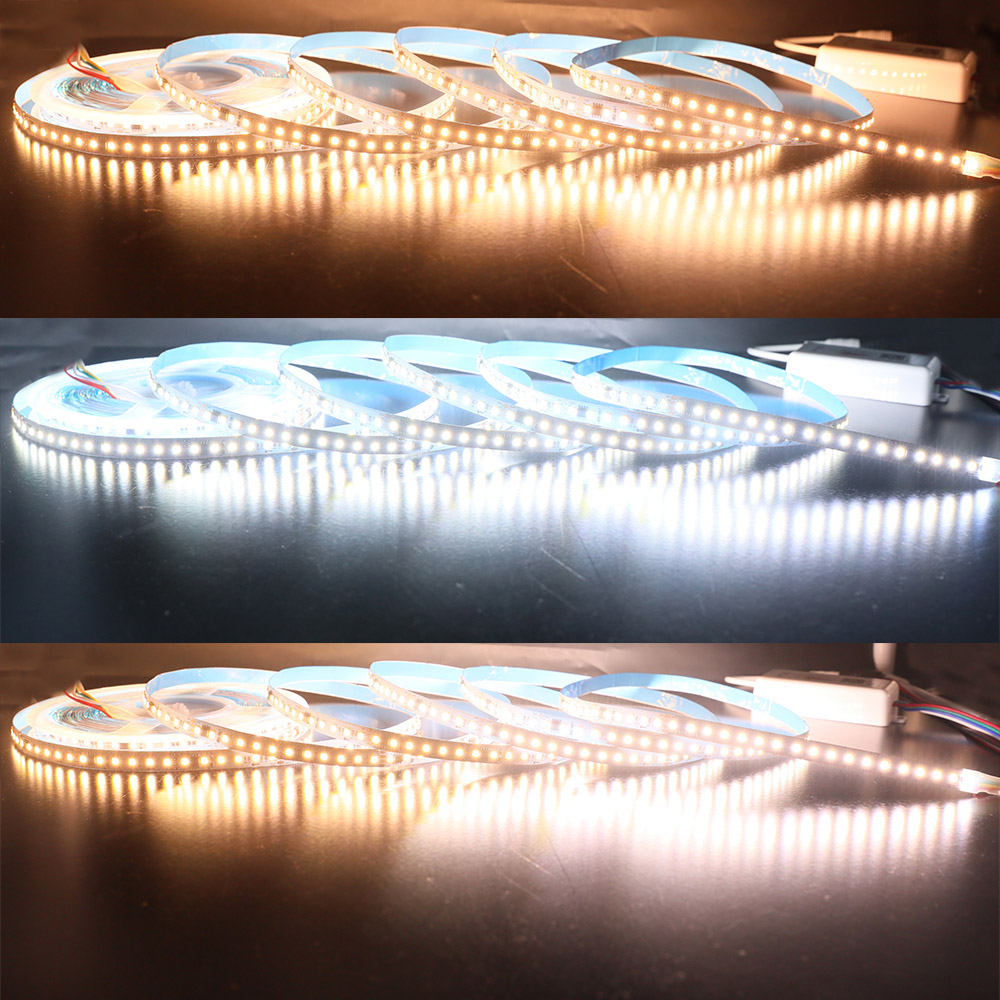

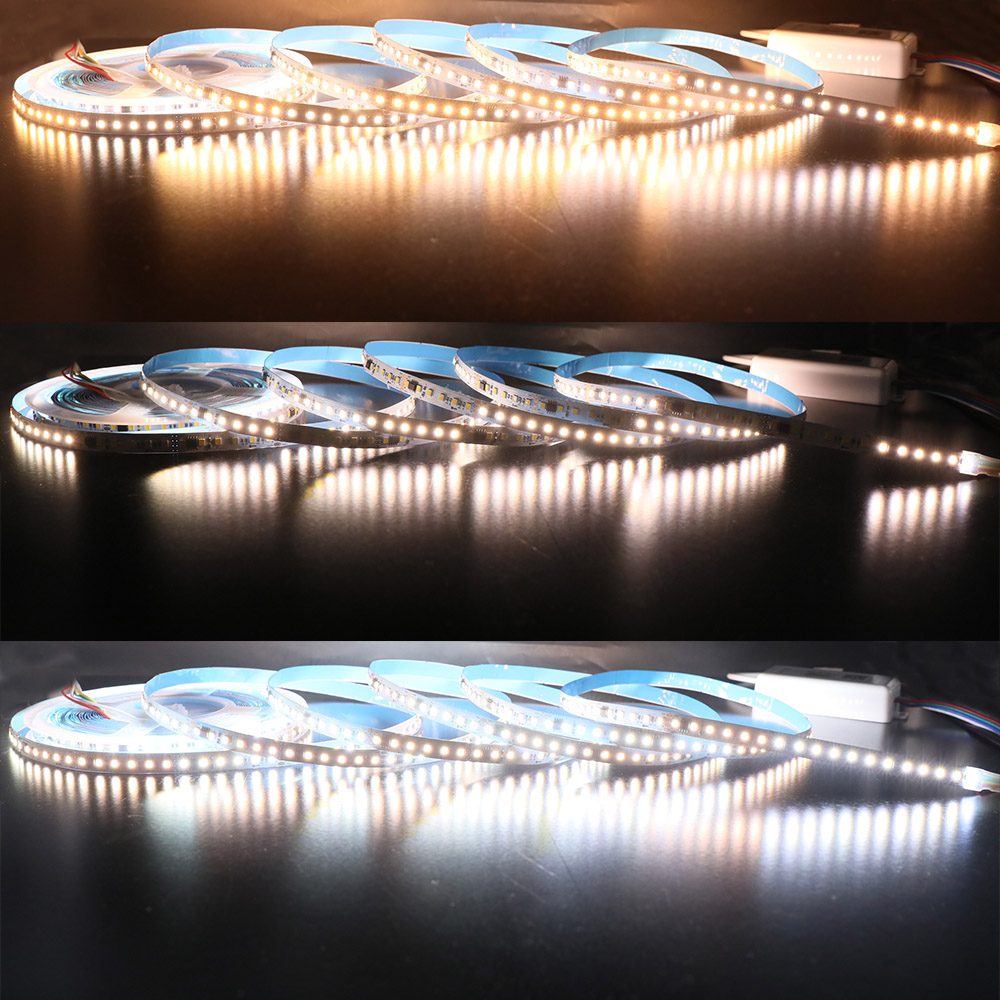

This WS2818 led light strip is a unique addressable CCT white color (display white light from warm 3000K to cool 6000K, no amber light!). The whole strip can display different white color temperatures and various white light effects. WS2818 addressable IC chip has two signal transmission channels, when one LED loses its work, others LEDs still run. If you need 1800K-2000K amber light, please check this product.

Our 3-pin, single-data 108 LEDs/m Addressable 2-in-1 2835 CCT LED Strip is now available as a standalone product! This 10m, high-density 8mm strip delivers tunable white lighting (2700K-6500K) for seamless installations in smart homes, or creative displays. Explore its dedicated link to elevate your next project!

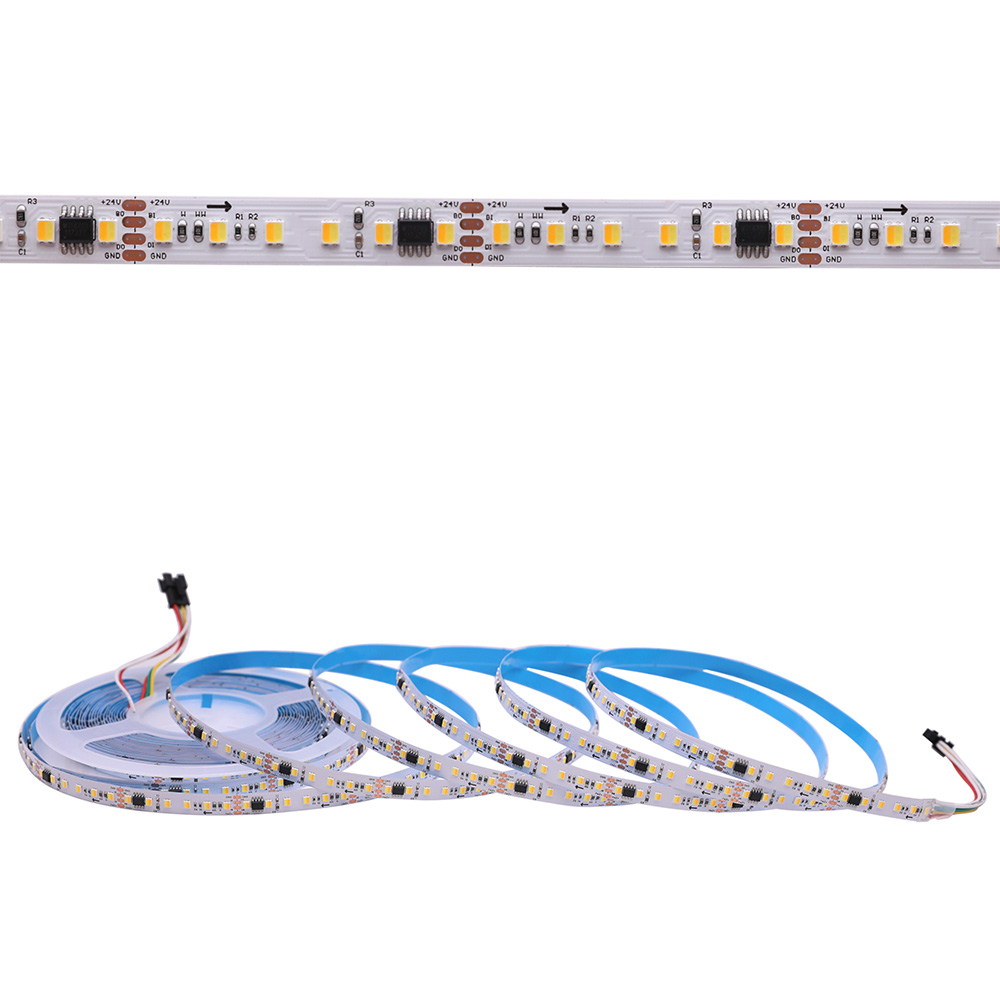

Adapts 2835 2in1 CCT LEDs, with diferent white light color temperatures.

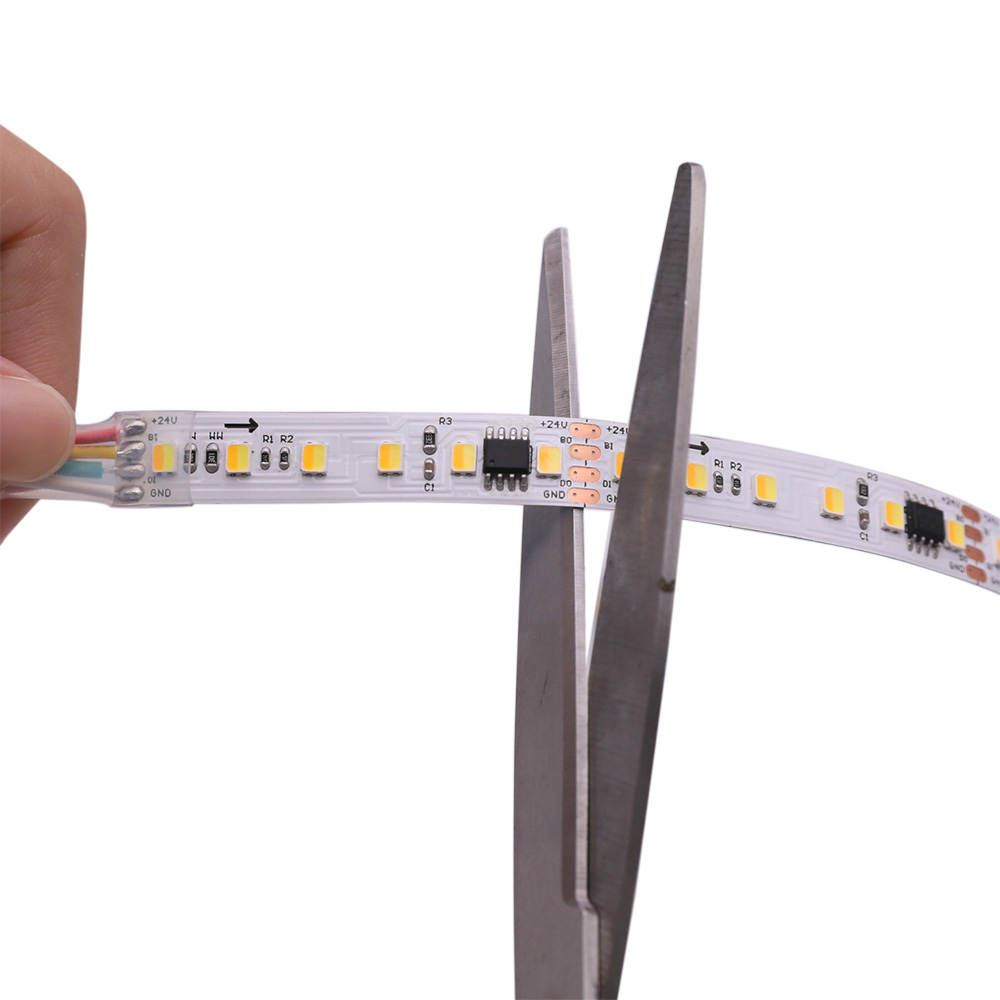

One WS2818 IC controls 6 white lights, 6 LEDs form a loop, cut along the cuttable line to customize the strip length.
24V DC drive, 10mm led strip width, 120 white lights per meter.
Dual data lines (DI and BI), using breakpoint resumable transmission control method, one more spare data line than single signal wire digital LED strip light.
Flexible FPCB board, can be docked, bent, cut and fixed on the uneven surface at will.

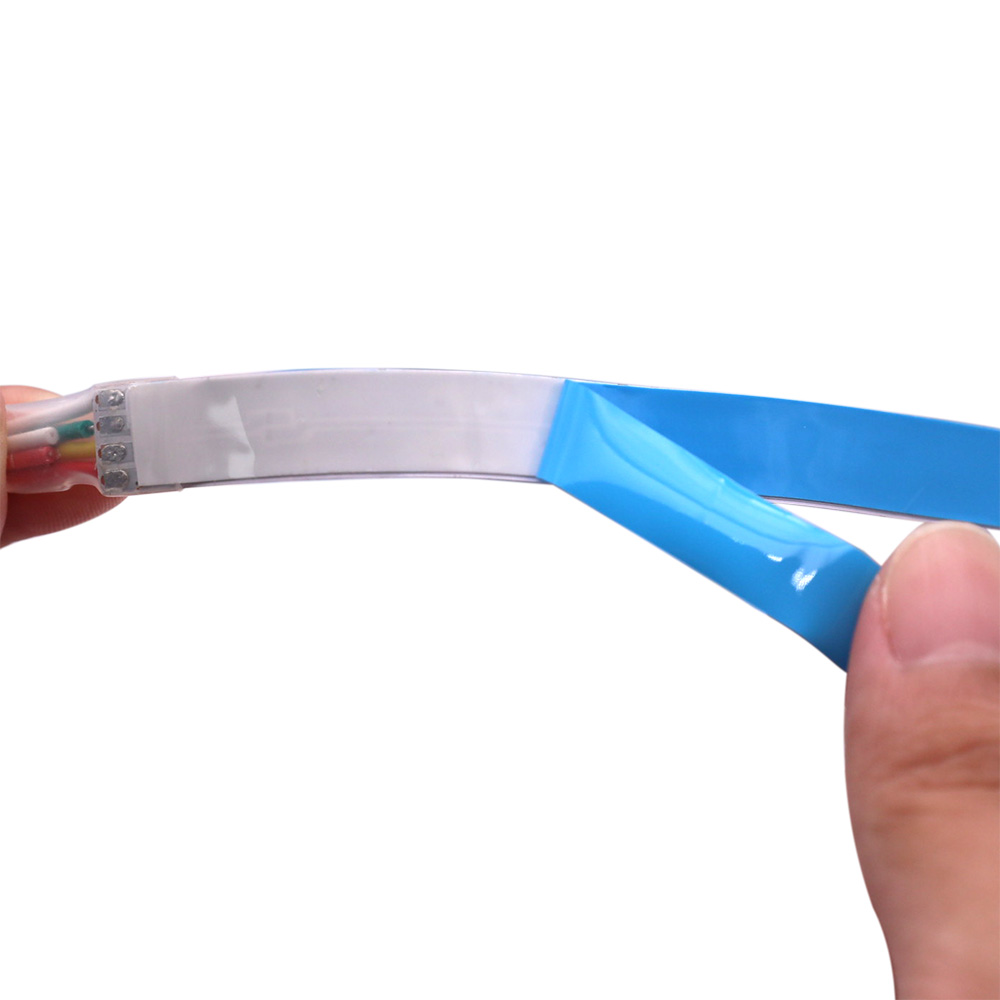

3M tape back, easy to install.
Customize IP20/IP67 waterproof ratings, suitable for indoor & outdoor lighting environments.

WS2818 WWA LED Strip Light Kit:

If you choose the LED controller in the kit, we will send you CONFULL-SP107E addressable LED controller. You can also purchase our waterproof BOX to protect the LED controller.

If you choose the LED power supply in the kit, we will send you 24V 100W MW UL-Listed IP20 LED power supply(including an AC plug). For outdoor environmnt, you can choose our DC24V 100W waterproof LED power supply

Standards and Certifications

24VDC

LED Strip Type:	WS2818 WWA LED Strip 600LEDs/16.4ft
IC Chip:	WS2818 Dual-channel Signal Transmission
IC Type:	External IC
Channel:	4 channels (VCC; DAT, BI, GND)
Working Temperature:	-4°F (-20°C) ~ 122°F (50°C)
Storage Temperature:	-40°F (-40°C) ~ 176°F (80°C)
Light Color:	Dynamic White Light Color

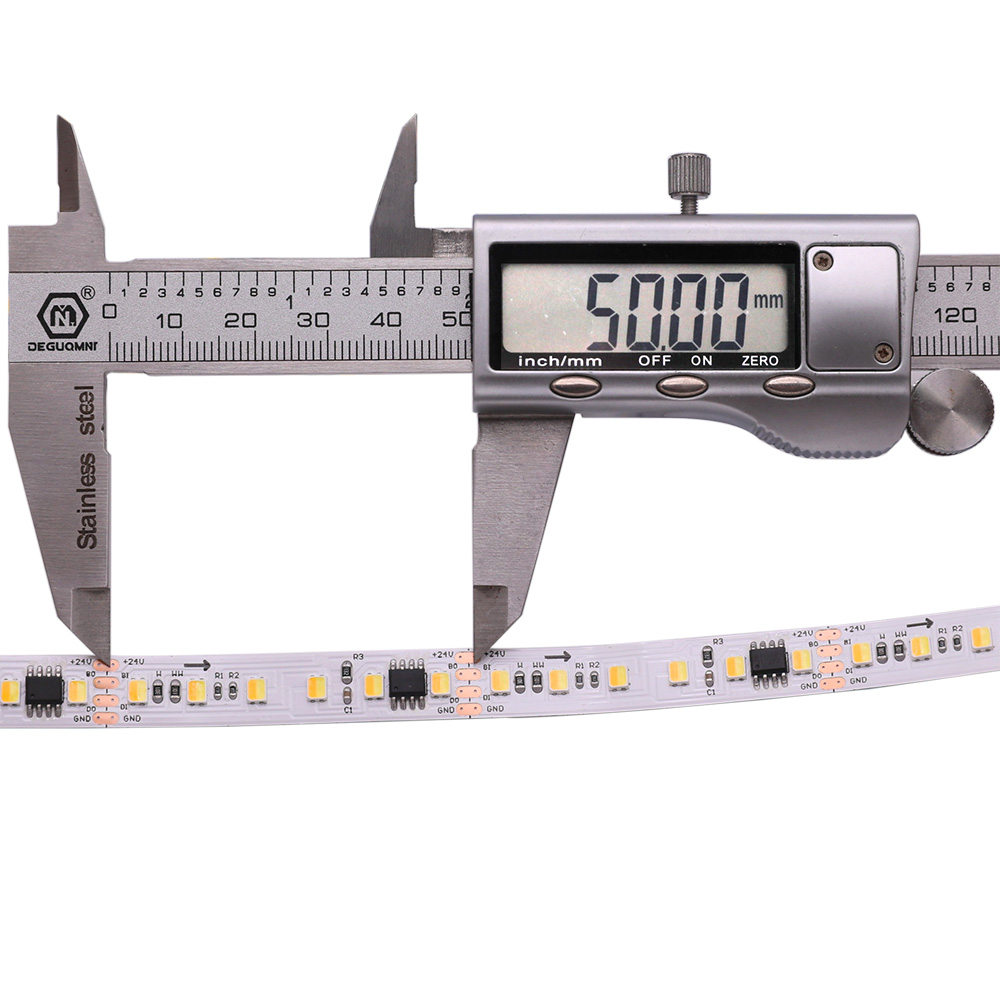

Dimension:	16.4ft/roll, every 6 PCS LED can be cut (50mm)
LED Quantity:	120 LEDs per meter (3.28 ft)
Lifespan:	50,000+hours

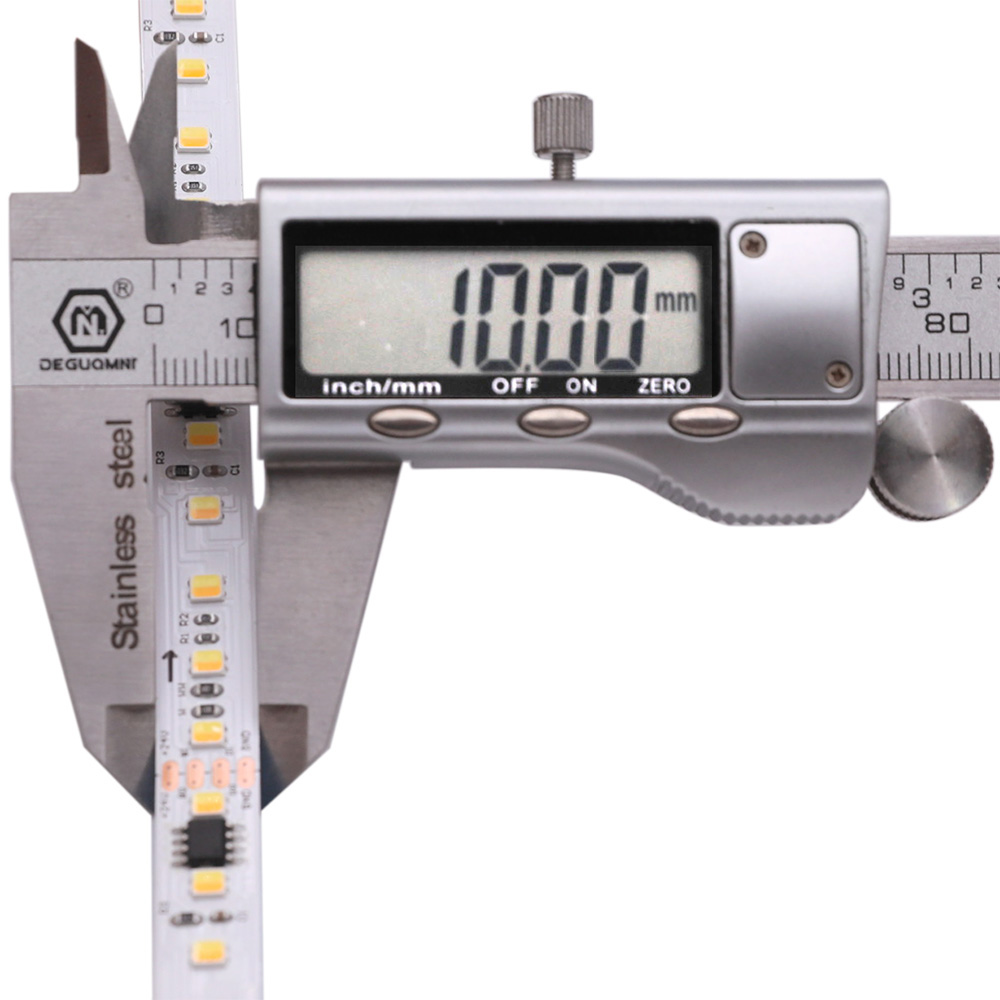

Strip Width:	10mm/0.39in
Input Voltage(V):	24 VDC
Working Power:	14.4W/m, 72W /16.4ft Max
Q'ty of IC:	20 pixels /Meter
Waterproof Rating:	Non-waterproof IP20, waterproof IP67
Beam Pattern:	120 degree

How to Wire Addressable LED Strip Lights?

1. WS2818 LED strip wiring diagram:

how to connect ws2815 led strip

2. LED light strip accessories: Dream color addressable led strip matching silicone diffuser or LED channel can achieve a soft, spotless linear light effect.

WWA Addressable White LED Strip Lights

Reviews

Customer Experience

Your feedback is important to us! Share your thoughts and photos with other customers.

Write a Review & Upload Photos

Downloads

Files for WS2818-WWA-24V-120W10

PDFWS2818-WWA-24V-120W10 product data sheetFull specifications, dimensions, cut points, wiring and IP options — the same details shown on this page, laid out for printing and engineering review.PDF · generated from the current product page · opens in a new tabOpen PDF

Need this page for a project file or an engineering check? Click Open PDF, then save or print it from your browser. For CAD drawings, IES files or a signed test report, contact our engineers and quote the model number.

Images

These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!

LED Strip Light Guide

Common questions about this type of product, answered against this model’s own options. For full figures see the specification above or the spec sheet for this model.

Which controller does this LED strip light need?

Addressable LED strip lights take a data signal, so they need an SPI (pixel) controller that supports this IC — an ordinary RGB controller will not drive them. Data flows one way: connect the controller to the input end marked with the arrow. Wiring addressable LED strip lights

Do I need power injection?

5 V addressable LED strip lights lose voltage fastest, so longer runs need power fed in at both ends and at intervals along the run; 12 V and 24 V versions carry further. Keep the data line short between controller and first pixel. Choosing an addressable LED strip light

Which waterproof rating should I choose?

Available on this model: Outdoor Silicone Tube IP67 - With Brackets · Non-Waterproof IP20 - Adhesive Back. IP20 is for dry indoor use, IP65 handles splashes, IP67 suits outdoor and wet areas, IP68 is for continuous submersion. Choosing a waterproof rating

Can I cut it to length?

Yes. Cut only on the marked cut lines between the copper pads — the cut interval for this model is on its spec sheet. Rejoin with solder or a solderless connector. Cutting LED strip lights · we can also cut to length and fit your connector before shipping: custom LED strip light assembly.

What size power supply do I need?

Take the watts per metre from the specification above, multiply by the length you are running, then add about 25% headroom. Power calculation guide · Choosing a power supply

Will it fit an aluminium profile, and how dense are the LEDs?

PCB width 10mm (0.39in). Choose a profile whose inner width is at least the PCB width; denser LEDs give a smoother line close to a diffuser. LED aluminium profiles
