DC12V WS2818(Update WS2811) 5050SMD RGB, Breakpoint-continue,300 LEDs Addressable Digital Strip Lights, Waterproof Dream Color Programmable Flexible LED Ribbon Light, 5m/16.4ft per Roll
1. The WS2818 LED strip is addressable light, breakpoint- continue, and can be programmed and controlled by the help of controller.
2. Dual signal line version and signal breakpoint continuous transmission. If a LED damage, the work of other LEDs will not be affected.
3. There is a strong 3M tape backing on the strips, which can be ripped off and stuck to most surfaces.
4. Each lamp bead forms a ring, which can be arbitrarily cut according to the length of the ring without damaging other convenient fixed and stall parts. The flexible cutting operation makes the structure simple, ultra-thin design, low-temperature light source, and the selection of the auxiliary material more flexible, installation energy-saving installation, lower heat, higher brightness, cleaner, lower energy consumption and more beautiful.
5. WS2818 is a three-channel LED driver control circuit, which includes intelligent digital port data latching and signals to shape the amplification drive circuit. It also includes a precision internal oscillator and a 12V programmable constant-current control section for highly consistent color effects and stable performance.
6. WS2818 is similar to WS2811, UCS1903.
Standards and Certifications
Input voltage: DC12V
Power: 14.4watt/meter, 72watt/roll
LED Chip Model: SMD 5050 RGB
LED resource: WS2818 LED
IC Type: WS2818 IC (1 IC drives 3 led chip)
Q'ty of LED: 60 leds/meter Available
Q'ty of IC: 20 pixel/meter

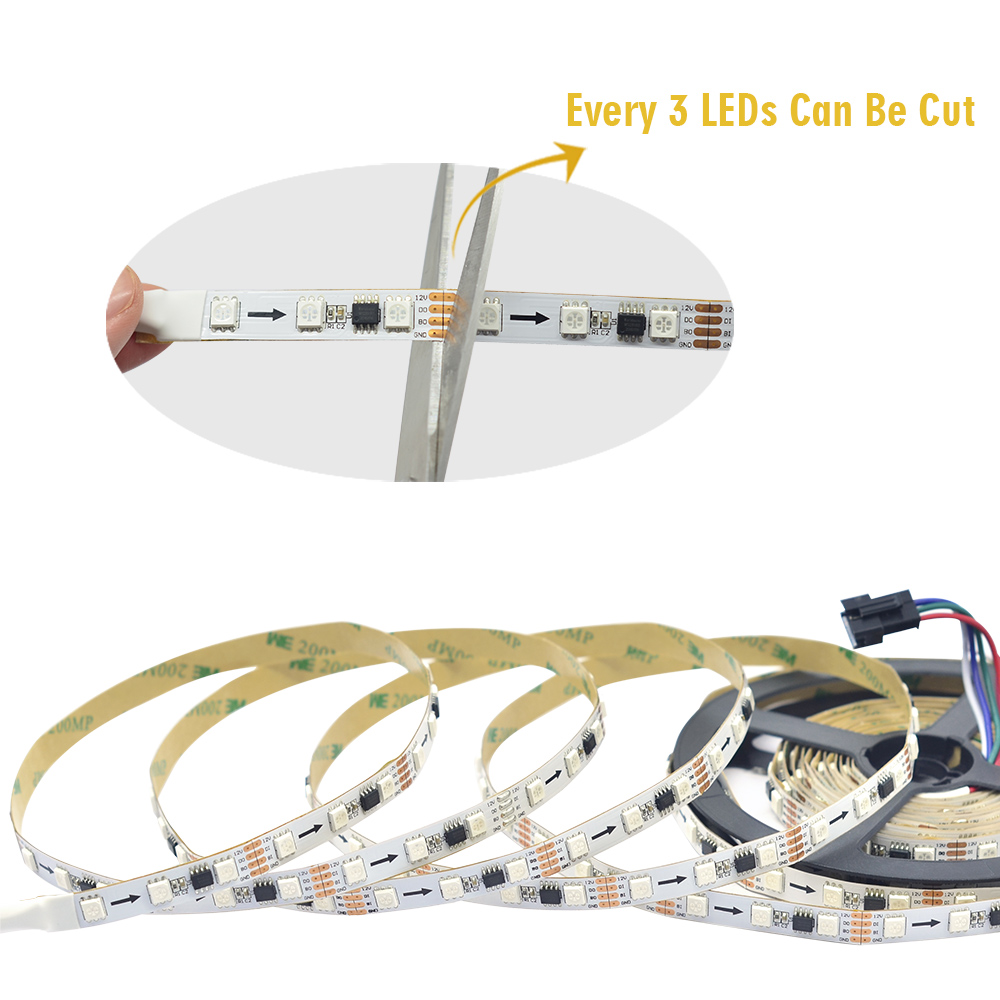

Cuttable: every 3 LED is cuttable
Dimensions: L500cm(196.85 in ) x W1.0cm(0.39 in ) x H0.25cm(0.1 in )
PCB color: WHITE
Protection rate: Non-waterproof or IP 65( gel coating) IP67 waterproof (sealed in silicone tube)
Colors: Full color RGB, dream color changing;
Grey scale: 256
Bits/color: 8-bits/color;total 24bit for RGB color
Average Life (hrs): 50000Hours+
Beam Angle: 120 degrees
Note: Size of IP20: 10mm W* 2.5mm H, Size of IP65/IP67: 12mm W * 4mm H.
Waterproof Level Description
DO: Control data signal output
DI: Control data signal input
BO: Backup control data signal output
BI: a Backup control data signal input
GND: Data &Power Grounding
Strip cut schematic
LED strip wiring diagram
These digital Addressable LED Strips are Applicable to people who would like to pursue fashion and romance, for individual creativity and the new apartment decoration, as its soft, light and thin features very suitable for DIY personal space.
LED programmable digital screen
Hotels decoration lighting
Concealed lighting, Cove decoration
led wall, advertising board
Outdoor advertising signs,
Hotel, KTV, bars,
Wedding party lighting,
