24V 20m 65ft Long Run Addressable RGB LED Strip TM1934A (WS2818)

Name: 24V 20m 65ft Long Run Addressable RGB LED Strip TM1934A (WS2818)
Brand: SuperLightingLED
SKU: TM1934A-20M-24VX60W12
Price: 134.98 CAD
Availability: InStock
Rating: 5 (1 reviews)

Model: TM1934A-20M-24VX60W12 Review stars

5.0 (1 Reviews) Various options in stock

Starting at: Can.$190.62

Qty Discounts Off Price
1-19 Can.$190.62	20-49 Can.$186.81	50-99 Can.$182.99	100+ Can.$179.18
* Discounts may vary based on options below

Select Specifications:

Select Kit:

Select PCB Width:

12mm (0.47in)

Select IC Type:

Select Length:

Select Waterproof Rating:

Qty: -+

Free shipping over $299Ships via DHL / UPSWarranty covered

Accept the project customization, please contact us for commercial offers and technical support.

Product Information

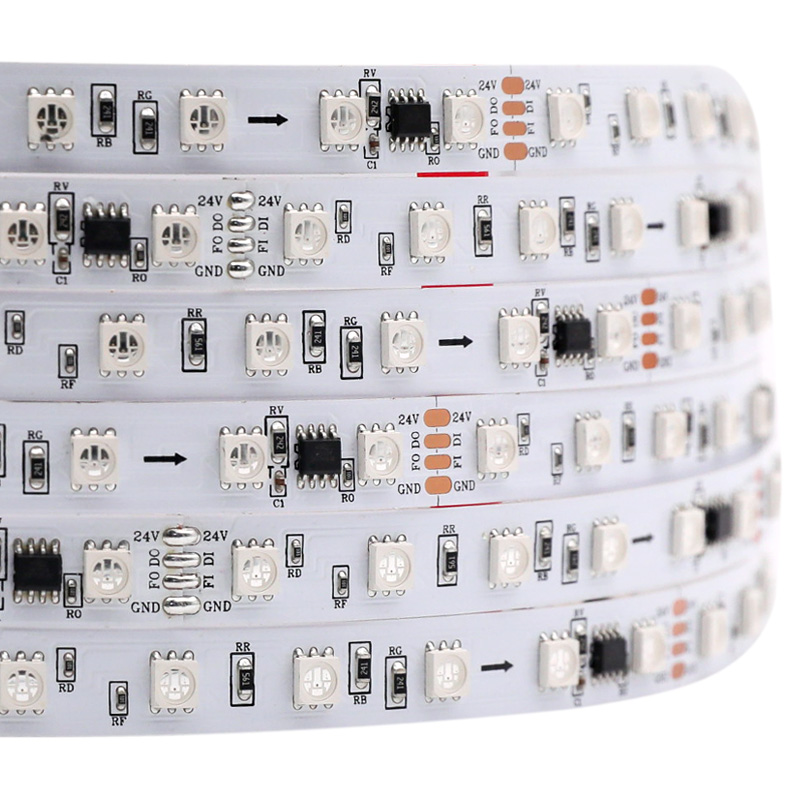

A 20m (65.6ft) long addressable led strip with 60 LEDs per meter, the 5050 RGB LED is controlled by TM1934A external IC, 12mm PCB width. 6 LEDs of the digital 20m 24V led strip lighting can be cut, 100mm/4" cut segment. One TM1934A/WS2818 IC controls 6 LEDs, 10 pixels per meter.

TM1934A is similar to WS2818, with two data transmission wires. Even if one LED is damaged during operation, the RGBIC led strip will continue to operate normally as long as no two adjacent LEDs are damaged. This helps to safeguard the operational stability of projects, especially mega-projects.

This 65ft RGBIC LED strip ensures consistent light color and brightness along its entire 20-meter running length, with no voltage drop (RGB white state with a little). Such a 20m addressable led strip only needs to be powered at one end, reducing the complexity of wiring, ideal for large programmable lighting projects.

Kit: SP638E Bluetooth RGB controller and LRS-350-24 led power supply.

If you need more than 20 meters, please check our long distance rgbic led strip but with 30m 98.4ft and 40m 131ft lengths.

Voltage Drop of 20m Long Run Addressable RGB LED Strip

Seek for a dynamic single white in long length? Please check out our new TM1934 white model.

Seek for a dynamic tunable white in long length? Please check out our new TM1934 2-in-1 CCT model.

Seek for an ultimate tunable white in long length? Please check out our new TM1934 3-in-1 CCT model.

Specifications

Strip Type:	20m 65ft Long Run Addressable RGB LED Strip
LED Chip:	SMD5050 + TM1934A/WS2818 External IC
Input Voltage:	DC24V

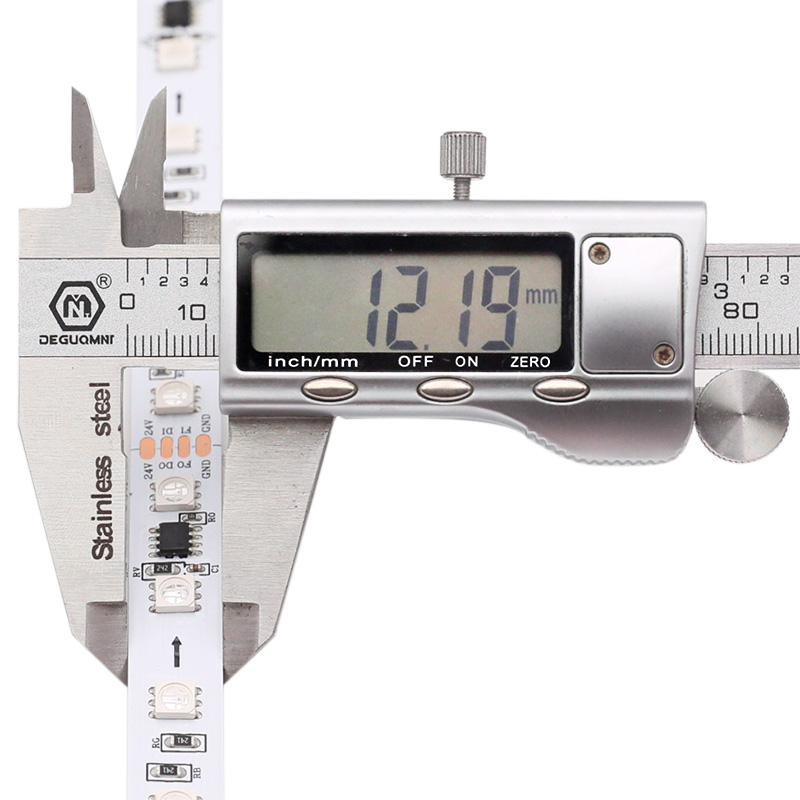

Dimension:	L20,000mmW12mmH2.5mm
LED Color:	RGB
Waterproof Rating:	Non-waterproof IP20, Indoor Waterproof IP65, Outdoor Waterproof IP67 IP68

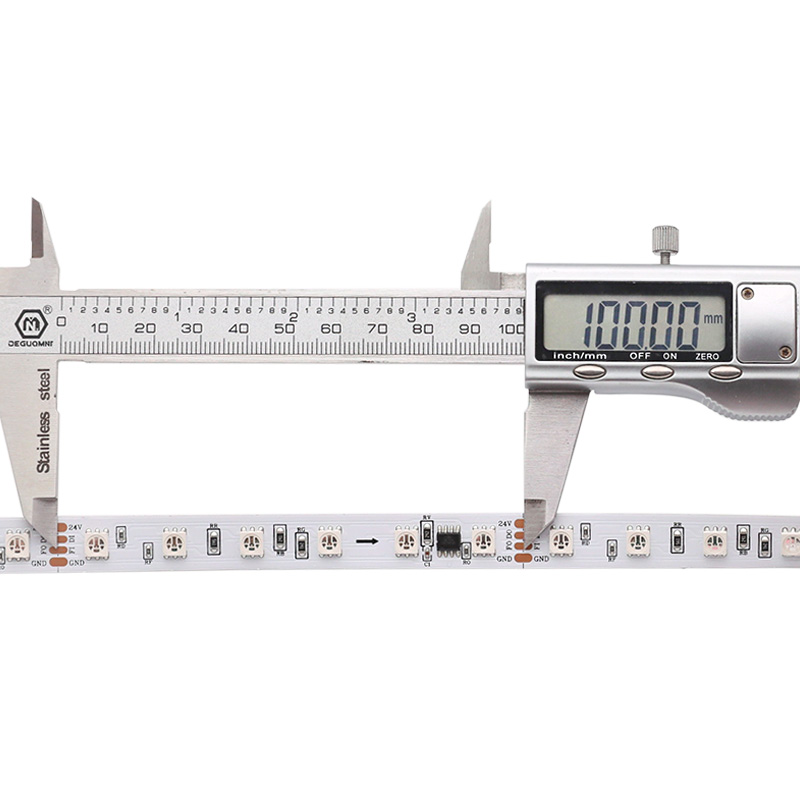

Cut Segment:	100mm(4"), 6 LEDs / 166.67mm(6.56"), 10 LEDs
IC Pixels:	10/m, 200 per 20m, 150 per 15m, 100 per 10m, 50 per 5m or 6/m, 120 per 20m, 90 per 15m, 60 per 10m, 30 per 5m
Power:	10.5W/m, 210W/20m, 157.5W/15m, 105W/10m, 52.5W/5m (10 Pixels/Meter) or 5-6W/m (6 Pixles/Meter)
Max. Running Length (Single-end Power):	20 meters (10 Pixels/Meter with a little voltage drop in the end)
Max. Running Length (Dual-end Power):	40 meters (6 Pixels/Meter)
Beam Angle:	120°
Lifespan:	30,000+hours

TM1934A (WS2818) Breakpoint Continue LED Strip Wiring Diagram:

how to connect ws2813 ws2815 led strip

24V 20m 65ft Long Run Addressable RGB LED Strip TM1934A (WS2818)

Reviews

Customer Experience

Your feedback is important to us! Share your thoughts and photos with other customers.

Write a Review & Upload Photos

Anton Kutukou Verified Customer

01/15/2026

A massive time-saver for large perimeter installations. I specialize in cove lighting installations, and running power injection wires every 5 meters is usually a huge hassle. This 20m (65ft) continuous run strip is a total game-changer. I was skeptical at first about powering the full 20 meters from just one end, but the 24V constant current design actually works. I measured the voltage at the tail end, and there was no visible brightness drop or color shift (pinking) even on full white. The TM1934A chip works perfectly with my standard SPI controllers, and having the backup data line (like WS2818) is essential for commercial jobs where we can't afford failures. This product saved me hours of labor on wiring. Will definitely buy again for the next club project.

Downloads

Files for TM1934A-20M-24VX60W12

PDFTM1934A-20M-24VX60W12 product data sheetFull specifications, dimensions, cut points, wiring and IP options — the same details shown on this page, laid out for printing and engineering review.PDF · generated from the current product page · opens in a new tabOpen PDF

Need this page for a project file or an engineering check? Click Open PDF, then save or print it from your browser. For CAD drawings, IES files or a signed test report, contact our engineers and quote the model number.

Images

These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!

LED Strip Light Guide

Common questions about this type of product, answered against this model’s own options. For full figures see the specification above or the spec sheet for this model.

Which controller does this LED strip light need?

IC on this model: 6 Pixels/Meter · 10 Pixels/Meter. Addressable LED strip lights take a data signal, so they need an SPI (pixel) controller that supports this IC — an ordinary RGB controller will not drive them. Data flows one way: connect the controller to the input end marked with the arrow. Wiring addressable LED strip lights

Do I need power injection?

5 V addressable LED strip lights lose voltage fastest, so longer runs need power fed in at both ends and at intervals along the run; 12 V and 24 V versions carry further. Keep the data line short between controller and first pixel. Choosing an addressable LED strip light

Which waterproof rating should I choose?

Available on this model: Underwater IP68 - Adhesive Back · Outdoor Silicone Tube IP67 - With Brackets · Surface Glued IP65 - Adhesive Back · Non-Waterproof IP20 - Adhesive Back. IP20 is for dry indoor use, IP65 handles splashes, IP67 suits outdoor and wet areas, IP68 is for continuous submersion. Choosing a waterproof rating

Can I cut it to length?

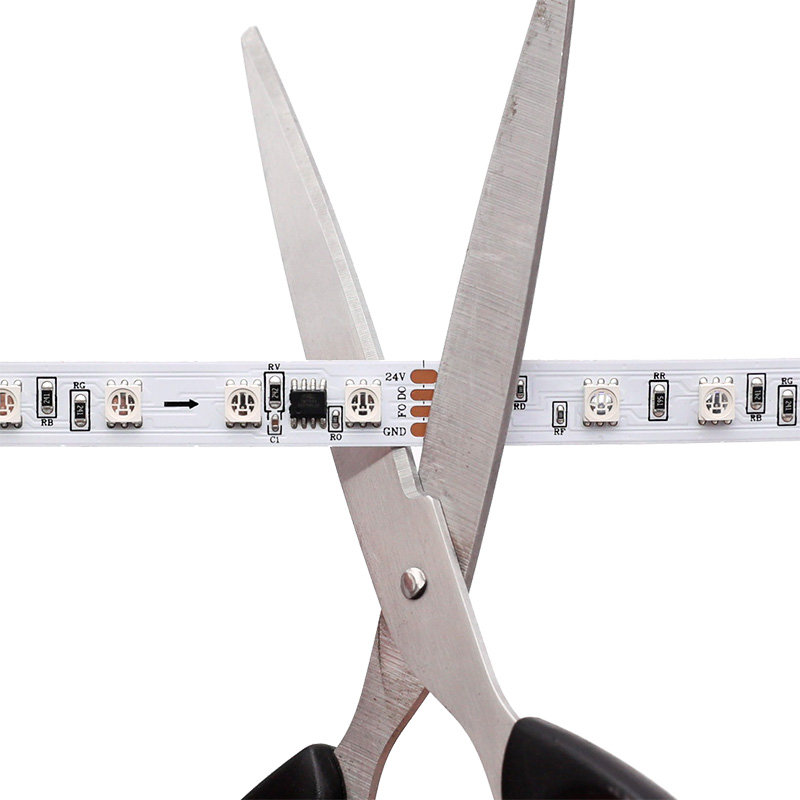

Yes. Cut only on the marked cut lines between the copper pads — the cut interval for this model is on its spec sheet. Rejoin with solder or a solderless connector. Cutting LED strip lights · we can also cut to length and fit your connector before shipping: custom LED strip light assembly.

What size power supply do I need?

Take the watts per metre from the specification above, multiply by the length you are running, then add about 25% headroom. Power calculation guide · Choosing a power supply

Will it fit an aluminium profile, and how dense are the LEDs?

PCB width 12mm (0.47in). Choose a profile whose inner width is at least the PCB width; denser LEDs give a smoother line close to a diffuser. LED aluminium profiles
