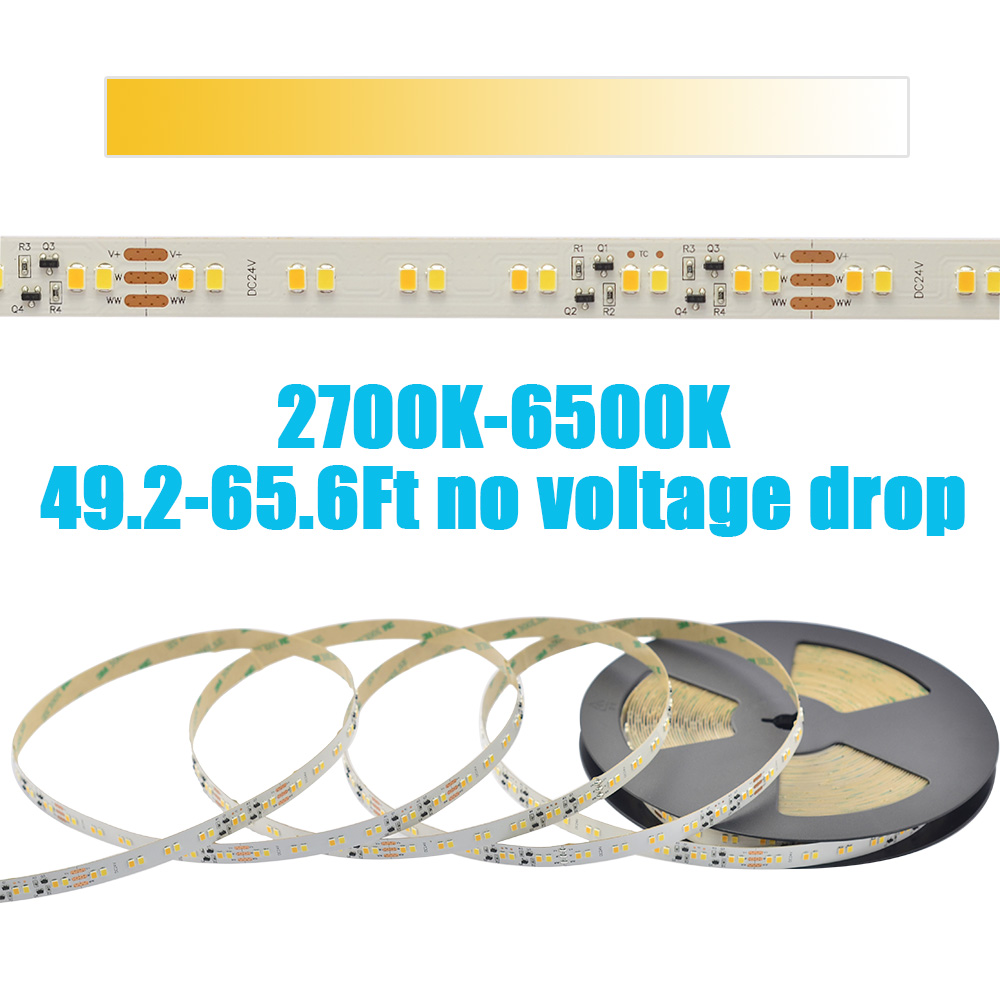

DC24V 2835 Dual white Dimmable LED Light - Constant Current LED lighting - 32.8 to 65.6Ft Optional
Universal dual white color super bright Waterproof optional Dual Chip LED Variable Color Temperature high power LED flexible light strip. 15 meters (49.2Ft) long with 2-chip phosphor 2835SMD(SMD: Surface Mounted Devices) LEDs per unit, 49.2Ft(15 meters) Per Reel.

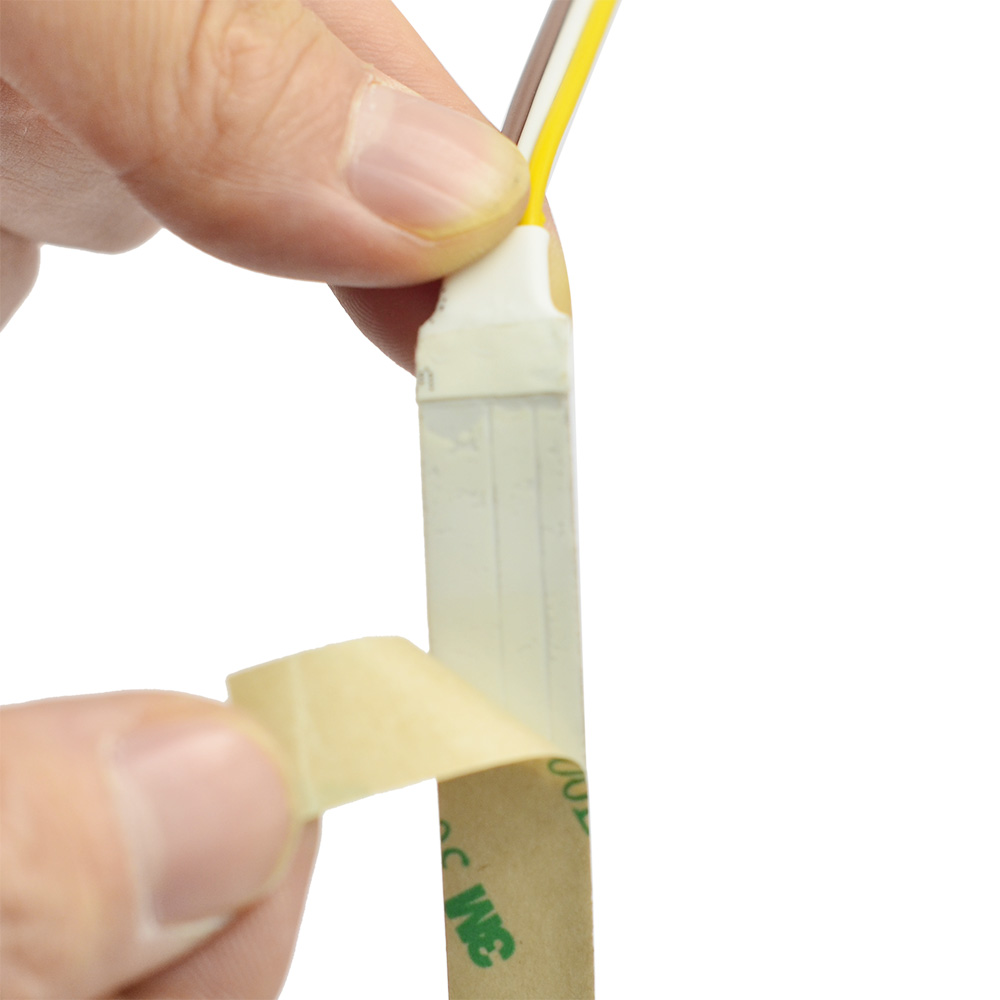

Our flexible LED dual white color light Strips soft and easy bent for installation. Available in 15 meters (49.2Ft) flexible light strips with adhesive backing and can be stuck just about anywhere. Every 6 LEDs can be cut, so you could cut a different length for your project and request. This LED Light strip is perfect for retail shops, supermarkets, museums, galleries, photography or any indoor applications where presentation, appearance and depth of color are critical,this light bar is characterized by the ability to adjust different color temperatures to achieve different requirements for warm and cool colors in the environment, to meet different lighting effects, which not only greatly expands the scope of use of the product, but also reduces costs. Suitable for the average home lighting as well as lighting professionals. High color rendering index (+95 CRI) enhances vibrant colors more than traditional LEDs nearly matching the color quality of incandescents. 24VDC operation. Color temperature can be adjusted with Dual white CCT dimmers (sold separately) from 2800K to 6500K. -Connect LED Dual white CCT Dimmers.
Standards and Certifications
LED Strip Type: 15 meters(49.2Ft ) constant current LED strip light
LED Chip: Epistar Chip
CRI (Ra>): 95+
Working Temperature: -4°F (-20°C) ~ 122°F (50°C)
Storage Temperature: -40°F (-40°C) ~ 176°F (80°C)

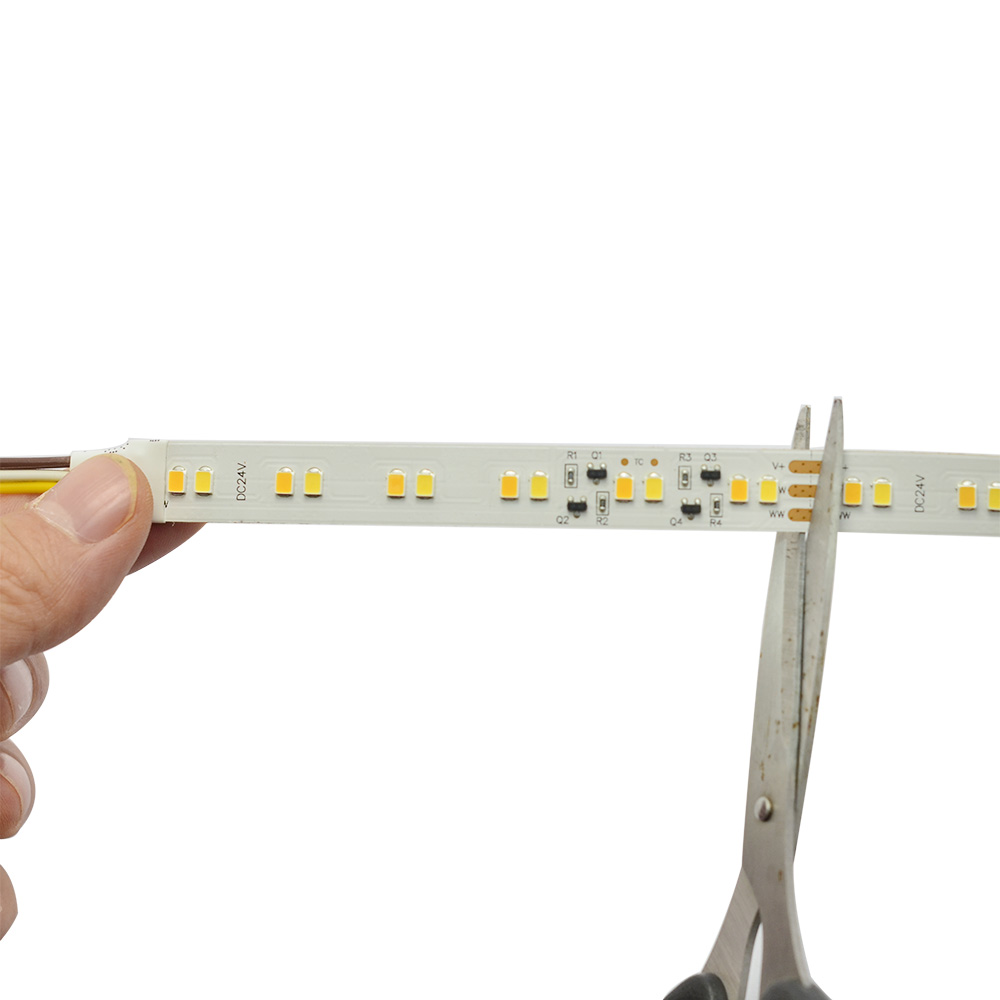

Cut Length: every 6 LEDs can be cut

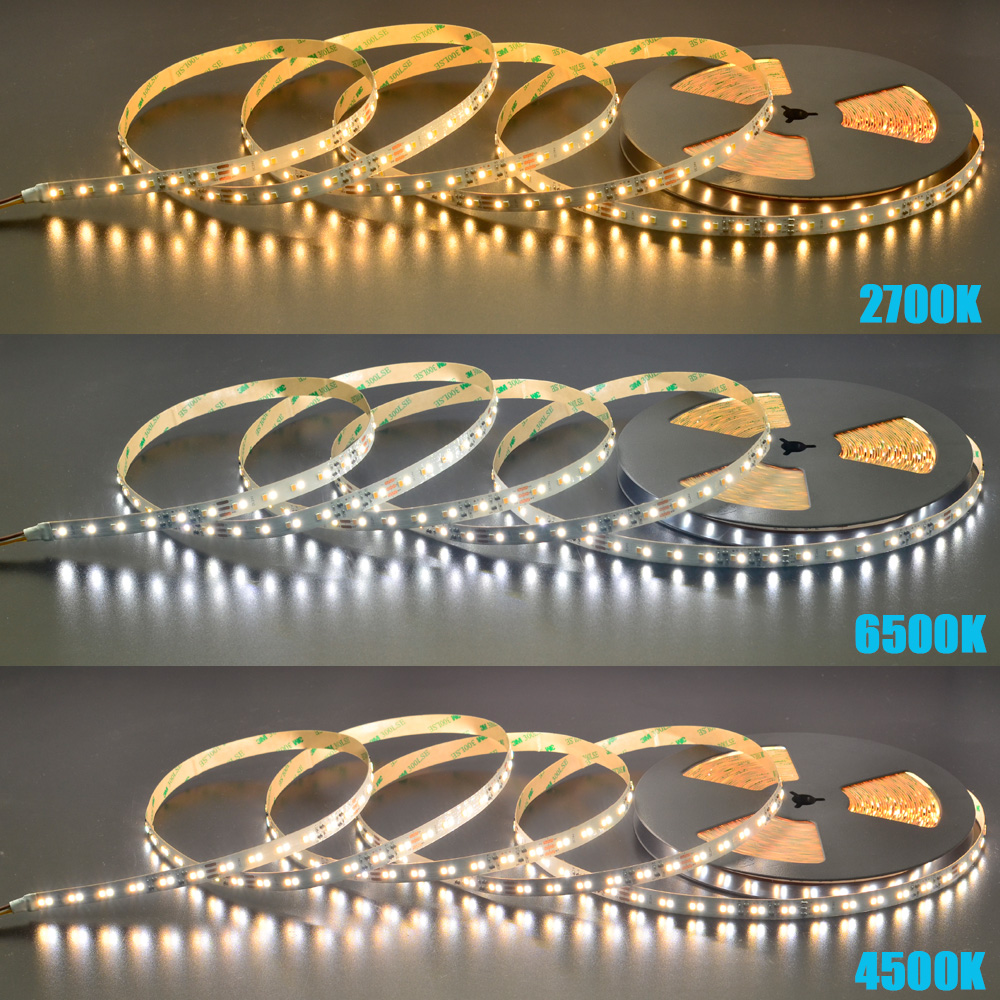

Color Temperature CCT(White): Warm White(2800-3200K), Natural White(4000-4500K), Daylight White(6000-6500K)
LED Quantity: 120 LEDs per 1meter (3.28 ft) ,1800 LEDs /roll
Warranty: 3 years
Input Voltage(V): 24VDC
Working Power: 7.5A 180W /roll 49.2 ft Max
Lamp Luminous Flux(lm): 4.3~4.8LM/LEDs 572LM/meter
Highest Brightness: Up to 174 Lumen/FT
Efficiency up to: 48 lm/Watt

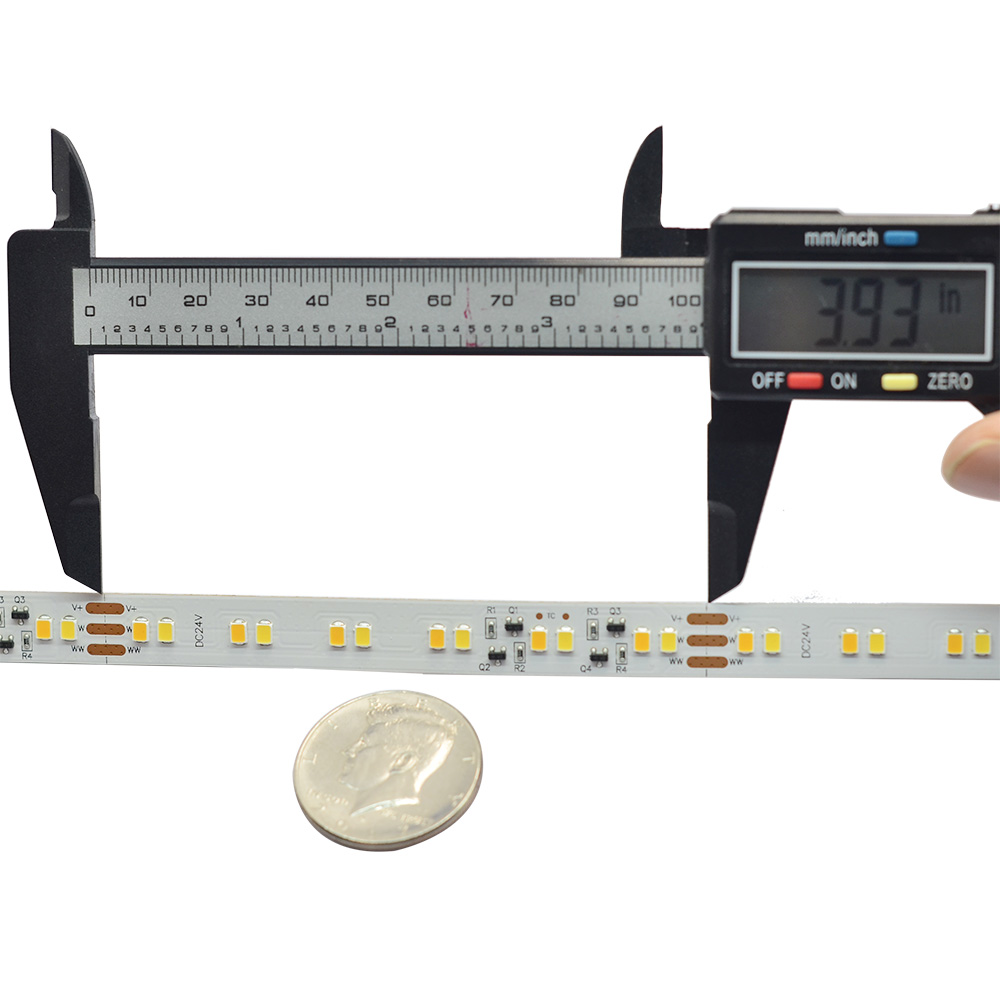

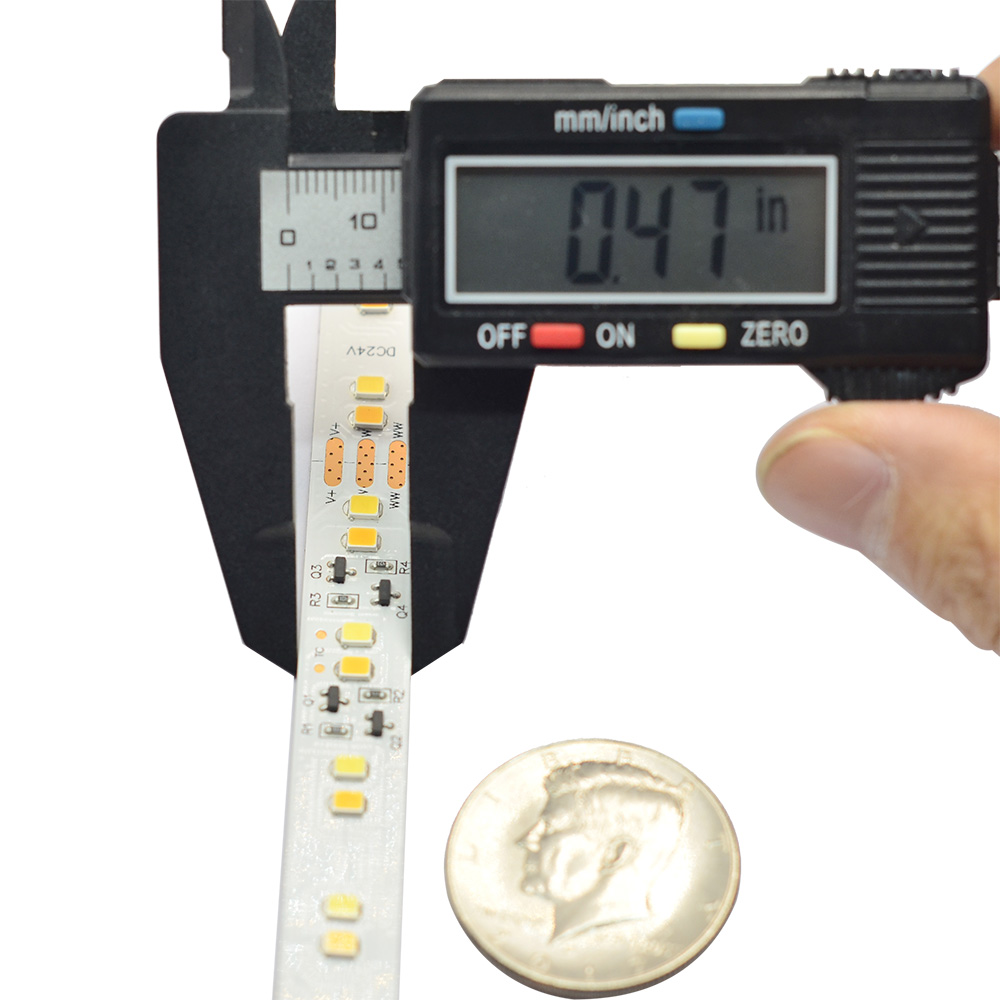

Product size: L15000mm/591in*W12mm/0.47in*H3mm/0.12in 49.2 Ft /Roll
Beam Pattern: 120 degree
Water Proof: IP20 / IP65 / IP67 / IP68
Waterproof Level Description
IP20 Non-waterproof (The PCB [Printed Circuit Board] surface of the bare, with a self-adhesive back, For Indoor);
IP65 Waterproof (Epoxy cover waterproof, Epoxy Resin, PCB surface is encapsulated with plastic Gel, with self-adhesive 3M back, For Outdoor & Indoor) ;
IP67 Waterproof (Silicon sleeve waterproof, PCB is encapsulated with silicon tube, with a plastic fastener, better waterproof, For Outdoor);
IP68 Waterproof (Fully waterproof plastic irrigation, PCB both surface and back are encapsulated with plastic Gel, with a plastic fastener, the top level of waterproof, For Outdoor);
The waterproof grade of IP65, IP67, and IP68 will affect the color temperature due to the material problem, resulting in an increase of about 1000K. If you want to purchase the waterproof LED strips and have requirements on the color temperature, please note when placing the order.
Color Temperature And CRI
CRI (Color Rendering Index) is a measure of how well a particular light source renders vivid, natural color. Lamps, led tubes, or led bulbs with an index of greater than 90 are generally considered High CRI light sources, and will make food, jewels, or any other product come alive with bright, natural color.
16.4/32.8/49.2 feet (5/10/15meter) Connection diagram
