Product Information

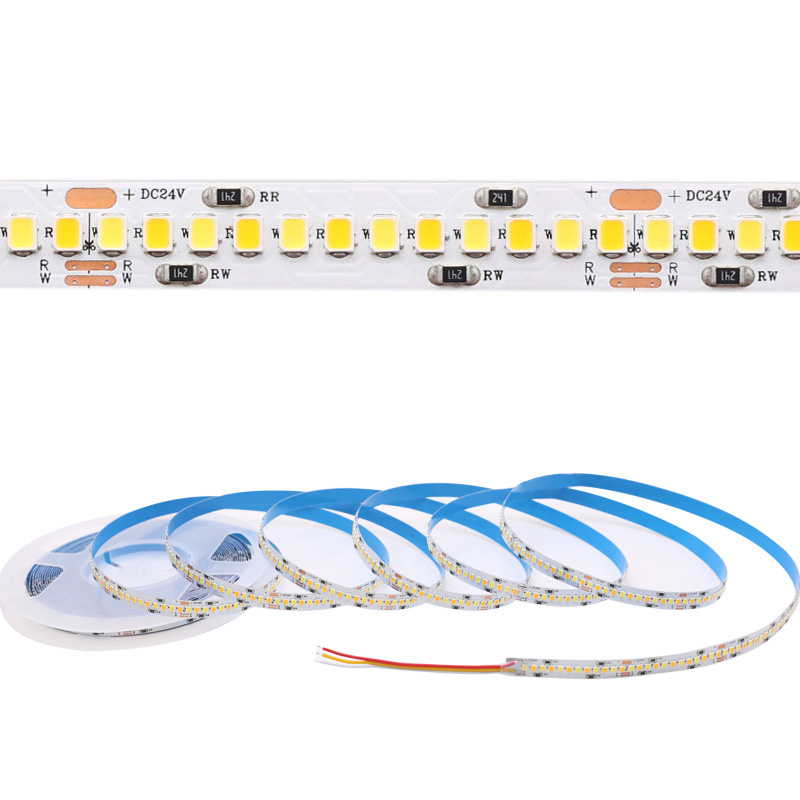

This is our highest density 2835 tunable white led strip 24V, with 120 warm white LEDs and 120 daylight LEDs per meter. The 240LEDs/m high-density SMD 2835 LED arrangement allows for a more uniform single warm lighting or cool lighting illumination and natural white lighting when lit with these two color temperature LEDs, while providing higher brightness.

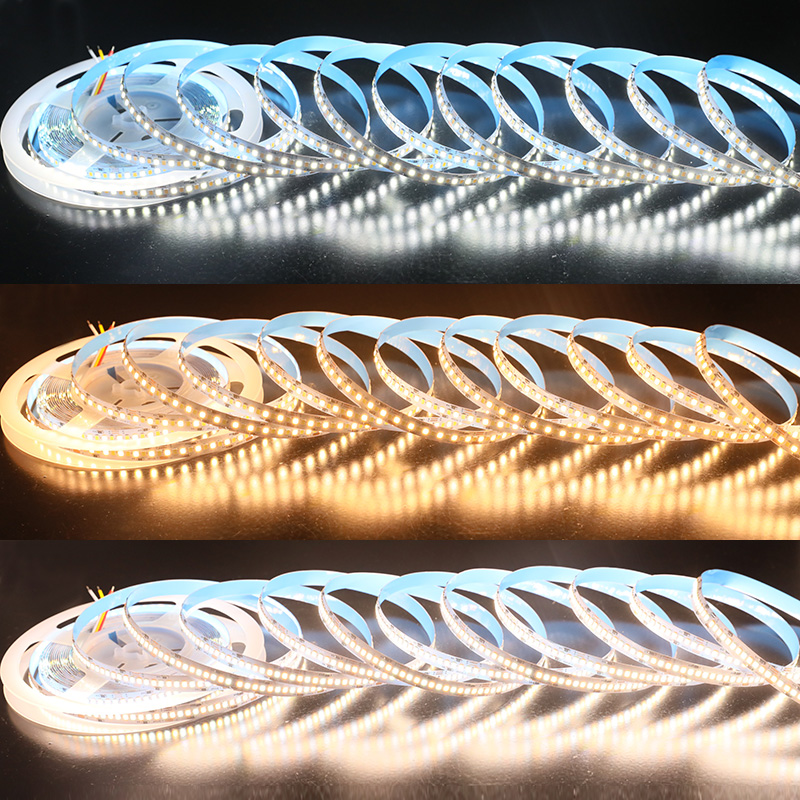

By blending warm white and cool white LEDs together, the led 2835 color temperature strip regulates the brightness of both LEDs to create a variety of color temperatures, typically in the range of 2800K-6500K, making it adaptable in different scenarios. Soldering is recommended to connect two sections of this dense CCT led strip.
Kit: PWM-CCT-SP632E Bluetooth tunable white led controller, LRS-350-24 Mean Well led power supply.
Product Specification
| LED Strip Type: | 2835 Color Temperature Adjustable LED Strip |
| CRI: | Ra>80 |
| Input Voltage: | DC24V |
| Power: | 22W/m, 11W/CH |
| Working Temperature: | -20℃~+45℃ |
| Storage Temperature: | -20℃~+60℃ |
| LED Color: | CCT Tunable, 2800K-6500K color temp |

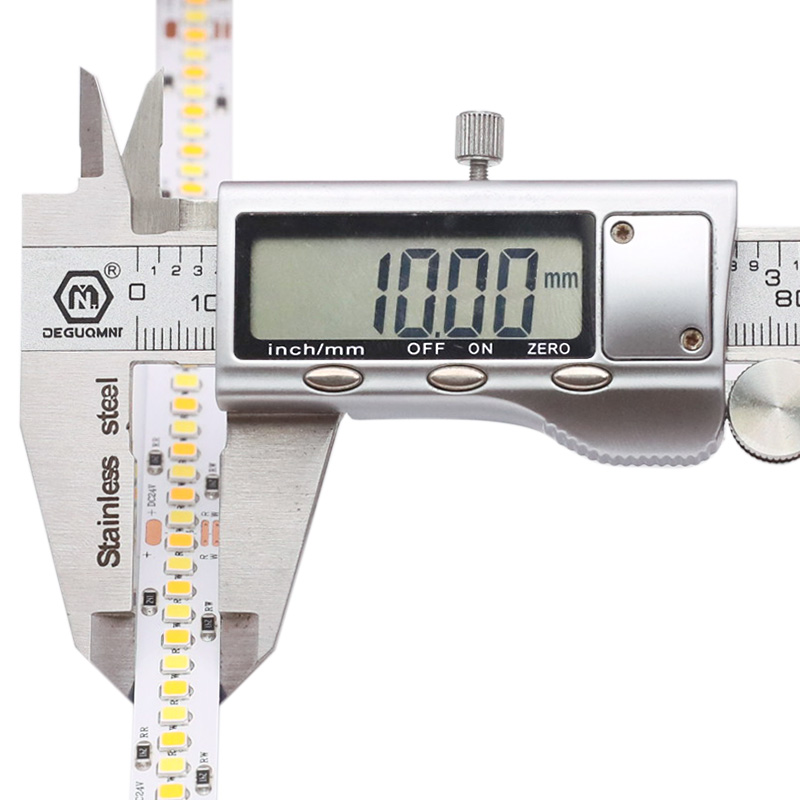

| PCB Width: | 10mm/0.4" |
| LED Quantity: | 240LEDs/m, 1200LEDs/16.4ft |
| Waterproof Rating: | Non-waterproof IP20 / Waterproof IP65 IP67 IP68 |

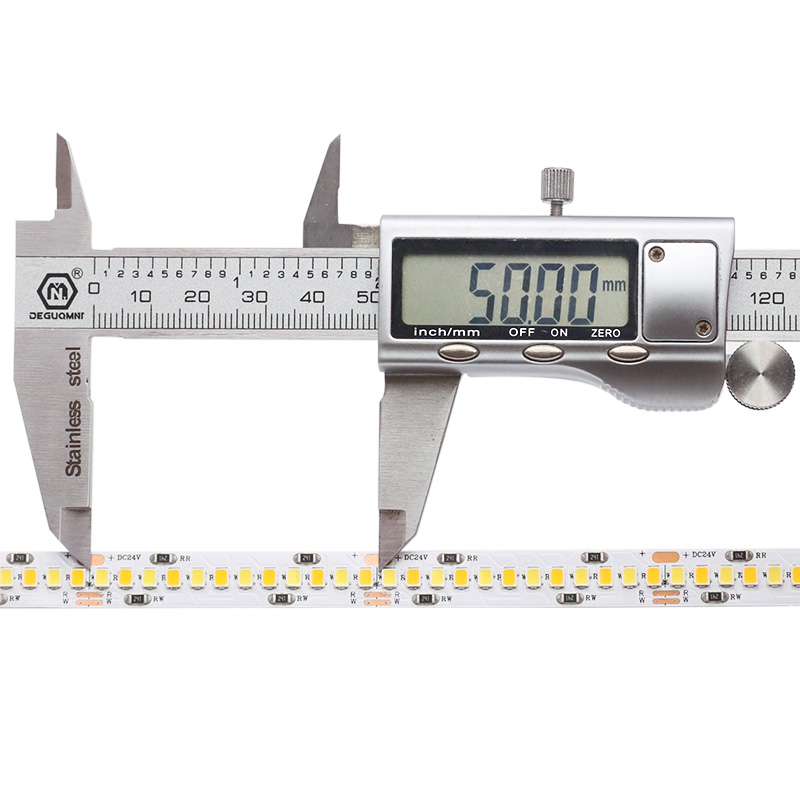

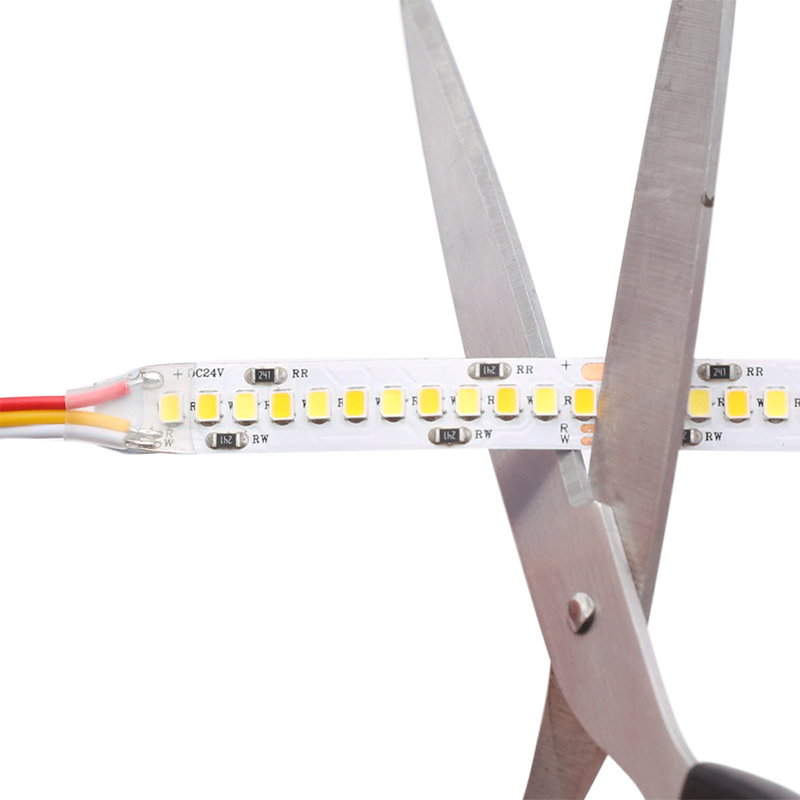

| Cuttable: | 50mm/2" |
| Lumen: | 7-9lm/LED |
| Lifespan: | 50,000 hours + |
| Beam Angle: | 120° |
| Strip Length: | 10m / 5m |
Reviews
Customer Experience
Your feedback is important to us! Share your thoughts and photos with other customers.
Downloads
Files for FSLSR-CCT-2835X1200W10Images
These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!
LED Strip Light Guide
Common questions about this type of product, answered against this model’s own options. For full figures see the specification above or the spec sheet for this model.
