RGB+CCT Color Changing Lights - 216LEDs/m High Density LED Strip - 10mm 24V Super Bright

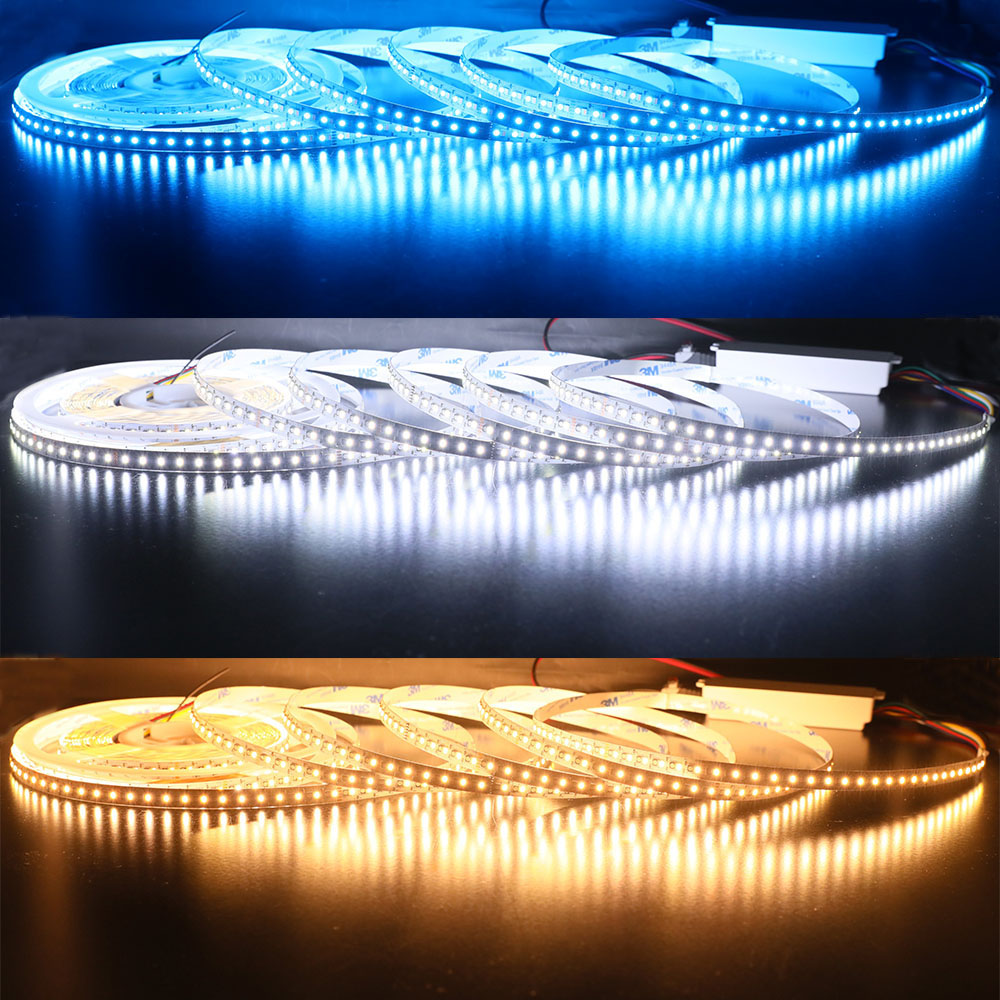

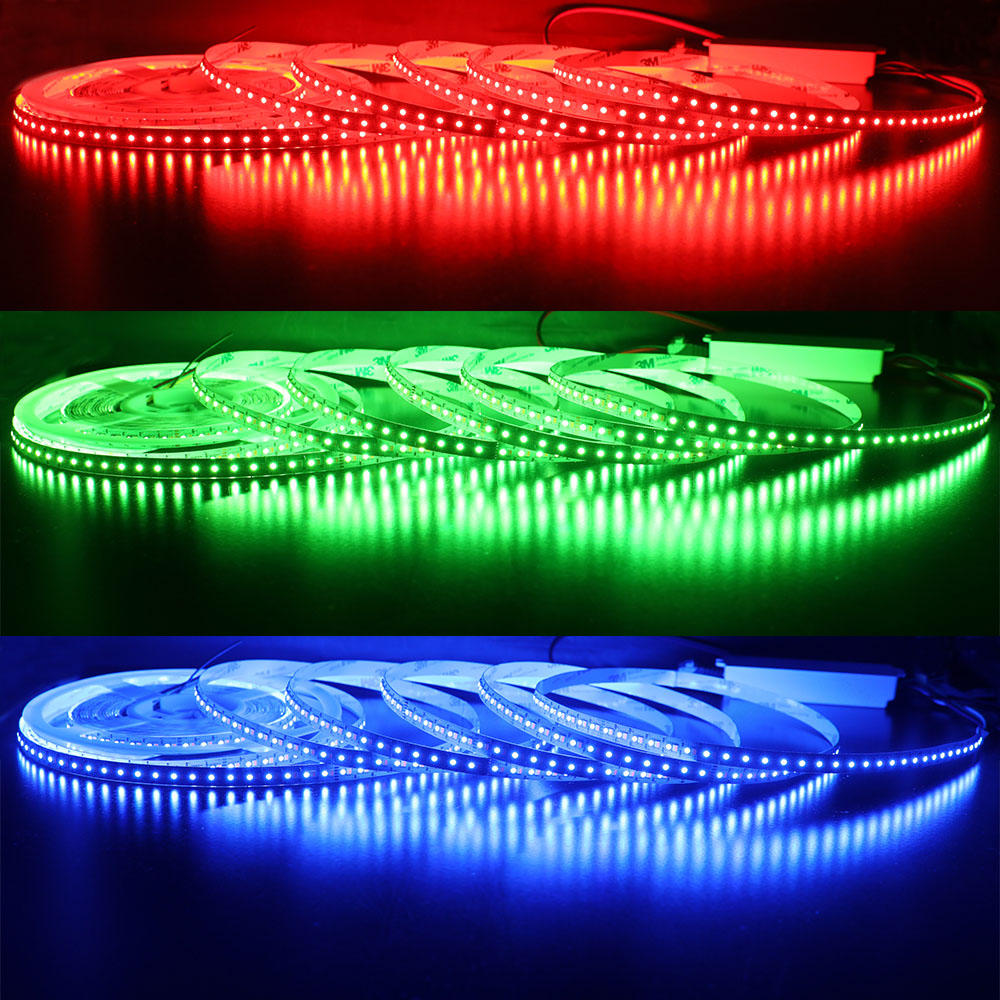

Check this 10mm wide flexible led strip light with color changing RGB light and white light color temperature from 2800K warm white to 6500K pure white, create various lighting effects for your installation.

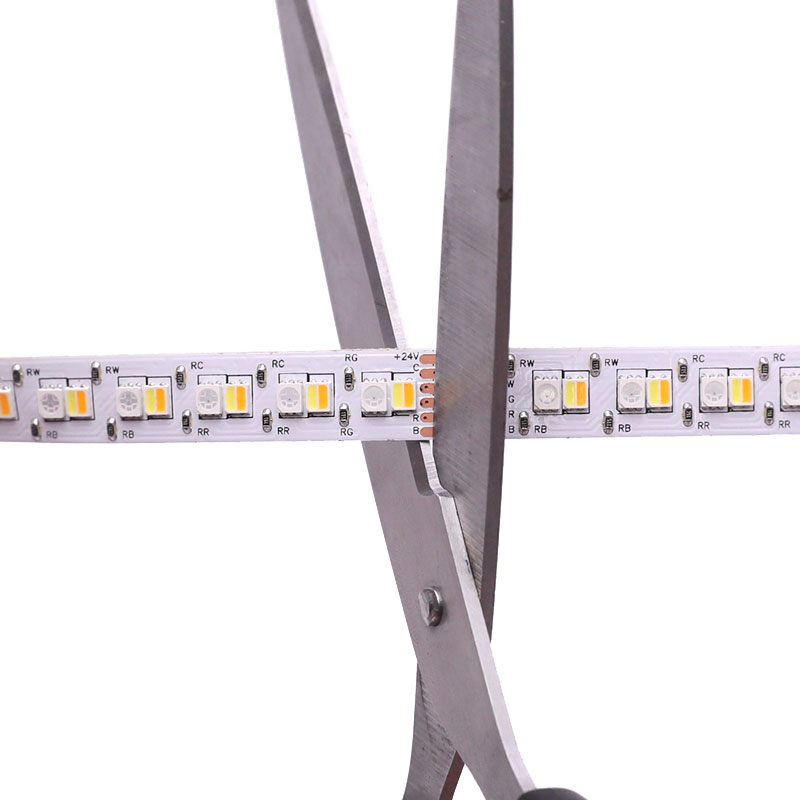

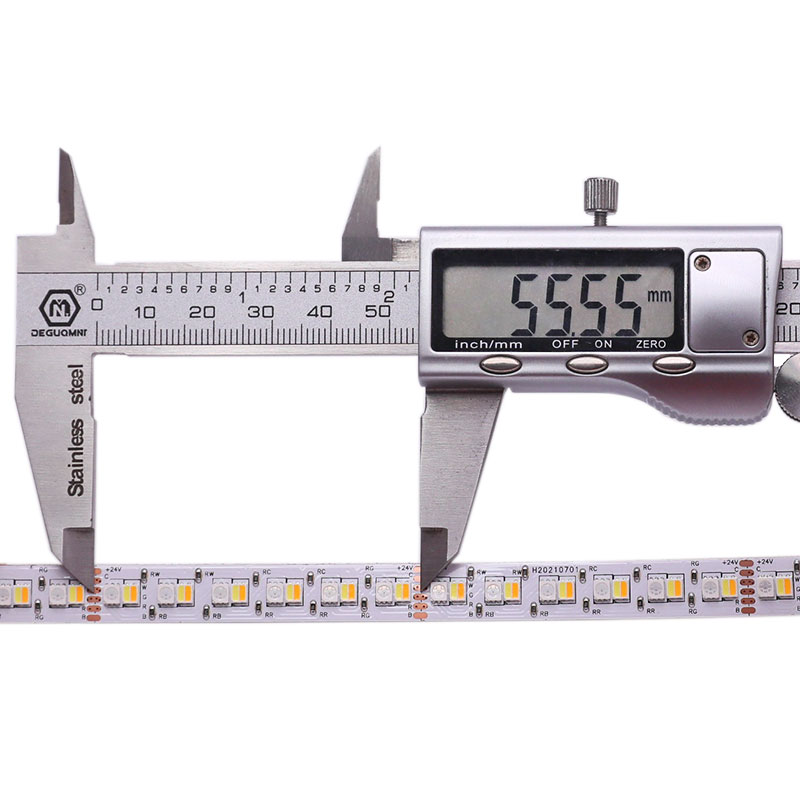

This RGBWW led strip uses 2835SMD RGB LED and SMD2835 2 in 1 white LED, 12 LEDs/55.55mm can be cut, 216 LEDs per meter, high density, super bright LED lights. DC24V drive, less voltage drop, best choice for low-voltage long running strip light projects. Good flexibility, it can be used on uneven or curved surfaces, fits your installation location well.
We provide 5m/16.4ft and 10m/32.8ft length options to suit your LED project. IP20 rating of this RGBCCT led light strip is non-waterproof, just for indoor use, peel off the 3M tape and stick the led strip to the place you want to install, while IP67 waterproof rating RGBCW led strip lighting can be outdoor use, fixed by mounting clips.
Standards and Certifications
|LED Strip Type:||SMD 2835 RGB+CCT 1080LEDs/16.4ft|
|LED Chip:||Epistar Chip|
|Working Temperature:||-4°F (-20°C) ~ 122°F (50°C)|
|Storage Temperature:||-40°F (-40°C) ~ 176°F (80°C)|
|Light Color:||RGBCCT (RGB multi color + 2700K-6500K CCT white light color)|
|Dimension:||16.4ft/roll, every 12 PCS LED can be cut|
|LED Quantity:||216 LEDs per 1meter (3.28 ft)|

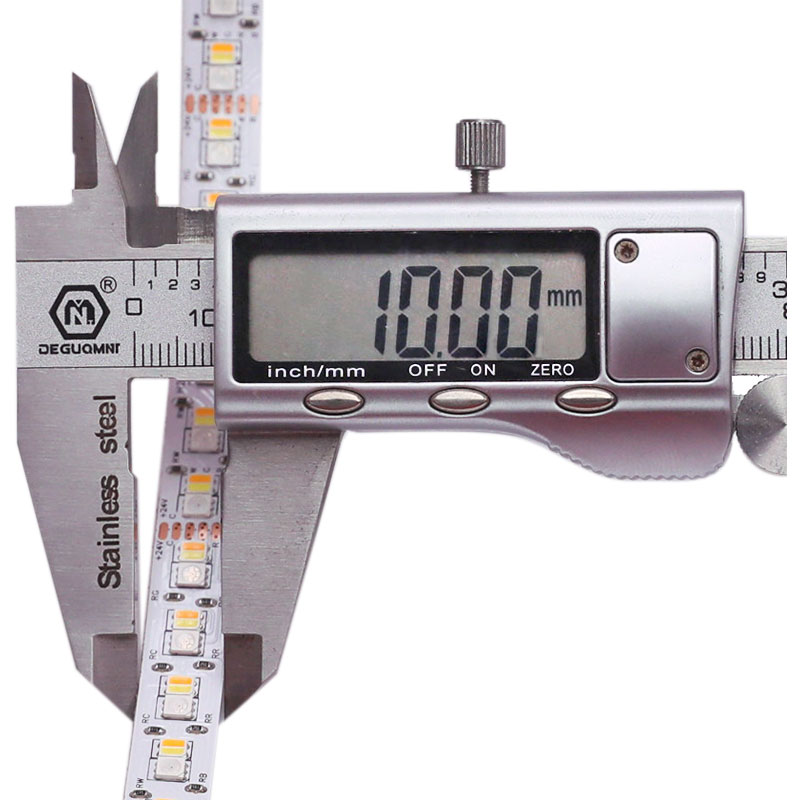

|Strip Width:||10mm (0.39in)|
|Input Voltage(V):||24 VDC|
|Working Power:||132W /16.4ft Max → Informations About LED Power Supply|
|Lamp Luminous Flux(lm):||12-14Lumen/LED|
|Beam Pattern:||120 degree|
|Waterproof Rating:||Non-waterproof IP20, waterproof IP65 IP67 IP68|
1. RGBCCT led strip wiring diagram:
3. Installing led strip lights: - How To Install LED Strip Lights?
LED Task Lighting
Retail LED lighting
Sign illumination LEDs
Automotive accent lighting
Display case and accent lighting
