24V Constant Current SMD2835 120LEDs/m 20m/65.6ft Long White LED Strip Light
Related Products
24V Constant Current...
$68.98DC24V 200W TRIAC 0/1-10V...
$59.98360° AC PIR Motion...
$9.982 Pin L Shape Solderless...
$0.59WB5 WIFI & Bluetooth 5in1...
$22.98= Shape 2Pin...
$0.29Mean Well LRS-200-24 ...
$39.00 $36.985% off-
Special Price: $68.98
Constant Current Series Long LED Light Strip, 120 LEDs per meter (36 per foot), the entire 20m/65.6ft white strip light is no voltage drop (consistent brightness from beginning to end) with one end power injection. It makes long strip light connections easy and less wiring on larger LED lighting projects.

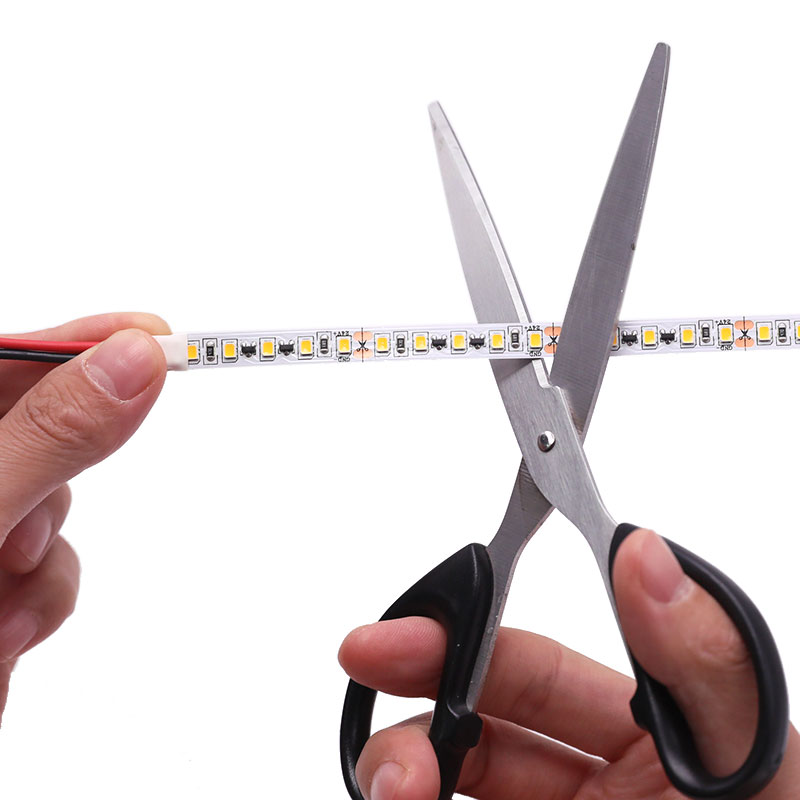

SMD2835 led strip is efficient, with low power output and high lumen output. 24VDC power input, this strip light can be dimmed using a low voltage PWM dimmer or dimmable power supply (note that the controller and driver have enough capacity to run the long strip). Can be cut and re-connected every 1.64" (41.6mm). See our 2pin LED connectors sold separately.
Standards and Certifications
Product Specification
LED Strip Type: | 20m/65.6ft Constant Current Long LED Light Strip |
LED Chip: | 2835 SMD LED |
CRI (Ra>): | 80 |
Lamp Luminous Flux(lm): | 5-6 lm/LEDs |
Working Temperature: | -4°F (-20°C) ~ 122°F (50°C) |
Storage Temperature: | -40°F (-40°C) ~ 176°F (80°C) |
Color Temperature: | Warm White(3000K), Natural White(4000K), Daylight White(6000K) |
LED Quantity: | 120LEDs/m, 2400LEDs/roll |

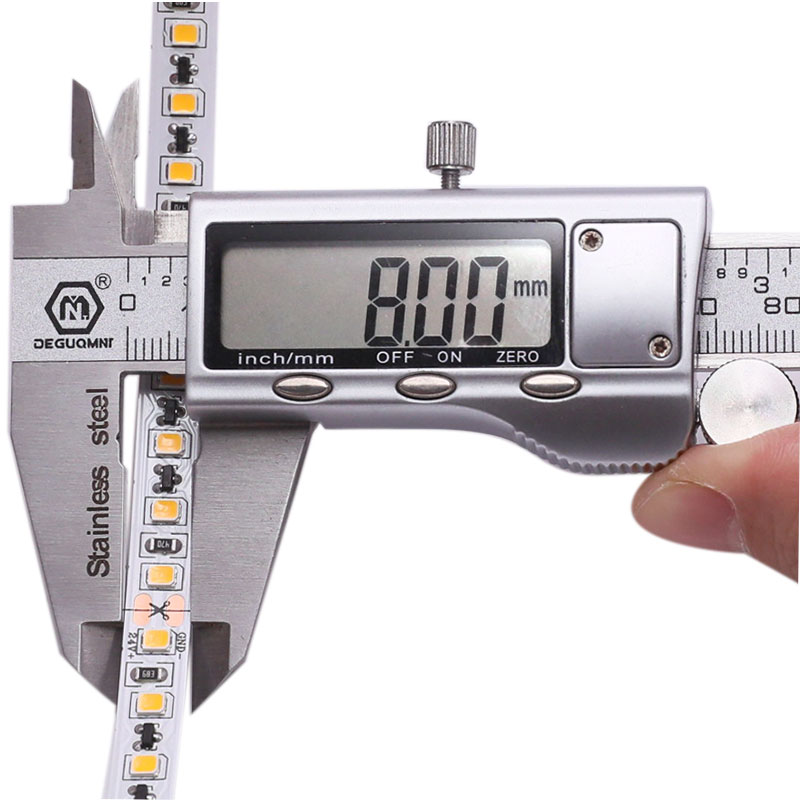

PCB Wide: | 8mm/0.31" |
Input Voltage(V): | 24VDC |
Working Power: | 8W/m, 160W/roll |

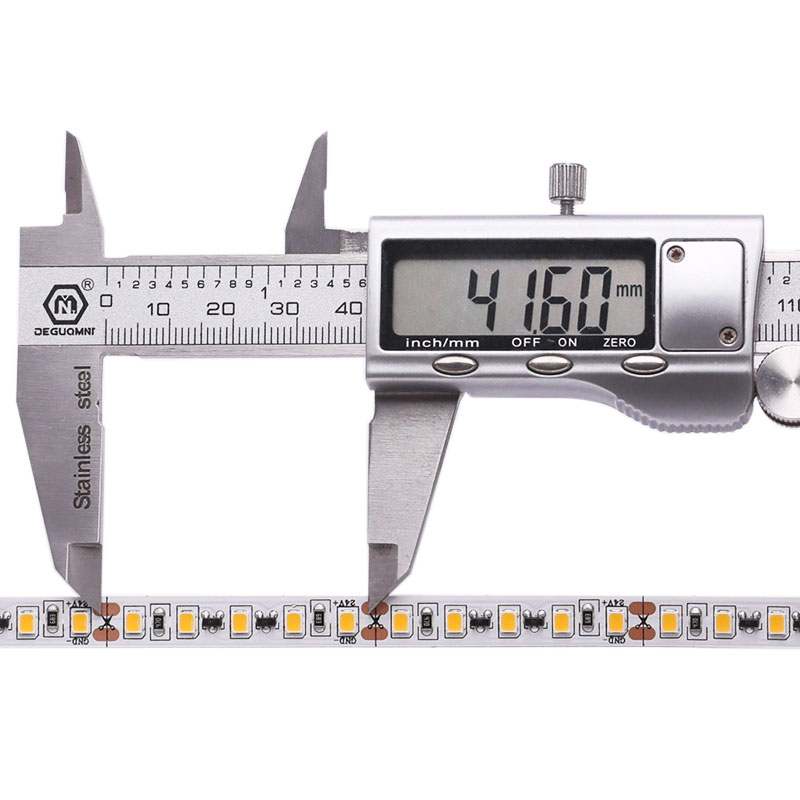

Cuttable: | 5 lights, 41.6mm/1.64" |
Beam Pattern: | 120 degrees |
Waterproof Rating: | IP20 / IP65 / IP67 / IP68 |
*The waterproof material of IP65, IP67, and IP68 led strips will affect the LED color temperature, and resulting in an increase of about 1000K.
How To Wire White LED Strip Lights?
1. Using a DC dimmer:
2. Dimming through a dimmable power supply:
3000K Color Temperature Light:
These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!
