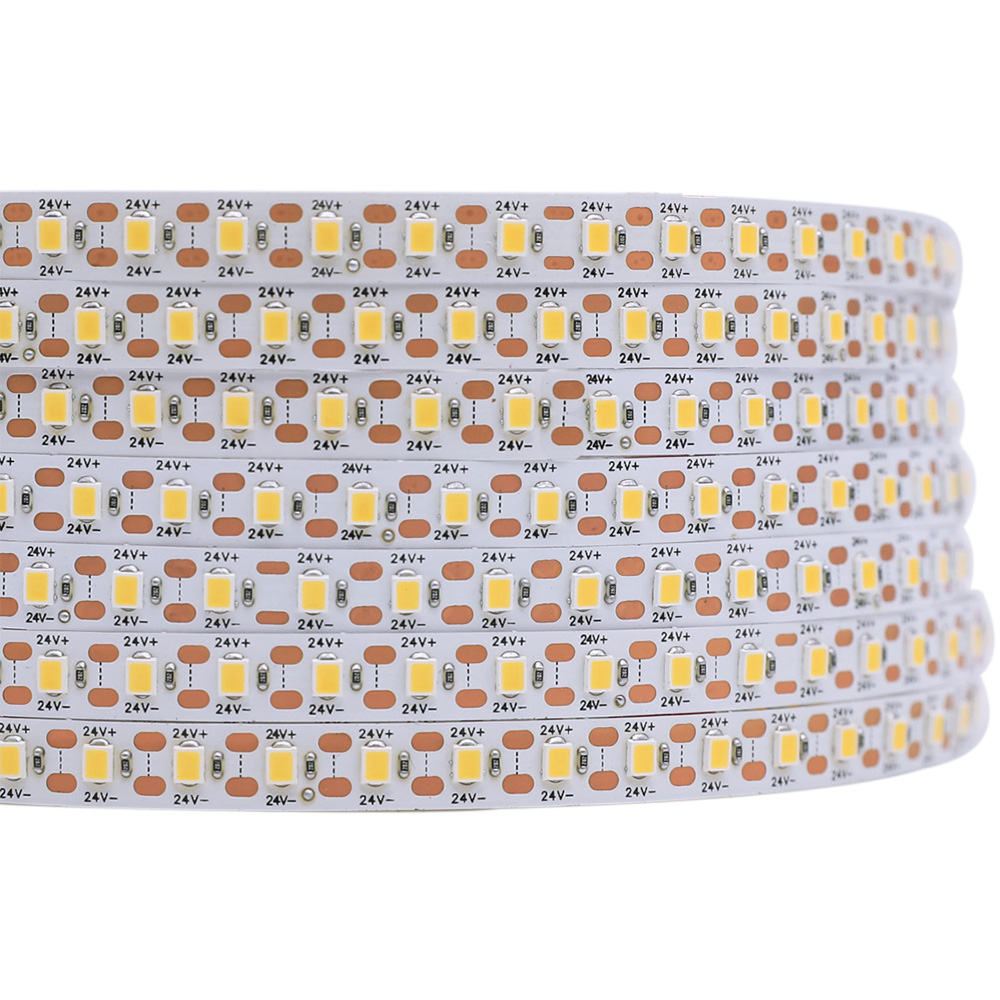

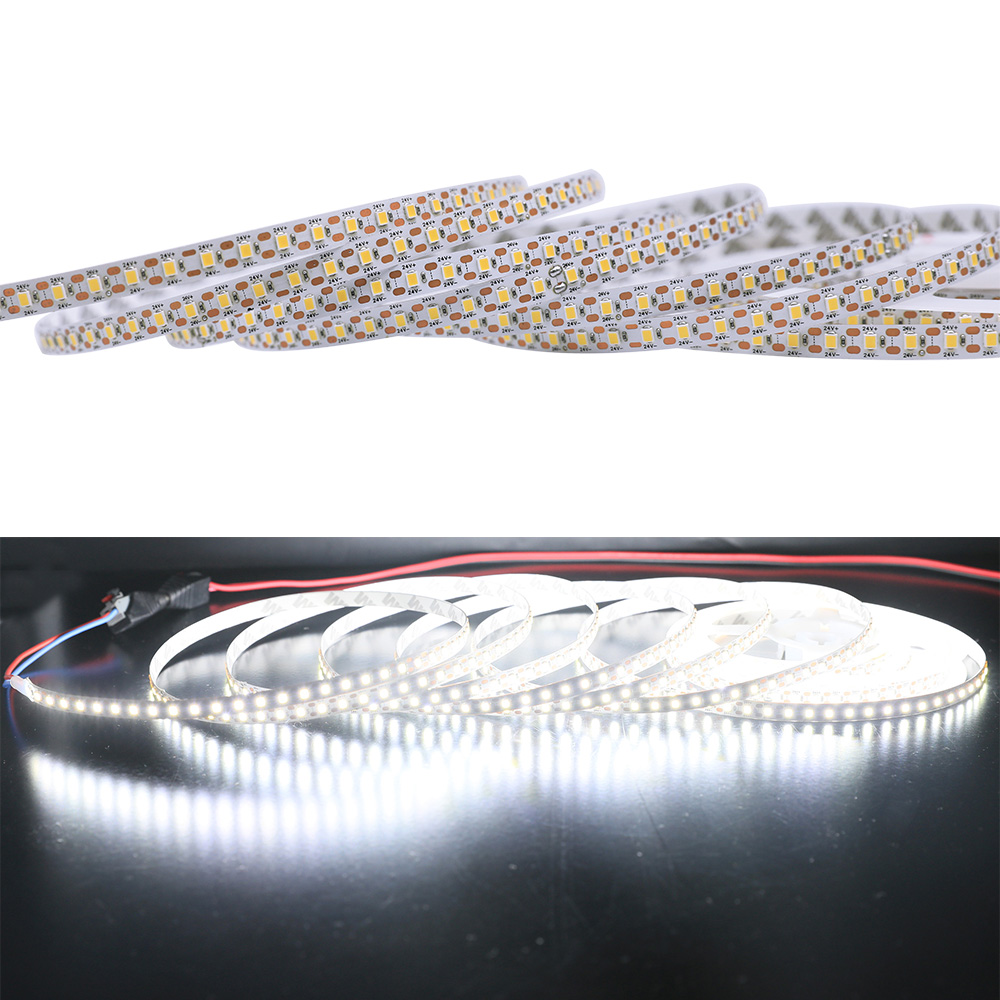

DC24V 2835SMD 600LEDs 8mm White LED Light Strip
24V white led strip runs longer than 12V white led light strip in the same power. 24V low voltage white led strip lights should choose the 24V DC led power supply and 24V LED dimmer to light or dim the strip, not compatible with the 12V white led light strips. This 2835SMD LED strip emits white light, 8mm/0.31in wide, have 600LEDs in 5m/16.4ft. Its biggest feature is that single LED can be cut, perfectly suit your required length in LED project. And it is the best led strip light to installed in the led neon flex silicone tube, you don't have to worry that you will break the led light strip when you cut the led neon lights, even if you cut it wrong, it is only the loss of an LED light, and it will not have much impact on your project.
Color temperature 3000K warm white or 6000K daylight white(pure white) optional. Different waterproof rating is suitable for different installation places. IP20 non-waterproof white LED light strips are suitable for indoor use, while IP67 white LED strips are outdoor waterproof.
|Product Feature||LED Light Strip Applications|
• Single LED Cuttable
• SMD2835 LED chip
• Rectangular phosphor film
• High density 120LEDs/m, 600LEDs/Roll
• 8mm/0.31in wide PCB suitable for narrow space
• High brightness and high quality PCB
• 3M tape, easy installation
• DC24V input voltage, safety and high efficienty
LED Task Lighting
Exhibition Lighting, Art Gallery Lighting, Museum Lighting
Retail Shop Lighting
Indoor Photography Lighting
Studio Office Lighting
Energy Efficient New Construction Cove Lighting
Standards and Certifications
LED Strip Type: 2835SMD
LED Chip: Epistar super brights Chip
Working Temperature: -4°F (-20°C) ~ 122°F (50°C)
Storage Temperature: -40°F (-40°C) ~ 176°F (80°C)
Light Color: Warm White(3000K), Daylight White(6000K)
LED Quantity: 120LEDs/M, 600LEDs/Roll

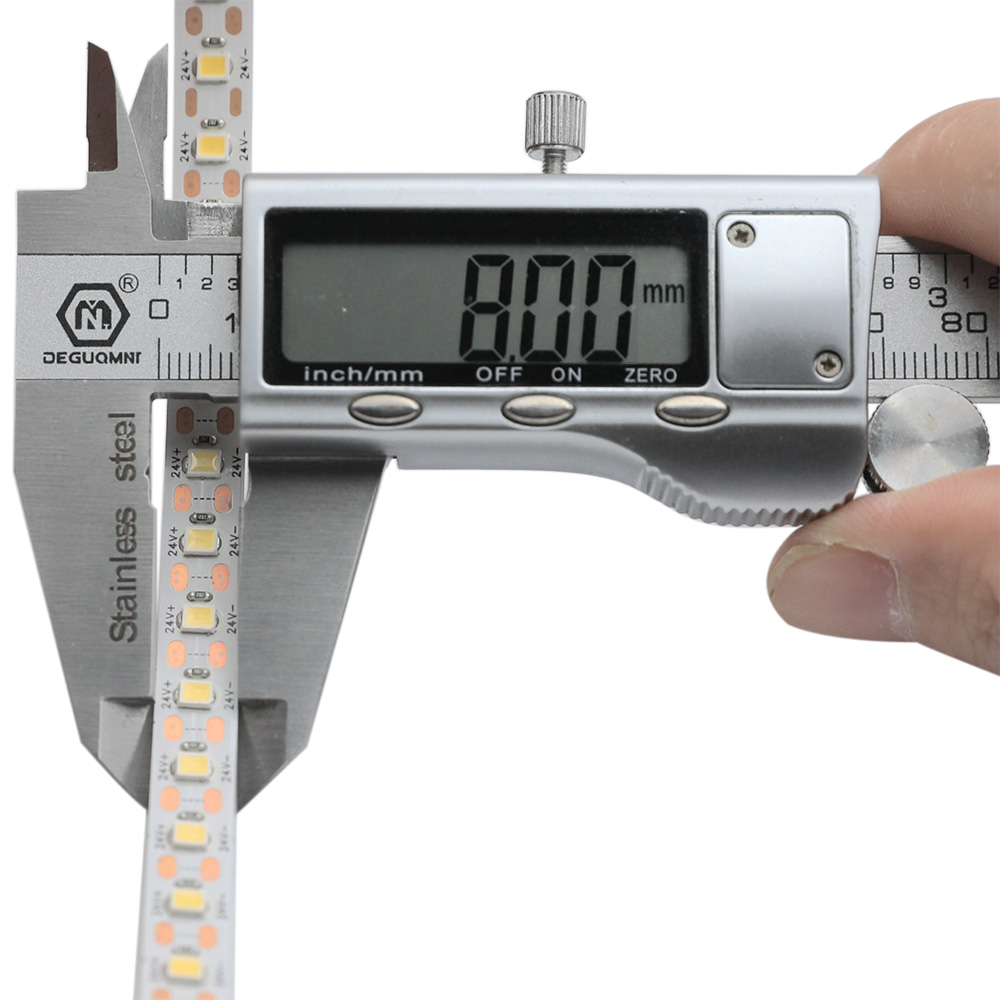

PCB Wide: 8mm/0.31in
Input Voltage(V): 24VDC
Working Power: 75W/Roll Max
Beam Pattern: 120 degrees
CRI (Ra>): 95+

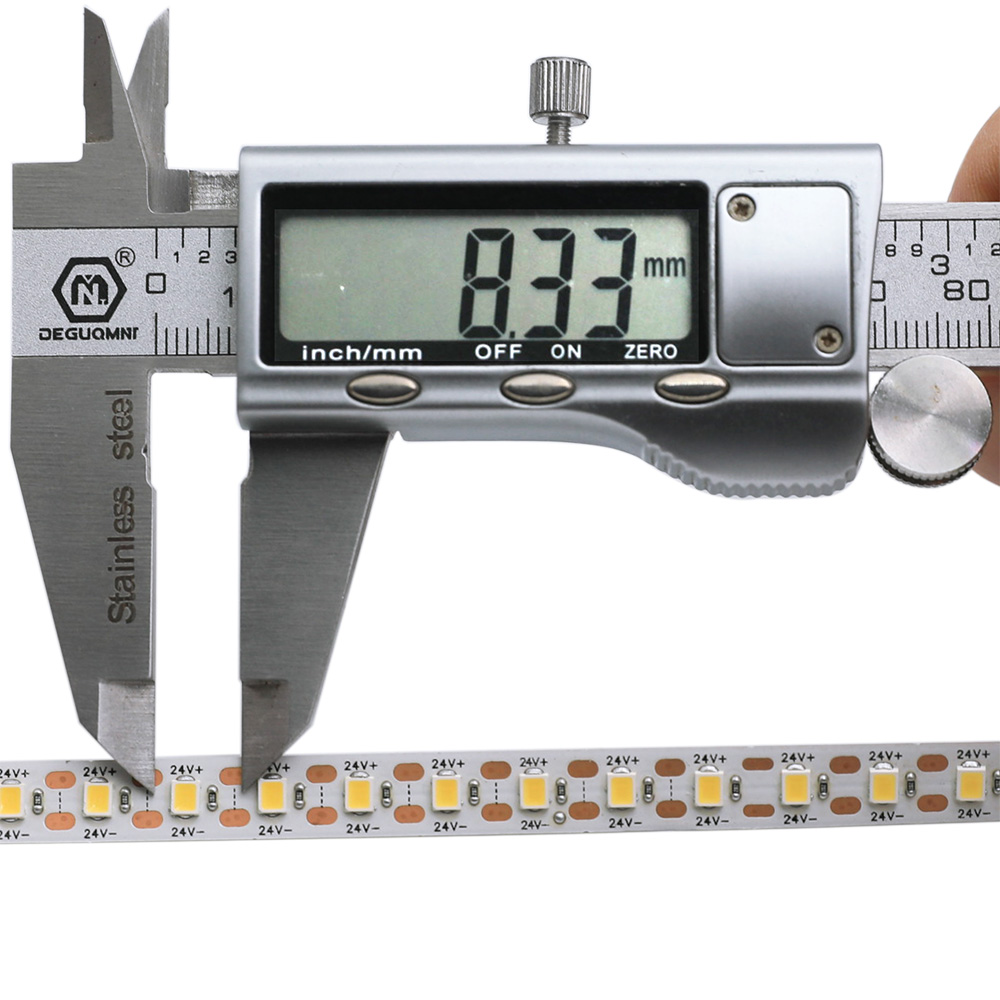

Cuttable: Single LED/8.33mm
Water Proof: Non-waterproof IP20 / Waterproof IP67
1* IP20 non-waterproof daylight white 5m/16.4Ft SMD2835 600LEDs LED strip light by default. Want 3000K warm white light LED strip and IP67 outdoor waterproof white LED lights, please choose the corresponding option.
|Default white light LED strip||IP20 non-waterproof daylight white LED strip|
|LED strip + LED light controller||IP20 non-waterproof daylight white LED strip + V1 + RT1|
|LED strip + power adapter||IP20 non-waterproof daylight white LED strip + PSPS-24V-96W|
|LED strip + LED light controller + power adapter||IP20 non-waterproof daylight white LED strip + V1 + RT1 + PSPS-24V-96W|
If you don't satisfied with the white light LED controller and the LED power supply, you can choose by yourself. We provide articles to help you choose the right one: How to calculate power for led strip lights?

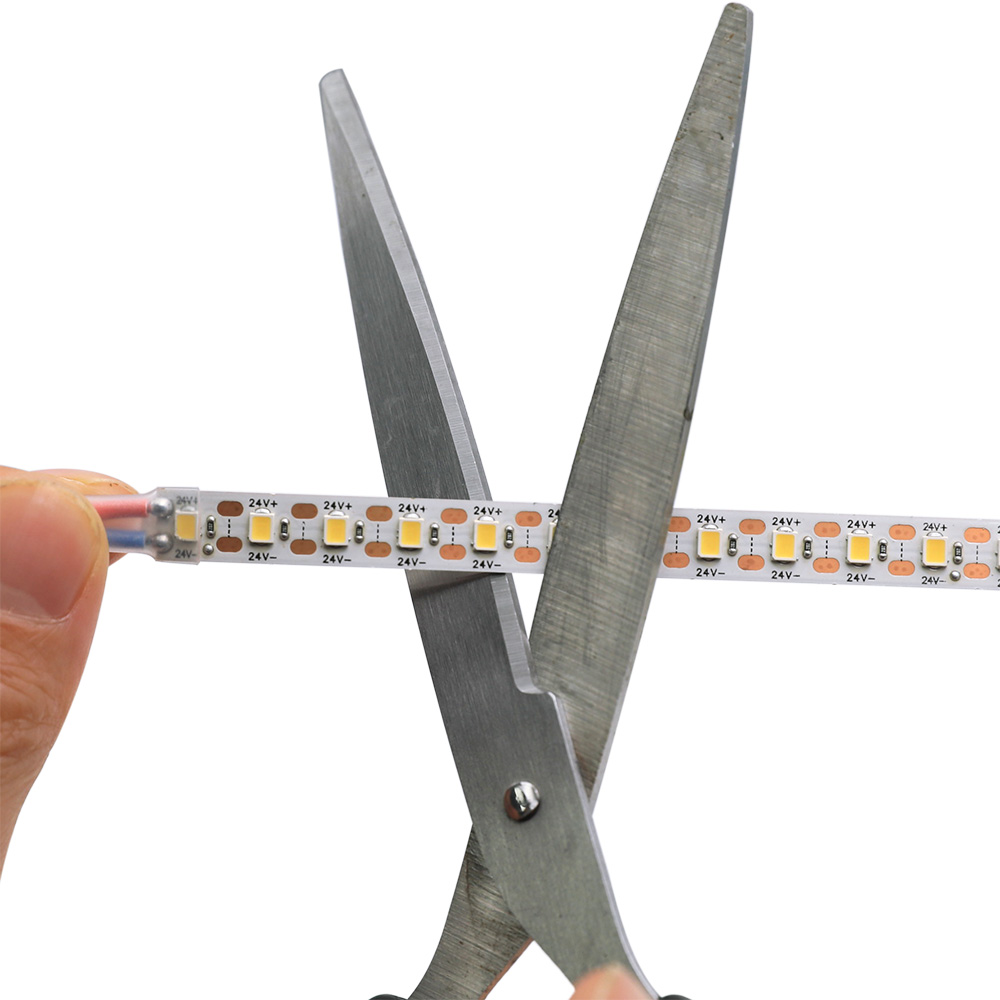

You can cut the white LED strip every LED light, allowing you to freely design your project without worrying about space requirements to many different surfaces. And the white LED lights can be reconnected after cutting.

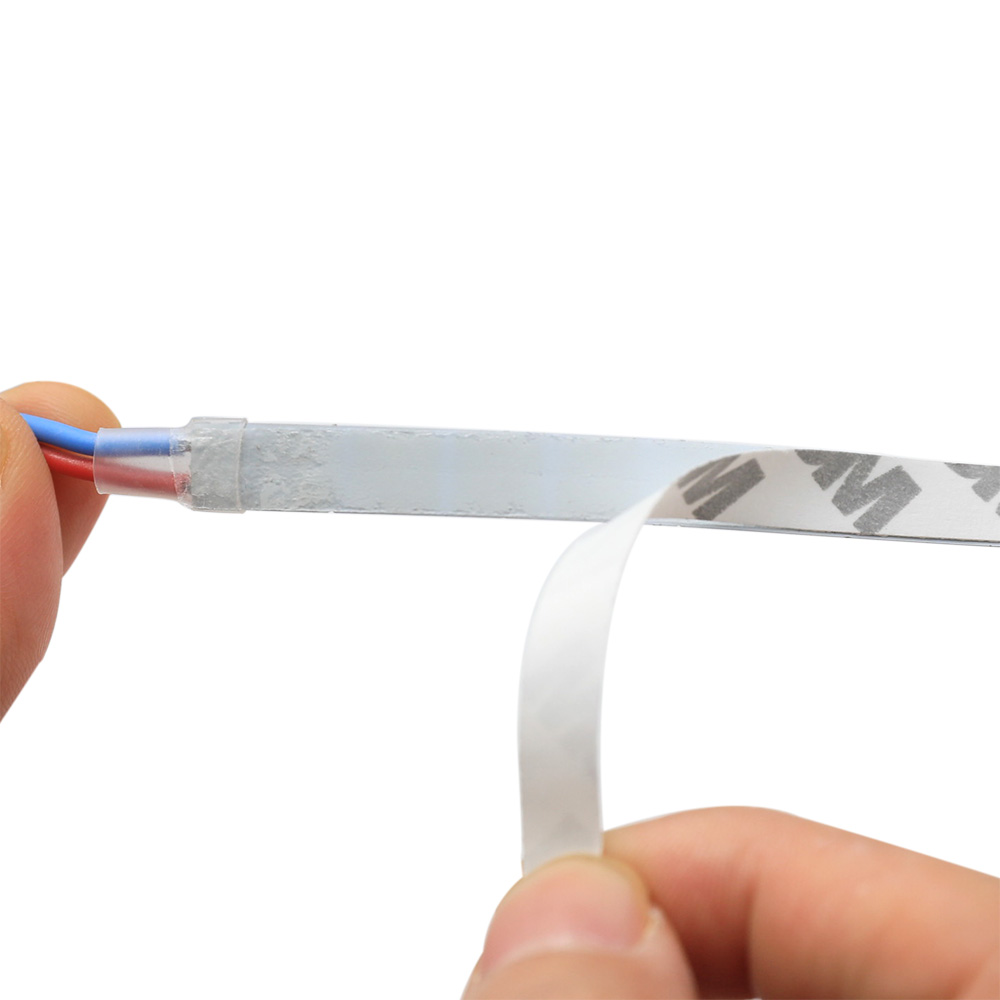

|The back of the white light strip is fitted with a strong 3M tape, allowing you to peel and stick lights.||IP67 white LED waterproof type which will come with mounting brackets, suitable for outdoor landscape lighting.|
The following is the single color white LED light strip wiring diagram.
The warm white light LED strip or the daylight white LED light strip is connected to the LED dimmer(LED dimmer controls the LED brightness of the light strip), and the LED driver to power supply the white LED strip and the dimmer controller. If the LED dimmer is not necessary, you can directly connect the white LED strip to the LED transformer.
