12mm Ultra Bright LED Dual Row COB Lighting Strip 16ft

Name: 12mm Ultra Bright LED Dual Row COB Lighting Strip 16ft
Brand: SuperLightingLED
SKU: FSLCOB-DR-24V-W12X600-L
Price: 18.98 USD
Availability: InStock

Model: FSLCOB-DR-24V-W12X600-L Review stars

0.0 (0 Reviews) Various options in stock

Starting at: $21.98 $18.9814% off

Qty Discounts Off Price
1-19 $18.98	20-59 $18.60	60-99 $18.22	100+ $17.84
* Discounts may vary based on options below

Select Specifications:

Select Kit:

Select Light Color :

Select Input Voltage:

Select Length:

16.4ft (5 meters)

Select Waterproof Rating:

Non-Waterproof IP20 - Adhesive Back

Qty: -+

Free shipping over $299Ships via DHL / UPSWarranty covered

Accept the project customization, please contact us for commercial offers and technical support.

Product Information

Another version of the Super Bright Double Row COB LED Strip series. The light emitting layer of this led COB strip evenly covers two rows of white light on-board LED chips to achieve higher brightness on a 12mm PCB width. Compatible with 3000K warm white, 4000K natural white, and 6000K daylight white, the 12V/24V chip on board led strip brings bright ddotless illumination to your bedroom and other indoor home locations.

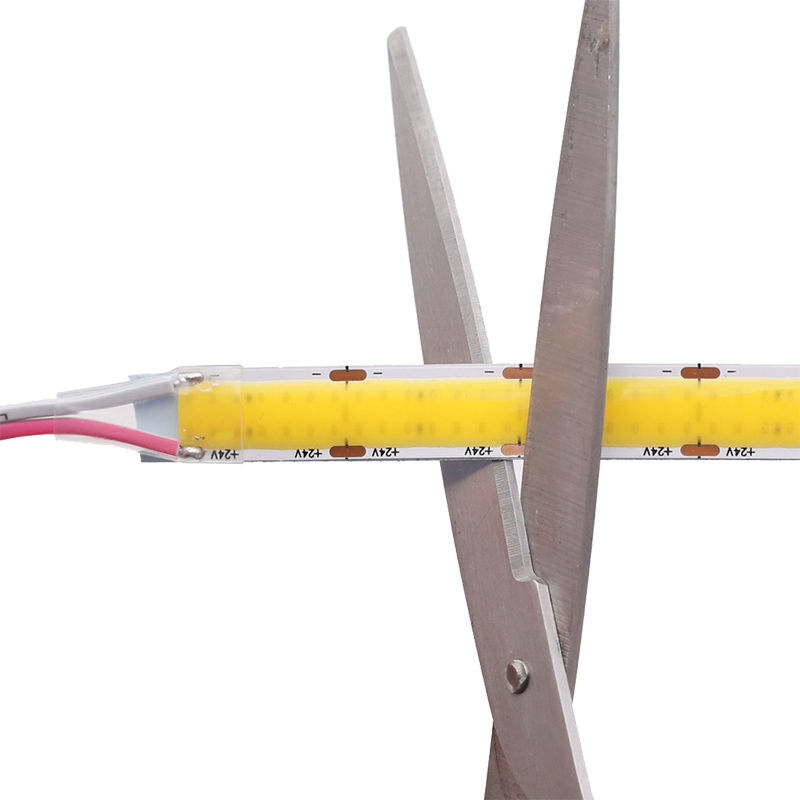

Every 22.74mm/0.9inch can be cut, there is no 12mm wide cob led connector for the time being, so you can only connect the two cob light strips by soldering. 12-volt or 24-volt DC power injection, easy to use 5 meters distance. Please supply extra power if there is a color inconsistency when using multiple dual row cob strip lights.

Kit: power adapter PSPS-24V-120W, power supply LRS-100-24, IP67 power supply PSWP-24V-150W.

Product Specification

LED Strip Type:	Ultra Bright LED Dual COB Lighting Strip
Input Voltage:	DC12V/ 24V
LED Quantity:	616 Chips/m for 24V; 624 Chips/m for 12V

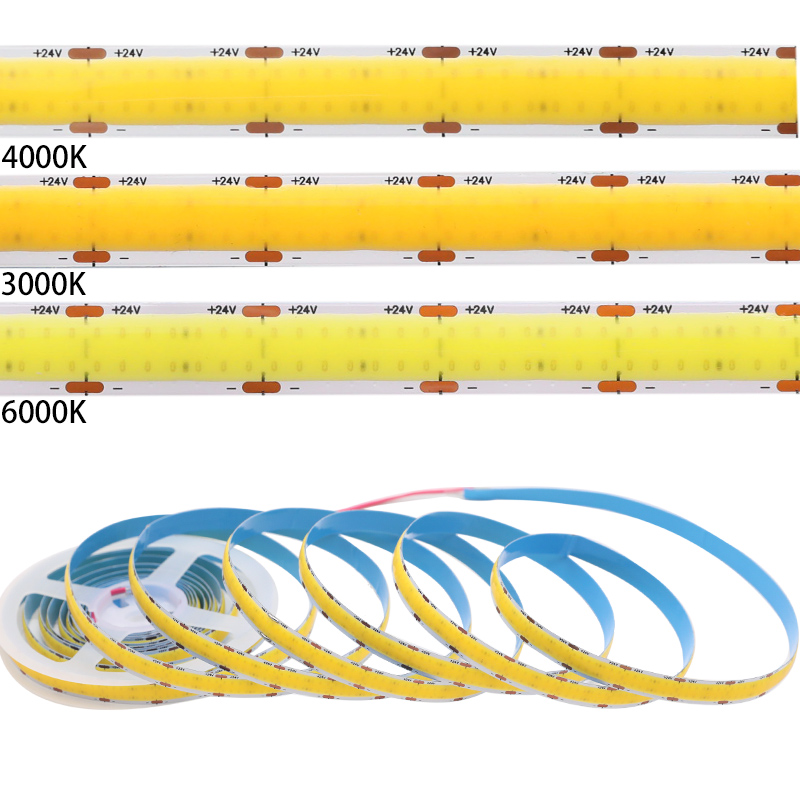

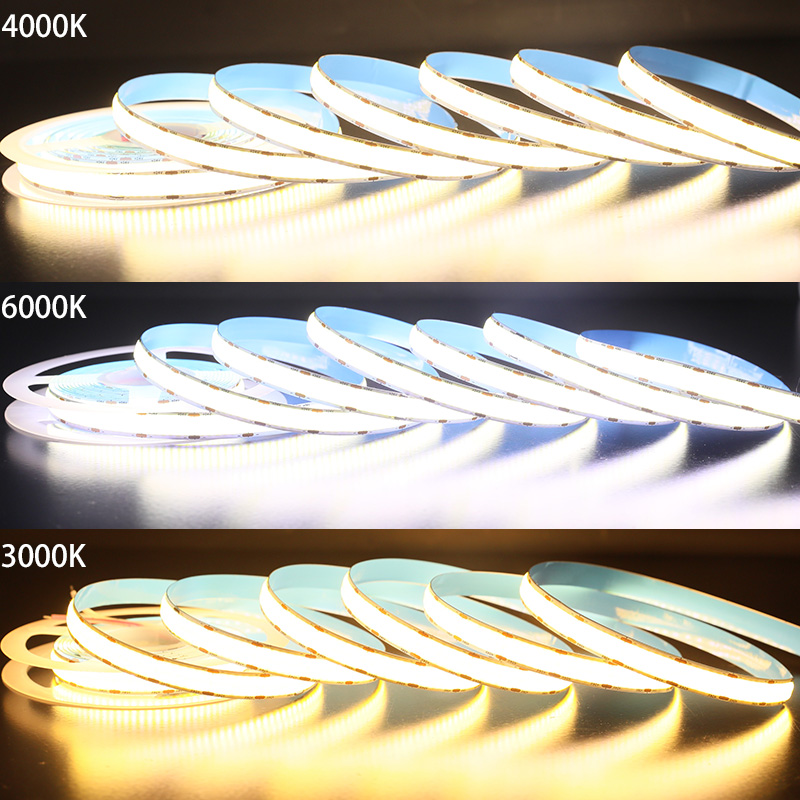

LED Color:	Warm White(3000K), Nature White(4000K), Daylight White(6000K)
Working Temperature:	-20℃~+45℃
Storage Temperature:	-20℃~+60℃
Power:	18W/m

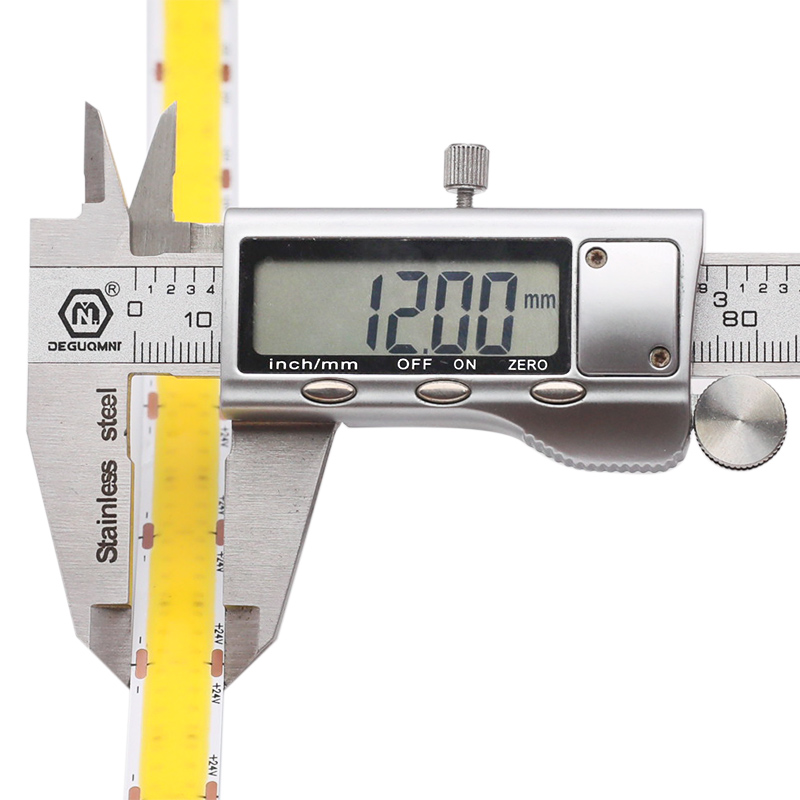

Dimension:	L5000mmW12mmH1.6mm

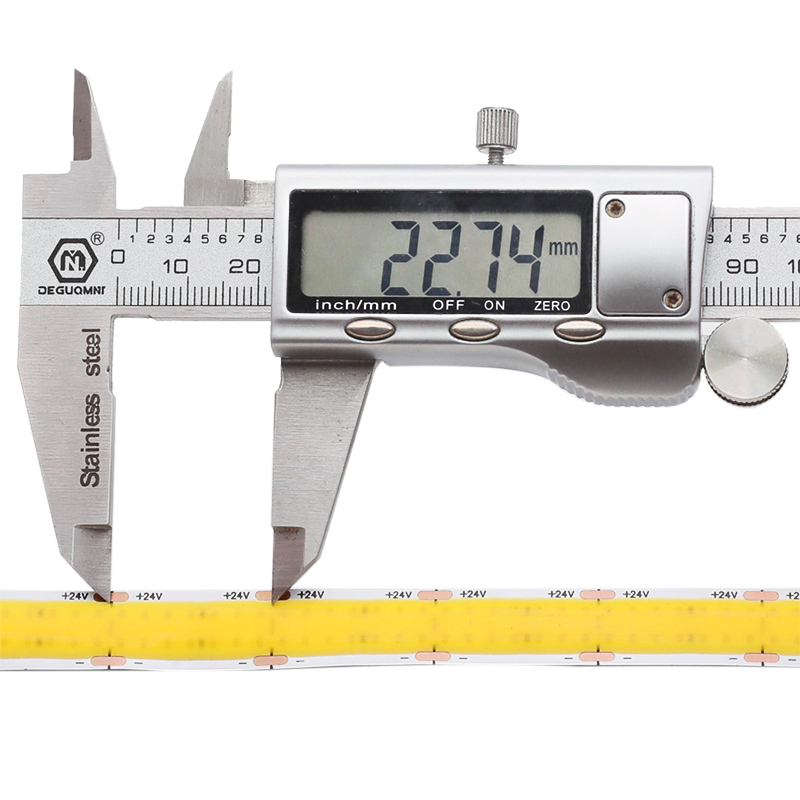

Cut Length:	22.74mm/0.9"
Waterproof Rating:	IP20 For Indoor
Lumen:	88 lm/W
Beam Angle:	180°
Color Rendering Index:	Ra>90

12mm Ultra Bright LED Dual Row COB Lighting Strip 16ft

Reviews

Customer Experience

Your feedback is important to us! Share your thoughts and photos with other customers.

Write a Review & Upload Photos

Downloads

Files for FSLCOB-DR-24V-W12X600-L

PDFFSLCOB-DR-24V-W12X600-L product data sheetFull specifications, dimensions, cut points, wiring and IP options — the same details shown on this page, laid out for printing and engineering review.PDF · generated from the current product page · opens in a new tabOpen PDF

Need this page for a project file or an engineering check? Click Open PDF, then save or print it from your browser. For CAD drawings, IES files or a signed test report, contact our engineers and quote the model number.

Images

These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!

LED Strip Light Guide

Common questions about this type of product, answered against this model’s own options. For full figures see the specification above or the spec sheet for this model.

What voltage does this LED strip light run on?

This model is offered in DC24V · DC12V. Lower voltage means a shorter run per feed: at 12 V feed power roughly every 5 m, at 24 V roughly every 10 m. Longer runs get power injected at both ends. Connecting to the power supply

Which waterproof rating should I choose?

Available on this model: Non-Waterproof IP20 - Adhesive Back. IP20 is for dry indoor use, IP65 handles splashes, IP67 suits outdoor and wet areas, IP68 is for continuous submersion. Choosing a waterproof rating

Can I cut it to length?

Yes. Cut only on the marked cut lines between the copper pads — the cut interval for this model is on its spec sheet. Rejoin with solder or a solderless connector. Cutting LED strip lights · we can also cut to length and fit your connector before shipping: custom LED strip light assembly.

What size power supply do I need?

Take the watts per metre from the specification above, multiply by the length you are running, then add about 25% headroom. Power calculation guide · Choosing a power supply

Which colour is right?

This model comes in Warm White(3000K) · Natural White(4000K) · Daylight White(6000K). Warmer whites suit living spaces, cooler whites suit task and display lighting. Screens do not show colour temperature accurately — order a sample if the room matters. Warm white vs cool white
