DC24V 6mm High Density 360 Degree Double Sided LED Strip White
High Density Narrow 6mm wide 24VDC Double Sided LED Strip Light White, especially for round neon tubes to achieve 360-degree uniform light. With 336 2835 LEDs per meter and 175 LEDs on each side, light is emitted evenly from both sides of the strip for 360 degree illumination.
This double sided LED strip design provides a more even light distribution, eliminating the uneven light or dead spots that can occur with traditional single-sided beads.

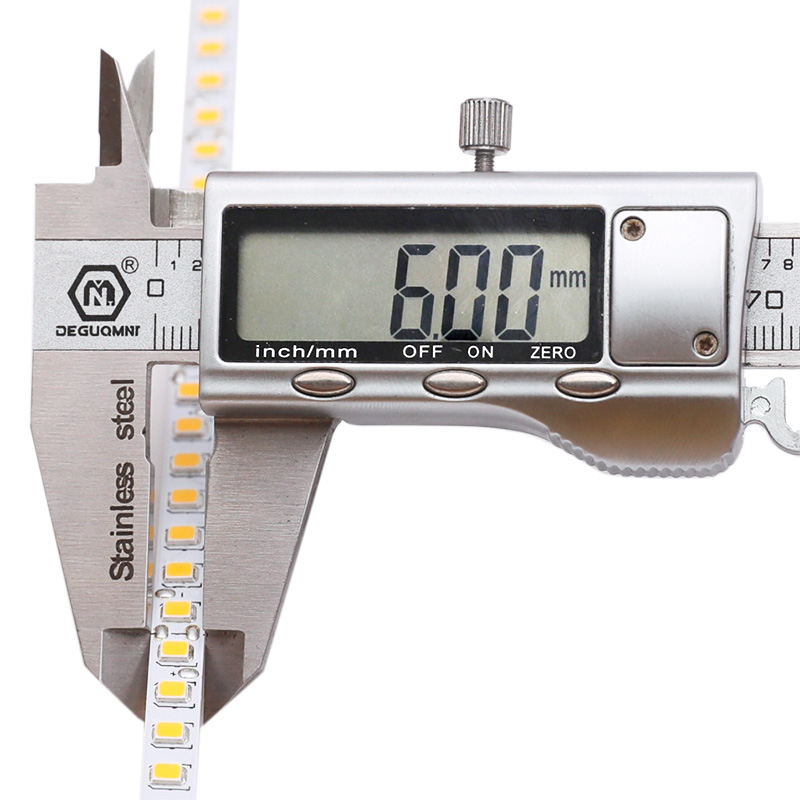

And at only 6mm wide, this flexible 360 degree led strip is smaller and can be more easily installed in narrow areas or inside smaller round neon tubes, providing more flexibility in lighting arrangements.
Apply this 360 degree led strip lighting into round led neon flex, and it will upgrade to the IP67 waterproof rating, so you can use it outdoors and in wet environments.
This double side 24V white led strip is available in 3000K warm white, 4000K natural white, 6000K daylight, and red, green, blue light.
The following video shows you the result that put through this double side led strip to D22 braided 360 degree round led neon light tube.
|LED Strip Type:||Double Sided 360 Degree LED Strip White|
|LED Chip:||2835 SMD LED|
|Working Temperature:||-4°F (-20°C) ~ 122°F (50°C)|
|Storage Temperature:||-40°F (-40°C) ~ 176°F (80°C)|
|White Light Color Temperature:||Warm White(3000K), Natural White(4000K), Daylight White(6000K)|
|LED Quantity:||336LEDs/m, 1750LEDs/roll|
|Working Power:||15W/m, 75W/roll|

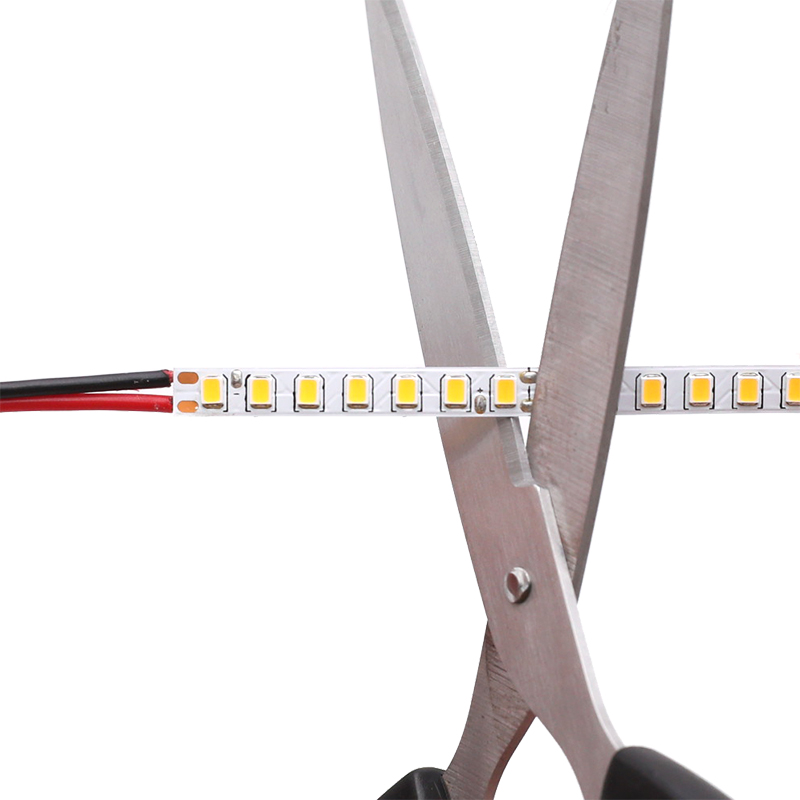

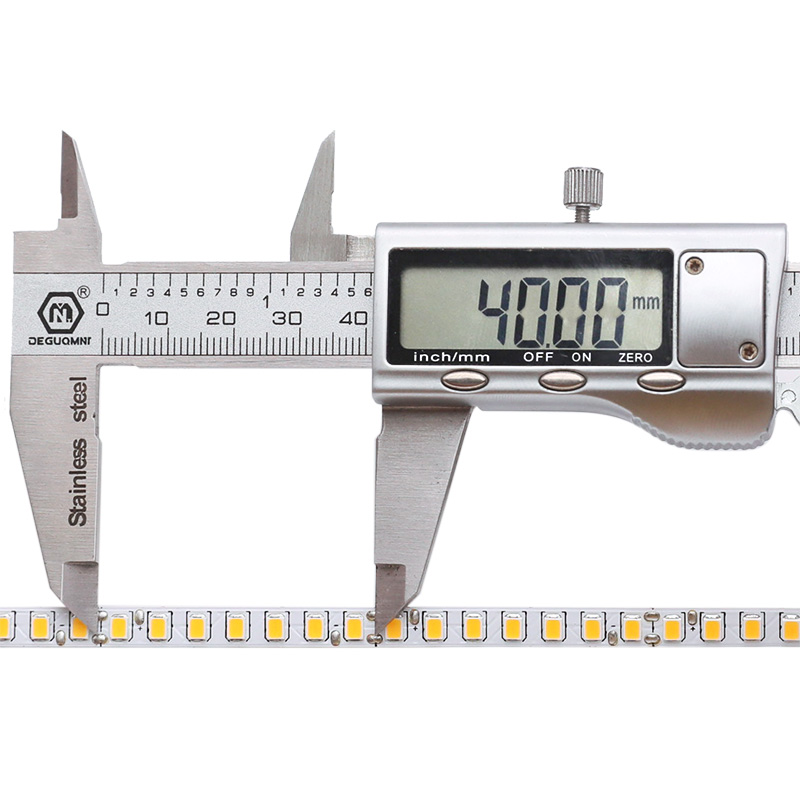

|Cuttable:||40mm/ 7 lights|
|Beam Pattern:||360 degrees|
|Waterproof Rating:||Non-waterproof IP20|
During the wiring process, please pay extra attention that the positive and negative terminals should not be reversed.
