Double Row Foldable WS2811 Addressable RGB LED Strip Lights For 360° Round Neon Tube

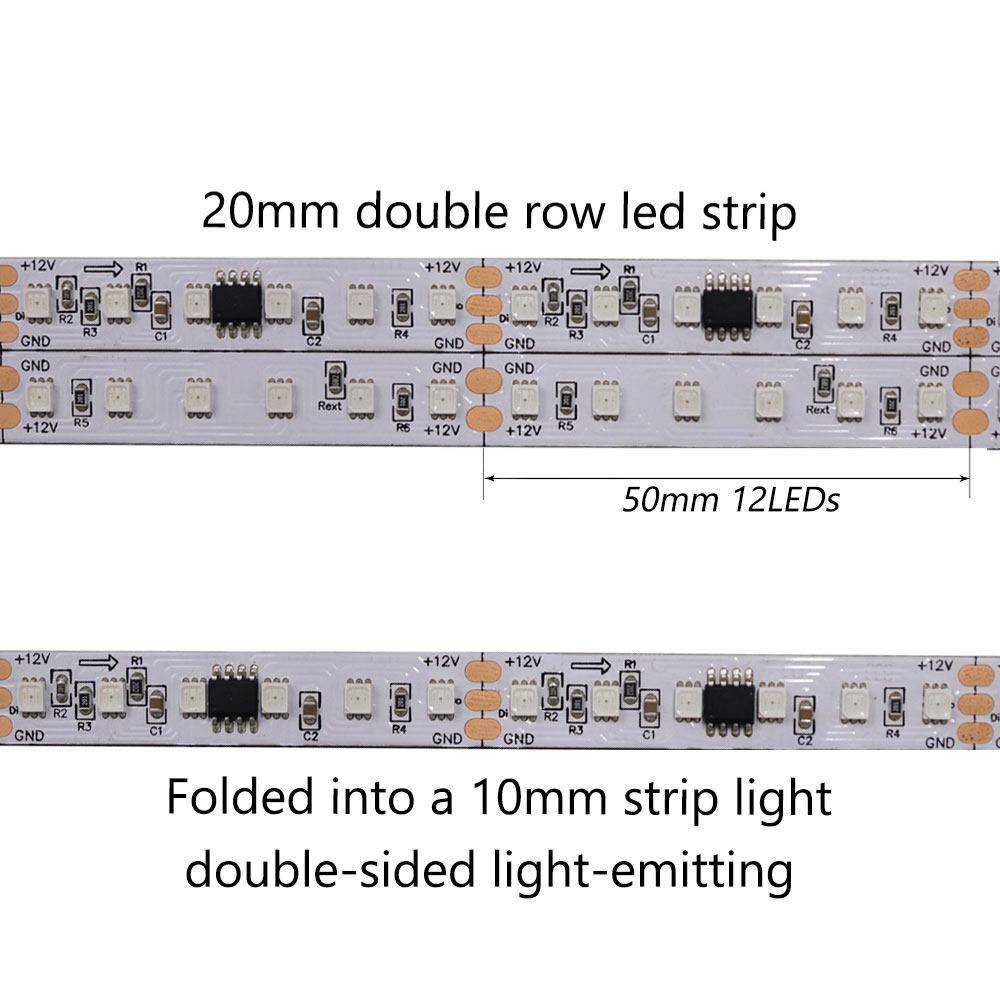

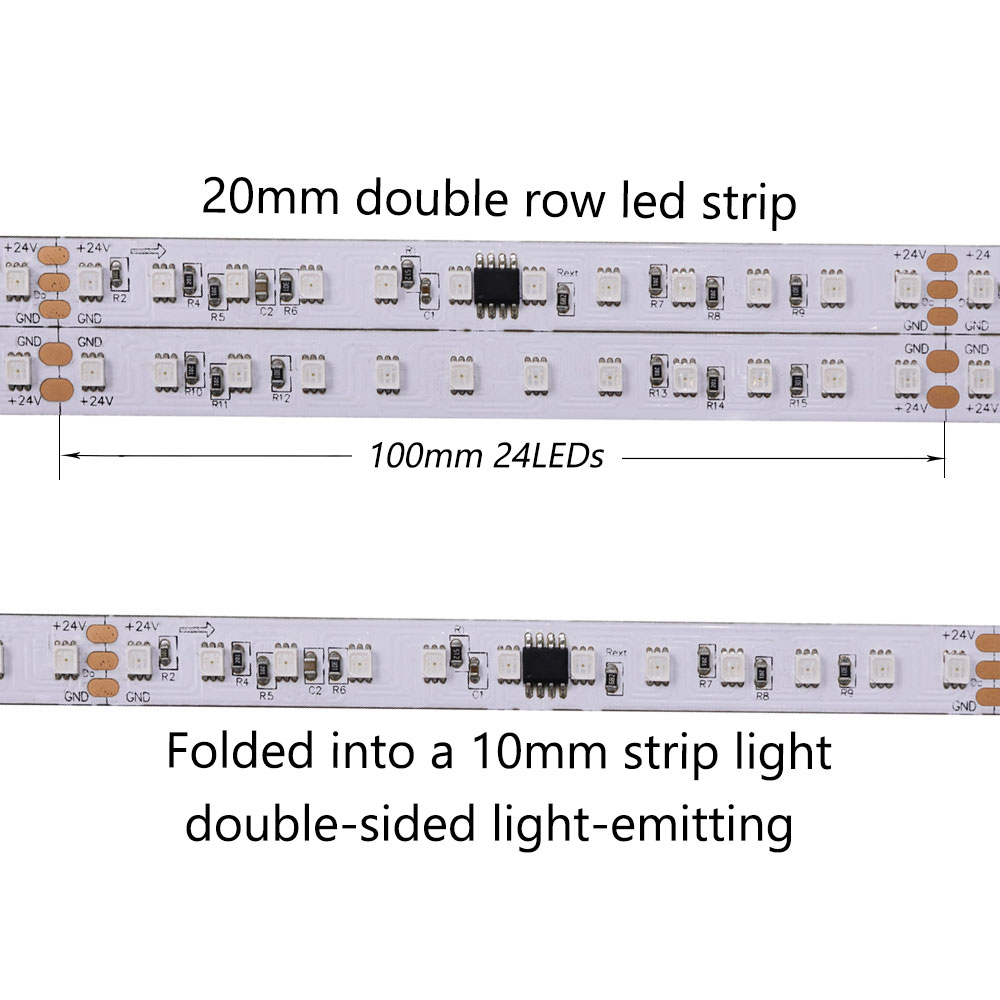

This addressable RGB strip light is specially designed for 360-degree neon tube to make neon lights. The PCB width is 20mm, can be folded to a 10mm double-sided light emitting strip. You can use it to any round neon silicone tube with 10mm PCB inner width.
Typically, we use two light strips placed back-to-back into the silicone tube to create a 360° light. With this foldable led strip, we will get a 360-degree evenly illuminated round neon tube with no dark areas, and it greatly facilitates our operations.
There are two types for you to choose from, the only difference is their cut length and input voltage. 240pcs SMD2835 led lights per meter, ultra high density, no light spots exist when placed in a neon tube.
How to Wire:

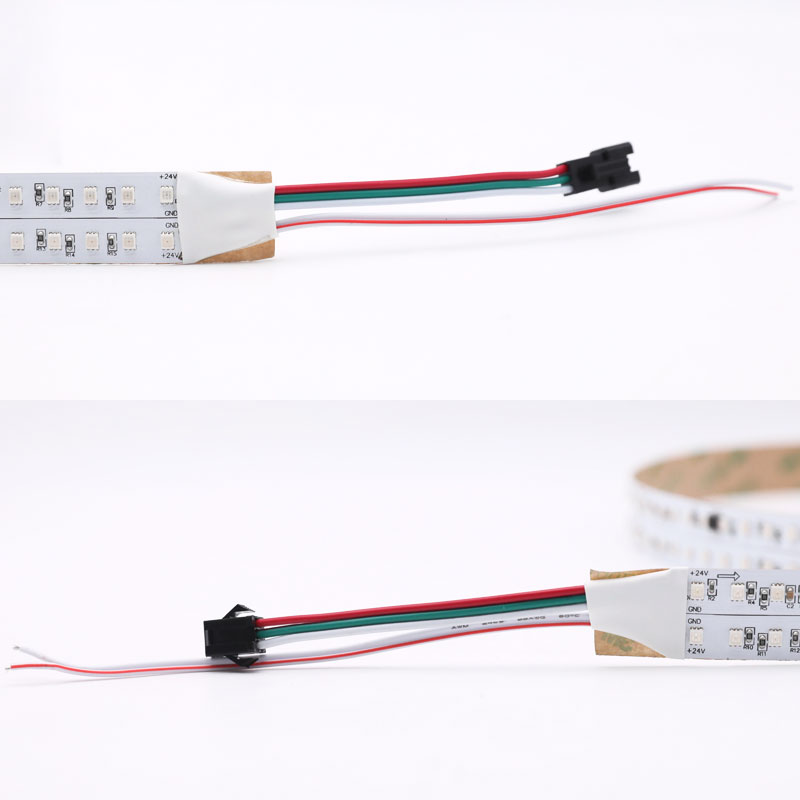

You can see that this WS2811 led strip comes with a 3pin JST connector and a 2pin power wire, if you only power the 3pin connector, then it will only light up one row LEDs, to light up the whole LEDs, you need to connect the V+ (one of the 2pin power wire) to the power source.
Standards and Certifications
|Light Strip Type:||Double Row Foldable Addressable LED Strip|
|LED Chip:||SMD2835 + UCS2903B (similar to WS2811 IC)|
DC24V - 100mm 24LEDs
DC12V - 50mm 12LEDs
|LED Color:||RGB Dream Color|
|PCB Width:||20mm dual row, for 10mm PCB inner width neon tube|
|LED Quantity:||240 LEDs/m, 1200 LEDs per roll|
DC24V - 10 ICs/m
DC12V - 20 ICs/m
DC24V - 100mm
DC12V - 50mm
|Waterproof Rating:||Non-waterproof IP20, Indoor Use|
|Strip Length:||1m/3ft, 2m/6ft, 5m/16.4ft|
|LED Beam Angle:||120°|
|Lumen:||22 lm/LED, 6600lm/16.4ft|
