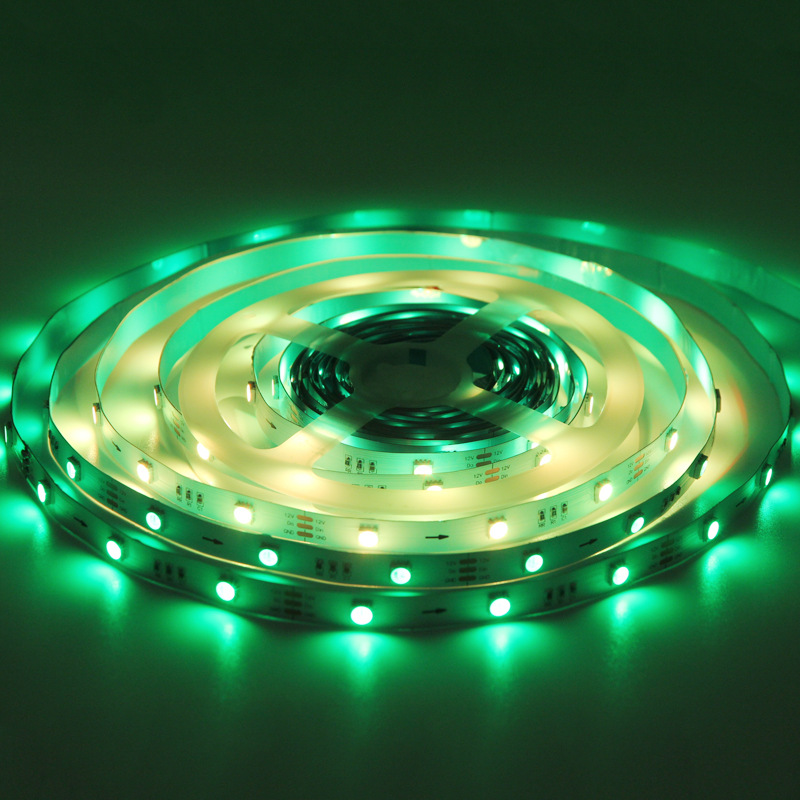

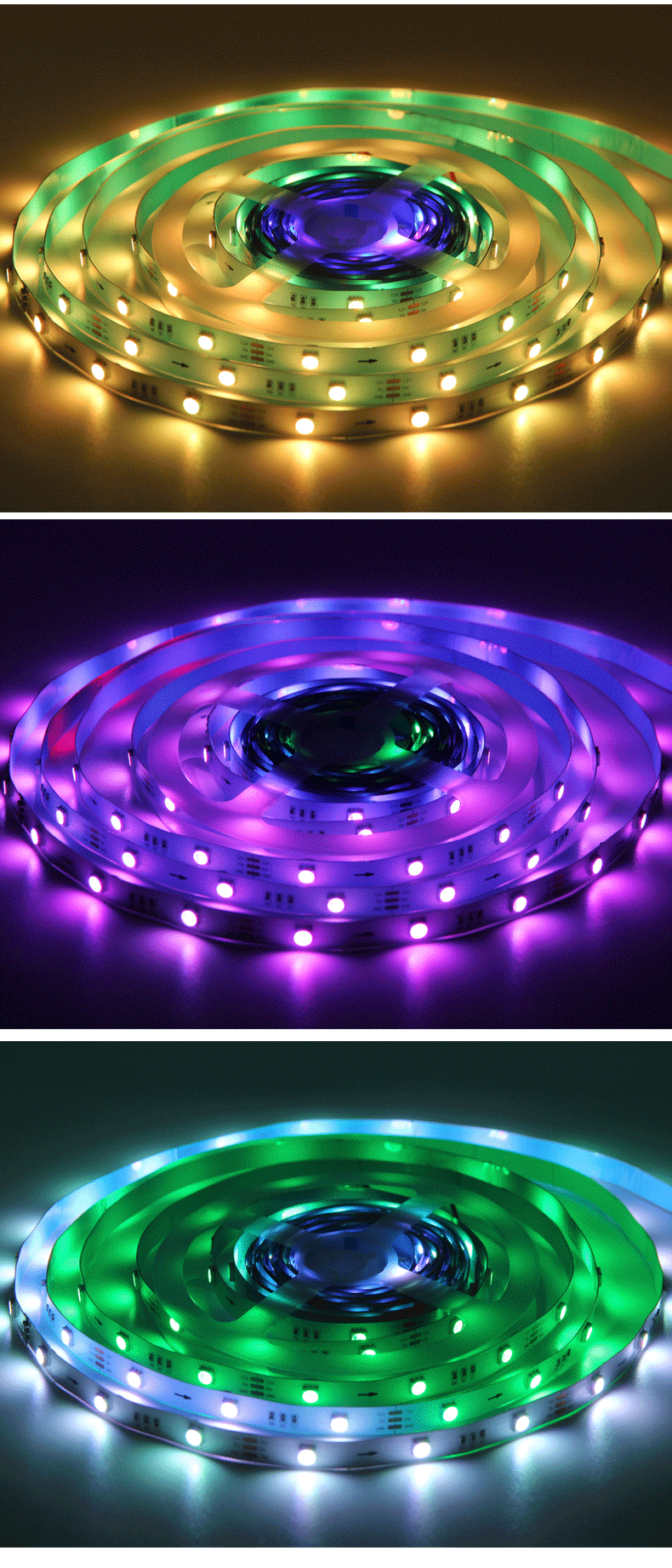

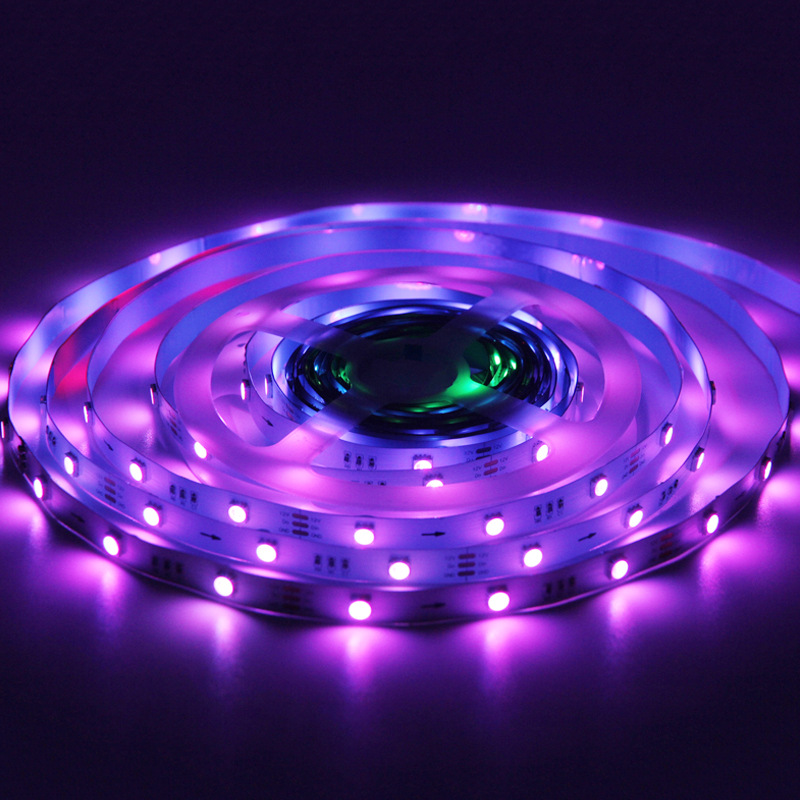

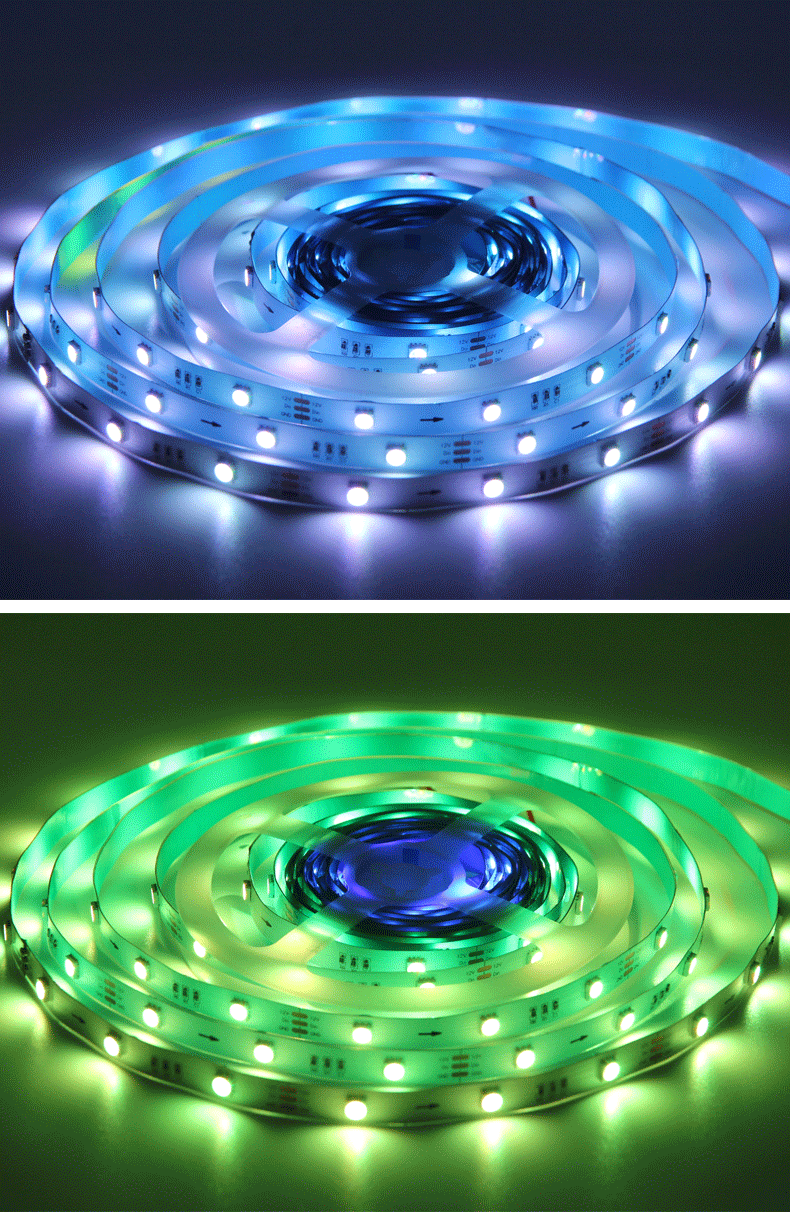

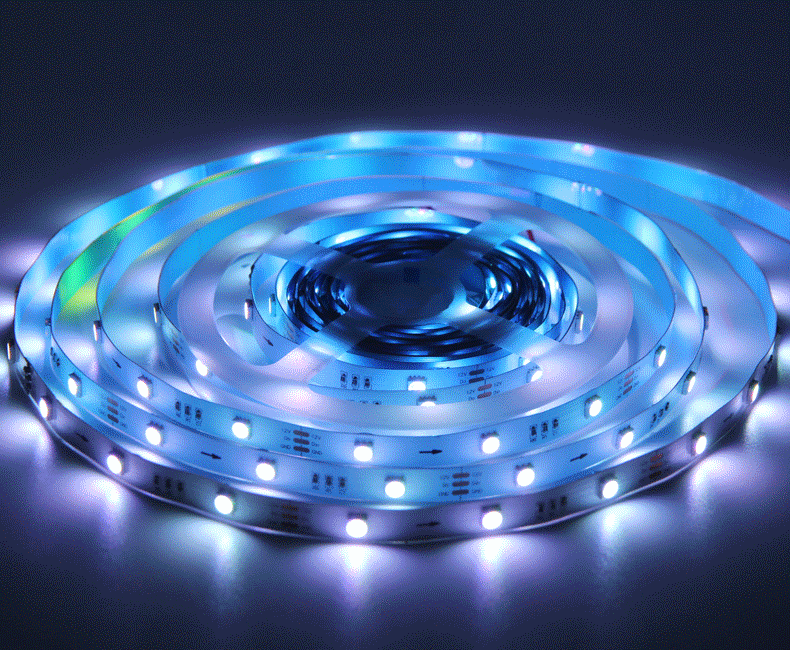

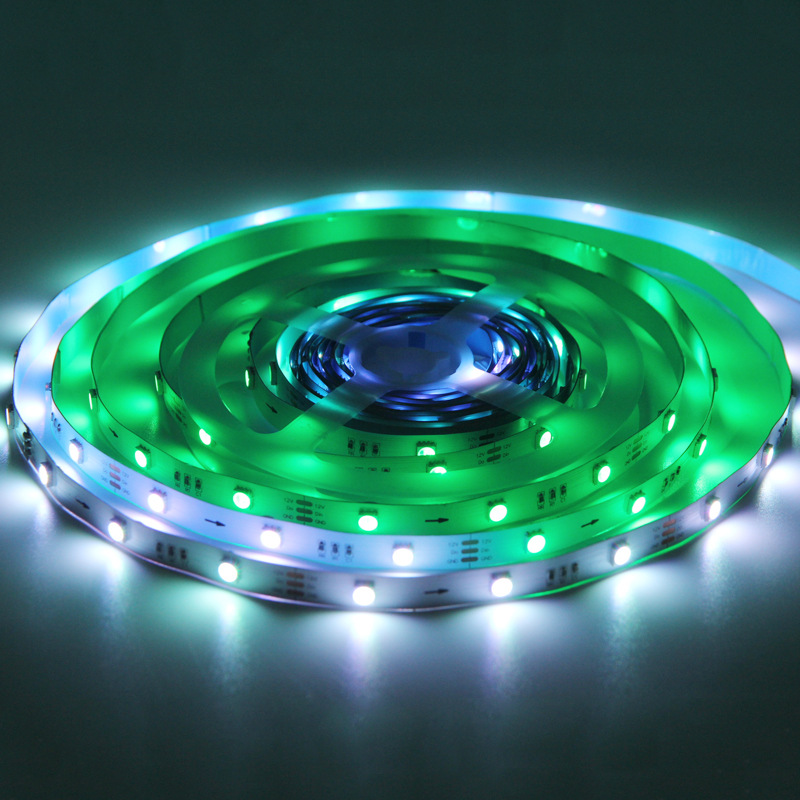

DC5/24V 60LEDs/m P943 Built-in IC SMD5050 Dream Color Programmable RGB Flexible LED Ribbon Light
Using flexible FPC material, good bending performance, strong tensile strength, stronger flexibility, and can be arbitrarily shaped into a variety of shapes
High insulation voltage resistance, flexibility, anti-wrinkle, high-temperature resistance, high-pressure resistance, aging resistance, and long service life. Waterproof technology fully sealed technology, suitable for use in a variety of environments
The bare board is not waterproof, resistant to aging, and has a long service life. It is suitable for dry environments and indoors.
P943 can be divided into two types because of its different chips, one is the WS2812BLED chip, and the other is the WS2813LED chip. WS2812B is a 3-channel single-data-line light strip, WS2813 is a 4-channel dual-data-line light strip, which has the effect of Breakpoint Continue. One LED does not light up, and it does not affect the normal operation of other LEDs. This strip light is a built-in WS2812B LED strip light.
The P943 light strip is a built-in chip, which can be made into light strips with different voltages of DC5V/12V/24V, with high brightness and stable performance. It can be applied to decoration fields such as buildings, advertising walls, signboards, festivals, and entertainment venues such as hotels/nightclubs/KTV.
Bracket: The brass bracket is used for faster heat dissipation, high stability, and good performance

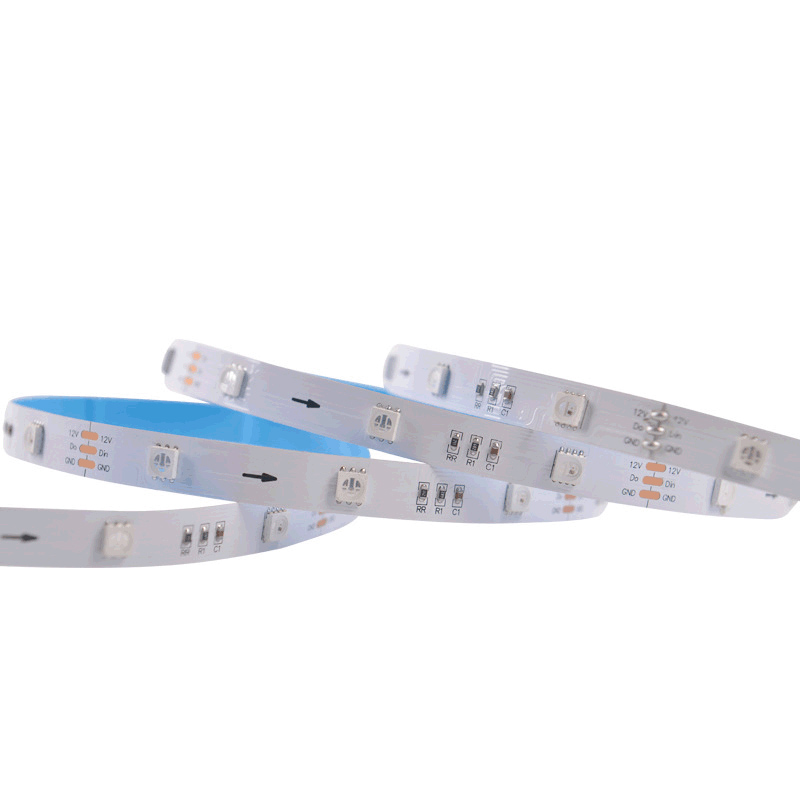

Circuit board: using FPC board, electrolytic copper double-sided film, bending and folding resistance, good flexibility.
Cutting: When the whole roll is not needed, cut at the cutting point to avoid or reduce waste.
Standards and Certifications
1*5M 60LEDs/m LED strip light
LED programmable digital display
Hotels decoration use
Concealed lighting, Cove decoration
Theaters, clubs, shopping malls lighting
Architectural decorative lighting
Boutique atmosphere lighting
Auditorium walk stairway lighting
Hidden groove, Wine cabinet decoration
Show exhibition decoration
These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!
