Outdoor Flexible Black Silicone Neon LED Strip Lights Kit Addressable RGB Color
This is our latest waterproof neon strip lights kit for outdoor use, including an addressable RGB led strip, an addressable controller, and a waterproof power supply. All the required wiring work will be done for you before we send it. If you have other requirements, please contact us to customize.

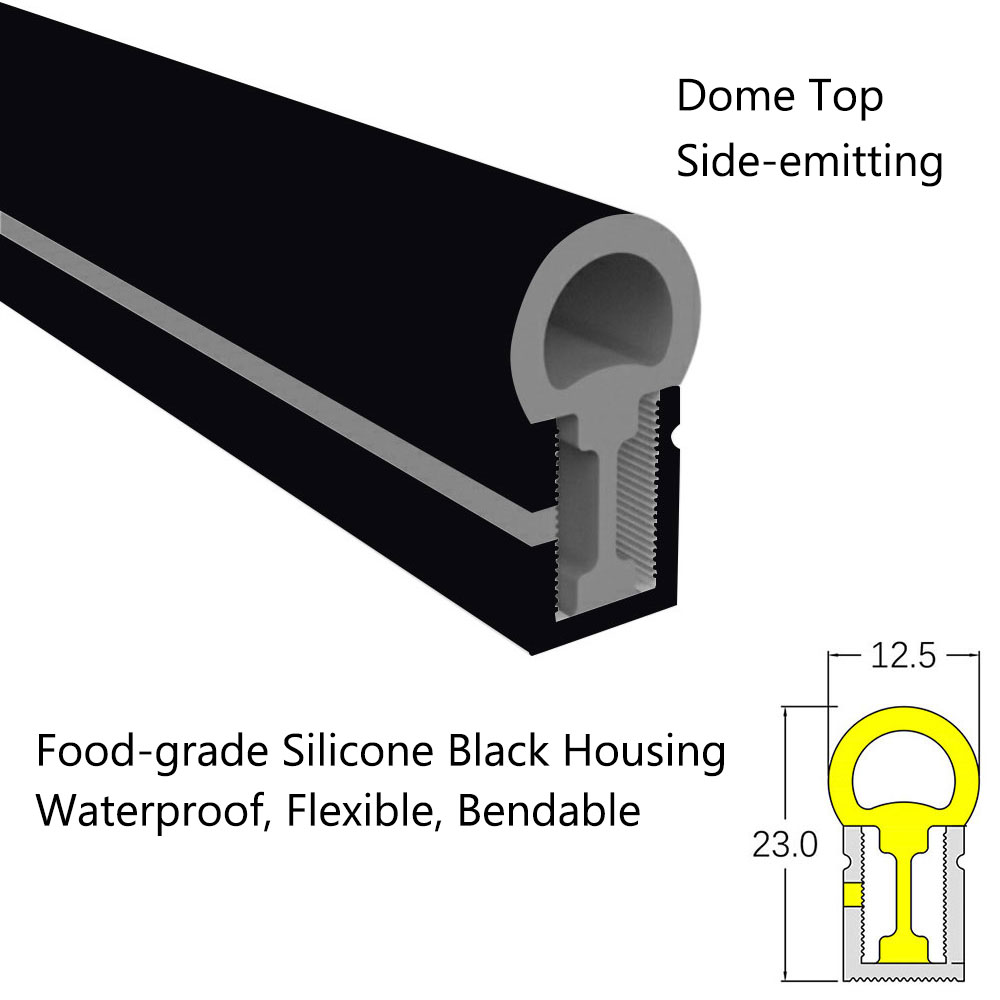

The side-emitting and dome top features of the used black neon tube are nice to outline objects. The silicone diffuser diffuses the led diodes, the LED light is continuous, and you can get an even, dotless, linear light effect.
Use a black silicone sleeve to coat the TM1934 breakpoint resume color chasing led strip, which can protect the strip light from dust and moisture, and reduce the strip cleaning.
Although the soft silicone tube can be bent arbitrarily, the bending degree of the silicone neon light strip is limited. During use, please do not forcibly stretch or twist it.
How to bend the side-emitting silicone channel correctly:
Choose the right controller:
Click to view the DSA DMX512 Converter (need to be connected to DMX master, no APP or RF remote function)
About the power supply option:
Circle 1*power supply: power the neon strip at both ends with the same power suplply.
Linear 2*power supply: each end of the neon led strip is powered by a power supply.
Difference between indoor use and outdoor use:

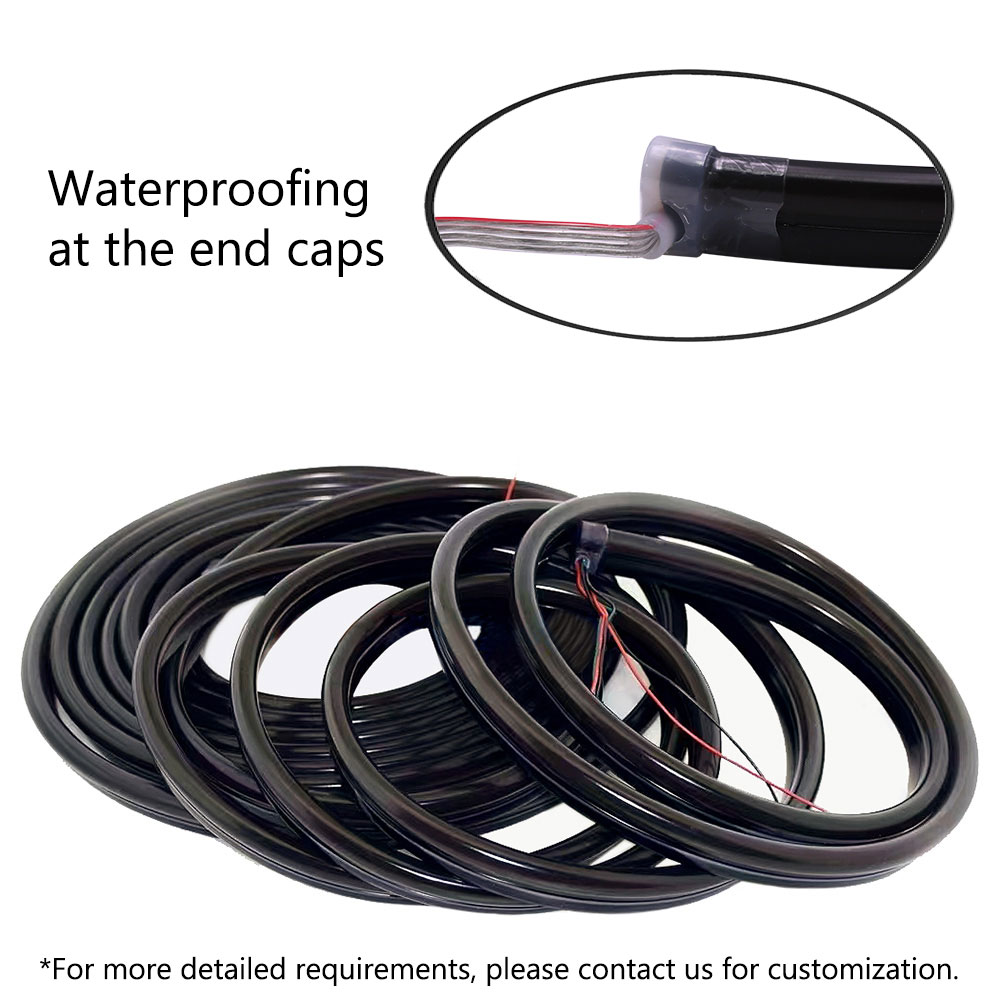

For outdoor use, the led neon strip PCB is fixed at both ends for waterproofing (Glued seal treatment).
For indoor use, the PCB is movable inside the neon led tube.
Standards and Certifications
|LED Strip Type:||Addressable RGB Neon Strip Lights Outdoor Waterproof Kit|
|Material:||Food-grade Silicone (Black Color)|
|IC Type:||TM1934 similar to WS2811|
|Working Temperature:||-4°F (-20°C) ~ 122°F (50°C)|
|Storage Temperature:||-40°F (-40°C) ~ 176°F (80°C)|
|Light Color:||RGB Dream Color|
|Dimension:||5m/16ft, 10m/33ft, 15m/49ft, 20m/66ft|
|LED Quantity:||60 LEDs per meter|
|IC Quantity:||6 ICs per meter|
|Input Voltage(V):||24 VDC|
|Working Power:||14.4W/m, 72W/16.4ft Max|
|Beam Pattern:||120 degree|
|Waterproof Rating:||Waterproof IP67|
Appearance when the neon flex led strip is not lit:

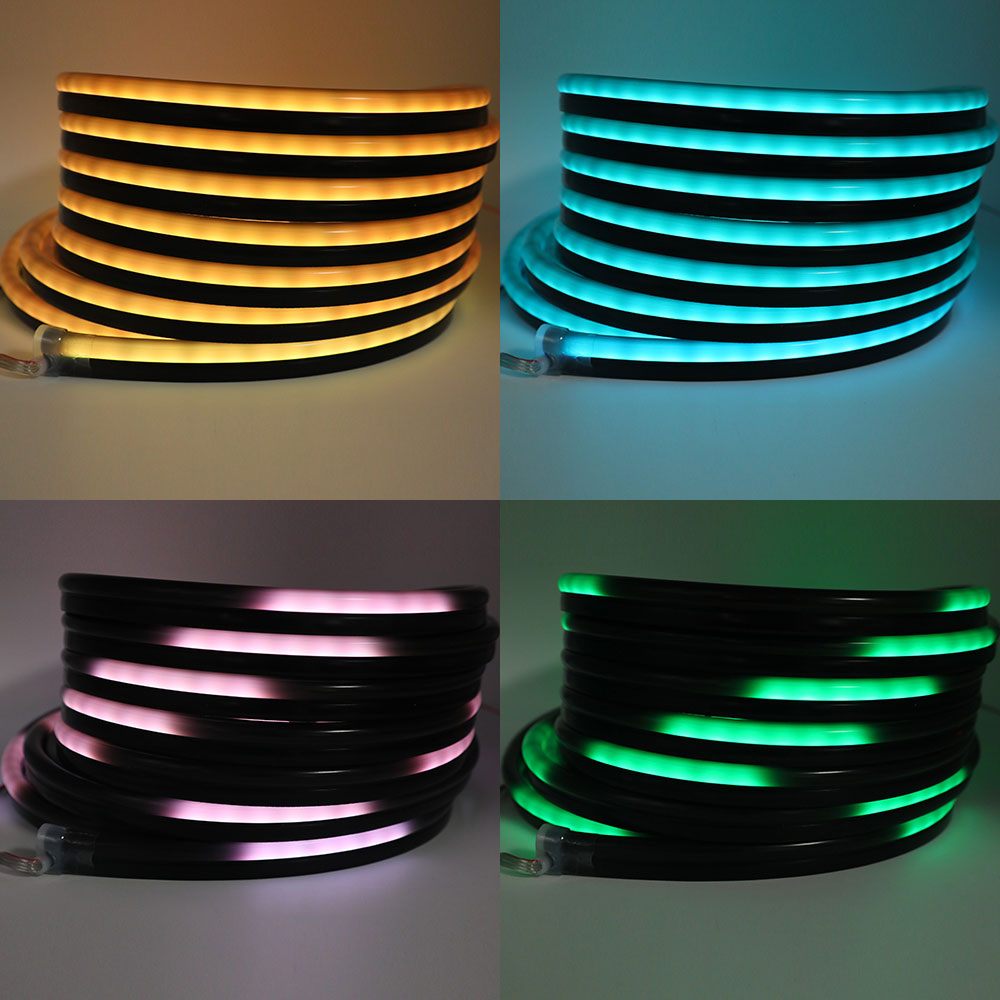

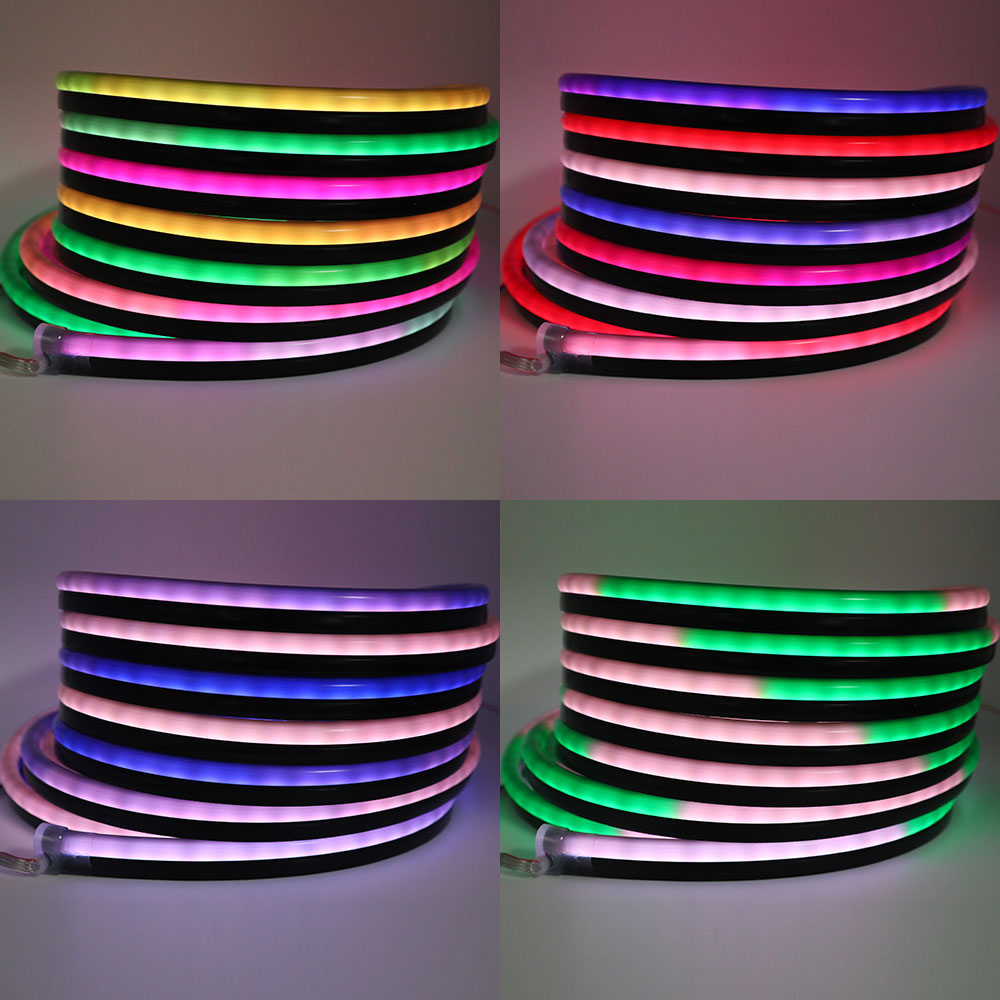

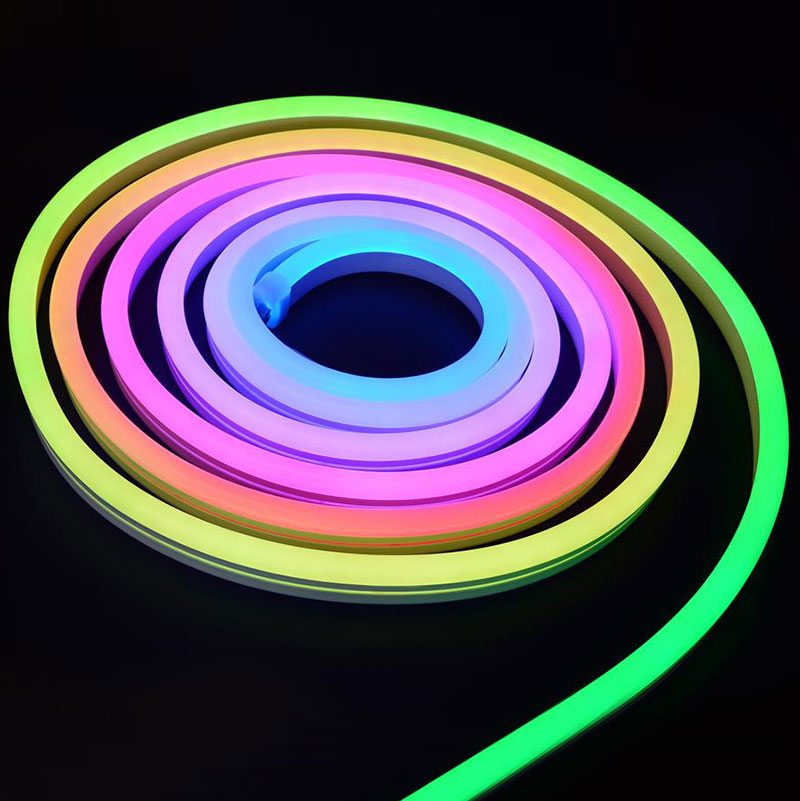

Lighting effect when lighting up the neon strip:
