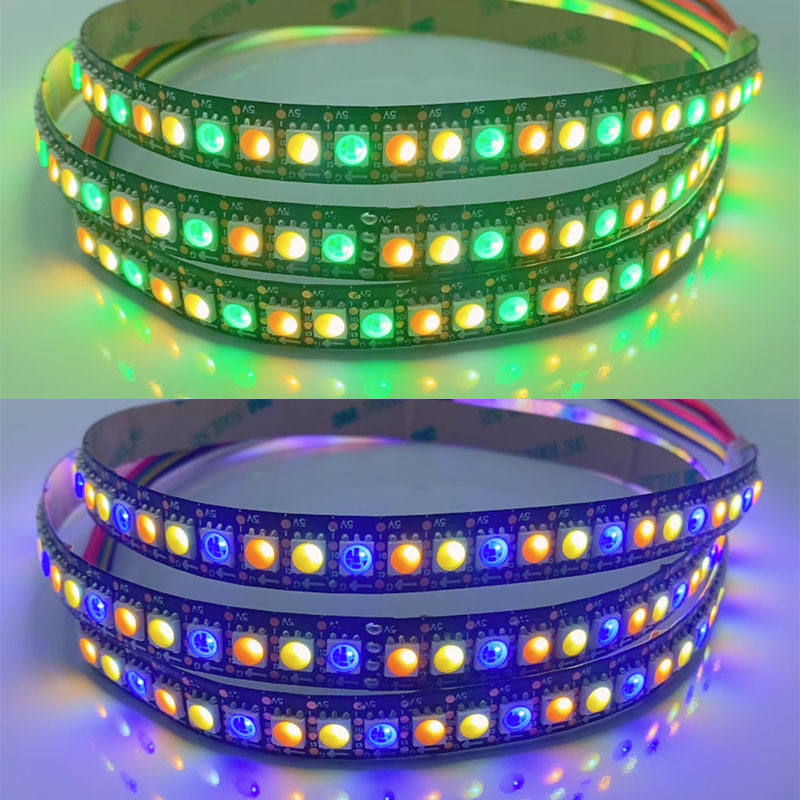

DC5V HD108 SMD5050 Individual Addressable RGB CCT LED Strip High Density 144LEDs/m
An unique addressable RGB+CCT led strip. There are RGB LEDs, Warm White LEDs, and Daylight LEDs in the strip, the most special is that each LED is individually addressable. More flexible control of LED light color.
This HD108 addressable led strip is 1m per roll. 144 lights in total (48pcs RGB lights + 48pcs 3000K lights + 48pcs 6000K lights). Each 5050 LED can be cut, 6.94mm cut length.
5V dc input, power the dream color RGBCCT led strip with a 5V power supply. It requires an addressable led controller (SPI controller / DMX controller) to change the color. Note: the controller must support to control RGB+CCT lights, such as our WiFi music controller LC2000B-TY01.
Comes with a 4pin JST connector and a 2pin power wire at the ends, easy to connect. When connecting multiple HD108 led strips, pay attention to the voltage drop, and supply power seperately with the 2-pin power wire to ensure color consistency.
Standards and Certifications
|Product Type:||Addressable RGB CCT LED Strip|
|LED Chip:||HD108 IC + SMD5050|
|LED Color:||Addressable Full Color RGB + 3000K Warm White + 6000K Daylight|
|LED Quantity:||144 LEDs/m|
|Waterproof Rating:||IP20 non-waterproof; IP67 outdoor waterproof|
|Cut Length:||6.94mm / 1pcs LED|
|Color Rendering Index:||Ra＞80|
|PWM Refresh Rate:||27KHz|
|Transmission Speed:||40M bps (the fastest)|
HD108 dual signal addressable LED strip lights wiring diagram:
|►Connection method one:|
*SPI LED Strip lights wiring diagram with 5m*
|►Connection method two:|
*SPI LED Strip lights wiring diagram with 10m*
|►How to connect the 3-pin JST connector to the Breakpoint Resume LED strips?|
|►How to power addressable LED strip and SPI controller using different voltage power supply?|
|►How to wire a ultra long addressable led strip lighting?|
*SPI LED Strip lights wiring diagram with 20m+*
