Product Information
This DC 5V COB RGB LED strip light delivers continuous, dot-free color mixing across an ultra-narrow 5mm PCB with a low profile height of 2.3mm. Engineered with a dense 576 LEDs per meter configuration, this multi color rgb light strip eliminates visible diode spots even when installed without a diffuser lens. Operating at 10W per meter on safe 5V direct current, it runs directly from portable power banks, USB sources, or dedicated 5V DC power adapters.
Each 5-meter reel comes equipped with dual-ended 4-pin connectors for immediate integration with standard RGB controllers. Direct compatibility with RF RGB controllers and compact IR remote RGB control boxes for 3-channel dynamic color adjustment.
Key Features
576 LEDs/m COB Density
Continuous coating produces unbroken, dotless multi color illumination without dark spots.
5mm Ultra-Narrow PCB
Slim 5mm width and 2.3mm profile fit into miniature aluminum profiles, tight gaps, and compact enclosures.
DC 5V Low-Voltage Operation
Safe operating voltage allows direct power from rechargeable battery packs, 5V power adapters, and USB ports.
Pre-Soldered 4-Pin Terminations
Both ends feature 4-pin male and female plug-in connectors that interface with standard RGB controllers.
Selectable Ingress Protection
Supplied standard in IP20 for indoor dry areas with an optional IP67 silicone sleeve version for moisture resistance.
Product Specifications
| Parameter | Details |
|---|---|
| Product SKU | FSLCOB-5VRGB-576W5 |
| Working Voltage | DC 5V |
| Rated Power | 10W/m (approx. 50W per full 5m reel) |
| LED Density | 576 LEDs/m |
| LED Packaging Type | COB (Chip on Board) |
| Color Format | RGB Multi-Color (Red, Green, Blue) |

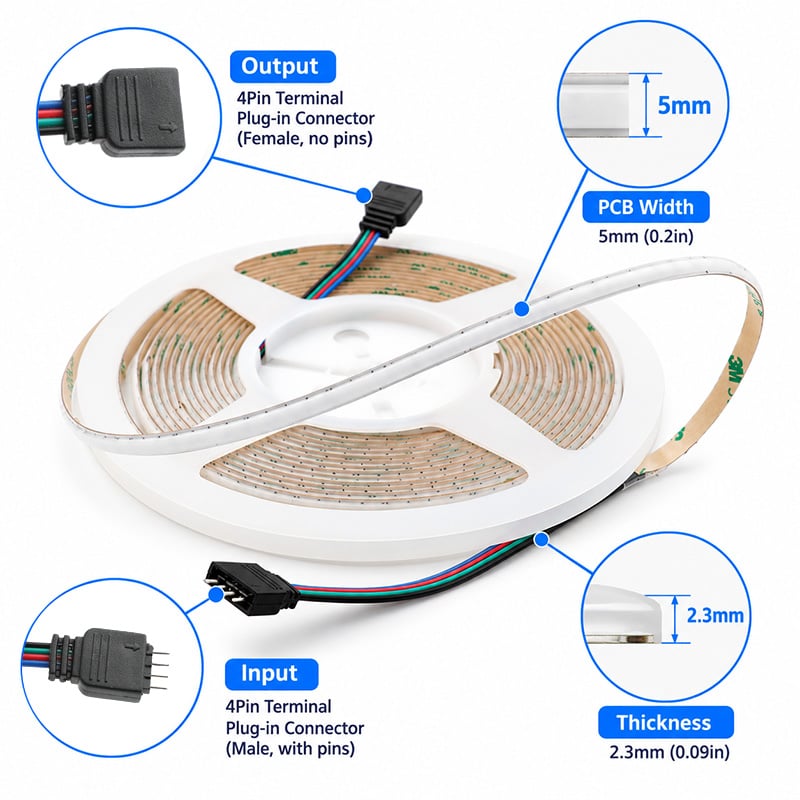

| PCB Width | 5mm (0.20 in) |
| Strip Height | 2.3mm (0.09 in) |
| Standard Reel Length | 5 meters (16.4 feet) |
| Max Continuous Run (Single Feed) | 1.0m to 1.5m (requires parallel injection for longer runs) |
| Connection Interface | 4-pin plug-in connector pre-installed on both ends |
| Control Protocol | Common Anode (+5V, R-, G-, B-) PWM dimming |
| Ingress Protection Rating | IP20 indoor dry (IP67 silicone jacket optional) |
| Strip Color | White |
| Adhesive Backing | Self-adhesive double-sided mounting tape |
| Beam Angle | 180 degrees |

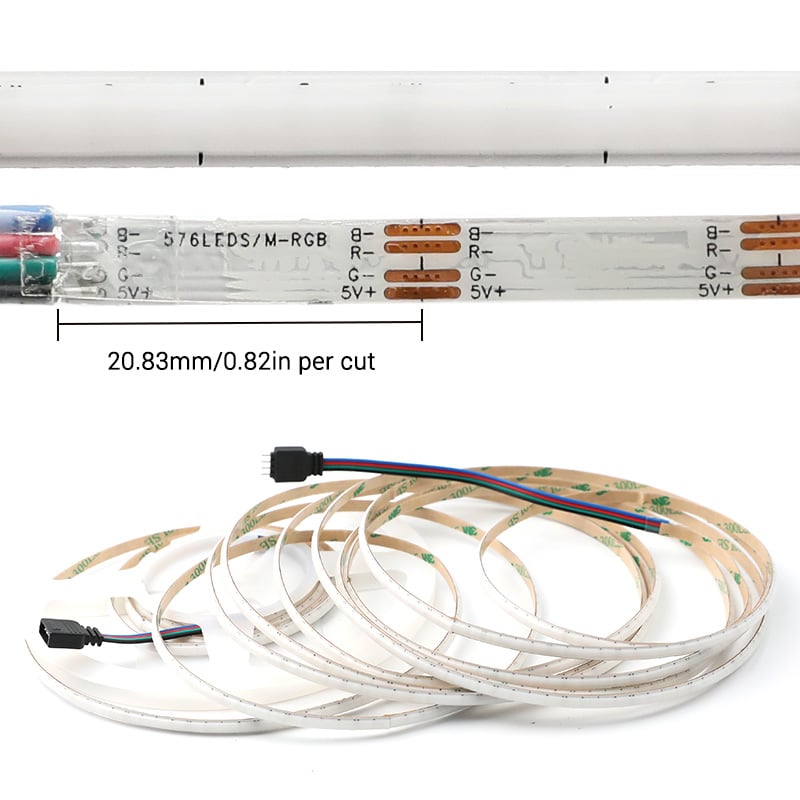

| Cut Unit | 20.83mm (0.82in) |
Application Scenarios
How to Install & Use This LED Strip
- Measure your required run length and cut only along the designated copper solder cut lines marked on the 5mm PCB.
- Connect the pre-fitted 4-pin connector to your 5V RGB controller, ensuring the +5V polarity arrow aligns with the controller power channel.
- Perform a dry test by powering the system with a compatible 5V power supply before removing the adhesive liner.
- Peel back the adhesive release paper and press the LED strip firmly onto the target surface, holding pressure along the run.

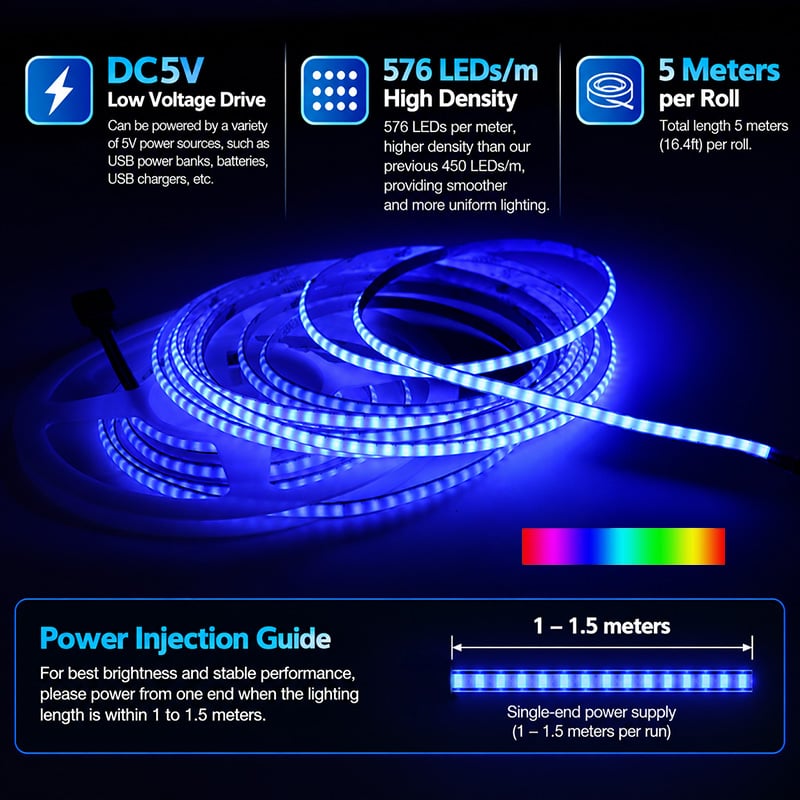

- For runs exceeding 1.5 meters, wire additional 5V power feed wires in parallel to prevent voltage drop and color shifting.
⚠ Precautions
- Do not power this LED strip with 12V or 24V power supplies; applying more than 5V DC will permanently damage the COB diodes.
- Single-ended power feeds should not exceed 1.0 to 1.5 meters due to low-voltage resistance; longer runs require dual-end feeds or power injection.
What's in the Box
- ✓1 x 5-meter reel of 5V 5mm COB RGB LED Strip Light (576 LEDs/m)
- ✓2 x Pre-attached 4-pin male/female plug-in connectors (one on each reel end)
