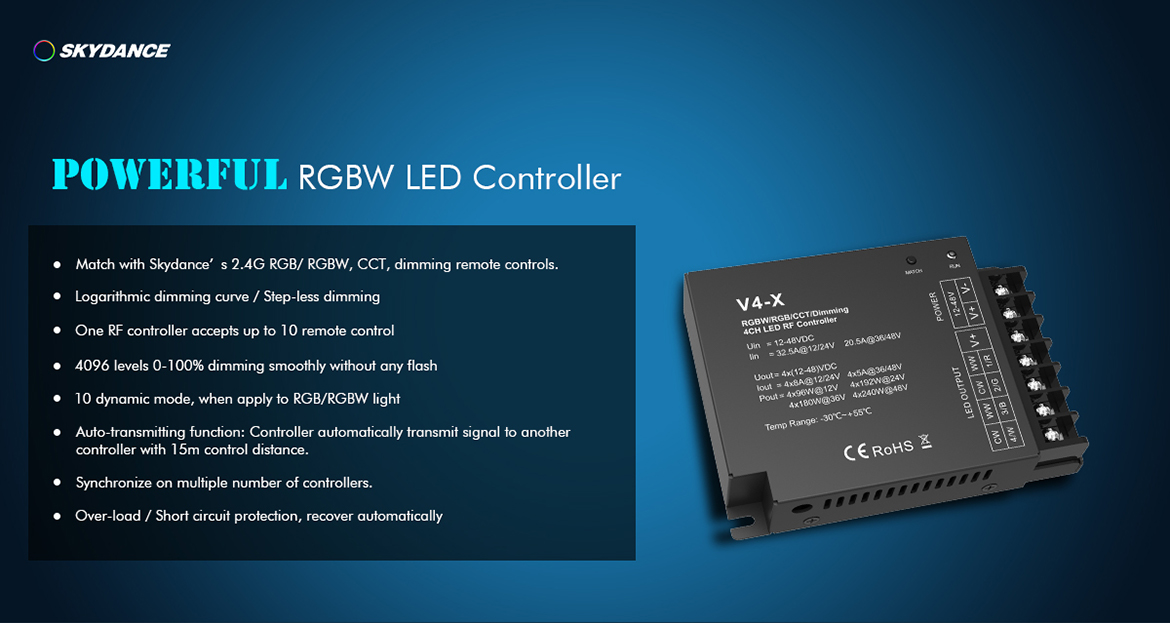

4CH*8A/5A 12-48VDC CV Controller V4-X
RGBW/RGB/CCT/Dimming 4 Channel LED RF Controller

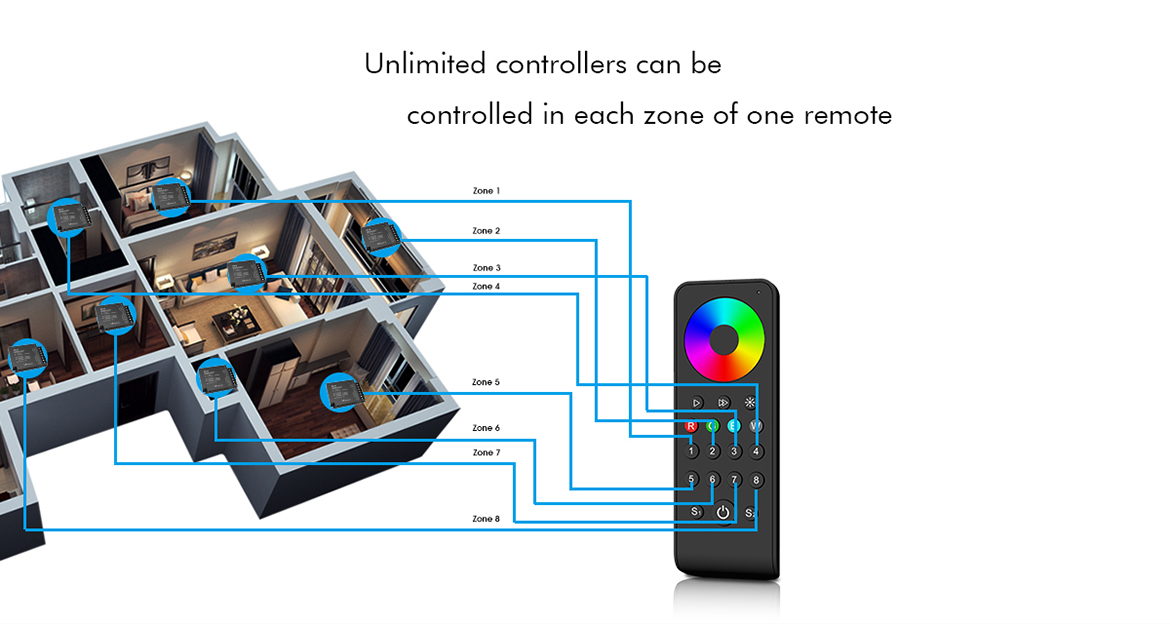

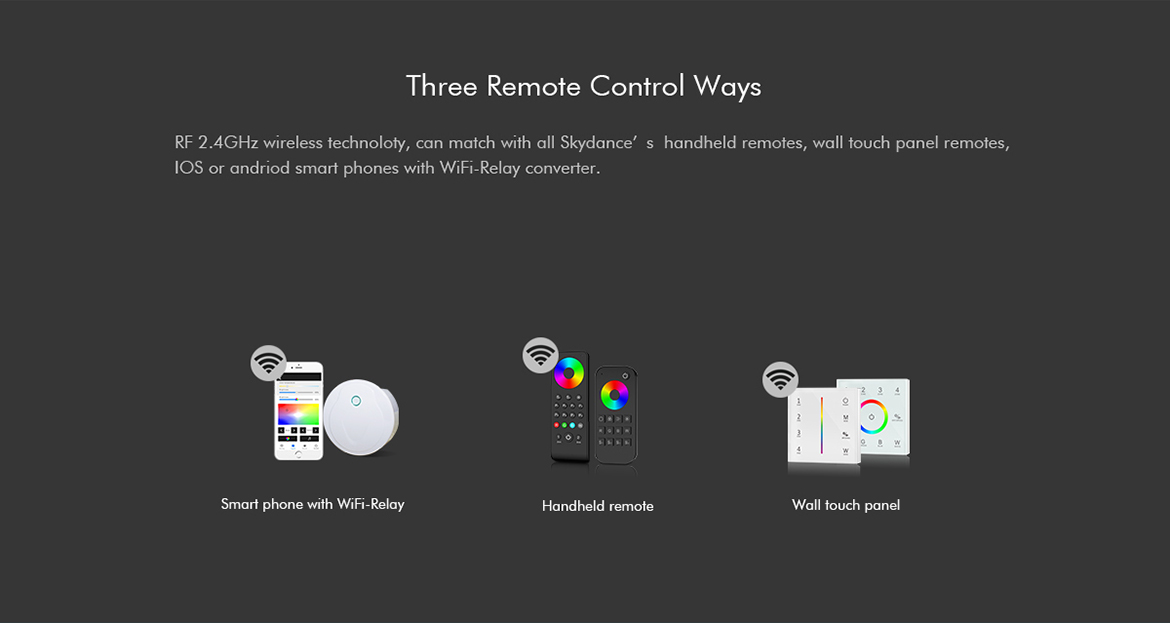

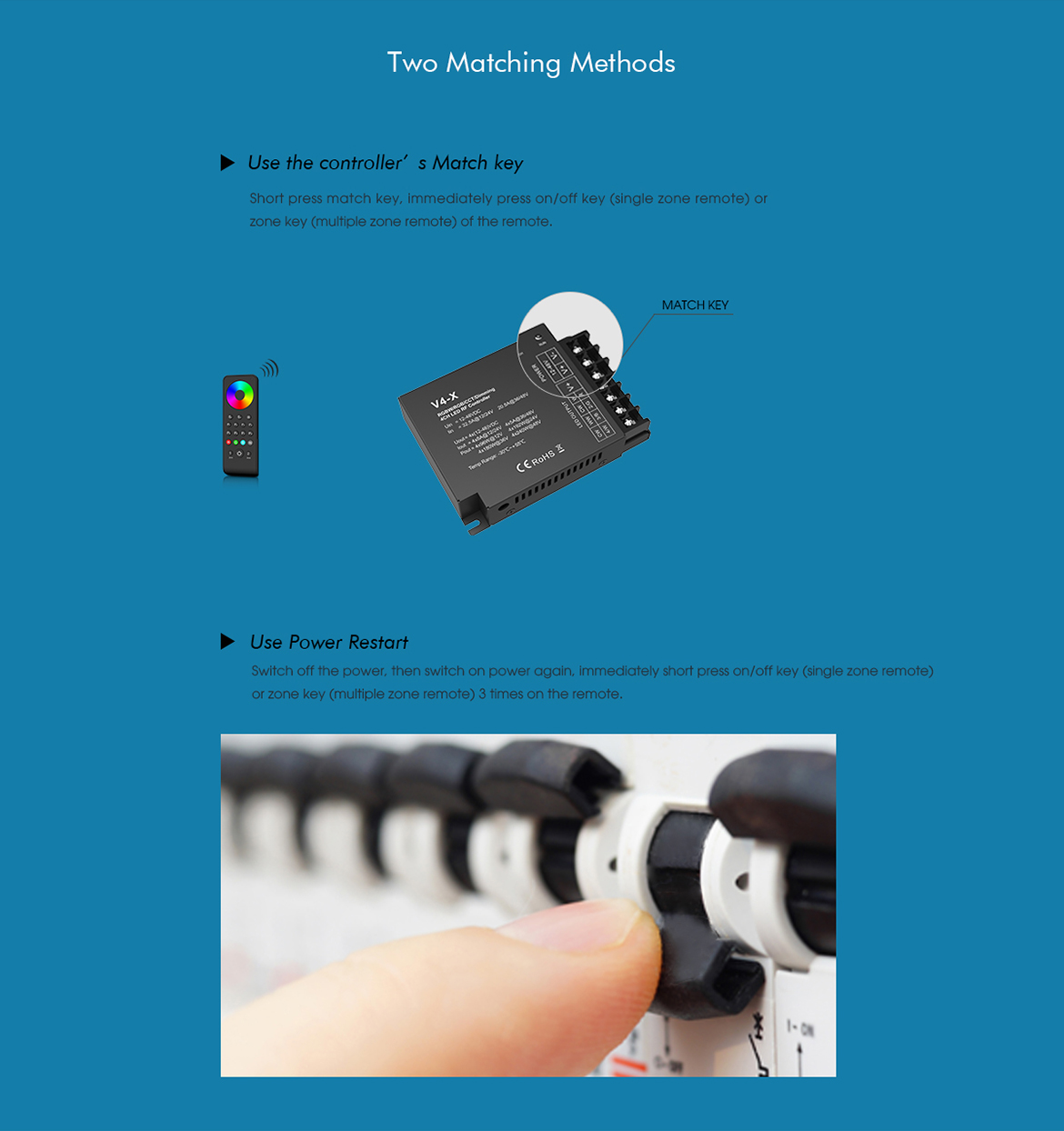

● Match with Skydance’s 2.4G single zone or multiple zone single color, dual color and RGB/RGBW remote control.

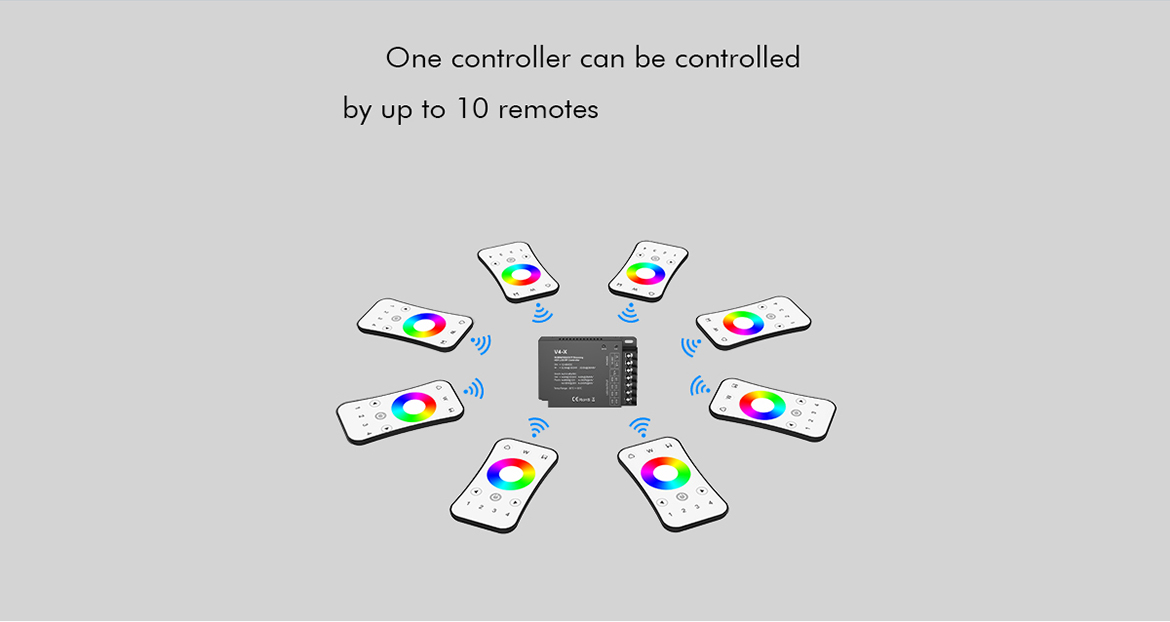

● One RF controller accepts up to 10 remote control.
● 4096 levels 0-100% dimming smoothly without any flash.
● When using with RGB/RGBW light, built in 10 dynamic modes, include jump or gradual change style.

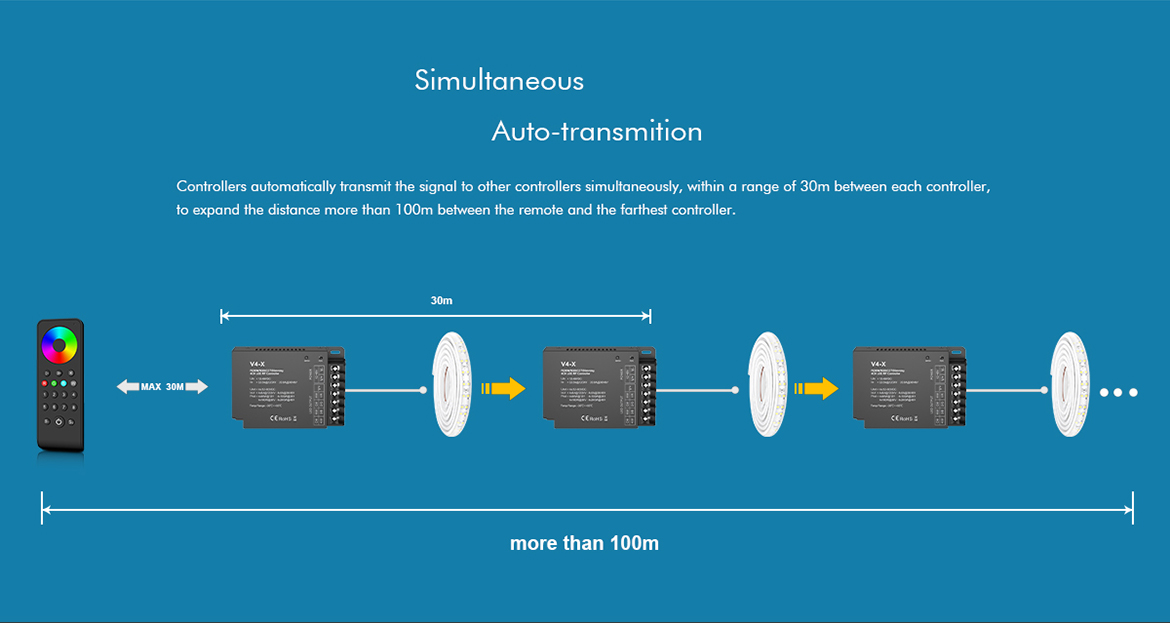

● Auto-transmitting function: Controller automatically transmits the signal to another controller with 15m control distance.

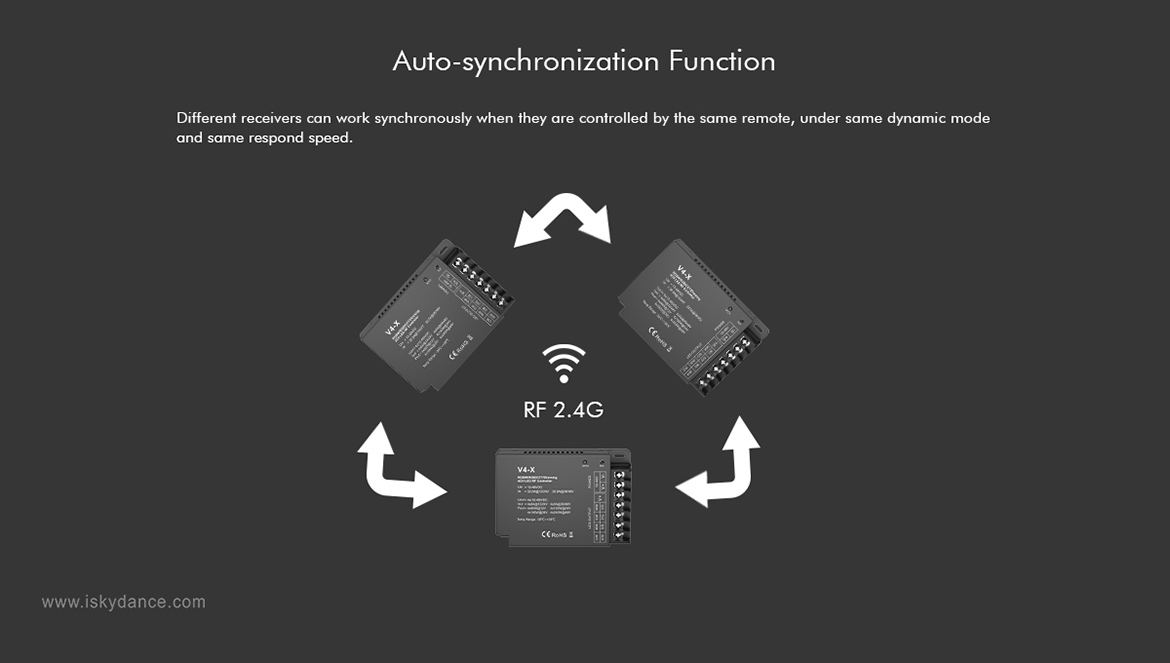

● Synchronize on the multiple numbers of controllers.
● Over-load / Short circuit protection, recover automatically
Input and Output
Input voltage: 12-48VDC
Input current: 32.5A@12/24V
Output voltage: 4 x (12-48)VDC
Output current: 4x8A@12/24V
Output power: 4x96W@12V
Output type: Constant voltage
Input signal: RF 2.4GHz
Control distance: 15m
Dimming level: 4096 levels
Dimming range: 0 -100%
Dimming curve: Logarithmic
Safety and EMC
EMC standard (EMC): EN301 489,EN 62479
Safety standard(LVD): EN60950
Radio Equipment(RED): EN300 328
Standards and Certifications
