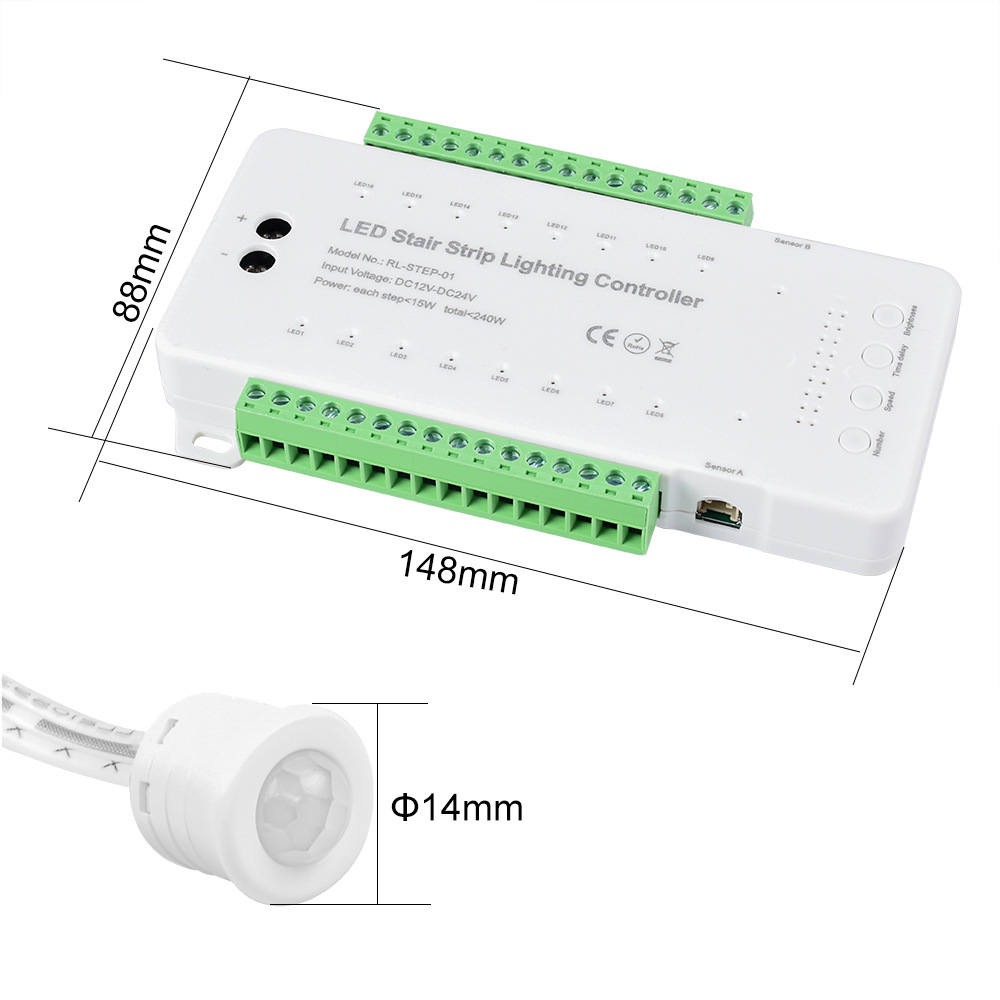

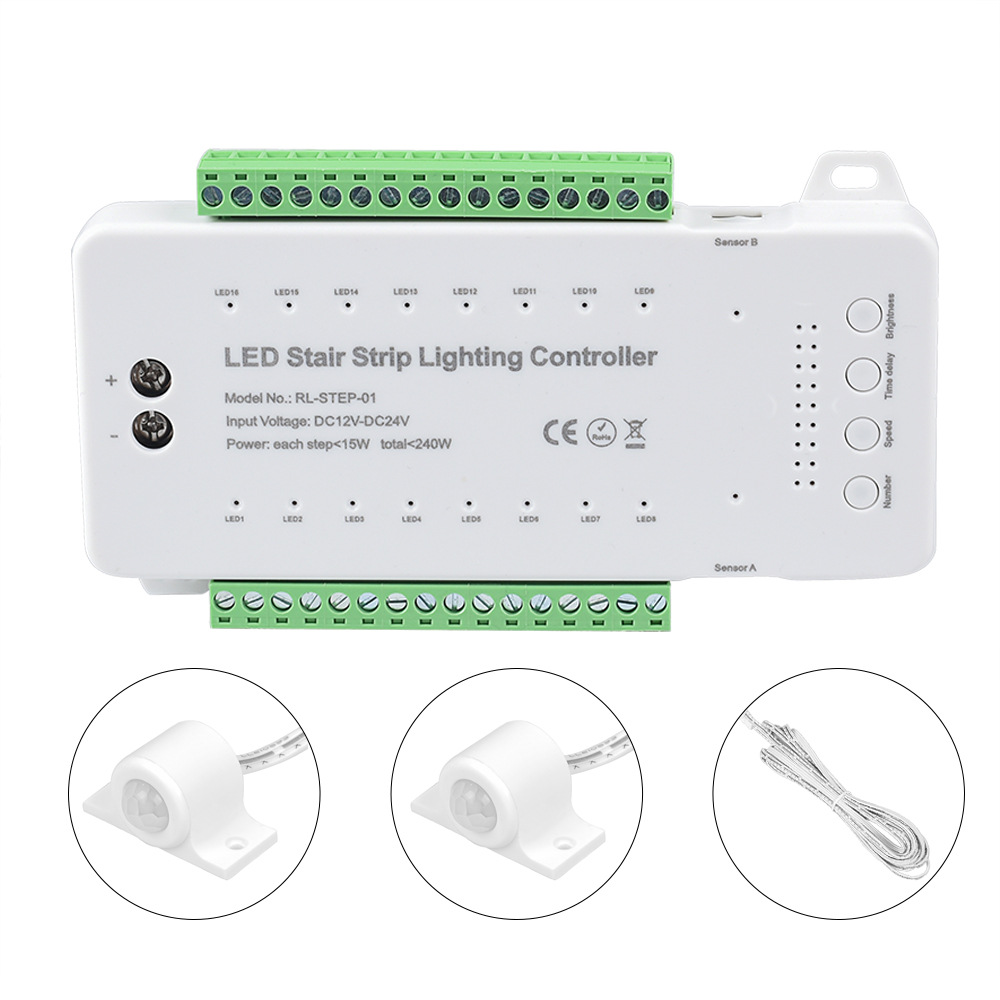

16CH Motion Sensor Stair Lights Indoor LED Light Controller

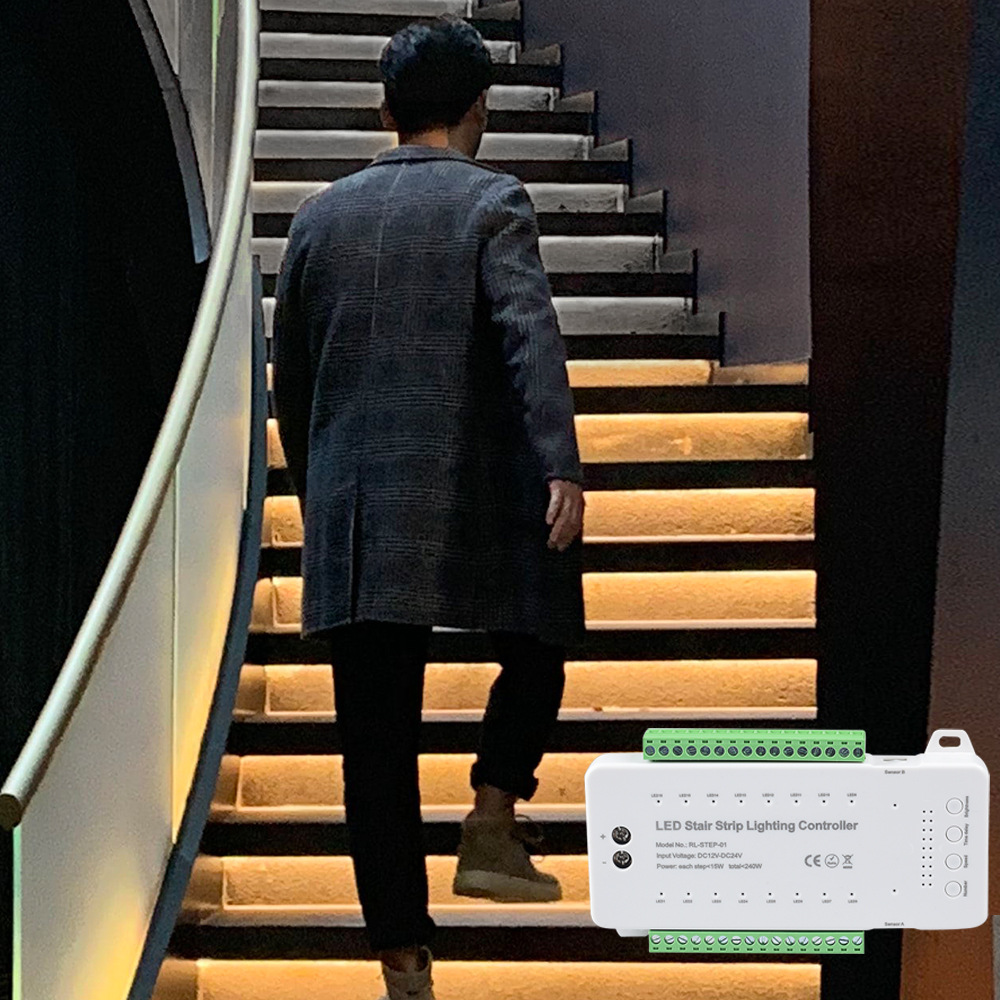

Motion sensor inductive stair controller for 16 steps for 12V/24V single color led strip lights, intelligent led stair lighting system, the PIR sensor automatically captures your actions, transmits instructions to the led stair lighting controller, and the stair light controller controls the stair led lighting on and off. You can create your own led stairway lighting effect through the buttons on the controller.
|Input Voltage:||DC12-24 V|
|Control Channel:||16 steps|
|Max Single Step Power:||Each step<15W, total<420W|
|Sensor Method:||PIR motion sensor|
|Control Method:||Controller buttons (Number, Speed, Time Delay, Brightness)|
1. Step Number: Long press the "number" key to set the number of the stair steps, short press to select the step you want to set, and long press to save the setting. Each led step light corresponds to a blue signal light.
2. Speed: There are 9 speeds in total, corresponding to the red signal lights, short press to set.
3. Time Delay: 9 gear time settings, corresponding to the blue signal lights.
4. Brightness: Short press to adjust the brightness of the led stair light.

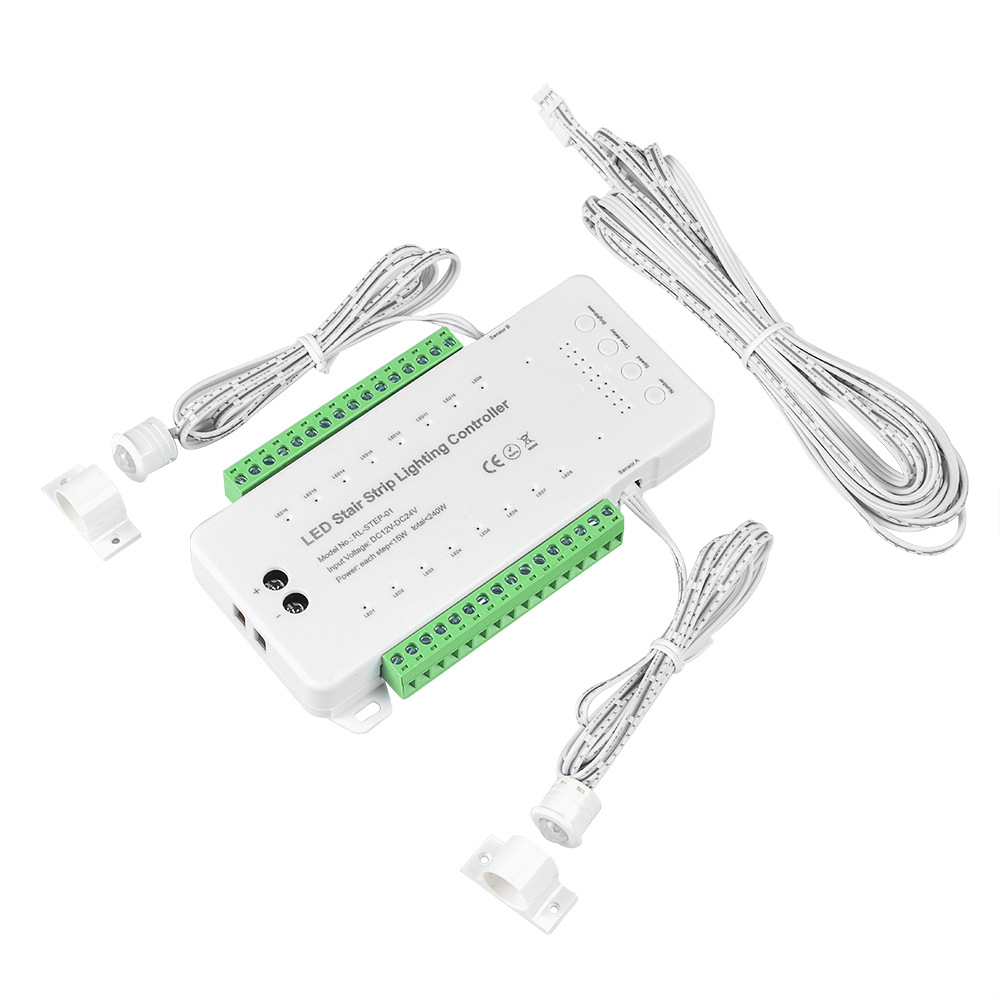

PIR Motion Sensor LED Stair Lights Installation: Two PIR motion sensors can be mounted on the stair surface or embedded in the stair treads.
