Effortlessly bridge gaps and extend the reach of your lighting project with our 5-Pin JST SM Extension Cable. Designed for reliable, solder-free connections, this LED cable is equipped with both male and female connectors, making it a perfect plug-and-play solution. Its versatile 5-pin design provides ideal compatibility for both multi-color RGBW LED strip lights and certain DMX512 lighting systems that utilize the JST SM standard.
Constructed with a durable PVC sheath and a high-conductivity 22AWG tinned copper core, this extension ensures a stable signal and consistent power delivery. Available in four convenient lengths from 1.64ft to 16.4ft, it offers the flexibility to customize your installation, whether you're creating intricate under-cabinet layouts, expansive cove lighting, or connecting DMX fixtures.
Key Features
Seamless Plug-and-Play Extension
Features pre-installed male and female 5-pin JST SM connectors for a secure, tool-free connection every time.
Versatile 5-Pin Compatibility
Perfectly suited for extending 5-wire RGBW (Red, Green, Blue, White, V+) LED strips or connecting DMX512-compatible strips (VCC, A, B, P, GND).
Multiple Length Options
Available in 1.64ft, 3.28ft, 6.56ft, and 16.4ft lengths to accommodate projects of any scale, from short jumps to long runs.
Product Specifications
| Parameter | Details |
|---|---|
| Product Model | NWRGBW-ACCESSORIE-002 |
| Connector Type | 5-Pin JST SM |
| Gender | Male and Female Pair |
| Wire Gauge | 22AWG / 0.3mm² |
| Wire Core Material | Tinned Copper |
| Core Strands | 17 |
| Sheath Material | PVC |
| Rated Voltage | 0-48V |
| Maximum Rated Temperature | 80°C |
| IP Rating | Non-Waterproof (Indoor Use Only) |
| Certifications | RoHS |
| Available Lengths | 1.64ft (0.5m), 3.28ft (1m), 6.56ft (2m), 16.4ft (5m) |
Application Scenarios
How to Use This 5-Pin Extension Cable
- Power Down: Before making any connections, ensure the power supply to your LED system is completely turned off to prevent damage.

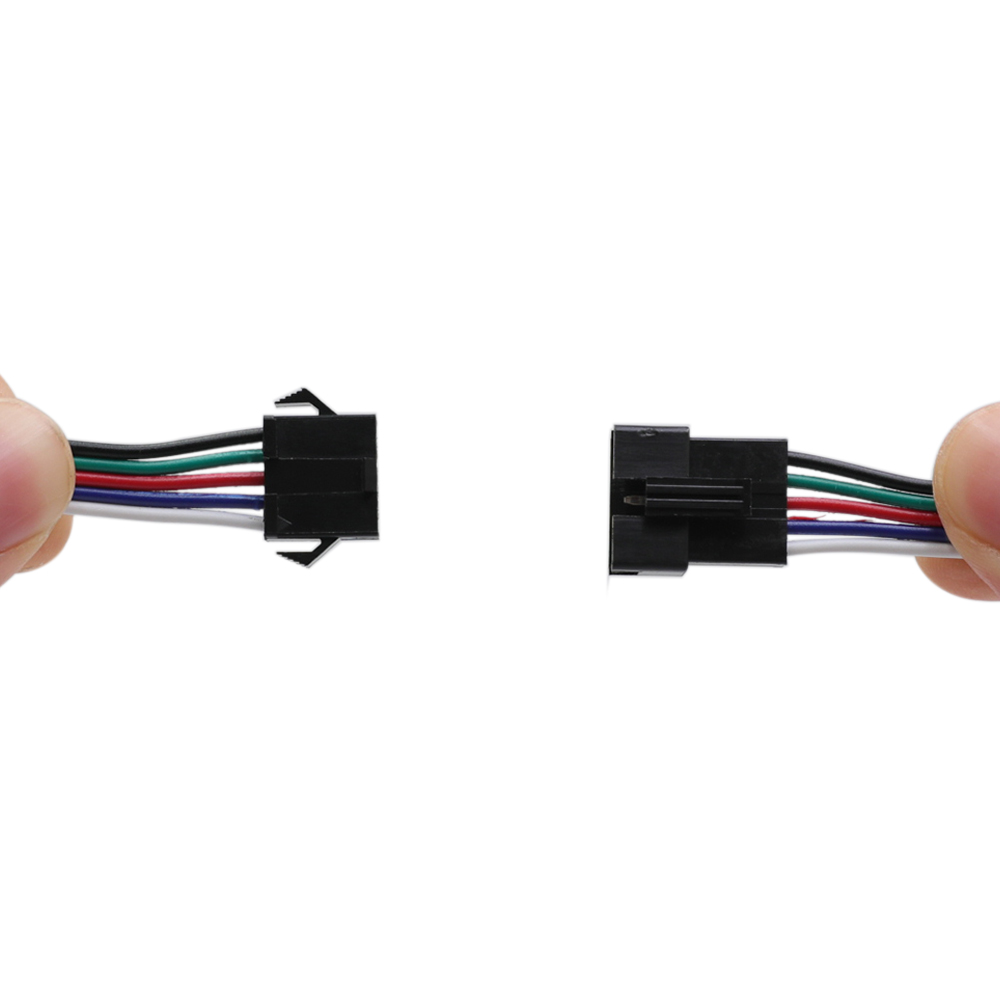

- Identify Connectors: Match the male end of the extension cable with the female JST connector on your LED strip, controller, or another cable.

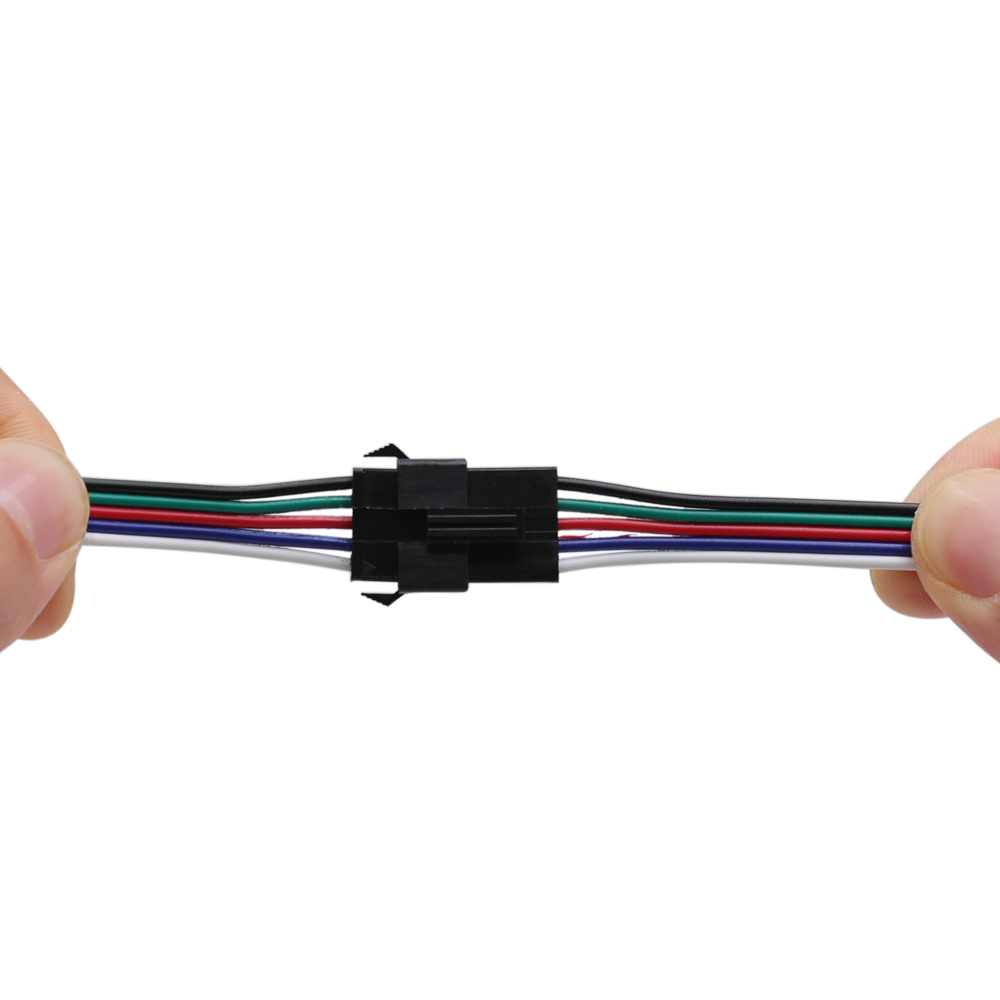

- Align and Connect: Carefully align the guide notch and pins, then push the connectors together firmly until they click into place, ensuring a secure connection.
- Test the System: Once connected, restore power to your lighting system to verify that the strip illuminates correctly and responds to controls.
- These connectors are non-waterproof and are intended for use in dry, indoor locations only.
- For longer runs, be aware of potential voltage drop, which can cause dimming or color shifts at the far end of the strip. For extensions significantly longer than 16.4ft (5m), consider using an RGBW signal amplifier.
- Verify that your LED strip or device uses the 5-pin JST SM connector standard, as there are other types of 5-pin connectors.
Frequently Asked Questions
Q: What is this 5-pin connector used for?
A:It's primarily used to extend connections for 5-wire lighting systems, such as RGBW LED strip lights (Red, Green, Blue, White, Power) and some DMX512-controlled LED strips.
Q: Can I use this for my standard RGB LED strip?
A:No, standard RGB strips typically use 4-pin connectors. This 5-pin cable is designed for RGBW or other 5-wire applications.
Q: Is this connector waterproof for outdoor use?
A:No, this is a non-waterproof JST SM connector and must only be used in dry, indoor environments to avoid damage and electrical hazards.
Q: Will this work with any RGBW LED strip?
A:It is compatible with any RGBW strip that uses the standard 5-pin JST SM connector. Always check the connector type on your specific strip before purchasing.
Q: Can I connect multiple extension cables together for a longer run?
A:Yes, you can chain them, but be mindful of voltage drop over very long distances. For total runs exceeding 32ft (10m), we recommend using an RGBW signal amplifier to maintain brightness and signal integrity.
