DMX512 RGBW DC5V 160 LEDs Digital LED Strip Light with Built-in 485 Programmable Parallel Signal Breakpoint Resume, Matrix Control,16.4feet/roll

Name: DMX512 RGBW DC5V 160 LEDs Digital LED Strip Light with Built-in 485 Programmable Parallel Signal Breakpoint Re
Brand: SuperLightingLED
SKU: DCFLS-DMX512-5VX160
Price: 69.98 USD
Availability: InStock

Model: DCFLS-DMX512-5VX160 Review stars

0.0 (0 Reviews) Various options in stock

Starting at: $129.98 $69.9846% off

Qty Discounts Off Price
1-4 $69.98	5-19 $68.58	20-49 $66.48	50+ $62.98
* Discounts may vary based on options below

Select Specifications:

Select PCB Width:

12mm (0.47in)

Select Light Color :

Select Length:

16.4ft (5 meters)

Select Waterproof Rating:

Qty: -+

Free shipping over $299Ships via DHL / UPSWarranty covered

Accept the project customization, please contact us for commercial offers and technical support.

Product Information

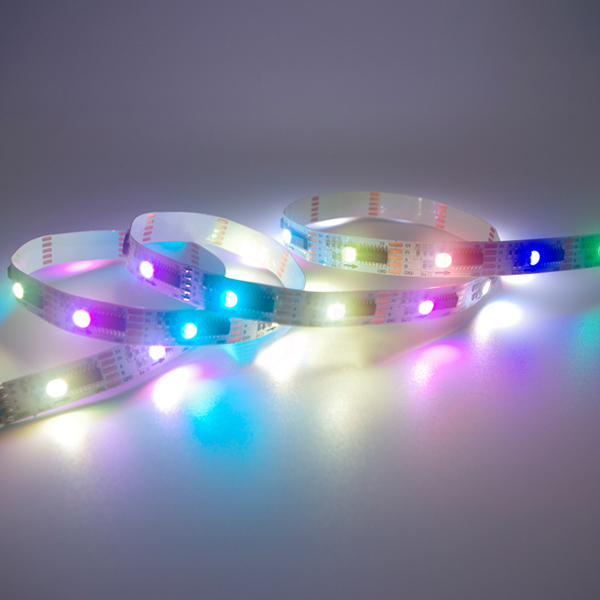

16.4ft RGBW DMX led stirp for sale, 32 LEDs per meter, each LED is a pixel, is individually addressable. DMX led strip lights are compatible DMX512 (1990) signal protocol international agreement, parallel signal transmission, breakpoint resume.

It is powered by a low-voltage 5V power supply , and programmed by a DMX controller or artnet pixel controller to achieve various lighting efects you want.

DMX512 Chips Specifications Download

Standards and Certifications

DC12V

Product Specification

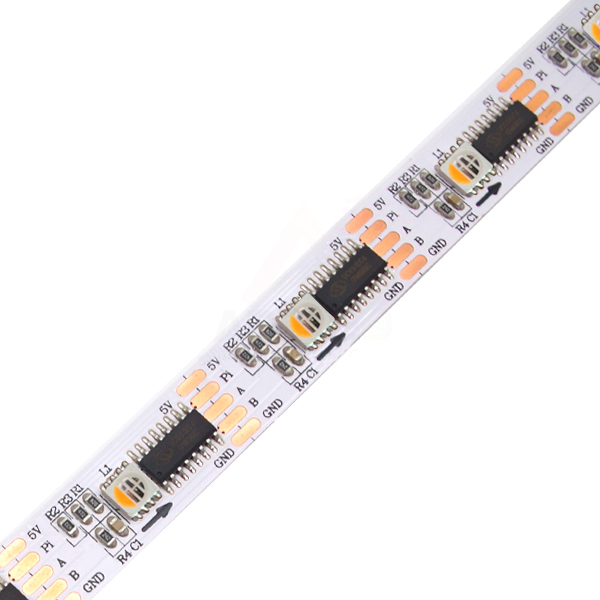

LED Strip Type: SMD 5050 RGBW 160LEDs/16.4ft

LED Chip: DMX512 IC super brights Chip

Board material : FPCB

Packing : 5 meters (16.4ft)/roll

Working Temperature: -4°F (-20°C) ~ 122°F (50°C)

Storage Temperature: -40°F (-40°C) ~ 176°F (80°C)

Dimension: 16.4ft/roll, every 1 PCS LED can be cut

LED Quantity: 32 LEDs per 1meter (3.28 ft)

IC Quantity: 32 LEDs per 1meter (3.28 ft)

Lifespan: 50,000+hours

Warantty: 3 years

Grey level : 256

Dimensions: L500cm(127 in ) x W1.2cm(0.47 in ) x H0.25cm(0.10 in )

Input Voltage(V): 12VDC

Working Power: 128W/16.4ft Max

Lumen Per LED: 20-22Lumen 3520lm/16.4ft 215lm/ft 27.5lm/watt Max

Beam Pattern: 120 degree

Water Proof: WaterproofIP67 ,IP65 and NON-waterproof

How To Wire DMX Controlled LED Tape Light?

1) Wiring diagram of DMX LED strip connected to the programmable led controller:

2) Wiring diagram of DMX light strip connected to the artnet controller:

t-300k led controller wiring diagram

Reviews

Customer Experience

Your feedback is important to us! Share your thoughts and photos with other customers.

Write a Review & Upload Photos

Downloads

Files for DCFLS-DMX512-5VX160

PDFDCFLS-DMX512-5VX160 product data sheetFull specifications, dimensions, cut points, wiring and IP options — the same details shown on this page, laid out for printing and engineering review.PDF · generated from the current product page · opens in a new tabOpen PDF

Need this page for a project file or an engineering check? Click Open PDF, then save or print it from your browser. For CAD drawings, IES files or a signed test report, contact our engineers and quote the model number.

Images

These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!

LED Strip Light Guide

Common questions about this type of product, answered against this model’s own options. For full figures see the specification above or the spec sheet for this model.

Which controller does this LED strip light need?

Addressable LED strip lights take a data signal, so they need an SPI (pixel) controller that supports this IC — an ordinary RGB controller will not drive them. Data flows one way: connect the controller to the input end marked with the arrow. Wiring addressable LED strip lights

Do I need power injection?

5 V addressable LED strip lights lose voltage fastest, so longer runs need power fed in at both ends and at intervals along the run; 12 V and 24 V versions carry further. Keep the data line short between controller and first pixel. Choosing an addressable LED strip light

Which waterproof rating should I choose?

Available on this model: Underwater IP68 - Adhesive Back · Outdoor Silicone Tube IP67 - With Brackets · Surface Glued IP65 - Adhesive Back · Non-Waterproof IP20 - Adhesive Back. IP20 is for dry indoor use, IP65 handles splashes, IP67 suits outdoor and wet areas, IP68 is for continuous submersion. Choosing a waterproof rating

Can I cut it to length?

Yes. Cut only on the marked cut lines between the copper pads — the cut interval for this model is on its spec sheet. Rejoin with solder or a solderless connector. Cutting LED strip lights · we can also cut to length and fit your connector before shipping: custom LED strip light assembly.

What size power supply do I need?

Take the watts per metre from the specification above, multiply by the length you are running, then add about 25% headroom. Power calculation guide · Choosing a power supply

Will it fit an aluminium profile, and how dense are the LEDs?

PCB width 12mm (0.47in). Choose a profile whose inner width is at least the PCB width; denser LEDs give a smoother line close to a diffuser. LED aluminium profiles
