Double Row 5050 RGB + 2835 White LED DMX RGBW Strip 24V

Model: DMXRGB+W-UCS512H5L-DR Review stars 0.0 (0 Reviews) Various options in stock
Starting at: Can.$118.60
Qty Discounts Off Price
1-9
Can.$118.60		 10-19
Can.$116.82		 20-49
Can.$116.22		 50+
Can.$113.85
* Discounts may vary based on options below
Select Specifications:
Select PCB Width:
Select Length:
Select Light Type:
Qty: -+
Free shipping over $299Ships via DHL / UPSWarranty covered

Accept the project customization, please contact us for commercial offers and technical support.

  • Product Information
  • Reviews
  • Downloads
  • Images
  • LED Strip Light Guide

Product Information

Achieve unparalleled lighting control with the Double Row DMX RGBW LED Strip, a professional-grade solution designed for dynamic architectural and stage applications. This 24V strip features a unique dual-row design on a wide 15mm PCB, combining a row of vibrant 5050 RGB LEDs with a separate, high-density row of 2835 pure white LEDs. This configuration allows for complete, independent control over rich colors and brilliant, functional white light through the industry-standard DMX512 protocol.

Powered by an upgraded UCS512H6L IC, this strip offers robust and reliable communication with any standard DMX system. It's the perfect hybrid, eliminating the compromises of typical RGBW strips by providing both saturated colors and high-quality white light in your choice of Warm, Natural, or Daylight White. It is an ideal choice for projects demanding both creative ambient effects and powerful task lighting from a single, integrated fixture.

Key Features

Hybrid Dual-Row Design

Combines a row of 5050 RGB LEDs for color and a dense row of 2835 LEDs for high-quality, pure white light.

Direct DMX512 Control

Integrates seamlessly into professional lighting setups using the industry-standard DMX protocol with an upgraded UCS512H6L IC.

Independent Channel Control

Adjust RGB colors and pure white light separately or blend them together for an extensive palette, including soft pastels.

High-Density White Illumination

Features an impressive 240 white LEDs per meter for bright, effective illumination suitable for task or general lighting.

Selectable White Temperatures

Available in Warm White (3000K), Natural White (4000K), and Daylight White (6000K) to match any project's requirements.

Multiple Environmental Ratings

Choose from non-waterproof IP20 for dry indoor locations to fully submersible IP68 for underwater applications.

Technical Highlights

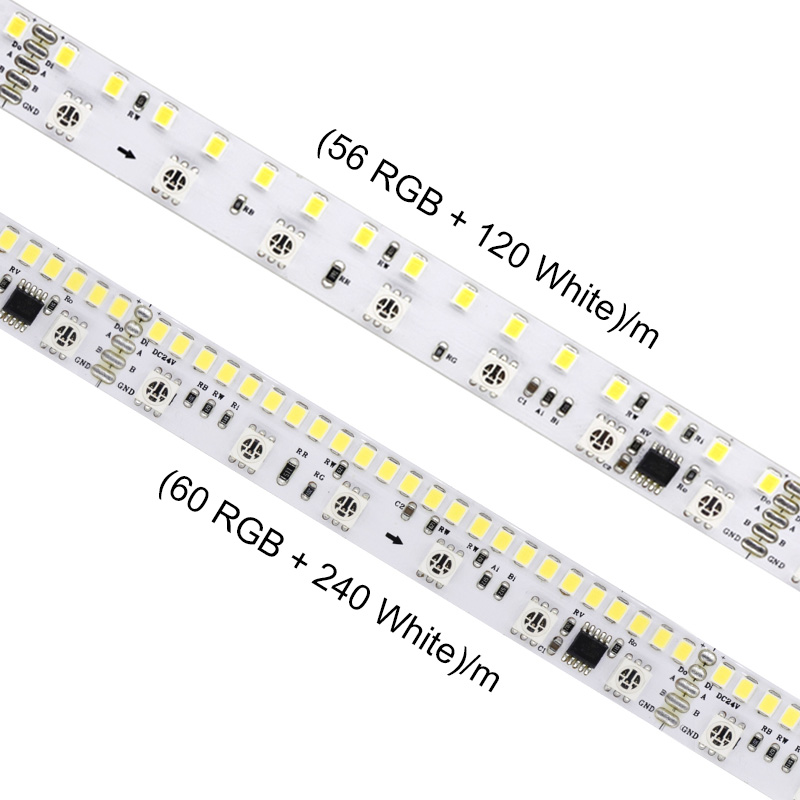

  • (56 RGB + 120 White)/m DMX RGB+W Type: We currently have no stock of this board. It must be custom-made, with a minimum order quantity of 500 meters. For orders of less than 500 meters, a customization fee of $50 will be charged, and production time is approximately 18 days.

Product Specifications

Parameter Details
Product Name Double Row 5050 RGB + 2835 White LED DMX RGBW Strip 24V
Model DMXRGB+W-UCS512H6L-DR
Input Voltage DC 24V
IC Type UCS512H6L (DMX512 Protocol)
LED Type SMD 5050 RGB + SMD 2835 White
LED Density 60 RGB LEDs/m + 240 White LEDs/m
Power Consumption 25 W/m
Pixels per Meter 10 pixels/m
PCB Width 15mm (0.59 inches)
Strip Length 16.4ft (5 meters)
Cutting Increment Every 100mm (4 inches)
Available White CCTs 3000K (Warm White), 4000K (Natural White), 6000K (Daylight White)
Waterproof Rating IP20 (Non-Waterproof), IP65 (Surface Glued), IP67 (Silicone Tube), IP68 (Underwater)
Warranty 2 Years
Lead Time (Exclude Shipping) 7 workdays
Beam Angle 120°
Lifespan 50,000+ hours

Application Scenarios

Architectural and Commercial Lighting Ideal for facade lighting, large-scale cove installations, and retail displays where both vibrant color scenes and high-quality functional white light are required from a single, powerful fixture.
Stage, Theatre, and Event Production Integrates directly into professional DMX-controlled lighting rigs for backdrops, set pieces, and stage edging, providing reliable and versatile effects that can be managed from a central console.
High-End Residential Projects Perfect for creating sophisticated lighting in home theaters, game rooms, and large open-plan living areas, offering the flexibility to switch between immersive color and bright, clean white light.
Dynamic Signage and Exhibitions Build eye-catching, animated signs and illuminating museum or trade show exhibits. The separate control allows for dynamic color effects to attract attention while the white LEDs ensure text and details are crisp and clear.
⚠ Control Methods & Precautions
  • This is a 24V DC LED strip. Do not connect it directly to 12V, 120V, or 220V AC power.
  • A DMX512 controller are required for operation. This strip will not light up with only a power supply.

What's in the Box

  • ✓1 x 16.4ft (5m) Roll of Double Row DMX RGBW LED Strip Light (Model: DMXRGB+W-UCS512H6L-DR)

⇩ Downloads & Documents

PDFDMX-512-IC-UCS512H-Series-Datasheet

Reviews

Customer Experience

Your feedback is important to us! Share your thoughts and photos with other customers.

Write a Review & Upload Photos

Downloads

Files for DMXRGB+W-UCS512H5L-DR
PDFDMXRGB+W-UCS512H5L-DR product data sheetFull specifications, dimensions, cut points, wiring and IP options — the same details shown on this page, laid out for printing and engineering review.PDF · generated from the current product page · opens in a new tabOpen PDF
Need this page for a project file or an engineering check? Click Open PDF, then save or print it from your browser. For CAD drawings, IES files or a signed test report, contact our engineers and quote the model number.

Images

These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!

Double Row 5050 RGB + 2835 White LED DMX RGBW Strip 24V

LED Strip Light Guide

Common questions about this type of product, answered against this model’s own options. For full figures see the specification above or the spec sheet for this model.

Which controller does this LED strip light need?
Addressable LED strip lights take a data signal, so they need an SPI (pixel) controller that supports this IC — an ordinary RGB controller will not drive them. Data flows one way: connect the controller to the input end marked with the arrow. Wiring addressable LED strip lights
Do I need power injection?
5 V addressable LED strip lights lose voltage fastest, so longer runs need power fed in at both ends and at intervals along the run; 12 V and 24 V versions carry further. Keep the data line short between controller and first pixel. Choosing an addressable LED strip light
Which waterproof rating should I choose?
Available on this model: Underwater IP68 - Adhesive Back · Outdoor Silicone Tube IP67 - With Brackets · Surface Glued IP65 - Adhesive Back · Non-Waterproof IP20 - Adhesive Back. IP20 is for dry indoor use, IP65 handles splashes, IP67 suits outdoor and wet areas, IP68 is for continuous submersion. Choosing a waterproof rating
Can I cut it to length?
Yes. Cut only on the marked cut lines between the copper pads — the cut interval for this model is on its spec sheet. Rejoin with solder or a solderless connector. Cutting LED strip lights · we can also cut to length and fit your connector before shipping: custom LED strip light assembly.
What size power supply do I need?
Take the watts per metre from the specification above, multiply by the length you are running, then add about 25% headroom. Power calculation guide · Choosing a power supply
Will it fit an aluminium profile, and how dense are the LEDs?
PCB width 15mm (0.59in). Choose a profile whose inner width is at least the PCB width; denser LEDs give a smoother line close to a diffuser. LED aluminium profiles
