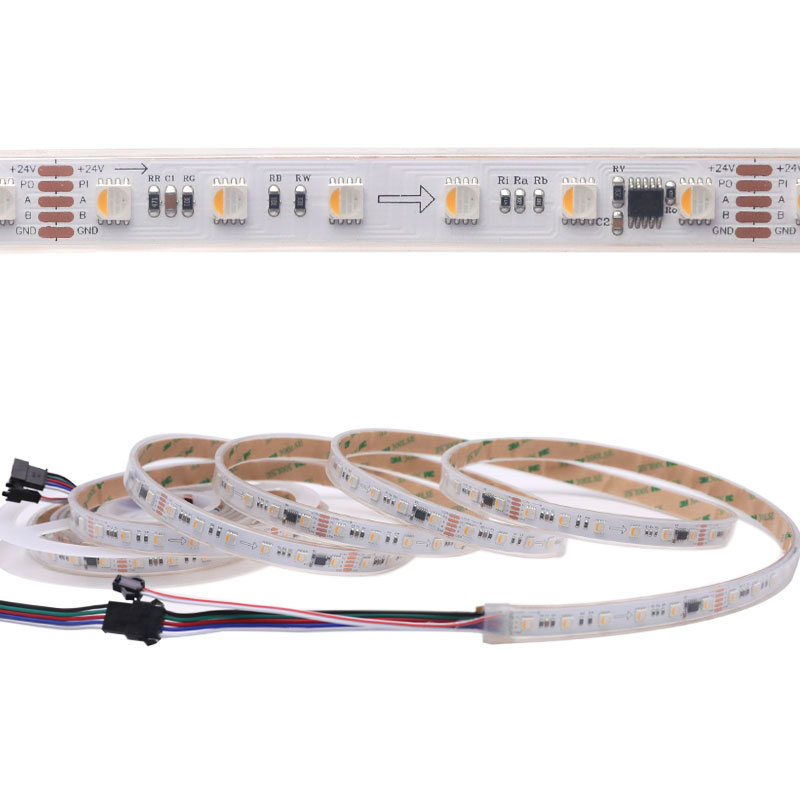

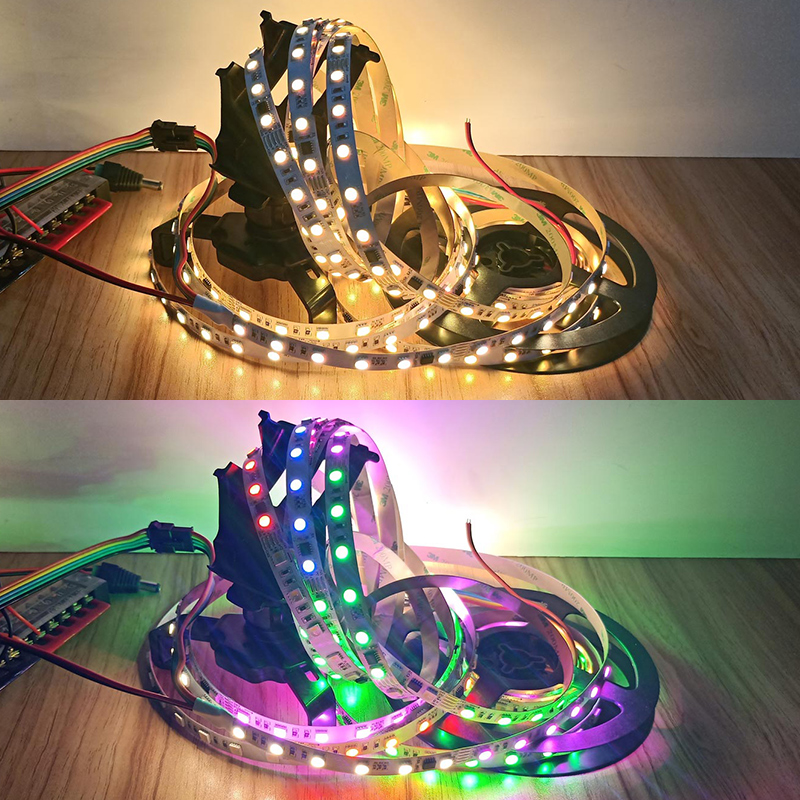

DMX512 Series DC24V RGBW Addressable LED Strips - 60LED/m Breakpoint Resume Color Chasing LED Lights
1. Low voltage DC24V, safety resistance combine with ballast regulator, offer better protection, and make sure longer lifespan, also energy-saving and environmentally friendly.

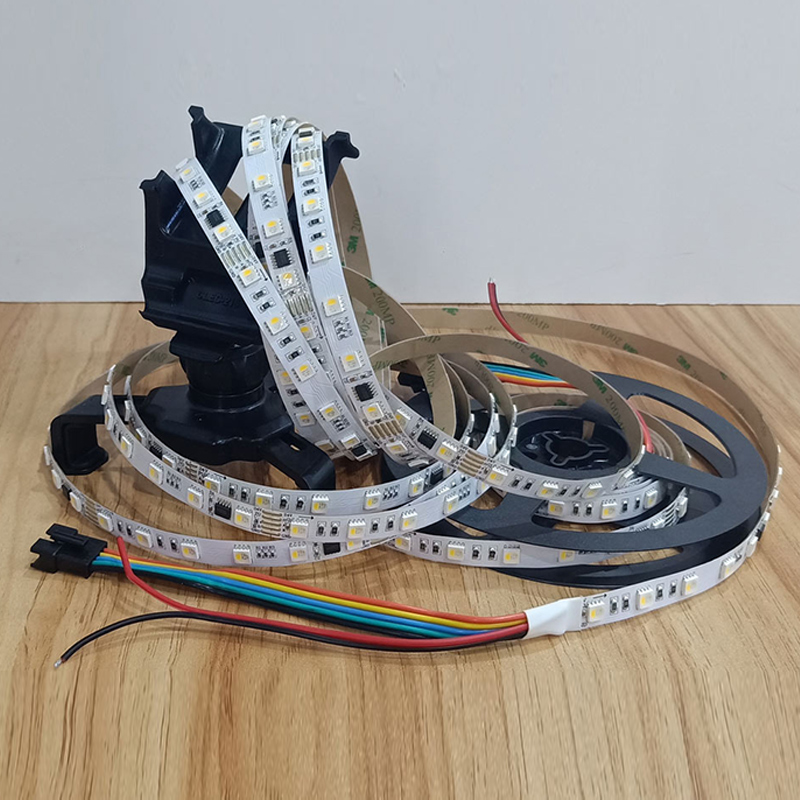

2. Adopts high-quality material, make high bright 5050 LED chips, based on flexible FPC substrate, with the advantage of good conductivity, faster heat dissipation, bending resistance, easy to get the shape you need.
3. With programmable external IC, more stable and able to get the dream color chasing effects you want via using LED controllers, very suitable for large industrial LED lighting projects.

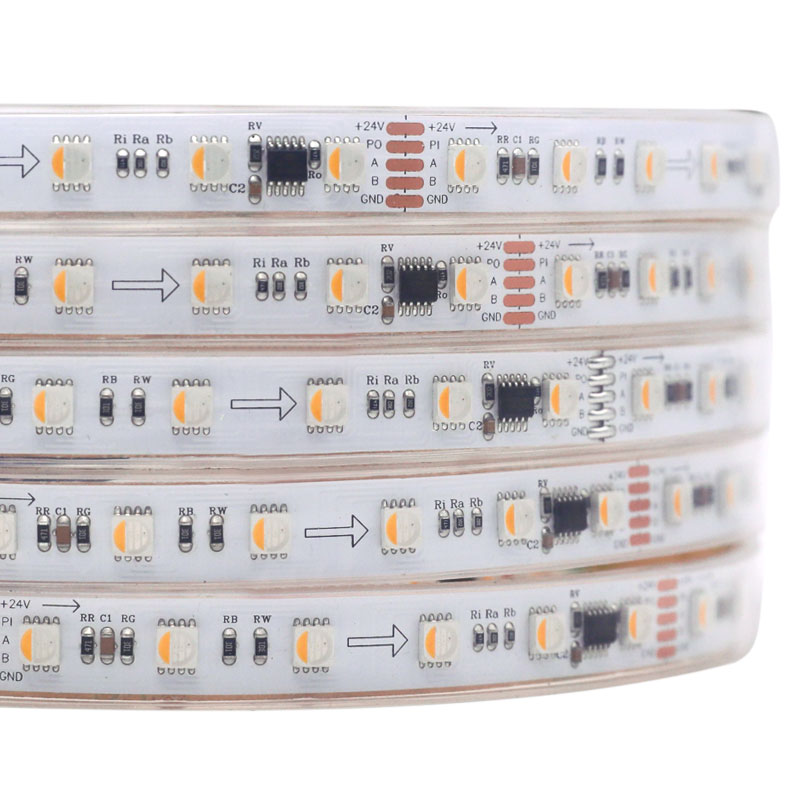

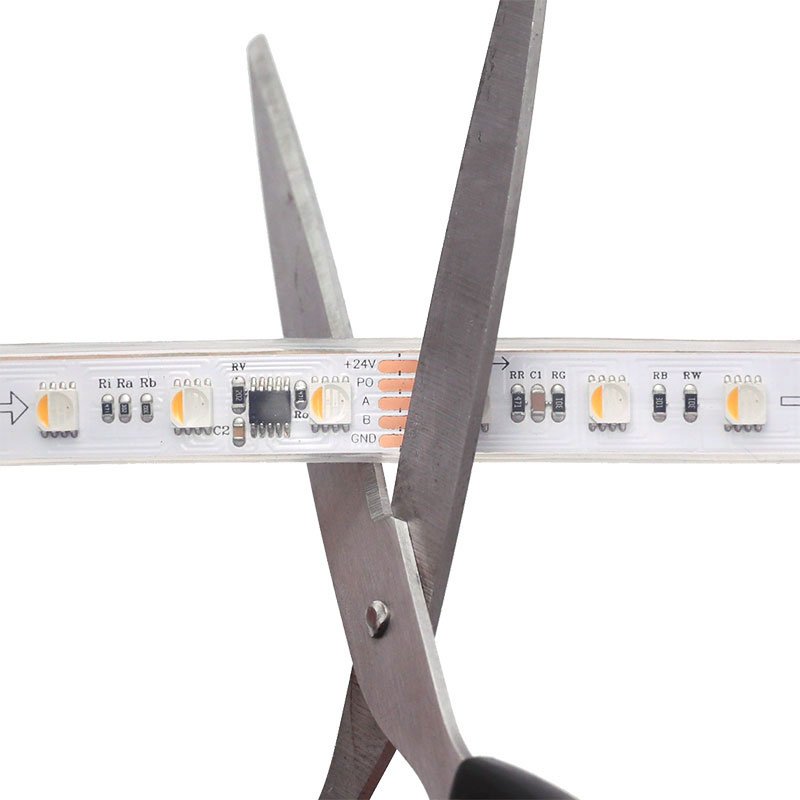

4. One IC controls 6 LEDs, you can cut along the cutting line to get the length you prefer, meets your requirements for different lengths.
5. Offering waterproof rating options, non-waterproof IP20 and waterproof IP65 version for indoor use, waterproof IP67 and waterproof IP68 version for outdoor use. Can be placed in different places for installation
6. The signal transmission of DMX512 dream color LED strip light adopts a parallel design, when one LED fails/damages, it does not affect the normal work and control of other LEDs, and make sure the overall project work fine. This is the advantage of Breakpoint Resume Transmission.
Pls Note: Please do not exceed 80% of Power Supply capacity when calculating Power Supply size to use in your system. Otherwise,it will affect the brightness of the LEDs and the service life of the power supply.
This is our recommended T-1000S Programmable controller link. We are a professional lighting system company, you can tell us your lighting project requirements, we will recommend the most reasonable lighting solutions for you. If you need a customized lighting scheme, please feel free to contact me.
Standards and Certifications
LED Strip Type: SMD 5050 RGB 300LEDs/16.4ft
LED Chip: DMX512 IC super brights Chip
Working Temperature: -4°F (-20°C) ~ 122°F (50°C)
Storage Temperature: -40°F (-40°C) ~ 176°F (80°C)

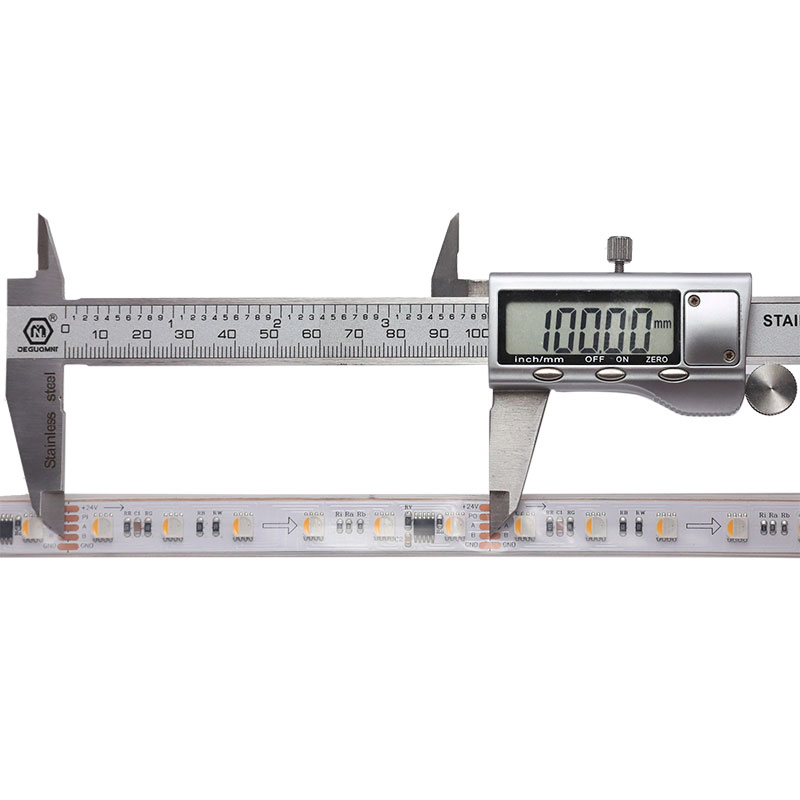

Dimension: 16.4ft/roll, every 6 PCS LED can be cut
LED Quantity: 60 LEDs per 1meter (3.28 ft)
IC Quantity: 10 per 1meter (3.28 ft)
Warantty: 3 years

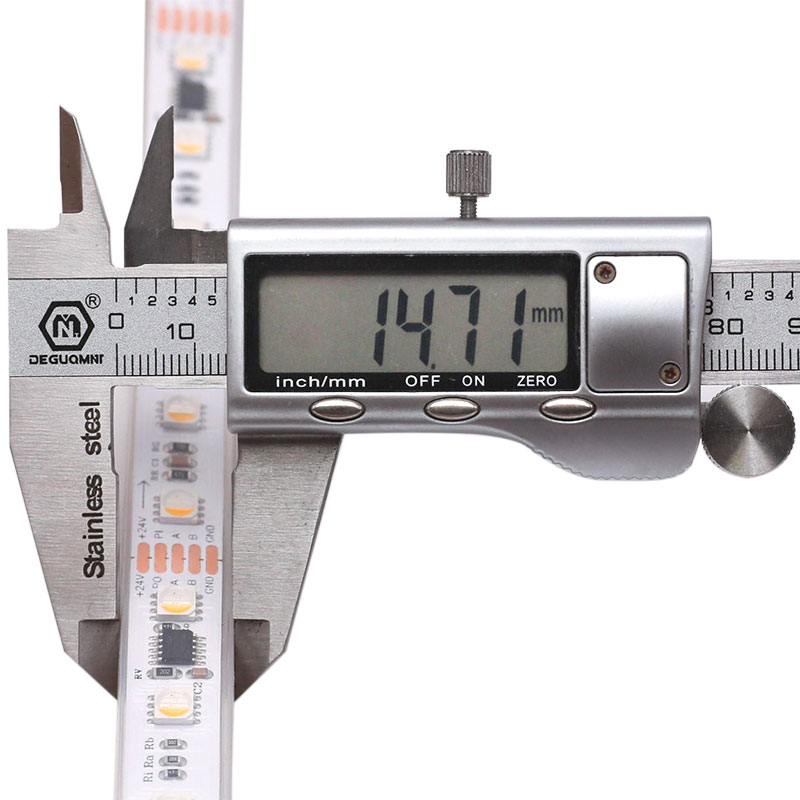

Dimensions: L500cm(127 in ) x W1.0cm(0.39 in ) x H0.25cm(0.10 in )
Input Voltage(V): 24VDC
Working Power: 96W/16.4ft Max , 19.2W per meter/3.28ft
Lumen Per LED: 20~22Lumen 6600lm/16.4ft 402lm/ft 91.7lm/watt Max
Beam Pattern: 120 degree
Water Proof: Non-waterproof IP20, Waterproof IP65, Waterproof IP67, Waterproof IP68
Light strip size
Waterproof Level Description
IP20 Non-waterproof (The PCB [Printed Circuit Board] surface of the bare, with a self-adhesive back, For Indoor);

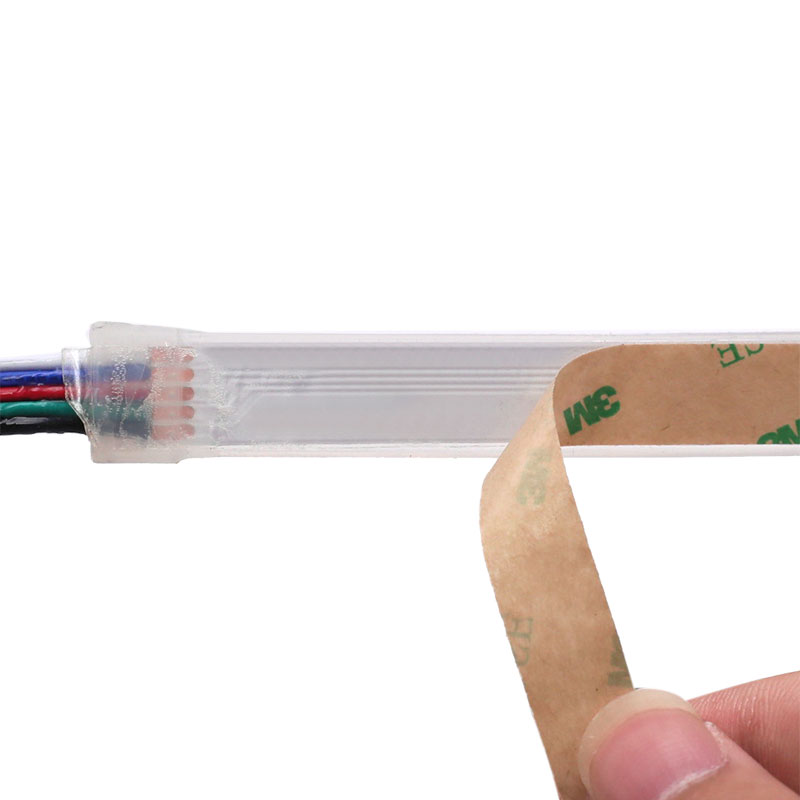

IP65 Waterproof (Epoxy cover waterproof, Epoxy Resin, PCB surface is encapsulated with plastic Gel, with self-adhesive 3M back, For Outdoor & Indoor) ;
IP67 Waterproof (Silicon sleeve waterproof, PCB is encapsulated with silicon tube, with a plastic fastener, better waterproof, For Outdoor);
LED programmable digital screen
Hotels decoration lighting
Concealed lighting, Cove decoration
led wall, advertising board
Outdoor advertising signs,
Hotel, KTV, bars,
Wedding party lighting,
DMX512 Console Connection diagram:
