Product Information

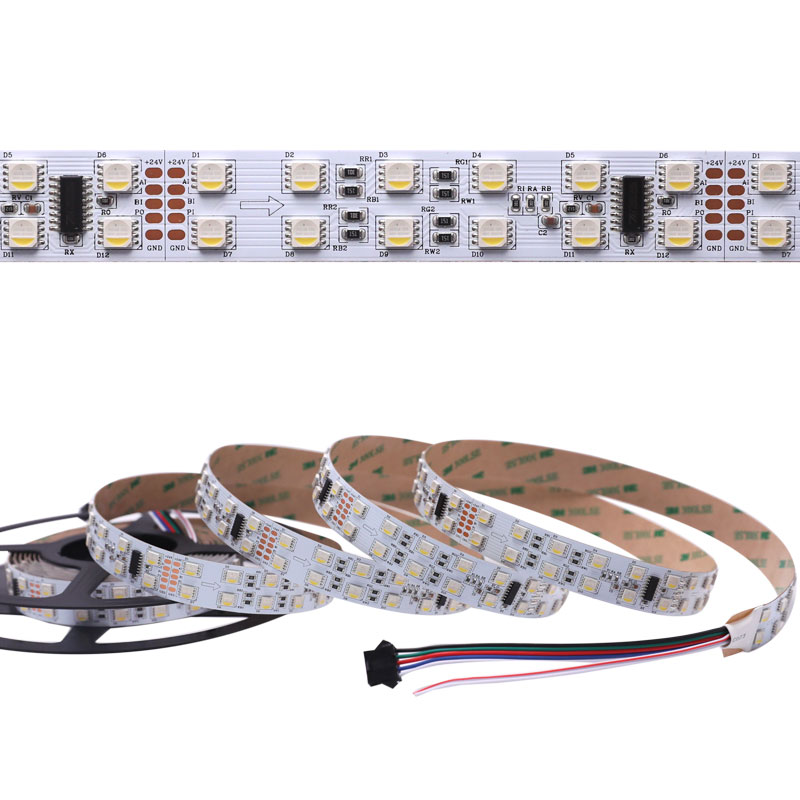

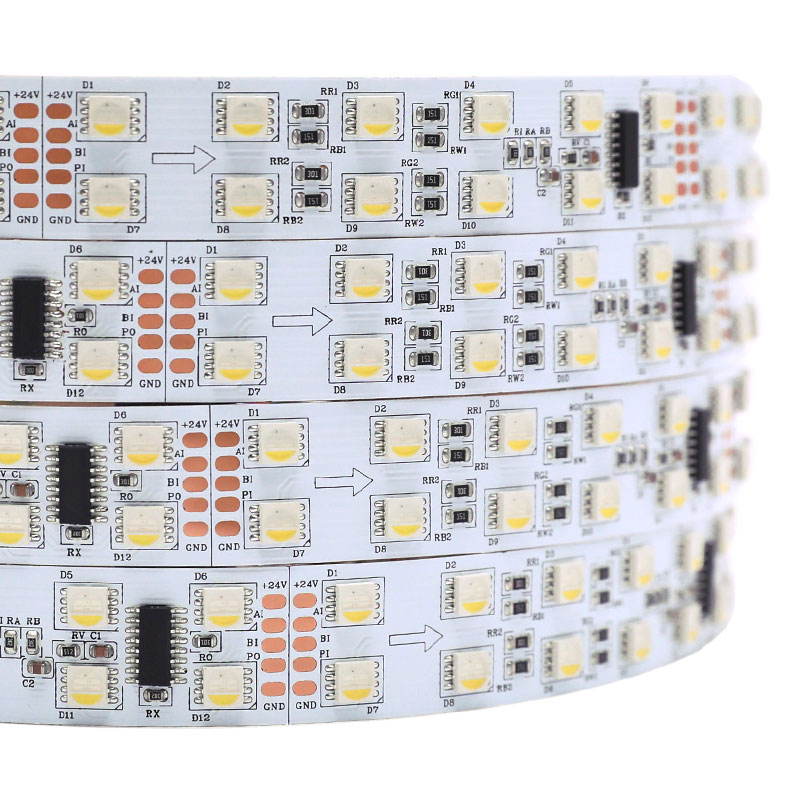

16.4ft DMX led rope light for sale. DMX led light strips allow you to design programs to achieve the lighting effects you want, more intelligent than other addressable led strip lights, mainly used for building lighting, light shows, and stage lighting systems.
It adapts 4in1 5050 RGBW multi-color LED as light source, consumes 20 watts per meter, low energy consumption than traditional lighting. 120 or 160 LEDs per meter, with a total of 600 or 800 lights per roll, high LED density and high light brightness. DC24V safe voltage input, you just need a meanwell 24v power supply to run this dmx512 led strip.
You can use the programmable dmx led light controller, Artnet dmx controller, Madrix console, or GPS signal to control the dmx lighting.
| Light Type | PCB Width | IC Quantity | Cut Unit |
| 100mm 12 LEDs a segment | 10 Pixels/Meter (default) | 20mm/0.78" | 10/m, 50/roll | 100mm, 12LEDs (1 pixel = 12 LEDs) |
| 50mm 6 LEDs a segment (DMX512-RGBW-DR600W15) | 15mm/0.59" | 20/m, 100/roll | 50mm, 6LEDs (1 pixel = 6 LEDs) |
| 8 Pixels/Meter (optional) | 20mm/0.78" | 8/m, 40/roll | 125mm, 20 LEDs (1 pixel = 20 LEDs) |
DMX512 Chips Specifications Download
Standards and Certifications
Product Specification
| LED Strip Type: | RGBW Addressable DMX LED Strip |
| LED Chip: | SMD5050 + 16-pin UCS512C4 IC |
| Input Voltage: | DC24V |
| Power: | 20W/m |
| Working Temperature: | -20℃~+45℃ |
| Storage Temperature: | -20℃~+60℃ |
| LED Color Temperature: | RGBW Dream Color |

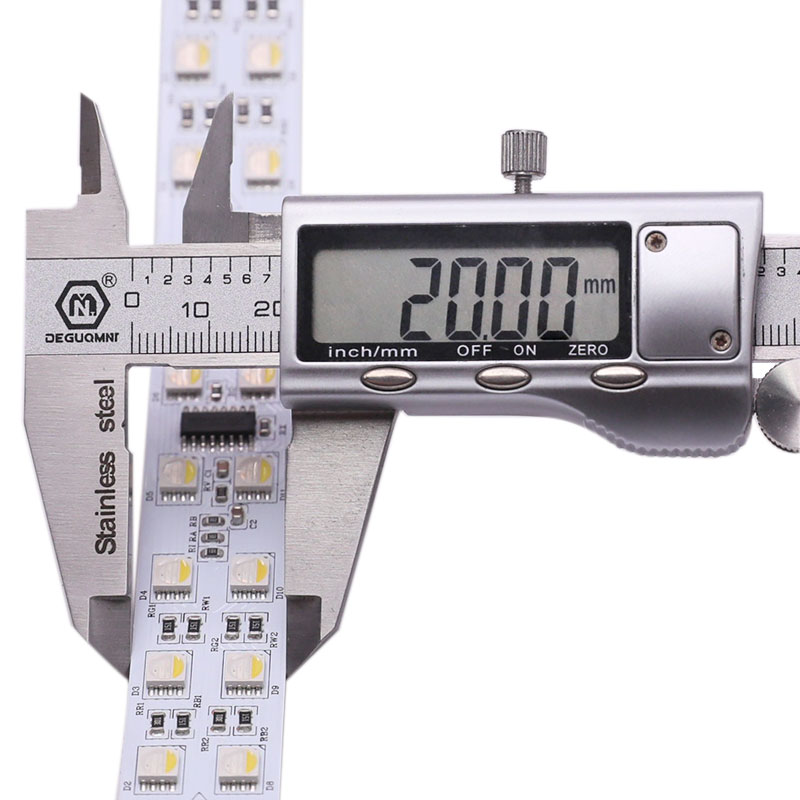

| PCB Width: | 20mm |
| LED Quantity: | 120 LEDs/m, 600 LEDs per roll |
| IC Quantity: | 10/20 ICs/m |

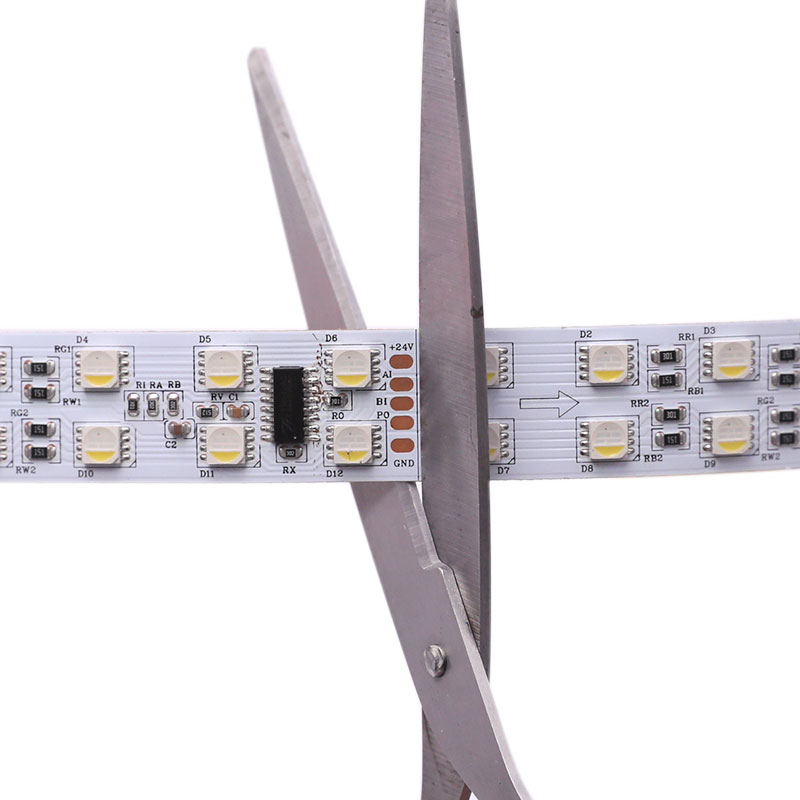

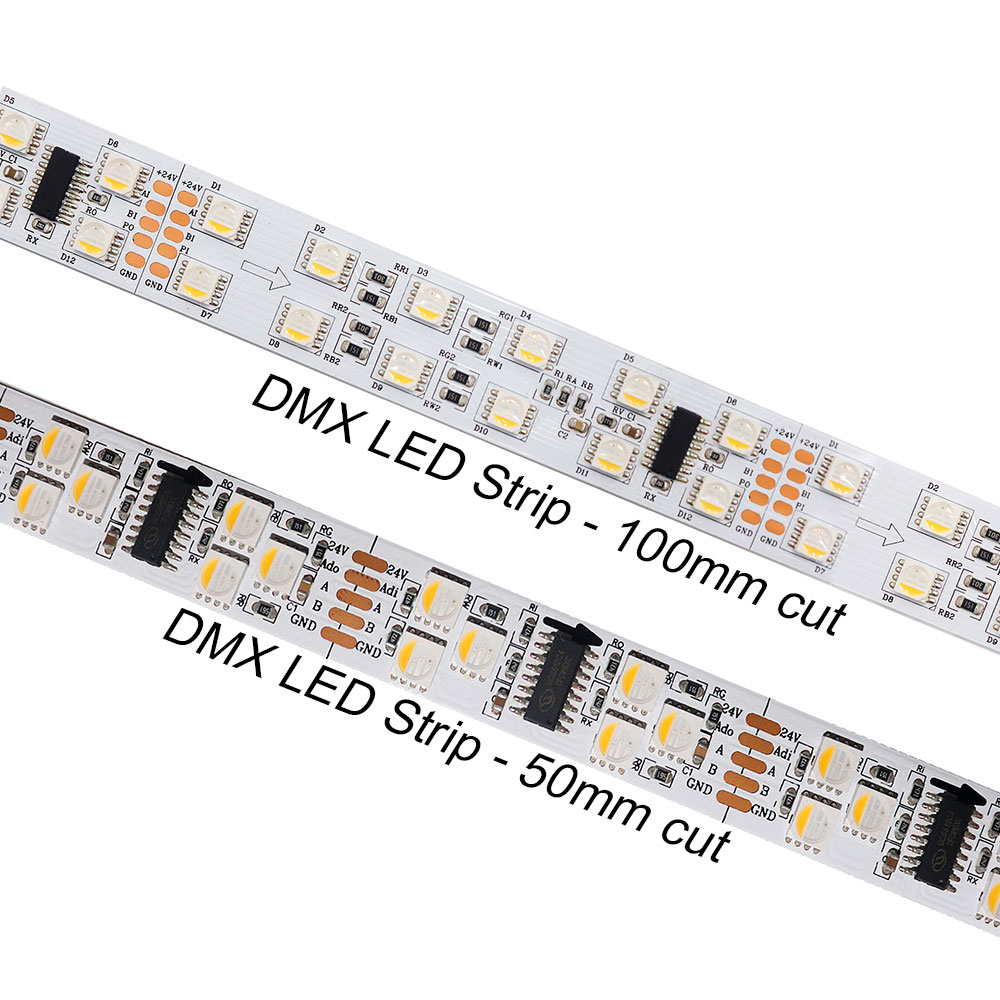

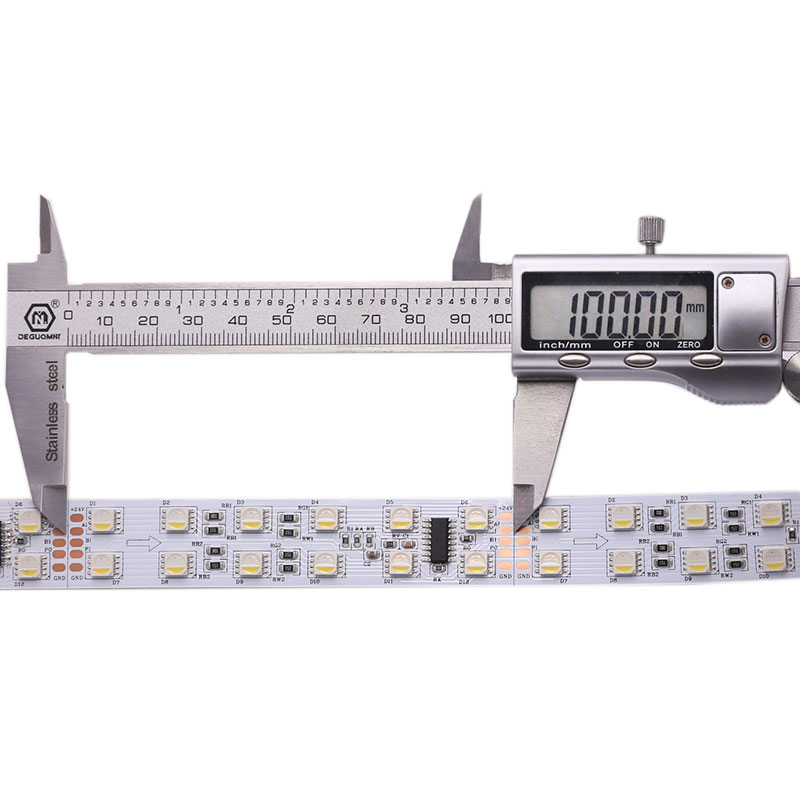

| Cut Unit: | 100mm - 12 LEDs can be cut, 50mm - 6 LEDs can be cut |
| Waterproof Rating: | Non-waterproof IP20, Indoor Waterproof IP65, Outdoor Waterproof IP67 IP68 |
| Strip Length: | 5m/16.4ft |
| LED Chip: | Epistar |
| Lifespan: | 30,000+hours |
| Beam Angle: | 120° |
| Lumen: | 22 lm/LED |
How To Wire DMX LED Strip Lights?
LED Lights DMX Wiring Diagram:
Available Lighting Fixtures for DMX LED Strips:
Silicone LED diffusers and Aluminum LED channels are commonly used as accessories in light strips. And they all evenly diffuse the LED lighting and protect the light strips. The difference is that the silicone led diffuser is soft and the aluminum profile is rigid.
