Double Row Super Bright Series DC24V 5050SMD 600LEDs Flexible LED Strip Lights Waterproof IP67 16.4ft Per Reel By Sale

Name: Double Row Super Bright Series DC24V 5050SMD 600LEDs Flexible LED Strip Lights Waterproof IP67 16.4ft Per Reel
Brand: SuperLightingLED
SKU: FSLDR-IP67-5050X600
Price: 39.98 USD
Availability: InStock

Model: FSLDR-IP67-5050X600 Review stars

0.0 (0 Reviews) Various options in stock

Starting at: $84.98 $39.9853% off

Qty Discounts Off Price
1-4 $39.98	5-9 $39.18	10-14 $37.98	15+ $36.38
* Discounts may vary based on options below

Select Specifications:

Select PCB Width:

Select Light Color :

Select Operating Voltage:

Select Connector Type:

Select Length:

16.4ft (5 meters)

Select Waterproof Rating:

Select Installation:

Qty: -+

Free shipping over $299Ships via DHL / UPSWarranty covered

Accept the project customization, please contact us for commercial offers and technical support.

Product Information

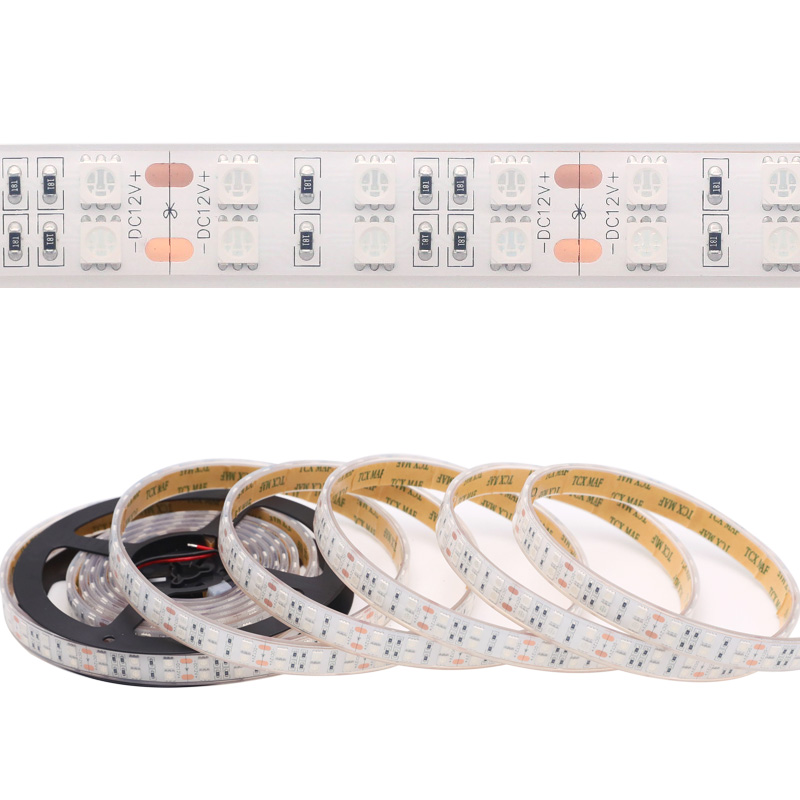

Universal Dual row single color super bright 5050 SMD(SMD:Surface Mounted Devices) Waterproof IP67 Flexible LED Tape strips, Epistar chip, 600LEDs/16.4ft, 16.4ft (5 meters) Per Reel By Sale.

Our brightest Flexible LED Solid Color light Strips soft and easy bended for installation. Available in 5 meter (197 in) Waterproof IP67 flexible light strips with adhesive backing and can be stuck just about anywhere (except IP67/IP68 type which will come with mounting brackets). can be cut into 6-LED segments, so you could cut a different length for your project and request. The LED strips Suitable for the average indoor home lighting as well as lighting professionals. 24 VDC operation. Dimmable - Connect LED Smart Dimmers.

Standards and Certifications

Product Specification

LED Strip Type: SMD 5050 600PCS/16.4ft

LED Chip: Epistar Chip

Working Temperature: -4°F (-20°C) ~ 122°F (50°C)

Storage Temperature: -40°F (-40°C) ~ 176°F (80°C)

Light Color: Warm White, Daylight White,Cool White, Red, Green, Blue, Amber (optional)

Dimension: 16.4ft/roll, every 6 PCS LED can be cut

LED Quantity: 120 LEDs per 1meter (3.28 ft)

Lifespan: 50,000+hours

Warantty: 3 years

Dimensions: L500cm(196.8 in ) x W1.5cm(0.59 in ) x H0.25cm(0.10 in )

Input Voltage(V): 24V DC

Working Power: 6A 24V/144W Max

Lamp Luminous Flux(lm): 24~26lm/LEDs 15600lm/16.4ft

Color Temperature CCT(White): Warm White(3000-3500k), Daylight White(5500-7000k), Cool White(8000-10000k)

Wavelength NM(RGBY): Red(620-630nm), Green(515-525nm), Blue(465-475nm), Yellow(585-595nm)

Beam Pattern: 120 degree

Water Proof: Waterproof IP67 (Silicon sleeve waterproof,PCB is encapsulated with silicon tube, with plastic fastener, better waterproof, For Outdoor)

CRI (Ra>): 95

dual row led strips

Reviews

Customer Experience

Your feedback is important to us! Share your thoughts and photos with other customers.

Write a Review & Upload Photos

Downloads

Files for FSLDR-IP67-5050X600

PDFFSLDR-IP67-5050X600 product data sheetFull specifications, dimensions, cut points, wiring and IP options — the same details shown on this page, laid out for printing and engineering review.PDF · generated from the current product page · opens in a new tabOpen PDF

Need this page for a project file or an engineering check? Click Open PDF, then save or print it from your browser. For CAD drawings, IES files or a signed test report, contact our engineers and quote the model number.

Images

These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!

LED Strip Light Guide

Common questions about this type of product, answered against this model’s own options. For full figures see the specification above or the spec sheet for this model.

What voltage does this LED strip light run on?

This model is offered in 24VDC · 12VDC. Lower voltage means a shorter run per feed: at 12 V feed power roughly every 5 m, at 24 V roughly every 10 m. Longer runs get power injected at both ends. Connecting to the power supply

Which waterproof rating should I choose?

Available on this model: IP68 Underwater Use · IP67 Waterproof Outdoor Use. IP20 is for dry indoor use, IP65 handles splashes, IP67 suits outdoor and wet areas, IP68 is for continuous submersion. Choosing a waterproof rating

Can I cut it to length?

Yes. Cut only on the marked cut lines between the copper pads — the cut interval for this model is on its spec sheet. Rejoin with solder or a solderless connector. Connector options on this model: Waterproof Fast Connectors · Waterproof Wires · 2-pin Bare Wire. Cutting LED strip lights · we can also cut to length and fit your connector before shipping: custom LED strip light assembly.

What size power supply do I need?

Take the watts per metre from the specification above, multiply by the length you are running, then add about 25% headroom. Power calculation guide · Choosing a power supply

Which colour is right?

This model comes in Yellow(585-595nm) · Blue(455-458nm) · Green(515-525nm) · Red(620-630nm) · Cool White (9000K) · Warm White(3000K). Warmer whites suit living spaces, cooler whites suit task and display lighting. Screens do not show colour temperature accurately — order a sample if the room matters. Warm white vs cool white

Will it fit an aluminium profile, and how dense are the LEDs?

PCB width 20mm (0.79in) · 15mm (0.59in). Choose a profile whose inner width is at least the PCB width; denser LEDs give a smoother line close to a diffuser. LED aluminium profiles
