Ultra Slim 60W 850nm Near IR Infrared LED Light Panel

Model: NIRLP-850NM-60W Review stars 5.0 (1 Reviews) Various options in stock
PriceCan.$183.56
Qty Discounts Off Price
1-4
Can.$183.56
5-14
Can.$179.89
15-24
Can.$176.22
25+
Can.$172.54
* Discounts may vary based on options below
Select Specifications:
Select Kit:
Select Input Voltage:
Qty: -+
Free shipping over $299Ships via DHL / UPSWarranty covered

Accept the project customization, please contact us for commercial offers and technical support.

  • Product Information
  • Reviews
  • Downloads
  • Images
  • LED Strip Light Guide

Product Information

Square 850nm NIR (near infrared) lights led panel, high efficiency, is a professional flat panel infrared monitoring light source, high brightness infrared light panel customized for industrial vision automation equipment and high-speed monitoring head, with 2mm ultra-thin thickness, 120mm*120mm (4.7"x4.7") form factor, high thermal conductivity, dimmable features. Comes with a power adapter and a dimmer.

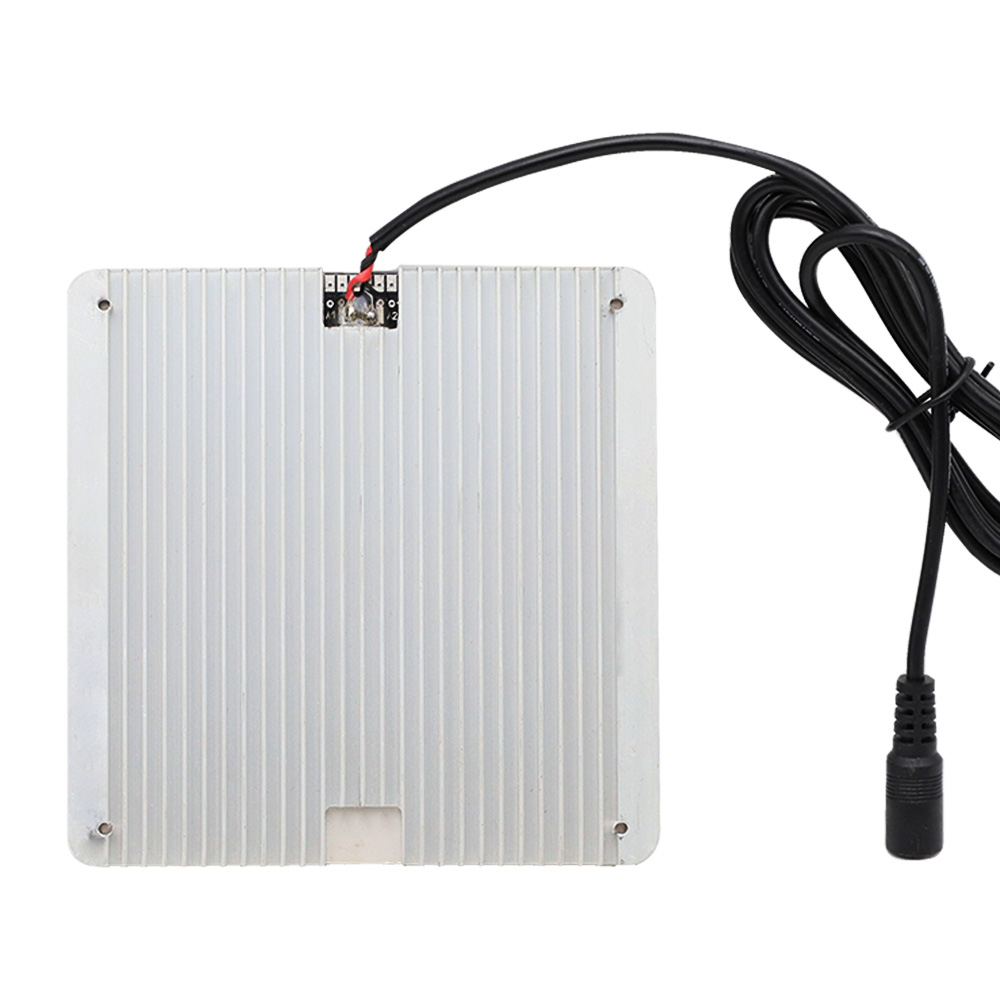

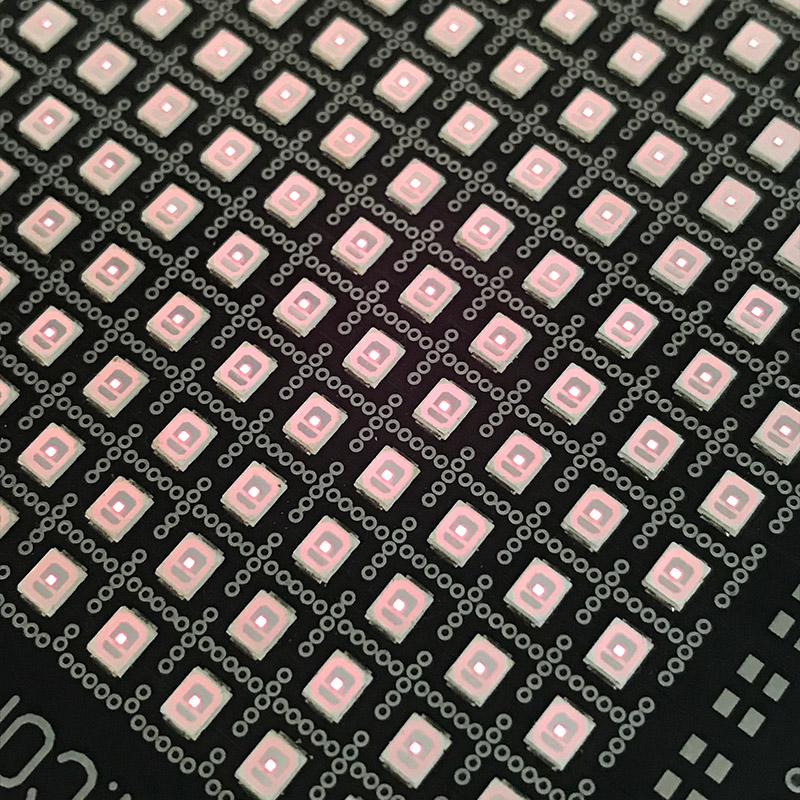

The 850nm near infrared light panel consists of high-performance LED chips and high-precision PCB two main components, the back aluminum directly thermal design. LED 850nm infrared light panels are widely used in infrared photography monitoring lighting, infrared automatic inspection and testing lights and other fields.

If looking for 365nm UV panel light, try our new product 365NM-UV-PANEL-LIGHT.



Product Specifications

Product Type: Ultra Slim 60W 850nm Near IR Infrared LED Light Panel
Input Voltage: DC24V
Working Power: 2.4A 60W max
Light Color: Infrared Red
Wavelength: 850nm (Peak wavelength 850nm, half-wave width 32nm)
Dimensions: L120mm*W120mm*H9mm(4.7in*4.7in*0.35in)
LED Quantity:  256 LEDs (16x16)
Brightness:  0.2-0.3W/LED, 120mw/LED
Applications:  Infrared photography, security monitoring, infrared automatic inspection and testing
Warraty:  2 year



2mm Ultra Slim 60W 850nm Near IR Infrared LED Light Panel

2mm Ultra Slim 60W 850nm Near IR Infrared LED Light Panel

Ultra Slim 850nm Near Ir Infrared LedLight Panel With Power Adapter

Reviews

Customer Experience

Your feedback is important to us! Share your thoughts and photos with other customers.

E
02/05/2026
5 or 5 stars

Powerful infrared flood for long-range night vision clarity

I integrated this 60W IR panel into a coastal surveillance system to assist with low-light maritime monitoring, and the performance is exceptional. The 850nm output provides a massive, high-intensity flood of light that is invisible to the naked eye but acts like a high-powered spotlight for our CMOS cameras. Unlike standard small IR illuminators, this panel has the wattage to push light much further, significantly increasing our effective detection range. The ultra-slim aluminum housing is a masterpiece of thermal management; even during continuous operation, it dissipates heat efficiently, which is vital for the longevity of the LEDs. The build quality feels industrial-grade, and the slim profile made it easy to mount discreetly under a gantry. For security professionals needing a reliable, high-output IR source to eliminate "blind spots" in total darkness, this panel is a top-tier solution.

Downloads

Files for NIRLP-850NM-60W
Need this page for a project file or an engineering check? Click Open PDF, then save or print it from your browser. For CAD drawings, IES files or a signed test report, contact our engineers and quote the model number.

Images

These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!

Ultra Slim 60W 850nm Near IR Infrared LED Light PanelUltra Slim 60W 850nm Near IR Infrared LED Light PanelUltra Slim 60W 850nm Near IR Infrared LED Light PanelUltra Slim 60W 850nm Near IR Infrared LED Light PanelUltra Slim 60W 850nm Near IR Infrared LED Light Panel

LED Strip Light Guide

Common questions about this type of product, answered against this model’s own options. For full figures see the specification above or the spec sheet for this model.

What voltage does this LED strip light run on?
This model is offered in DC24V. Lower voltage means a shorter run per feed: at 12 V feed power roughly every 5 m, at 24 V roughly every 10 m. Longer runs get power injected at both ends. Connecting to the power supply
Can I cut it to length?
Yes. Cut only on the marked cut lines between the copper pads — the cut interval for this model is on its spec sheet. Rejoin with solder or a solderless connector. Cutting LED strip lights · we can also cut to length and fit your connector before shipping: custom LED strip light assembly.
What size power supply do I need?
Take the watts per metre from the specification above, multiply by the length you are running, then add about 25% headroom. Power calculation guide · Choosing a power supply
