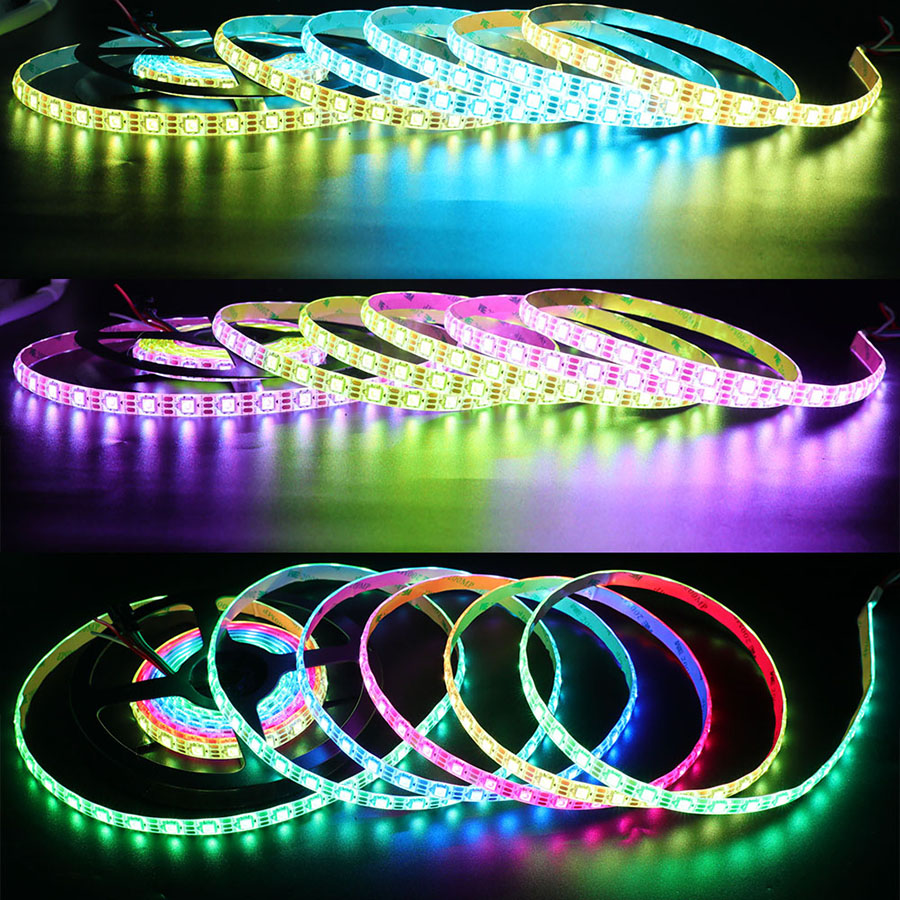

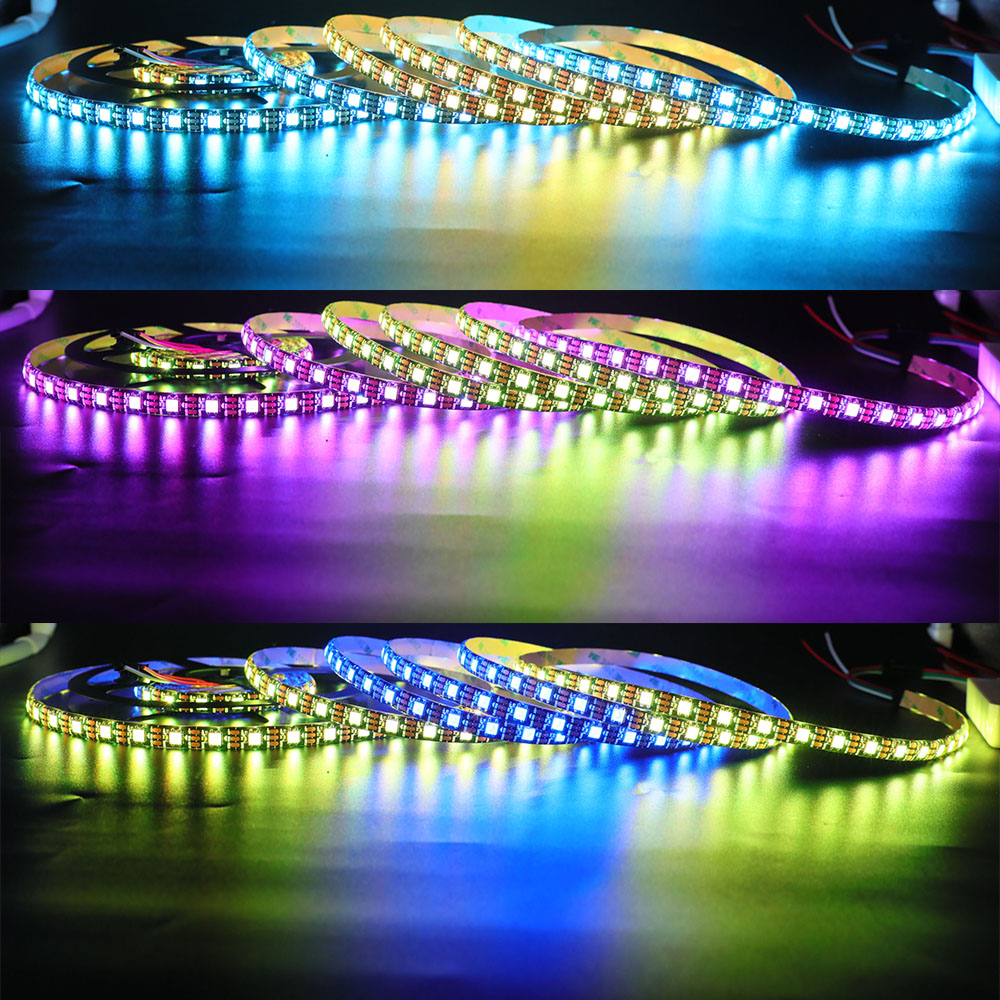

DC5V WS2812B IP65 Waterproof 18LEDs/Ft Addressable Led Strip Arduino
Superlightingled is currently the company with the most complete and most professional products in the field of addressable led light strips and is famous by customers.
WS2812B led light strip, as one of our most popular addressable light strips, uses WS2812B high quality individually addressable chip.
Different from WS2813 addressable light strip. WS2812B is a single-channel transmission, suitable for household environment lighting, with lower cost.
We use high-quality PCBs to ensure good heat dissipation for a single LED. Input voltage is DC5V, which is stable, efficient, energy-saving, and environmentally friendly.
Multiple colors can be controlled, and the biggest feature of addressable light strips is that they can be programmed to control the change of a single LED to achieve dynamic expulsion, horse racing, and other effects.
It is better to use with the controller. By controlling the color change of the light strip, it can coordinate the indoor home environment.
When eating, you can adjust the color to red to stimulate your appetite. When looking at the phone for a long time, you can adjust the color to green to protect your eyes.

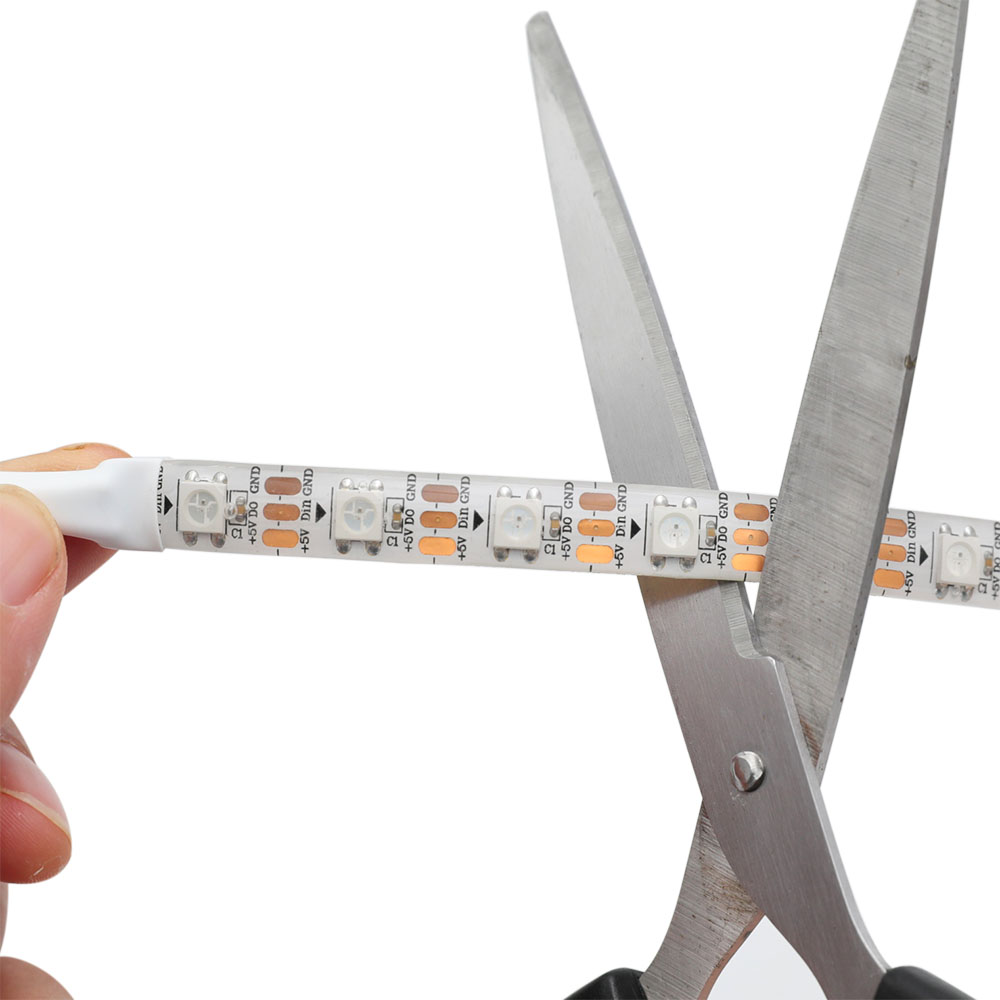

You can cut along the cutting line or tell us the length you need, we can customize the length and waterproof rating.
►Everything you need to know before you buying led strip lights
►What you need to know about addressable led strips knowledge
DC5V, energy-saving and environmentally friendly
Single-channel transmission with lower cost
WS2812B individually addressable chip
Superlightingled professional brand
Comptiable with most controllers
Customize led strip light length
IP65 indoor home lighting

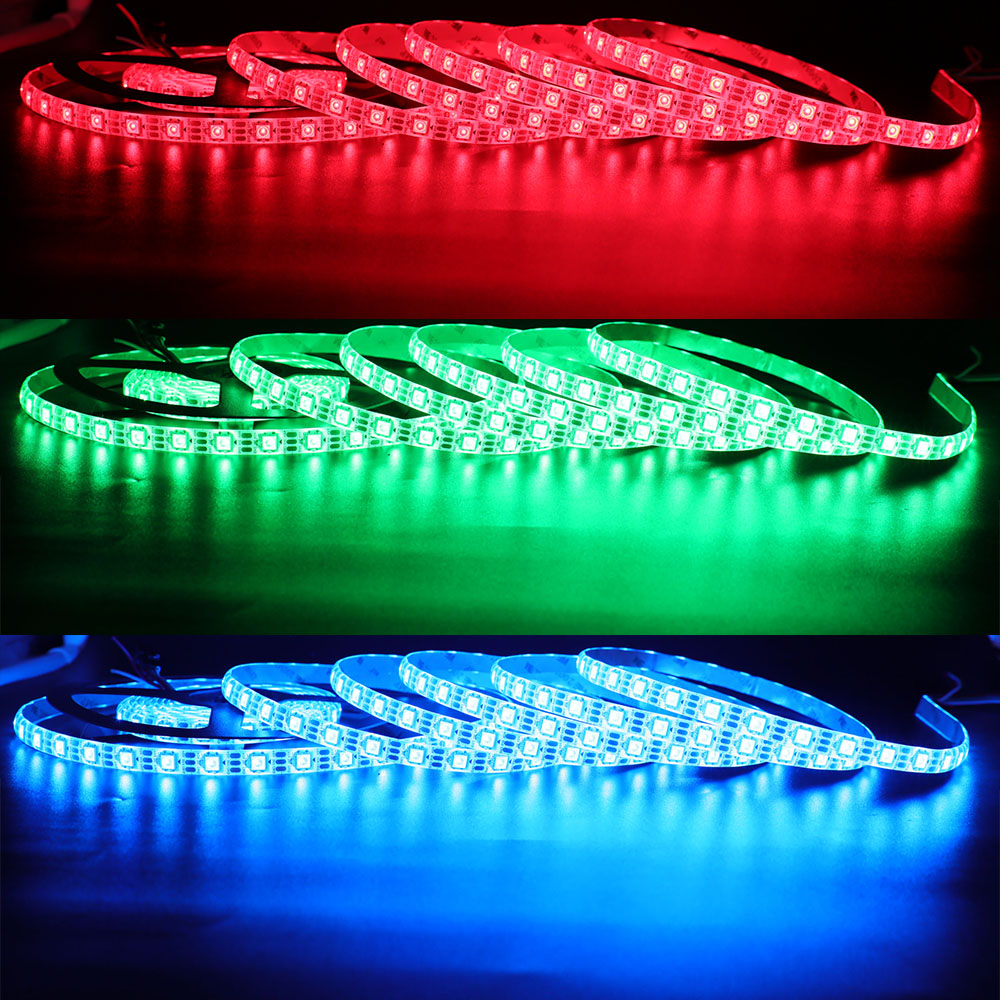

Multiple colors programmable

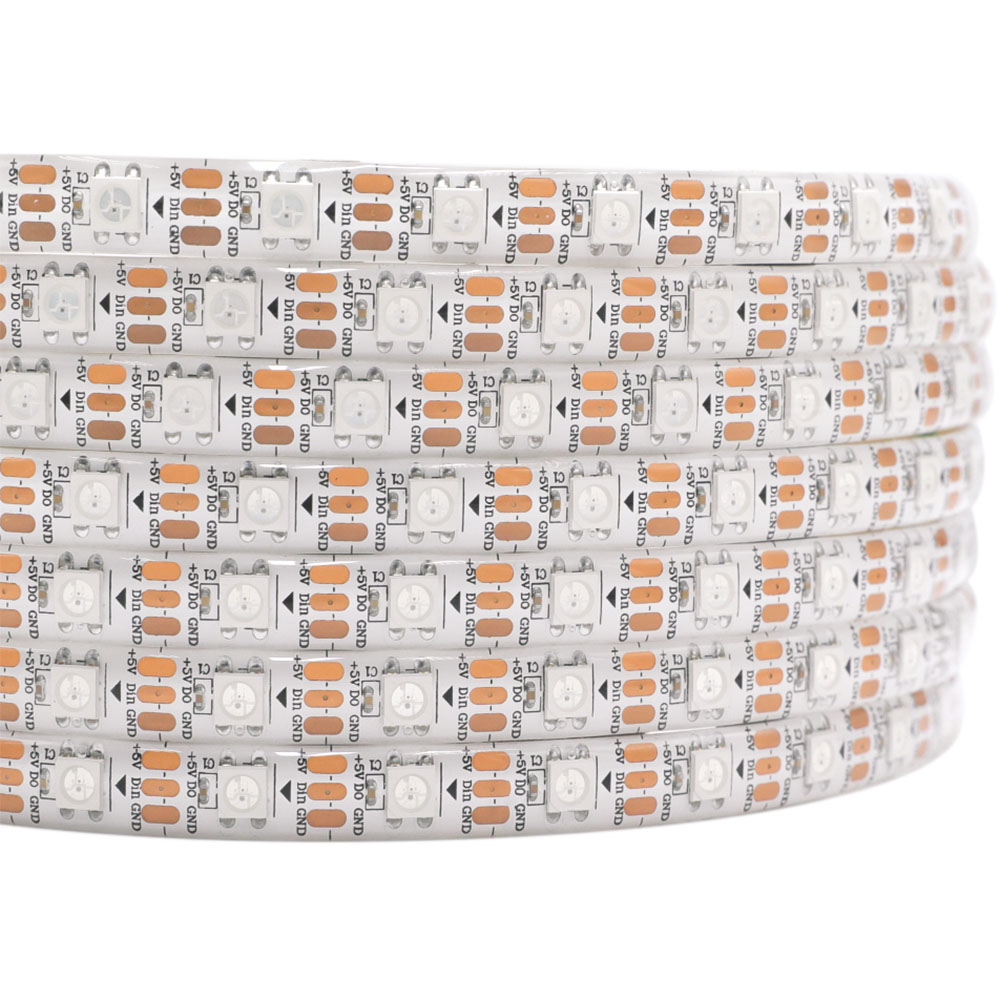

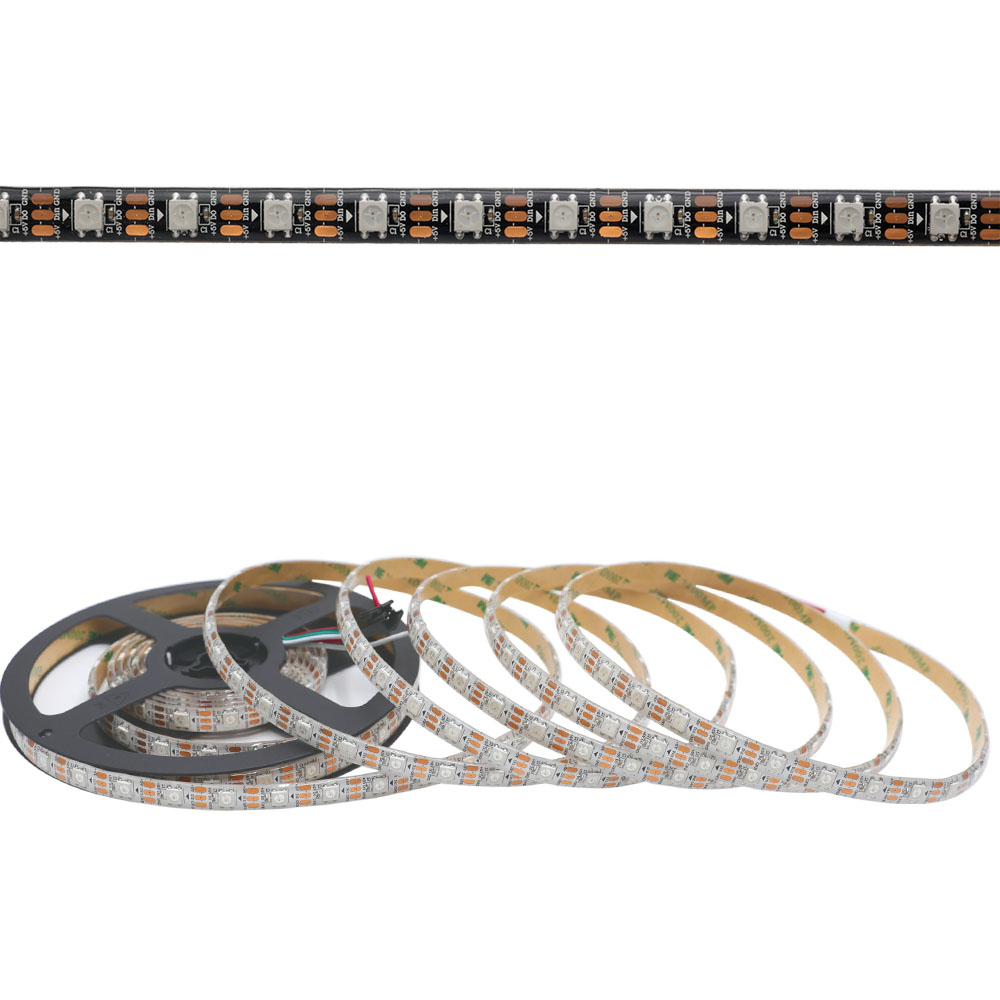

LED Strip Type: SMD 5050 DreamColor 300LEDs/16.4ft

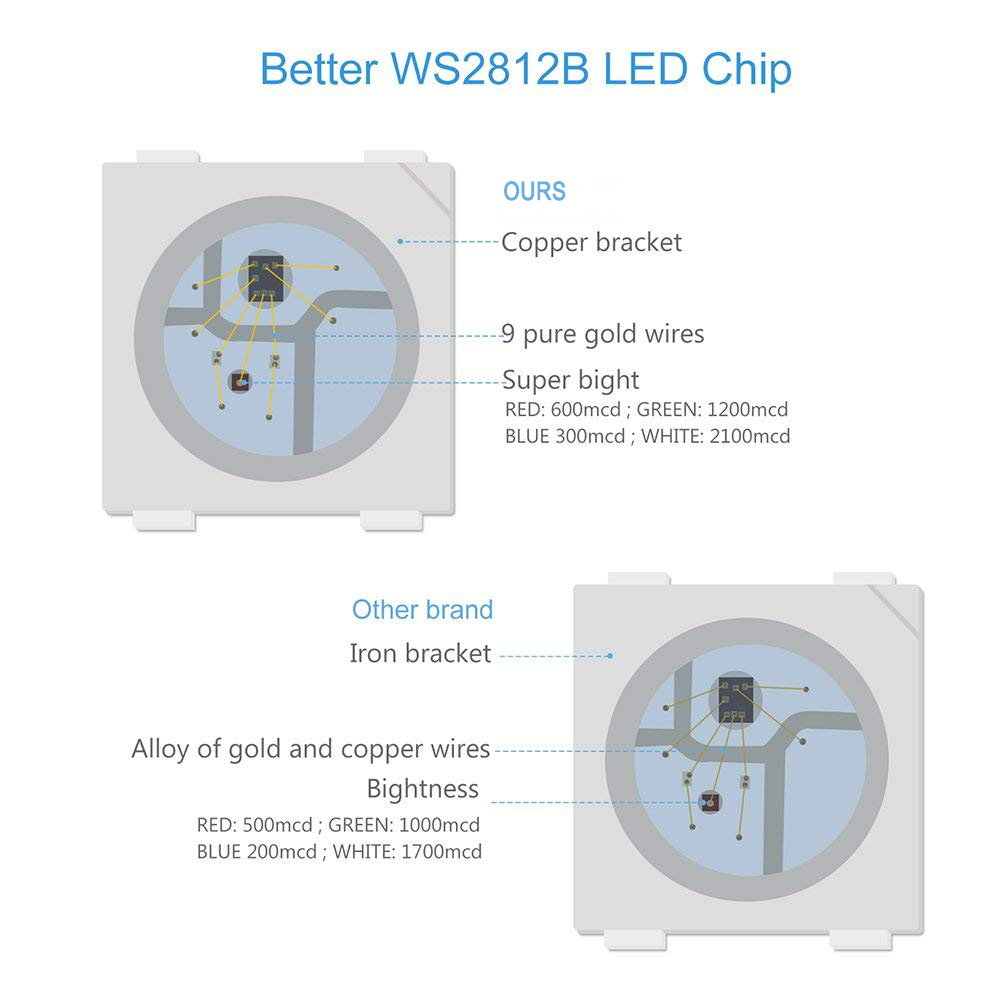

LED Chip: WS2812B IC super brights Chip
Working Temperature: -4°F (-20°C) ~ 122°F (50°C)
Storage Temperature: -40°F (-40°C) ~ 176°F (80°C)
Dimension: 16.4ft/roll, Individually addressable
LED Quantity: 18LEDs/Ft, 60LEDs/16.4Ft
IC Quantity: 18ICs/Ft
Length: 0.5m/1.64Ft; 1m/3.28Ft; 2m/6.56Ft; 3m/9.84Ft; 4m/13.12Ft; 5m/16.4Ft

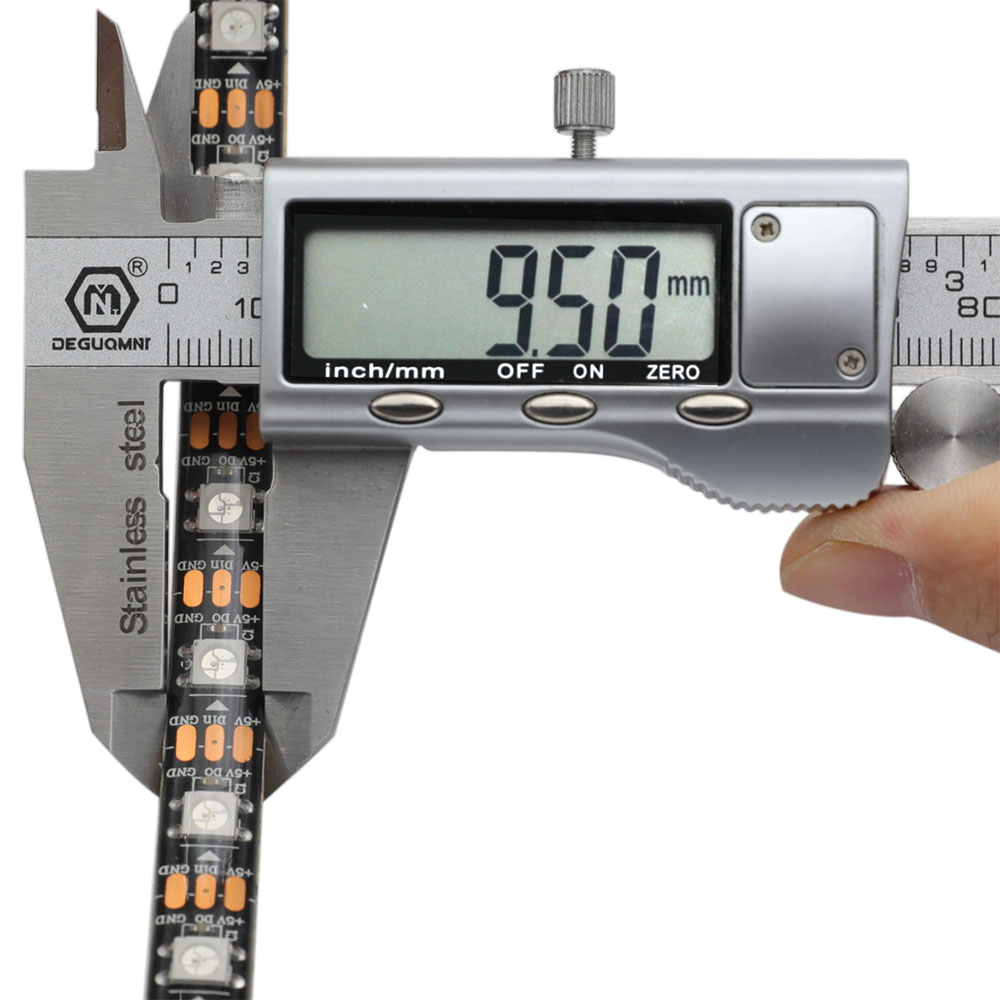

Dimensions: L500cm(196.8 in ) x W1.0cm(0.39 in ) x H0.25cm(0.10 in )
Input Voltage(V): 5VDC
Working Power: 90W/16.4ft Max
Beam Pattern: 120 degrees
Water Proof: Waterproof IP65
Warantty: 3 years
1* 0.5m/1.64Ft IP65 LED strip light (default length, you can customize the length)
Waterproof Level Description
IP20 Non-waterproof (The PCB [Printed Circuit Board] surface of the bare, with a self-adhesive back, For Indoor);
IP65 Waterproof (Epoxy cover waterproof, Epoxy Resin, PCB surface is encapsulated with plastic Gel, with self-adhesive 3M back, For Outdoor & Indoor) ;
IP67 Waterproof (Silicon sleeve waterproof, PCB is encapsulated with silicon tube, with a plastic fastener, better waterproof, For Outdoor);
IP68 Waterproof (Fully waterproof plastic irrigation, PCB both surface and back are encapsulated with plastic Gel, with a plastic fastener, the top level of waterproof, For Outdoor);

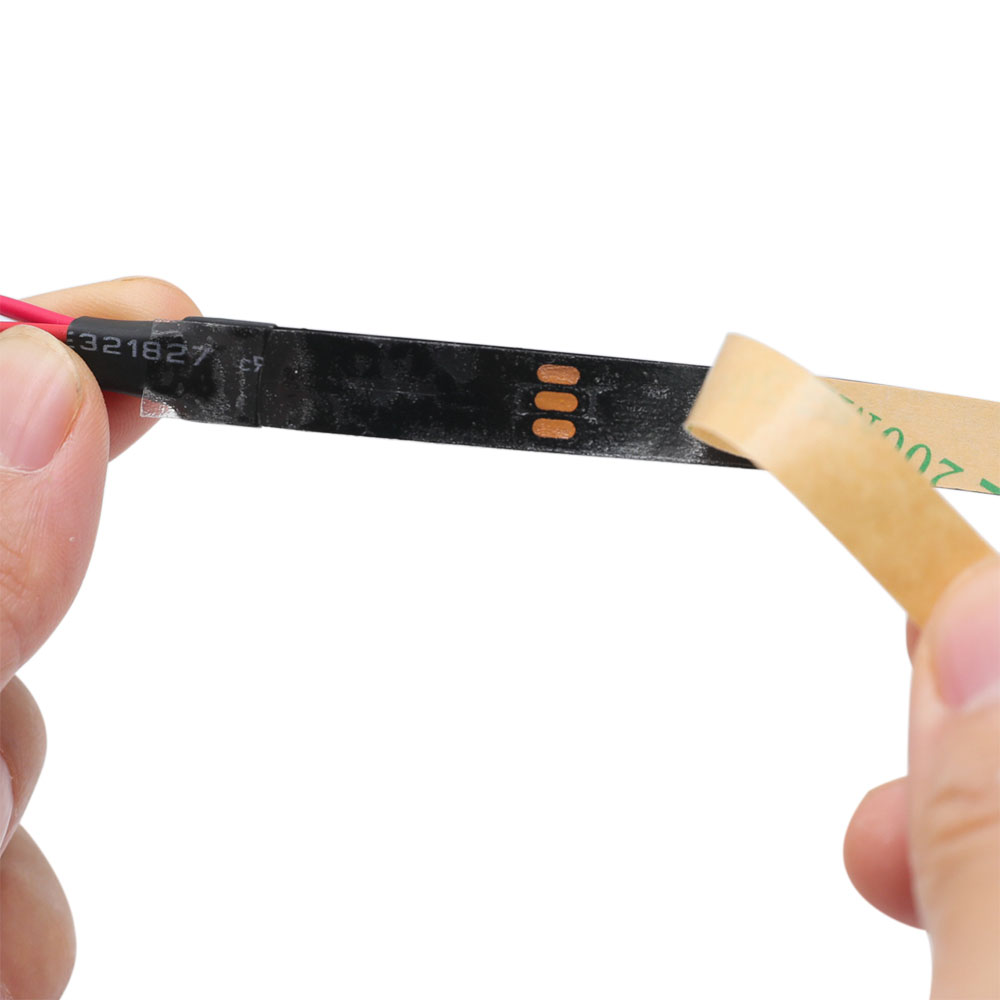

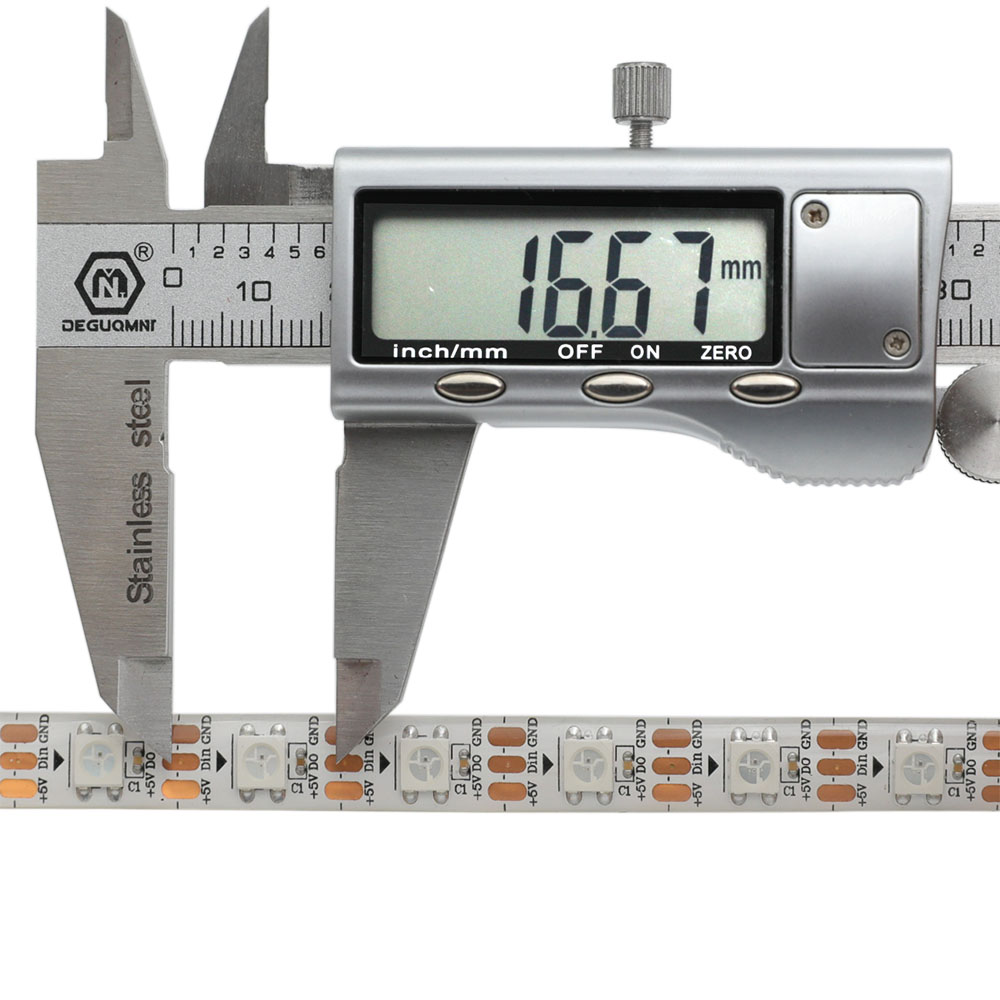

You can cut the strip every few inches, The back of the strip is fitted with a strong IP67/IP68 type which will come with
allowing you to freely design your project 3M tape, allowing you to peel and stick lights mounting brackets
without worrying about space requirements
to many different surfaces.
Addressable LED Strip Lights Wiring Diagram
|►Connection method one:|
*SPI LED Strip lights wiring diagram with 5m*
|►Connection method two:|
*SPI LED Strip lights wiring diagram with 10m*
|►How to connect the 3-pin JST connector to the Breakpoint Resume LED strips?|
|►How to power addressable LED strip and SPI controller using different voltage power supply?|
|►How to wire a ultra long addressable led strip lighting?|
*SPI LED Strip lights wiring diagram with 20m+*

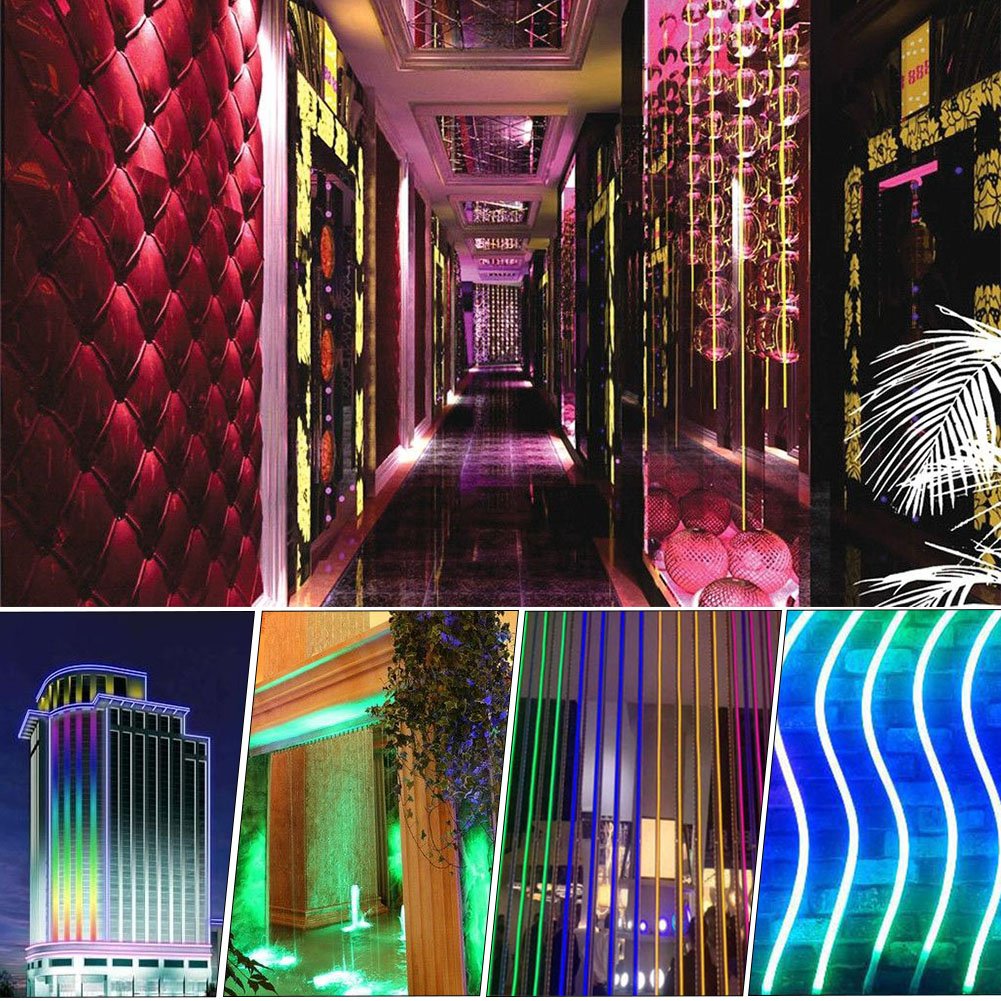

LED programmable digital display
Hotels decoration use
Concealed lighting, Cove decoration
Theaters, clubs, shopping malls lighting
Architectural decorative lighting
Boutique atmosphere lighting
Auditorium walk stairway lighting
Hidden groove, Wine cabinet decoration
Show exhibition decoration
