Pure White+Warm White CCT Series - DC5-24V 2835SMD Flexible LED Strip Lights - 600LEDs
What is CCT tunable white LED strip?
CCT means correlated color temperature. Usually, the warm white light and cool white LED light are specifically expressed by Kelvin color temperature. The white light color temperature of CCT tunable white LED strip can be adjusted with white CCT dimmers (sold separately) from 2500K to 6800K(warm white/soft white to natural white to daylight white to cool white). - Connect LED Dual white CCT Dimmers.
►Universal tunable white color super bright Waterproof optional(IP20 vs IP65 vs IP67 vs IP68) Single Chip LED Variable Color Temperature high power LED flexible light strip.

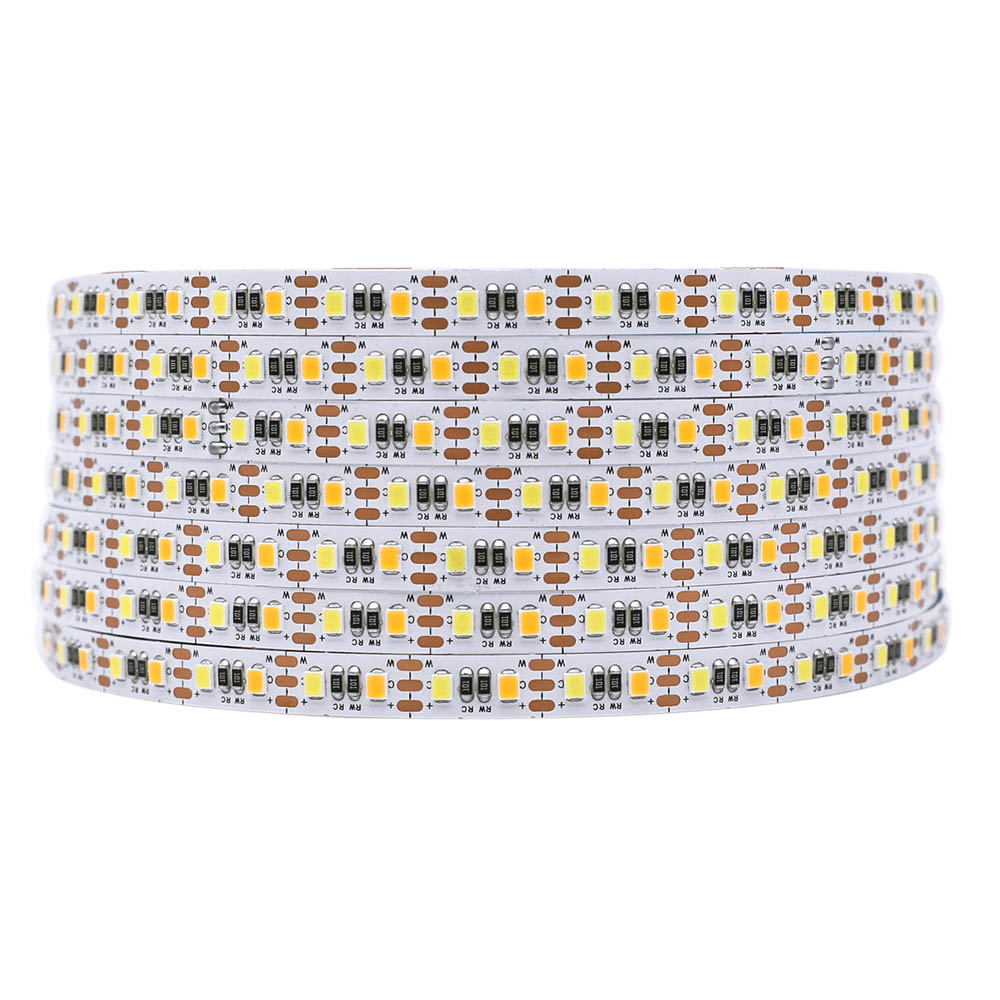

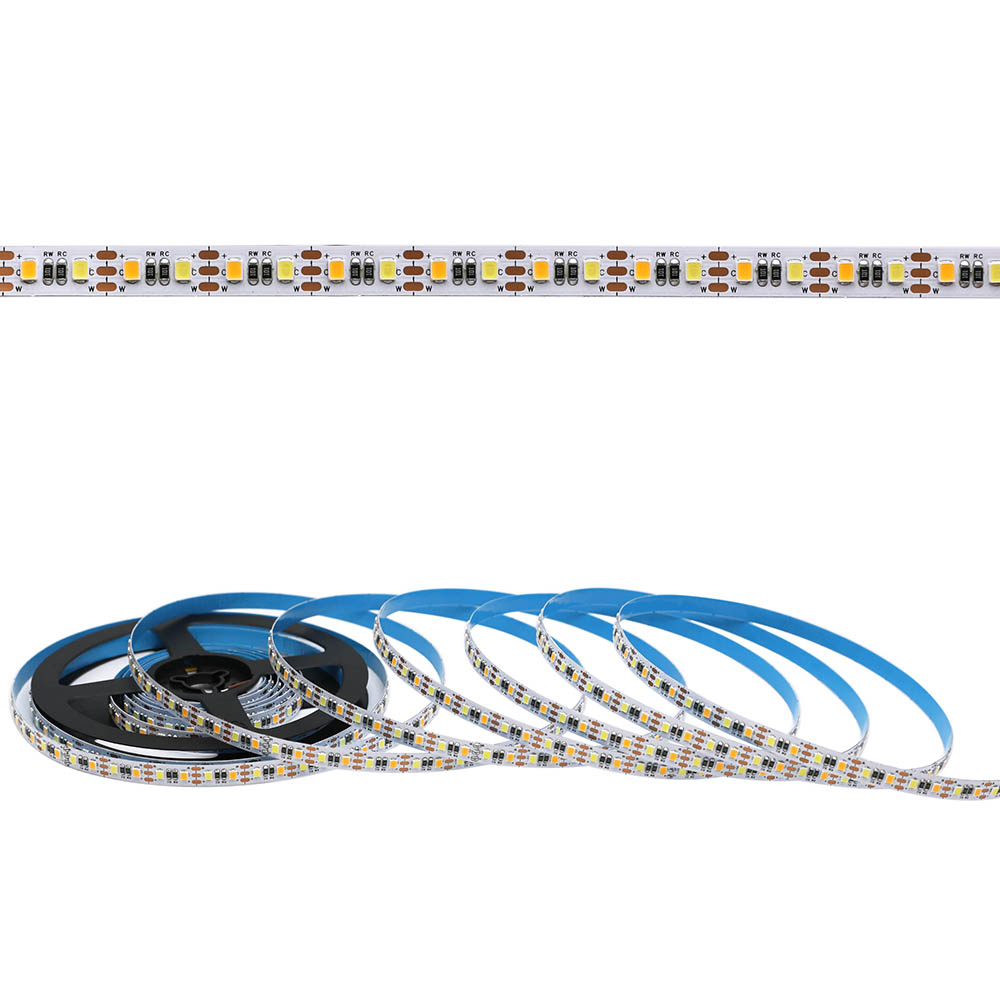

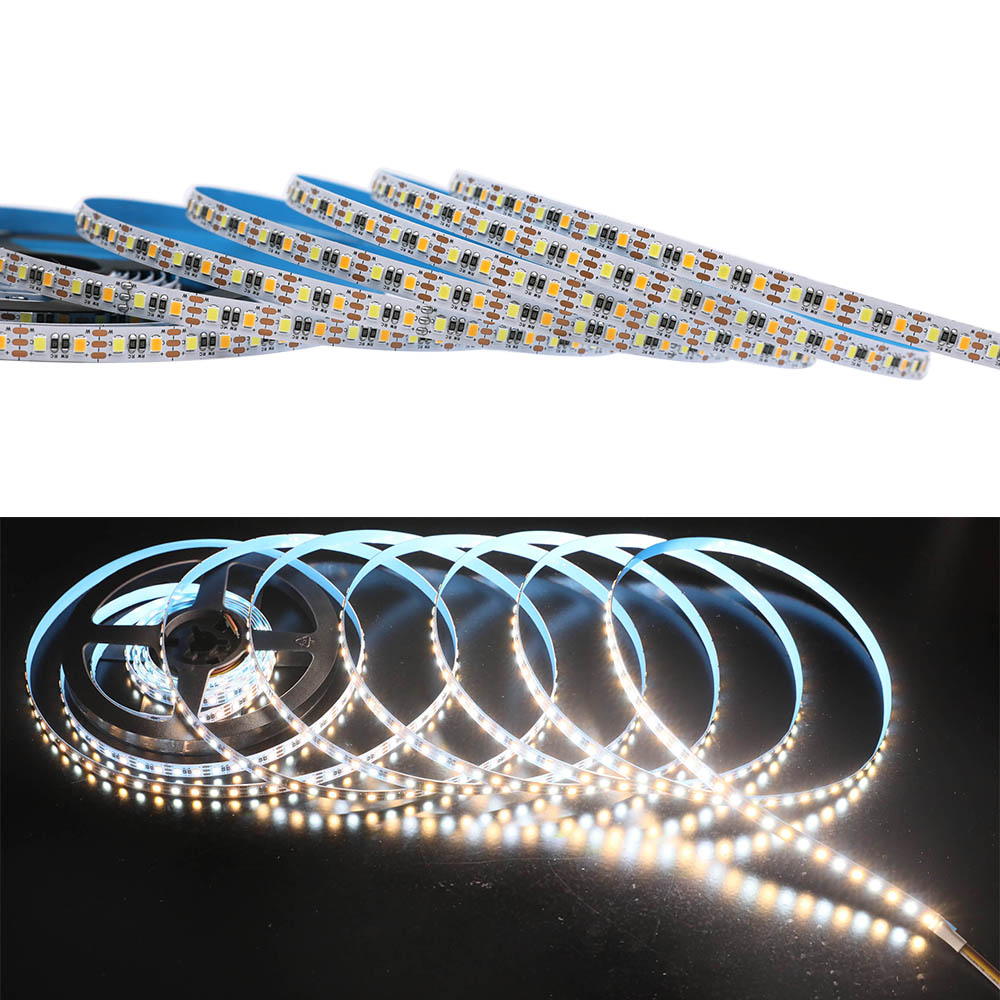

Single super bright white colors 2835 SMD flexible LED tape lights, Epistar chip, 600LEDs/roll, 16.4ft(5 meters)Per Reel By Sale.
►Our brightest super flexible LED single white color light Strips soft and easy bent for installation. Available in 5 meters (197 in) flexible light strips with adhesive backing and can be stuck just about anywhere.
This LED Light strip is perfect for retail shops, supermarkets, museums, galleries, photography or any indoor applications where presentation, appearance, and depth of color are critical, Suitable for the average home lighting as well as lighting professionals.

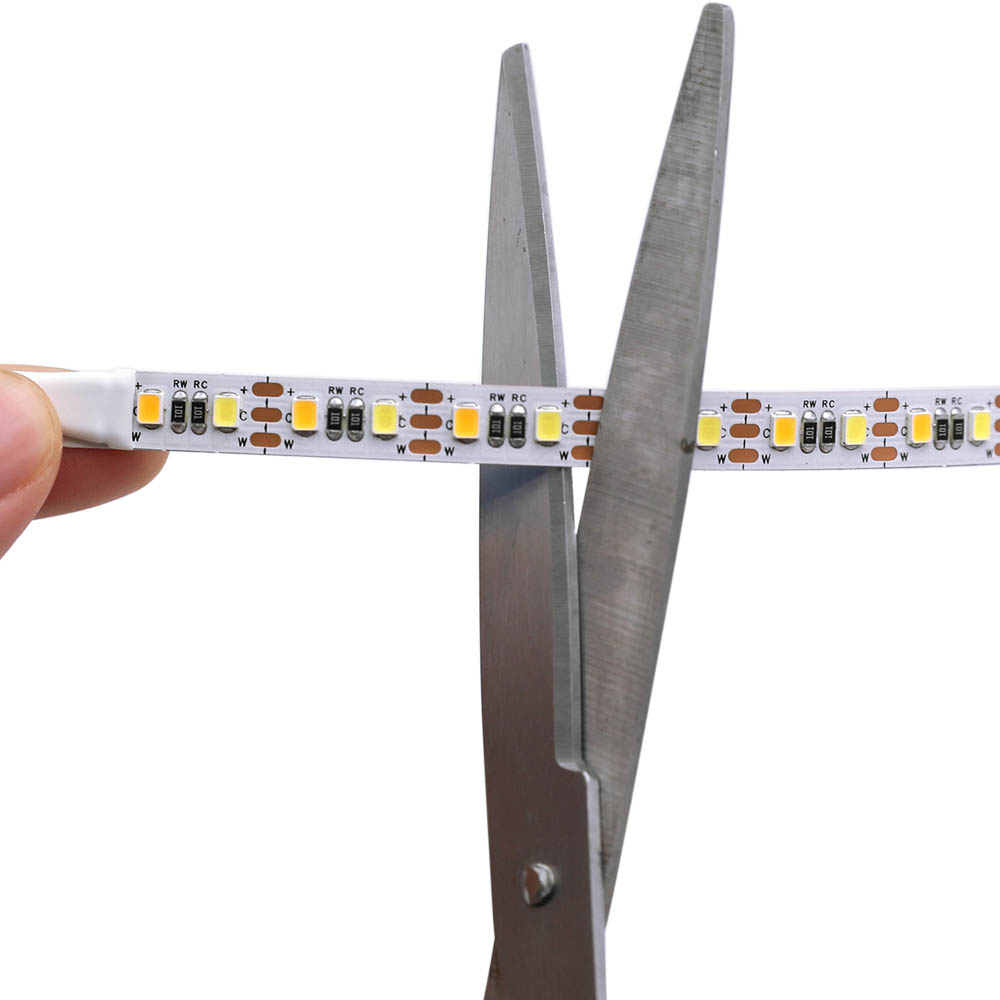

►The strips of DC5V can be cut into 2-LED segments, the strips of DC12V can be cut into 6-LED segments, the strips of DC24V can be cut into 12-LED segments, so you could cut a different length for your lighting project and request. (5V vs 12V vs 24V white LED strip lights)
►High color rendering index (+95 CRI) enhances vibrant colors more than traditional LEDs nearly matching the color quality of incandescents. 5/12/24V DC operation.
►Everything you should know before buying LED strip lights:
►Choose a suitable LED power supply and an LED dimmer CCT controller:
Standards and Certifications
LED Strip Type: SMD 2835
LED Chip: Super bright Chip
Working Temperature: -4°F (-20°C) ~ 122°F (50°C)
Storage Temperature: -40°F (-40°C) ~ 176°F (80°C)
Light Color: Warm White+Daylight White

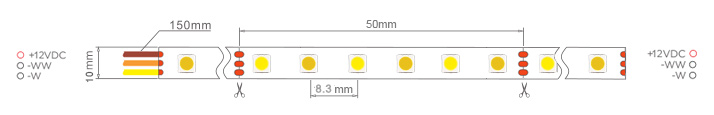

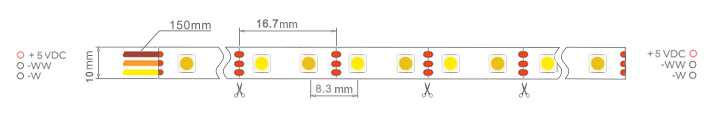

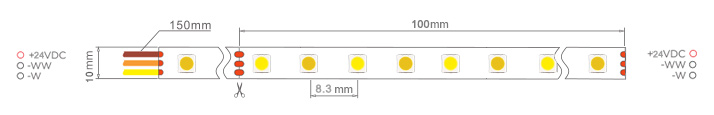

Dimension: 16.4ft/roll, every 1 PCS LED can be cut(DC5V)/every 3PCS LED can be cut(DC12V)/every 6 PCS LED can be cut(DC24V)
LED Quantity: 600 LEDs per 5meter (16.4 ft)
Warantty: 3 years

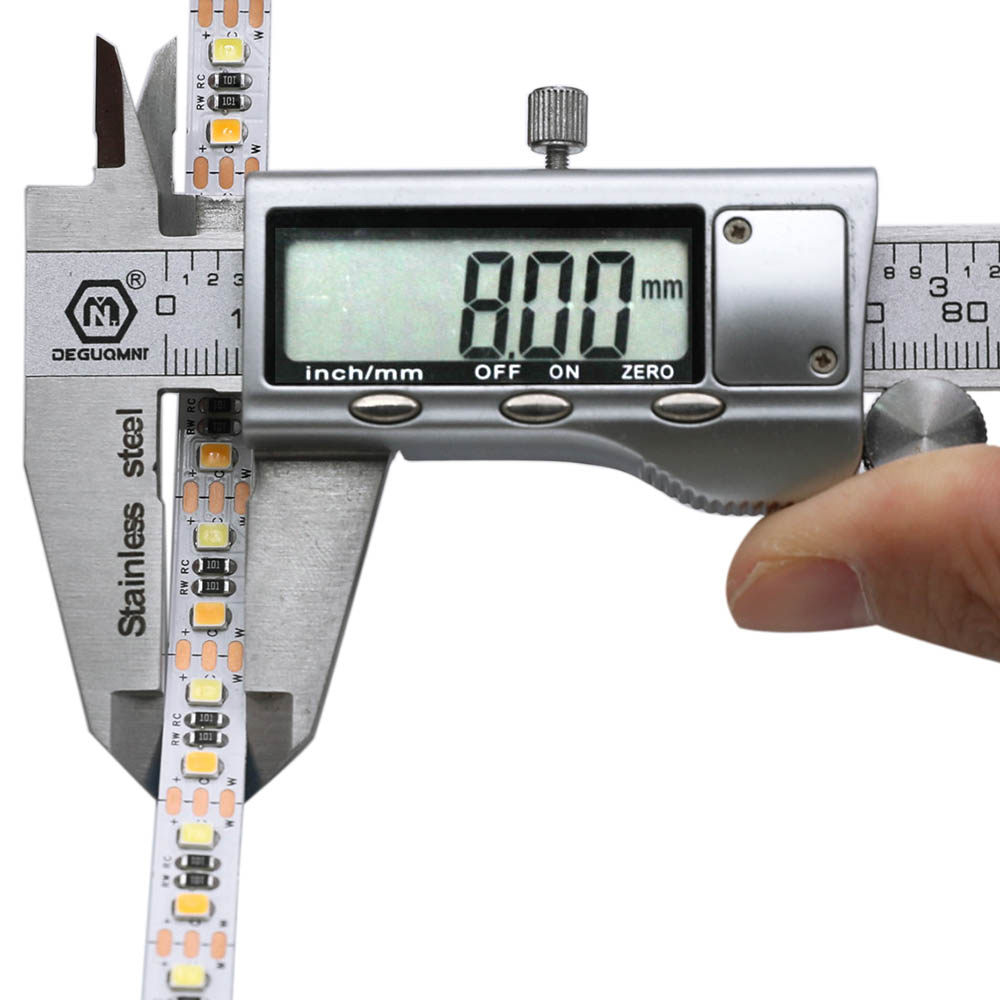

Dimensions: L500cm(196.8 in ) x W1.0cm(0.39 in ) x H0.25cm(0.10 in )
Input Voltage(V): 5/12/24V DC
Working Power: 12A 60W /16.4ft Max(DC5V), 5.83A 70W /16.4ft Max(DC12V), 3.96A 95W /16.4ft Max(DC24V)
Lamp Luminous Flux(lm): 13~15 lm/LEDs 7800Lumens/16.4Ft 475Lumens/Ft 130Lumens/Watt(DC5V), 15~16 lm/LEDs 9000Lumens/16.4Ft 548Lumens/Ft 128Lumens/Watt(DC12V), 16~17 lm/LEDs 9720Lumens/16.4Ft 592Lumens/Ft 107Lumens/Watt(DC24V)

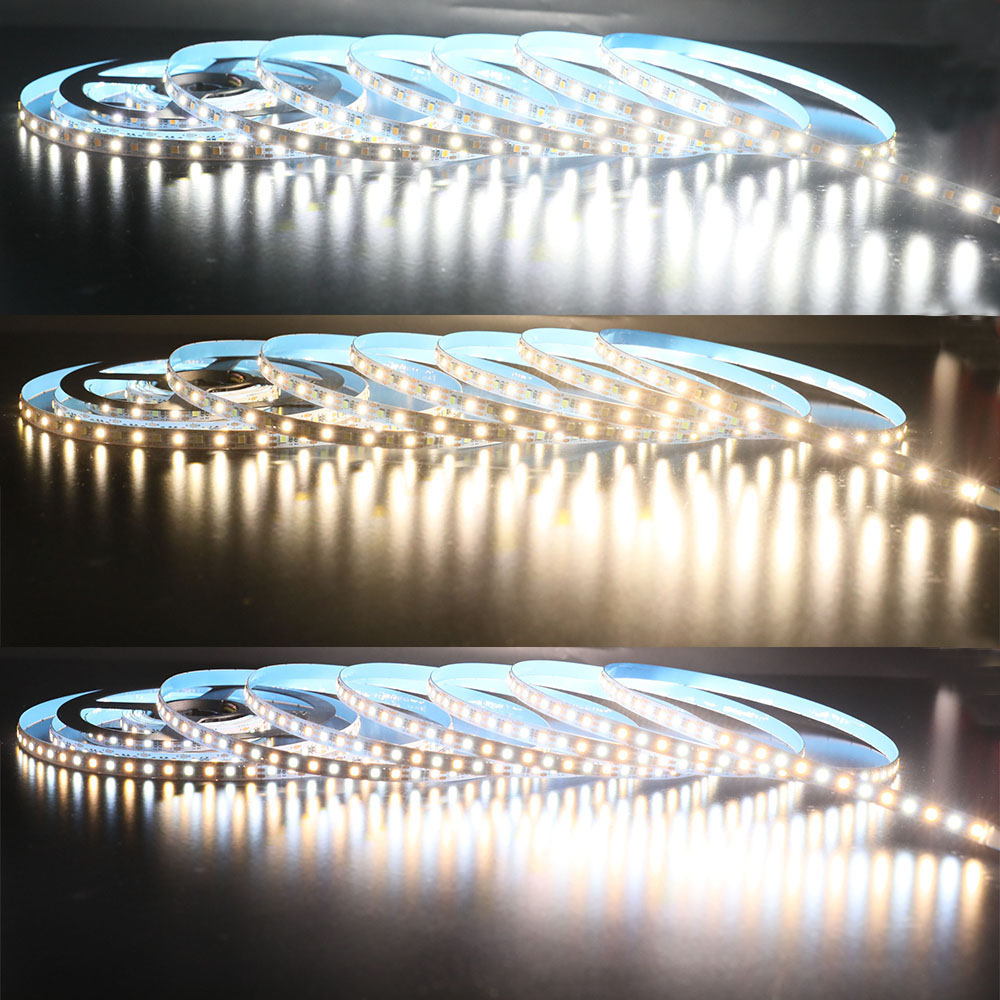

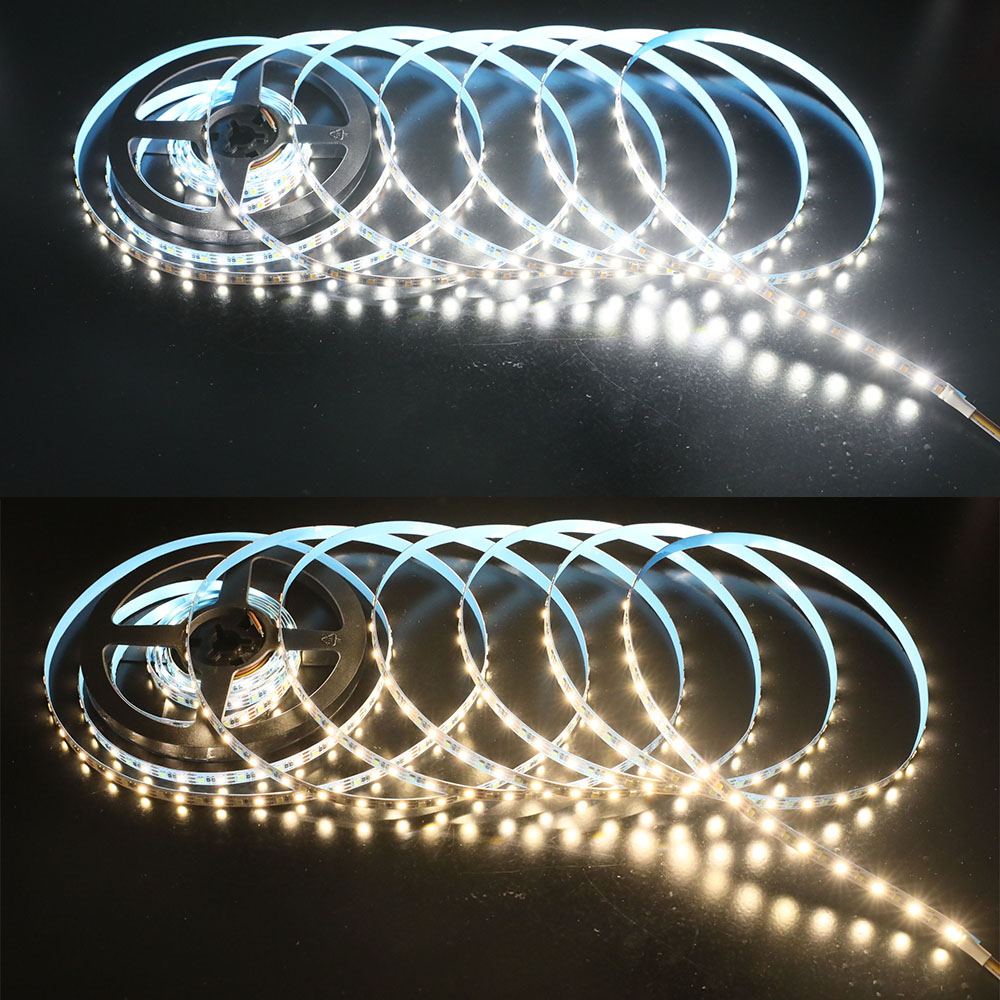

Color Temperature CCT(White): Warm White(2800-3500k), Daylight White(5000-6500k)
Beam Pattern: 120 degree
Water Proof: Non-waterproof; Waterproof IP65; Waterproof IP67; Waterproof IP68 Optional
CRI (Ra>): 95
Waterproof Level Description
IP20 Non-waterproof (The PCB [Printed Circuit Board] surface of the bare, with a self-adhesive back, For Indoor);

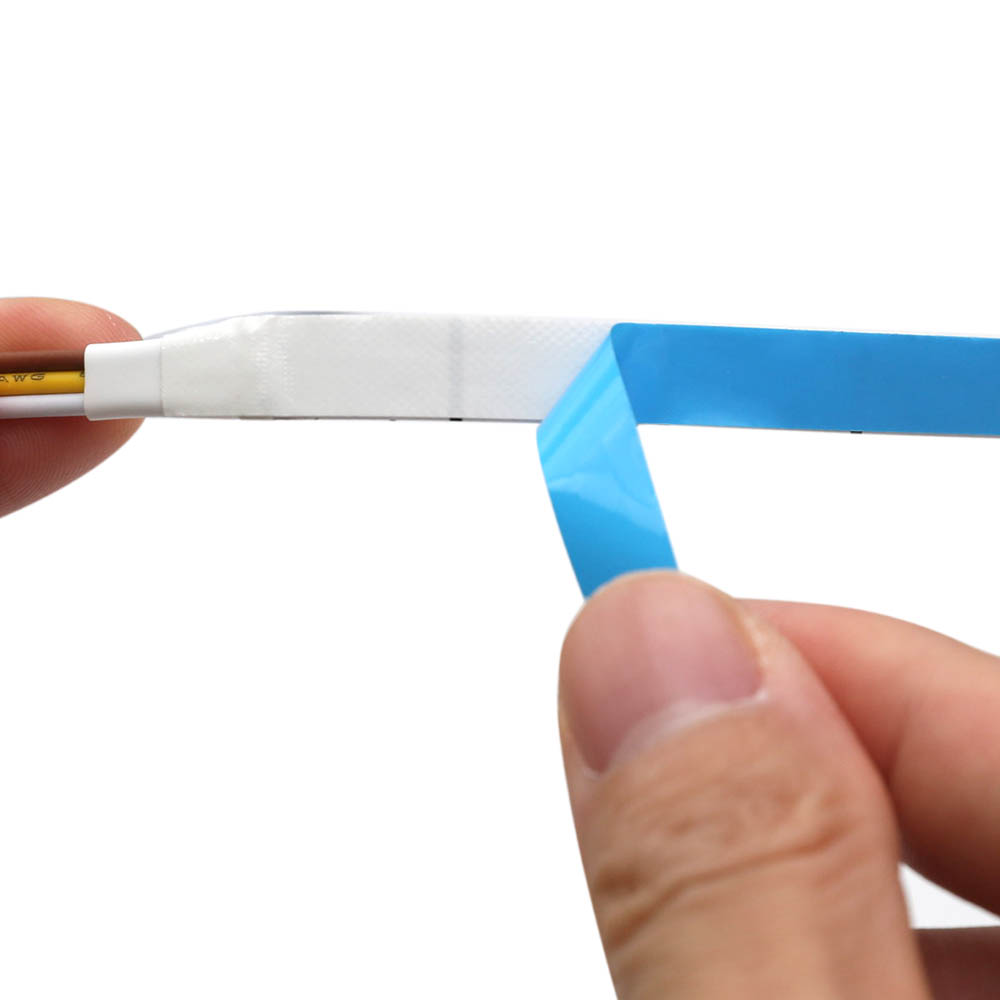

IP65 Waterproof (Epoxy cover waterproof, Epoxy Resin, PCB surface is encapsulated with plastic Gel, with self-adhesive 3M back, For Outdoor & Indoor) ;
IP67 Waterproof (Silicon sleeve waterproof, PCB is encapsulated with silicon tube, with a plastic fastener, better waterproof, For Outdoor);
IP68 Waterproof (Fully waterproof plastic irrigation, PCB both surface and back are encapsulated with plastic Gel, with a plastic fastener, the top level of waterproof, For Outdoor);
The waterproof grade of IP65, IP67, and IP68 will affect the color temperature due to the material problem, resulting in an increase of about 1000K. If you want to purchase the waterproof LED strips and have requirements on the color temperature, please note when placing the order.
|You can cut the strip every few inches, allowing you to freely design your lighting project without worrying about space requirements to many different surfaces.||The back of the strip is fitted with a strong 3M tape, allowing you to peel and stick LED lights.||IP67/IP68 waterproof type which will come with mounting brackets.|
Aluminum profiles and LED flex neon tubes can be used as CCT tunable white light strip accessories. Dual color temperature LED lights with LED aliuminum channel and flex LED neon tube can get an uniform, soft, and no LED lighting sopt effect.
►Knowledge about LED aluminum profile and LED neon lights:
We sell led strips in spools of 32.8 Ft (10 meters). If you want to use with more than 32.8 Ft length, we recommend the following instruction:
1. LED Strips with a direct connecting diagram
2. Multiple Strips connecting diagram
3. Strips with a two-way connecting diagram
4. You can also use our wireless controller, Multiple controller wireless matching synchronizations within 30 meters, can replace the traditional amplifier wiring
5. How does it work
The basics are all the similar. You will need a led strip light, a power supply(Please DC12V 100W power supply)OR(Please DC24V 150W power supply)OR(Please DC5V 100W power supply) and a way to attach the two to make your lights turn on. The size and type of power supply unit will depend on the type of LED strip light, the length required, and dimming option required. We are always here to assist in your selection. You can also purchase a complete kit here. If you have any question, please let me know: email@example.com
How to choose led strip lights
Step1: Get a clear vision! Because each project is unique, there is no all-in-one solution.
Different projects require different types of LED strips. When place order, please clear the following answers :
This tape light can replace normal T8 tube or blub.
Where will it be installed (Indoor or outdoor)?
Indoor or outdoor? This may be related to waterproof grade choose.
Do you want to dim your lights or control them with a remote or wall switch?
If you have dimmer, then you can use a remote controller or mobile APP to control and adjust your lighting.
What overall look do you want to achieve?
What color do I need?
This led tape light has warm white, daylight white, and nature white 3 colors, each color temperature is different, please choose the color you need.
What materials am I looking?
The material of this lighting is using recycled material, friendly to the environment, our product has a certificate of CE, RoHS, ETL, and TUV.
Are there other lights in the area and if so, what color are they?
Trademark lighting Logo lighting
16.4/32.8 feet (5/10meter) Connection diagram
65 feet (50meter) Connection diagram
