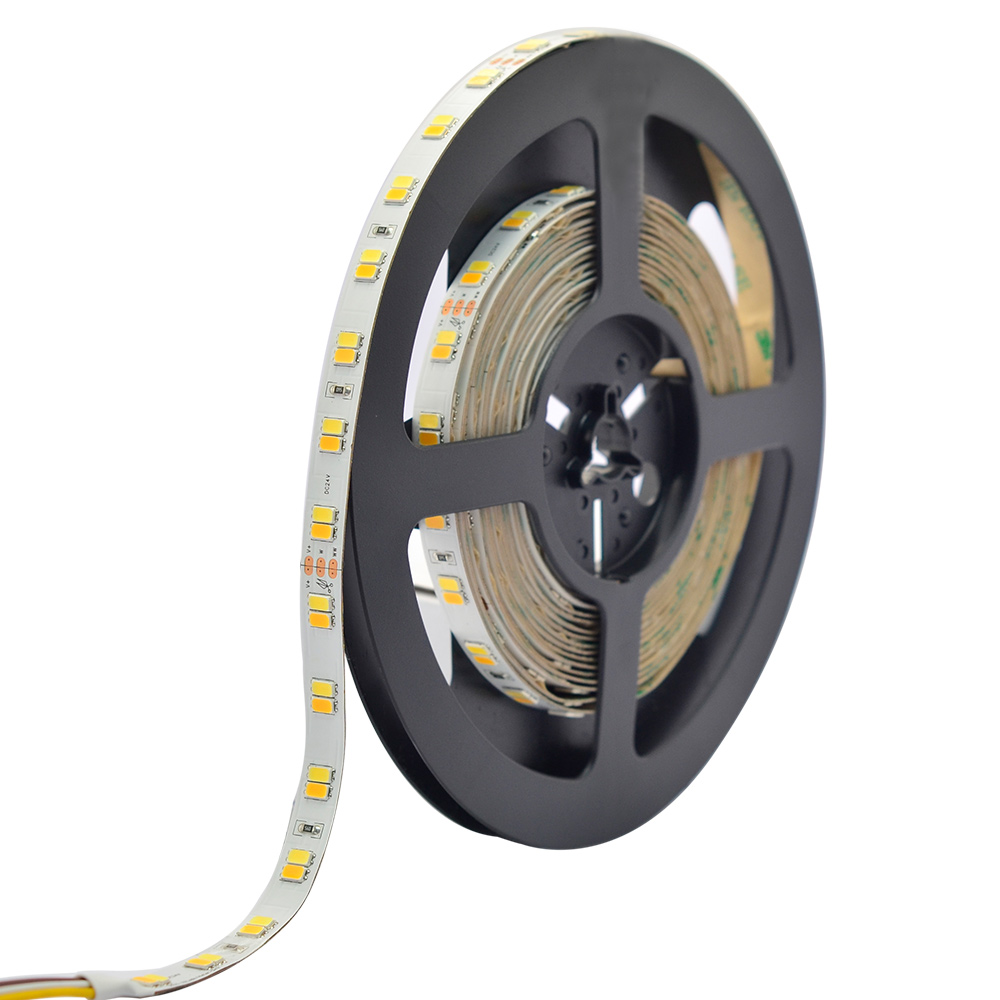

DC24V 5630SMD 560LEDs Flexible LED Strip Lighting - Color Temperature Pure White+Warm White Series
►5630SMD white LED: SMD 5630 LED is named after its size 5.6mm*3.0mm. This CCT adjustable led strip two 5630SMD white LEDs are a group, one is a warm white LED, one is a pure white/daylight white LED. Super bright variable white colors 5630 SMD flexible LED tape lights, Epistar chip, 560LEDs/roll, 16.4ft(5 meters)Per Reel By Sale.

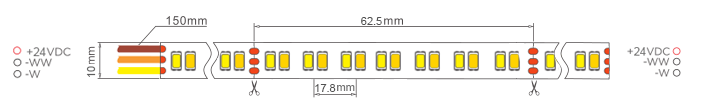

►24V CCT adjustable led strip lights: 24V DC operation. This dimmable white led strip can be cut into 14-LED segments (7 groups of one warm white LED and one pure white LED), so you could cut a different length for your led strip lighting project and request.
►CCT tunable white light color temperature from warm white to cool white: This dimmable white led strip can individually light up warm white LED or daylight/pure white LED. Work with the CCT LED light controller, you can adjust the white color temperature from 2500K to 6800K and adjust LED brightness from 0% to 100%.
►Waterproof optional - IP20 vs IP67 waterproof LED strip: IP20 non-waterproof CCT tunable white light led strip by default, IP65, IP67, and IP68 outdoor waterproof dimmable white led strip lights are available. This tunable white led strip light can use indoor and outdoor to increase the lighting atmosphere, or increase the lighting brightness at night.
Our brightest super flexible LED dual white color light strips are soft and easy bent for installation. Available in 5 meters (197 in) flexible light strips with adhesive backing and can be stuck just about anywhere. Perfect for retail shops, supermarkets, museums, galleries, photography, or any indoor applications where presentation, appearance, and depth of color are critical, Suitable for the average home lighting as well as lighting professionals.
►High color rendering index (+95 CRI) enhances vibrant colors more than traditional LEDs nearly matching the color quality of incandescents.
Standards and Certifications
LED Strip Type: SMD 5630
LED Chip: Super bright Chip
Working Temperature: -4°F (-20°C) ~ 122°F (50°C)
Storage Temperature: -40°F (-40°C) ~ 176°F (80°C)
Light Color: Warm White+Daylight White
Dimension: 16.4ft/roll, every 14 PCS LED can be cut
LED Quantity: 560 LEDs per 5meter (16.4 ft) [280 daylight white leds + 280 warm white leds]
Warantty: 3 years

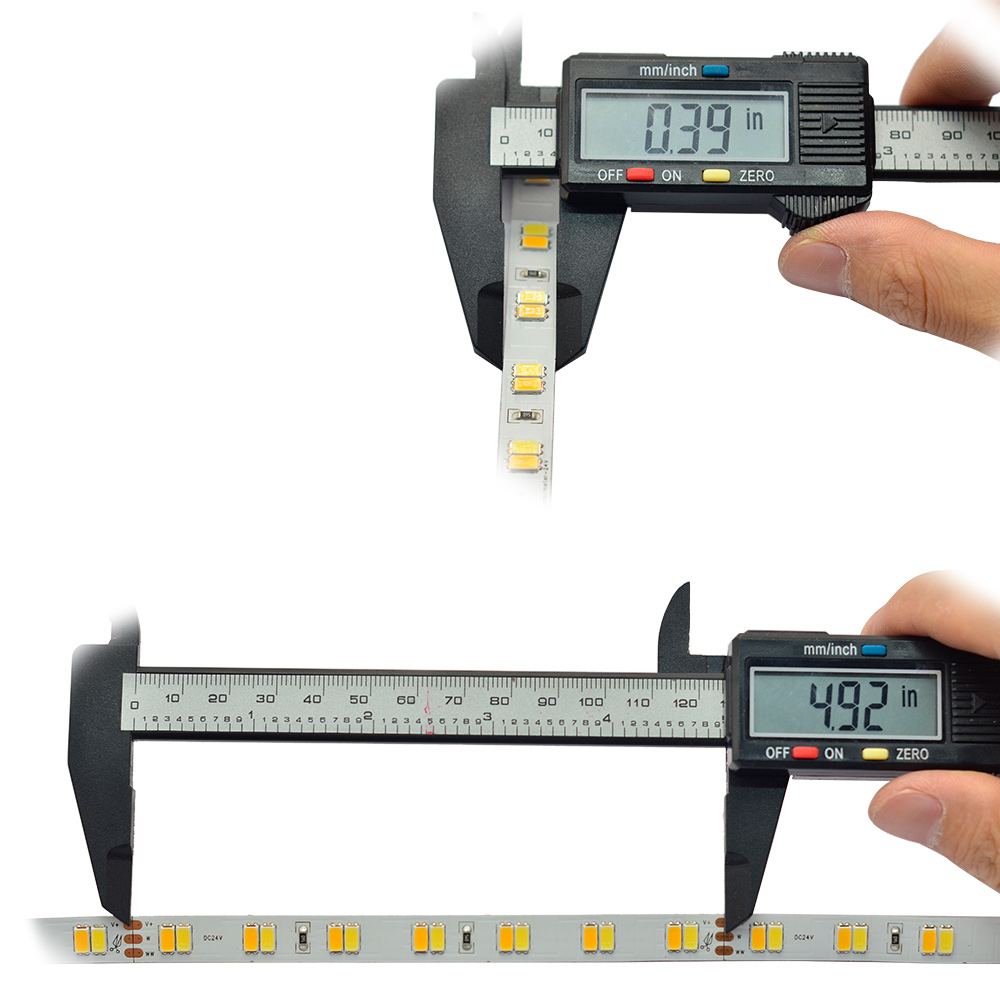

Dimensions: L500cm(196.8 in ) x W1.0cm(0.39 in ) x H0.25cm(0.10 in )
Input Voltage(V): 24V DC
Working Power: 115W /16.4ft Max
Lamp Luminous Flux(lm): 22~24lm/LEDs 13440lm/16.4ft 819lm/feet 120lm/watt
Color Temperature CCT(White): Warm White(2800-3500k), Daylight White(5000-6500k)
Beam Pattern: 120 degree
Water Proof: Non-waterproof; Waterproof IP65; Waterproof IP67; Waterproof IP68 Optional
CRI (Ra>): 95
Waterproof Level Description
IP20 Non-waterproof (The PCB [Printed Circuit Board] surface of the bare, with a self-adhesive back, For Indoor);
IP65 Waterproof (Epoxy cover waterproof, Epoxy Resin, PCB surface is encapsulated with plastic Gel, with self-adhesive 3M back, For Outdoor & Indoor) ;
IP67 Waterproof (Silicon sleeve waterproof, PCB is encapsulated with silicon tube, with a plastic fastener, better waterproof, For Outdoor);
IP68 Waterproof (Fully waterproof plastic irrigation, PCB both surface and back are encapsulated with plastic Gel, with a plastic fastener, the top level of waterproof, For Outdoor);
The waterproof grade of IP65, IP67, and IP68 will affect the color temperature due to the material problem, resulting in an increase of about 1000K. If you want to purchase the waterproof LED strips and have requirements on the color temperature, please note when placing the order.
This is only the CCT tunable white light led strip product, you need a CCT led strip light controller and an led strip power supply to operate the CCT led strip. Choose a correct led strip lighting controller and an led strip light power supply for this tunable white led strip:
►16.4/32.8 feet (5/10meter) Connection diagram
►65 feet (50meter) Connection diagram

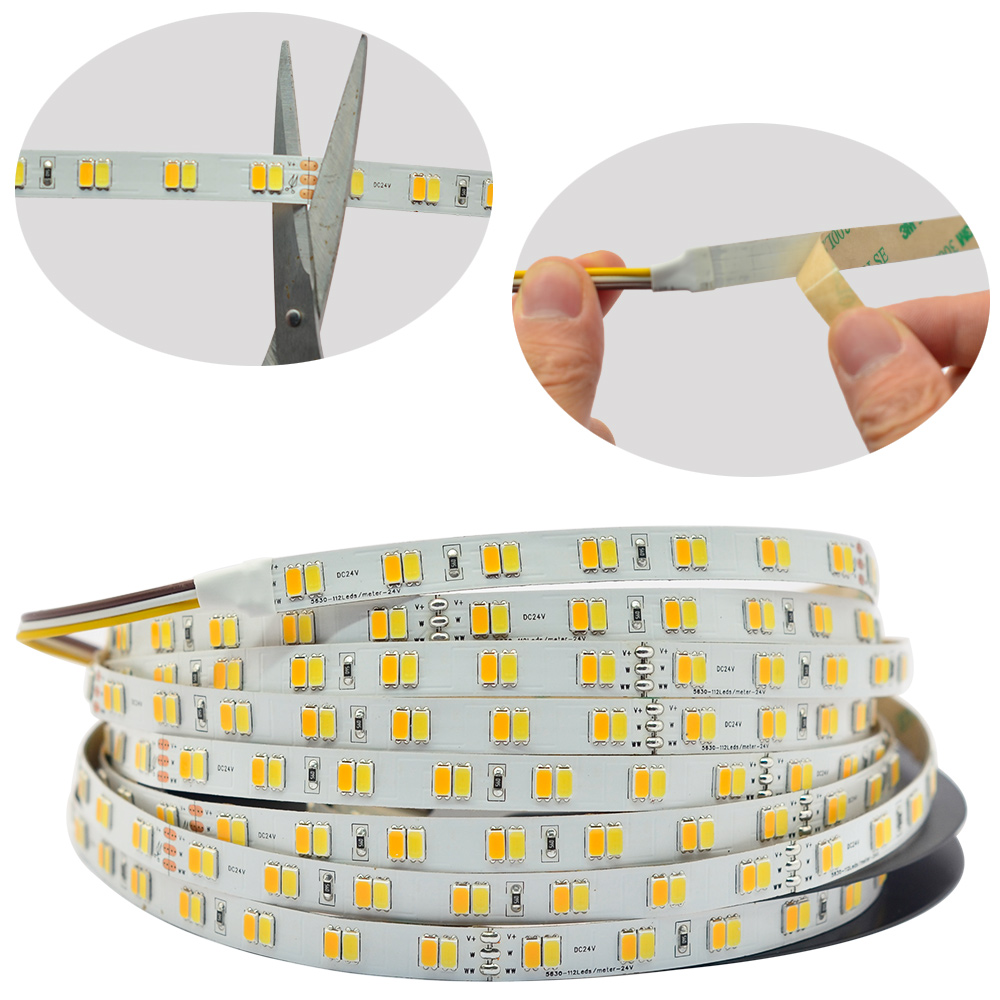

|You can cut the dimmable white strip every few inches, allowing you to freely design your lighting project without worrying about space requirements to many different surfaces.||The back of the CCT led strip is fitted with a strong 3M tape, allowing you to peel and stick LED lights.||IP67/IP68 waterproof dimmable white led strip lights type which will come with mounting brackets.|
►Can you cut LED strip lights and how to reconnect:
Aluminum profiles and LED flex neon tubes can be used as CCT tunable white light strip accessories. Dual color temperature LED lights with LED aliuminum channel and flex LED neon tube can get an uniform, soft, and no LED lighting sopt effect.
►Knowledge about LED aluminum profile and LED neon lights:
