Special Price: $65.98
This 24V RGBCW Phantom COB Neon Strip supports full color RGB and adjustable color temperature, providing seamless dynamic lighting effects. With 24pcs WS2811 ICs per meter, two ICs controls one group of RGB+W+W LED, which can realize rich dynamic lighting effects, such as running water, running horse, etc. This RGBWW COB LED strip is widely used in advertising signs, display lighting, home lighting and other fields. You can use the addressable RGB CCT LED controller to adjust the color, brightness and color temperature.
The neon COB LED strip adopts COB technology. It uses extruded silicone to wrap the LED chip and PCB board, forming an integrated light strip appearance. We also added a coating process to the silicone shell to enhance the smoothness and brightness of this COB addressable LED strip. This RGBWW LED light strip has 840 LED beads per meter. The high-density LED arrangement effectively avoids light spots and dark areas, providing high-quality lighting. With a color rendering index of 90, the RGBCCT COB LED strip effectively reproduces the color of objects, making it suitable for retail display lighting.

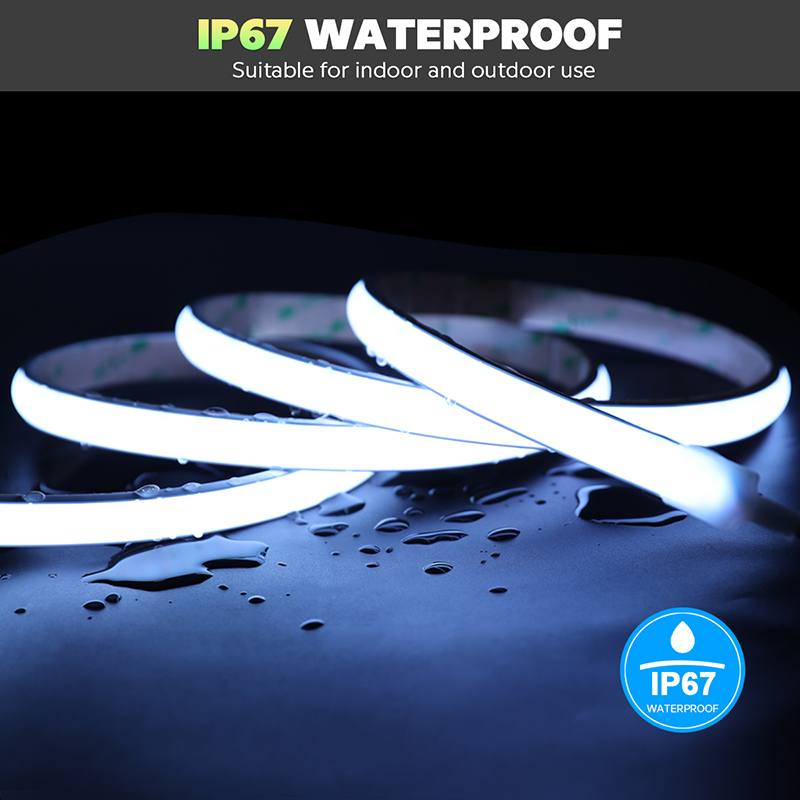

The cutting interval of the RGBCW LED strip is 83.3mm(3.27''). Peeling off the backing, there are black lines on the PCB board, which mark the cutting positions. The design makes it easy for you to cut according to your needs. This flexible addressable COB neon light is adaptable to unregular curves and shapes of installation needs. IP67 waterproof rating design makes this RGBWW addressable LED strip suitable for outdoor use, not afraid of wind and rain.
WS2811 is a 3-channel IC, and we installed 2 ICs on a unit for a total of 5 channels, one to control RGB color, one to control CCT color, enough to control RGBCCT. (WS2811 is compatible with more controllers than the 5-channel RGBCCT WS2805 IC)
If you prefer normal color changing 5-in-1 RGBCCT Cob Led NeonFlex vesion or side bend digital RGBWW neon type, please click to check.
Features of the new LED COB Neon Light Strip
1. Each Pair of WS2811 IC manages a group of LEDs, a group includes 70 LED beads. One cut segment with two IC chips.
2. COB LED strip light securely installed inside silicone neon tube, IP67 waterproof.
3. High density of 840 LEDs per meter, avoiding spot and dark areas.
4. The cutting interval of this RGBCCT COB LED strip is 83.3mm(3.27''), black lines on the board marking the cutting position.
5. The end of this strip features a 3-pin JST connector.
If select kit, in addition to five meters of neon cob rgbcct strip lights, you will receive SP530E controller and LRS-200-24 power supply with an AC plug for 5 meters; SP530E and LRS-350-24 power supply for 10 meters.
Product Specification
| LED Strip Type: | Programmable RGBCW WS2811 COB Neon LED Strip |
| LED Chip: | Chip-on-board LEDs |
| IC Type: | WS2811 |
| LED Color: | Addressable RGB CCT |
| Input Voltage: | DC24V |
|
Power:
|
29W/m, 145W/5m, 290W/10m
|
| Working Temperature: | -20℃~+45℃ |
| Storage Temperature: | -20℃~+60℃ |

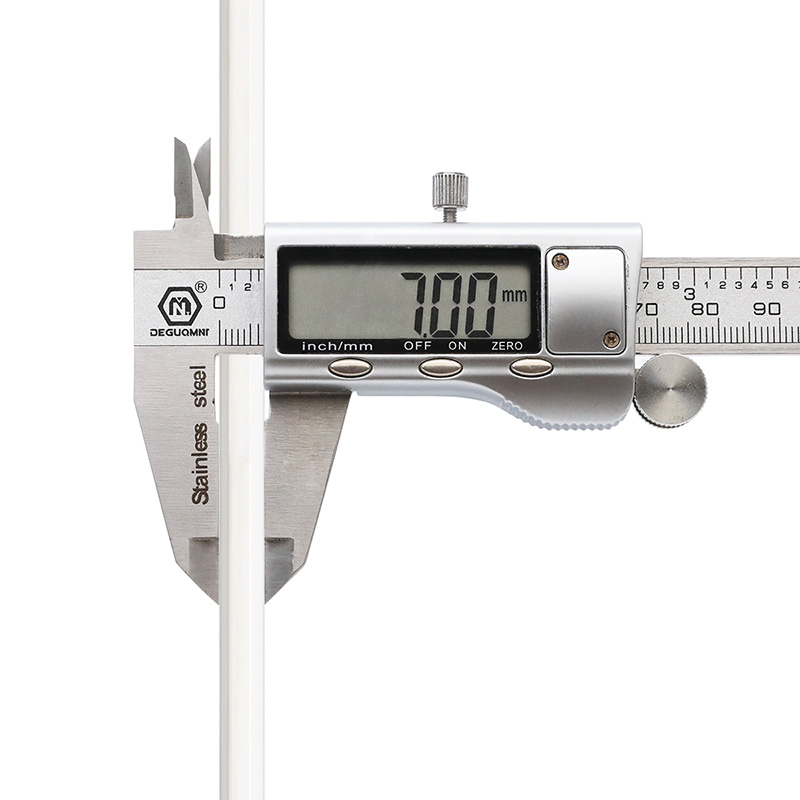

| Height: | 7mm/0.27" |
| Width: |
15mm/0.59" for 840chips/m; 18mm/0.71" for 1428chips/m and 1260chips/m. |
|
LED Quantity:
|
840 Chips/m, 4200 Chips/16.4ft
|
| Waterproof Rating: | IP67 |
|
Cut Length:
|
83.3mm/3.27" cuttable
|
| Color Rendering Index: | Ra90 |
| Beam Angle: | 120° |
| Length: | 5m/16.4ft, 10m/32.8ft |
| Lumen: | 110 lm/W |
| IC Quantity: | 24 ICs per meter |
