Product Information

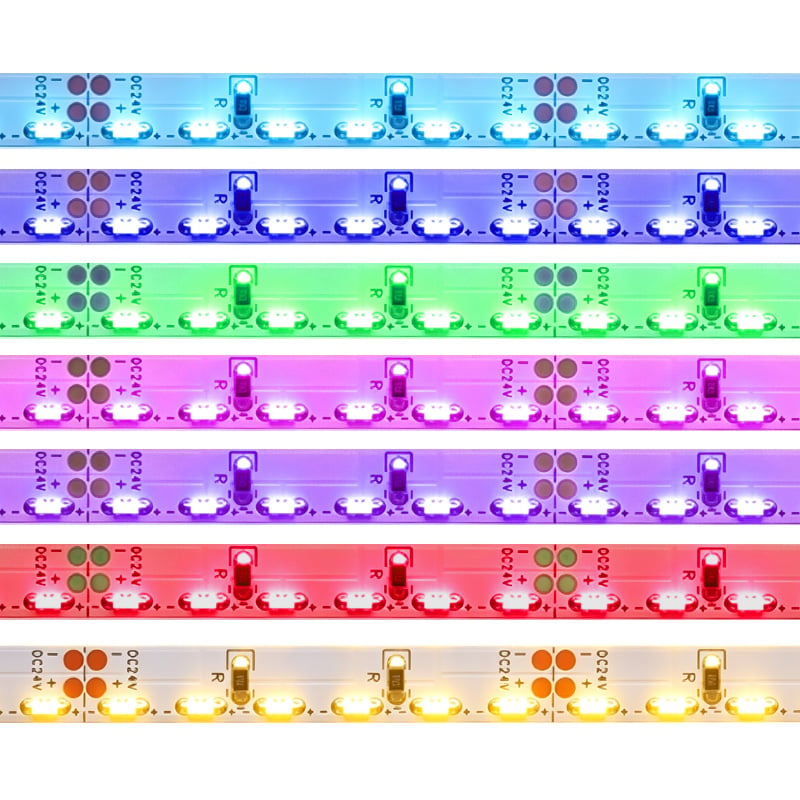

Create stunning, indirect lighting effects with our Solid Color Side Glow LED Strip Light. This unique strip features 335 SMD LEDs that emit light from the edge, making it the perfect solution for sign delineation, edge-lighting acrylic panels, or creating a subtle halo glow around objects. With a high density of 120 LEDs per meter, this glow led light strip produces a smooth, uniform line of light with minimal spotting. Available in multiple vibrant colors—from crisp Cool White to rich Red and Ice Blue—and your choice of 12V or 24V operation, it offers versatile design possibilities for both commercial displays and creative home projects. The slim 8mm PCB allows for installation in tight spaces where traditional lighting won't fit.
Key Features
Side-Emitting Light Source
LEDs are mounted to project light parallel to the mounting surface, ideal for edge-lighting and indirect accent illumination.
High-Density & Uniform Glow
Packed with 120 LEDs per meter, this strip creates a continuous and even line of light, minimizing hot spots for a professional finish.
Vibrant Color Options
Choose from various distinct colors, including two shades of cool white, plus yellow, ice blue, blue, green, and red to match any design theme.
Flexible & Customizable
The flexible 8mm wide PCB can be cut every 3 LEDs (12V) or 6 LEDs (24V) for precise length adjustments to fit your project perfectly.
Versatile Configurations
Available in both 12VDC and 24VDC, with options for IP20 non-waterproof or IP65 surface-glued waterproof ratings to suit indoor applications.
Product Specifications
| Parameter | Details |
|---|---|
| Product Model | FSLSR-335X120W8-C |
| LED Type | SMD 335 |
| Light Emission | Side Emitting |
| LED Quantity | 120 LEDs/meter (600 LEDs/reel) |
| Input Voltage | 12VDC / 24VDC |
| Power Consumption | 48W per 5m reel (9.6W/m) |
| Reel Length | 16.4ft (5 meters) |
| PCB Width | 8mm (0.31in) |
| Available Colors | Cool White (9000-10000K/7000K), Red, Green, Blue, Yellow, Ice Blue, Pink, Purple, Amber (1800K) |
| Beam Angle | 120° |
| Warranty | 2 Years |
| Cut Increments | Every 3 LEDs (12V version) or 6 LEDs (24V version) |
| IP Rating | IP20 Non-Waterproof / IP65 Surface Glued / IP67 Hollow Silicone Tube / IP68 Solid Silicone Tube |
| Lifespan | 50,000+ hours |
| Operating Temperature | -20°C to 50°C (-4°F to 122°F) |
Application Scenarios
How to Install & Use This LED Strip
- 1. Surface Preparation: Clean the mounting surface thoroughly to ensure it is dry and free of dust, oils, or waxes for optimal adhesion.
- 2. Cut to Size (If Needed): Measure the required length and carefully cut the strip along the designated copper cut marks.
- 3. Connection: If you cut the strip, you will need to solder wires or use 2-pin connectors to connect the segments to your power source. Ensure you match the polarity (+ and -).

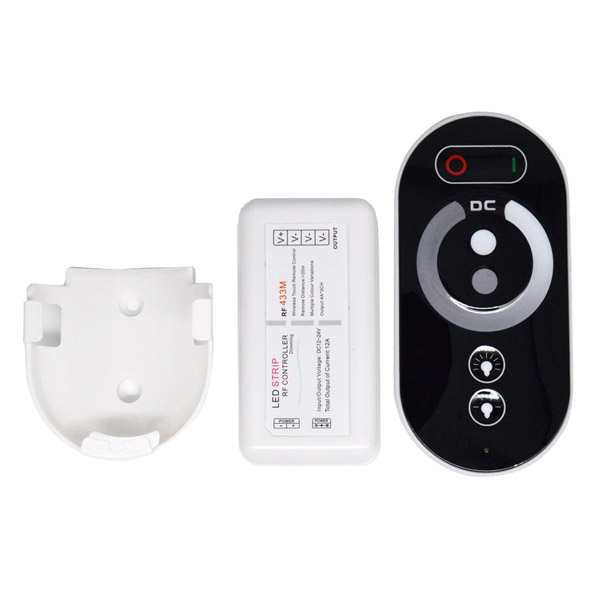

- 4. Power Up: Connect the strip to an appropriate 12V or 24V DC power supply. To control brightness, wire a compatible single color dimmer between the power supply and the strip.
- 5. Mounting: Peel the protective backing off the adhesive tape and press the strip firmly onto the prepared surface.
- Always use a power supply with a wattage rating at least 20% higher than the strip's total power consumption to avoid overloading.
- The 24V version is recommended for longer continuous runs to minimize voltage drop.
What's in the Box
- ✓1 x 16.4ft (5m) Reel of Solid Color Side Glow 335 LED Strip Light
Frequently Asked Questions
Q: What is a 'side glow' or 'side-emitting' LED strip?
A:A side-emitting LED strip has LEDs that shine light from the edge of the strip, parallel to the mounting surface. This is different from standard strips where the light shines directly upwards, away from the surface.
Q: What is the advantage of having 120 LEDs per meter?
A:A higher LED density like 120 LEDs/m creates a more uniform and continuous line of light, significantly reducing the visible dots or 'hotspots' seen in lower-density strips. This results in a smoother, more professional lighting effect.
Q: What kind of power supply do I need for a full 16.4ft reel?
A:The full 5-meter reel consumes 48 watts. We recommend a power supply with at least 20% higher capacity, so a 60W power supply (12V or 24V, depending on your strip version) would be ideal.
