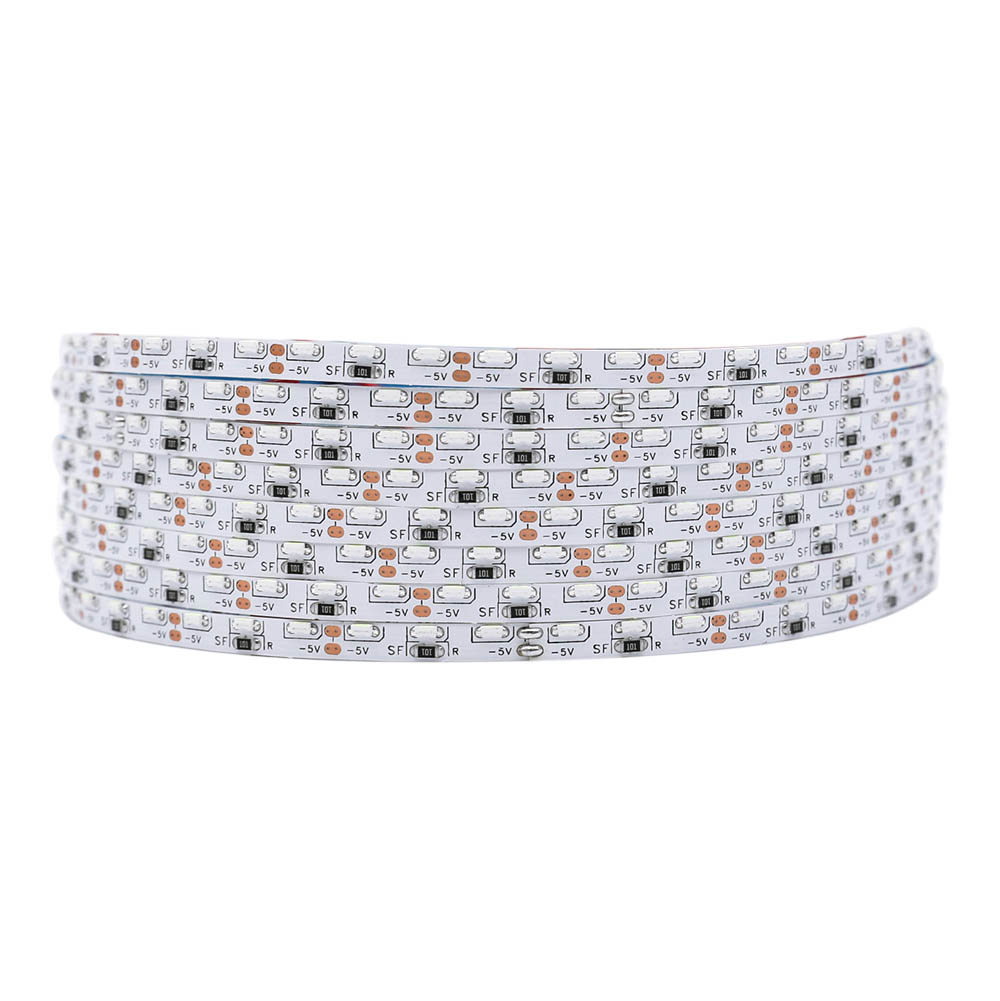

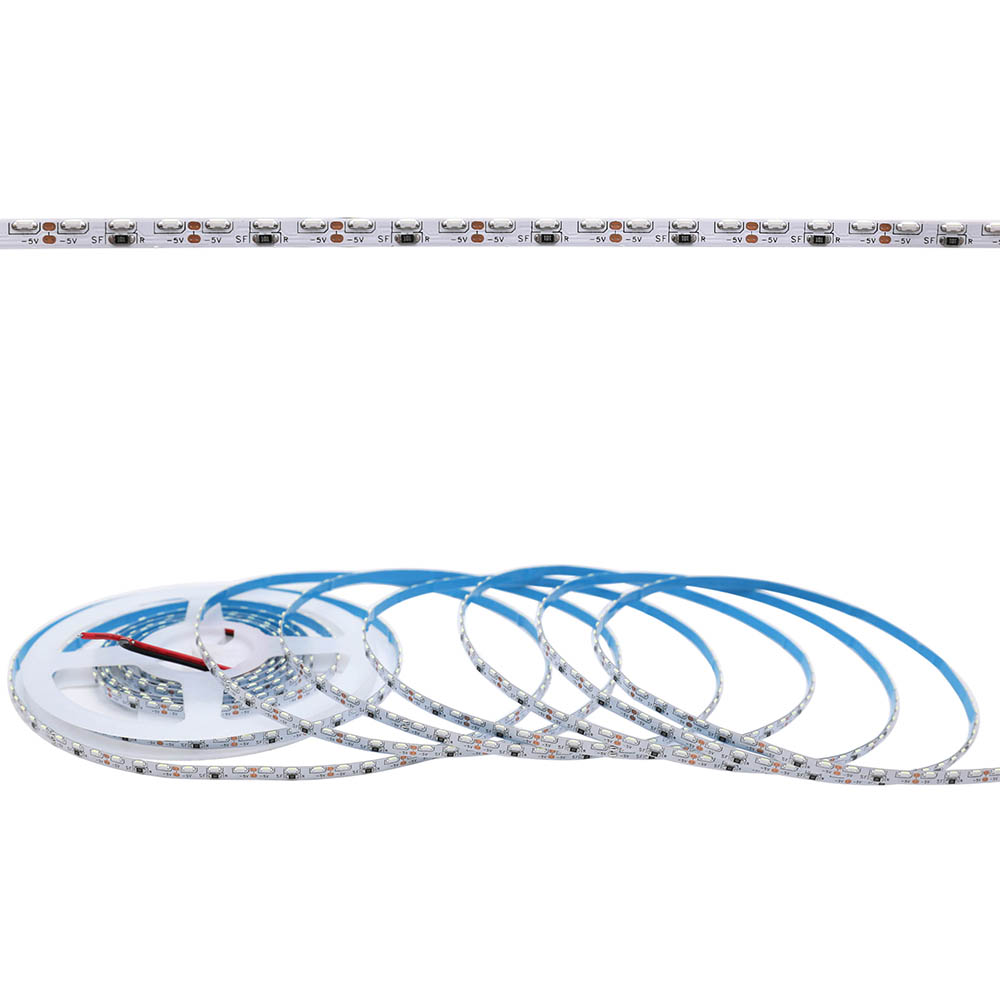

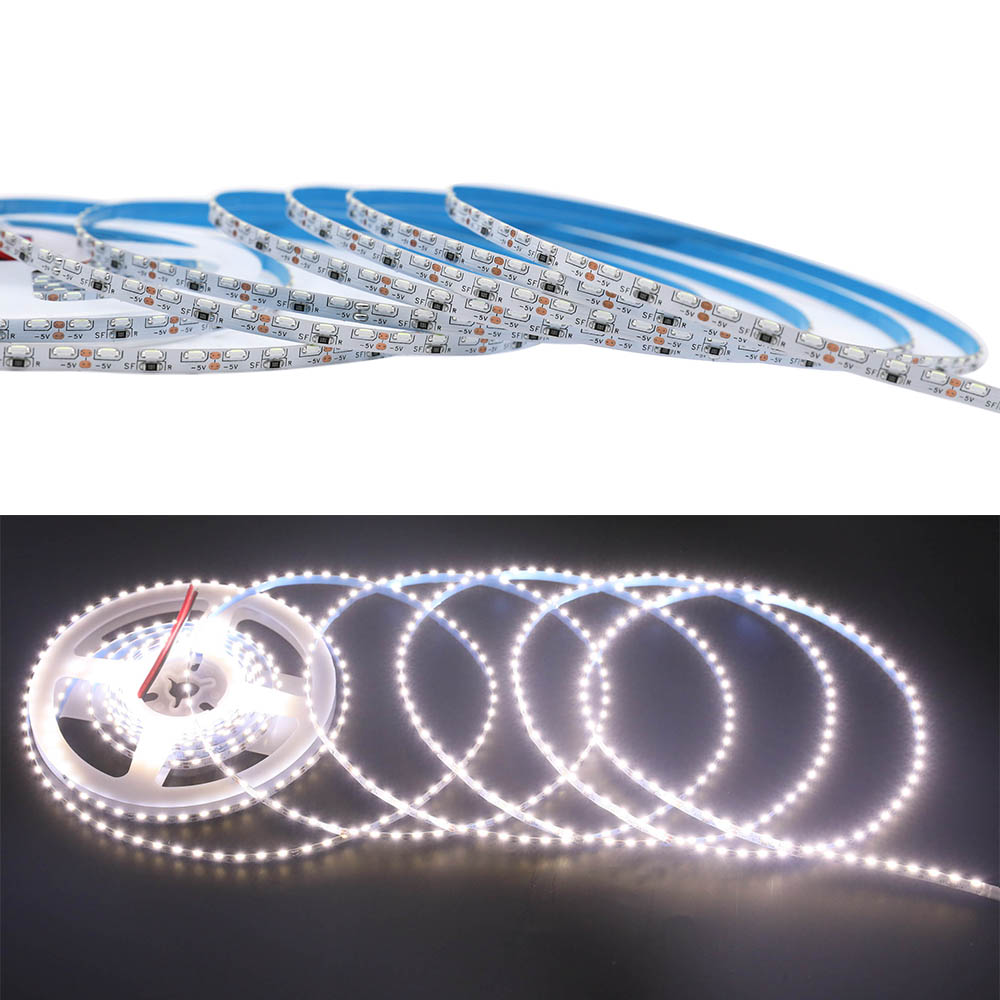

DC5V 16.4Ft 600LEDs Super Slim 5mm Wide 335SMD Side Emitting LED Strip For Under Cabinet Lighting
►What are led strip lights? This LED strip from our super slim series side emitting LED strip light series, suitable for indoor(IP20) & outdoor(IP67) use(IP20 non-waterproof vs IP67 waterproof LED strip lights), support 5 volt safety voltage input, using higg density 600 335 side emitting LEDs per 5 meters, flex LED strip light output up to 1000 high lumens of powerful illumination.
►3 LEDs every segment is available, you can cutomize the length of the super slim LED strip light, and back with high quality 3M tape, easy to install, this side emitting LED strip lights is perfect for home lighting, accent lighting, task lighting.

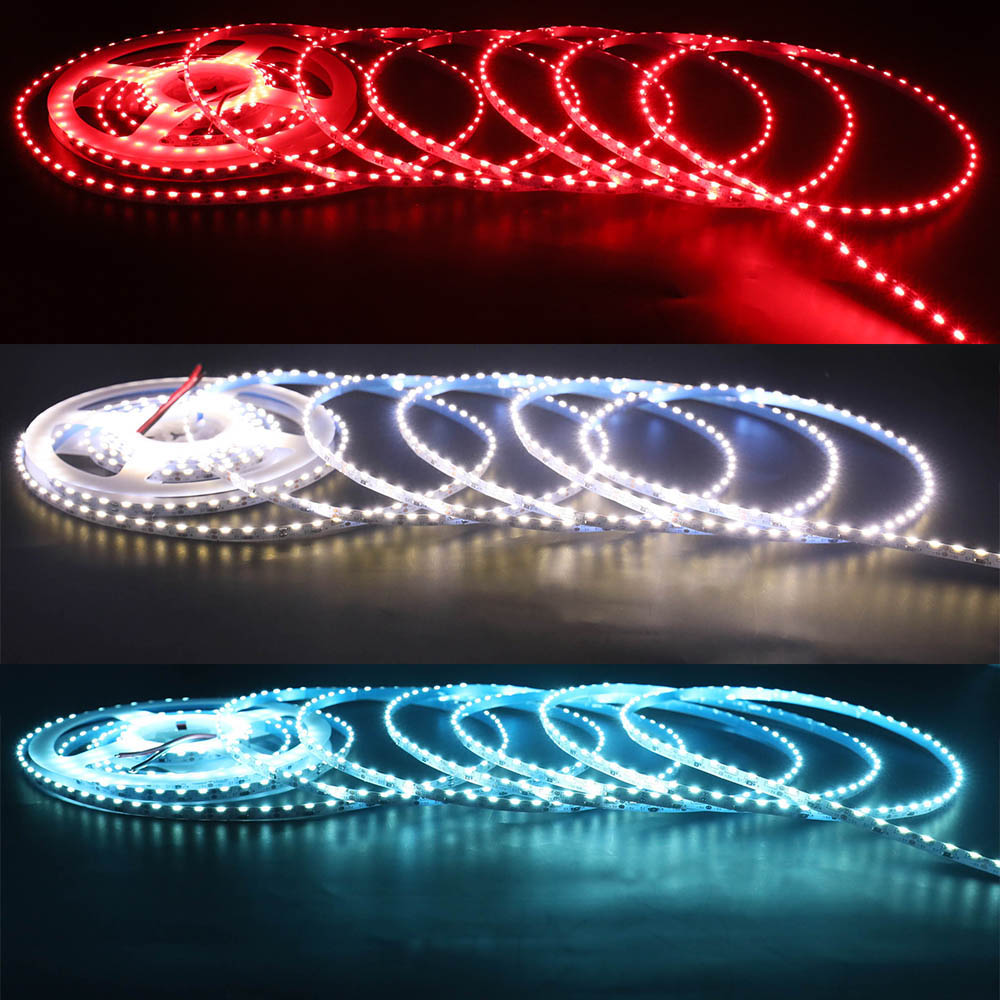

►3000K Warm white/4000K Natural White/6000K Daylight White/7000K Cool white light color temperature and multiple LED color, Red, Green, Blue, Amber, Pink, Purple, Ice Blue, Yellow are available, work with single color LED dimmer controller can control the LED lighting brightness changment, you can also use our single color LED remote controller to control multiple zones lighting.
Know more about LED color and white light color temperature, you can read: What is kelvin color temperature, How to choose the right color for your led strip lights(how many colors are in LED strip lights), The Color Difference Between Warm White 2700K, 3000K, 4000K, 6000K Pure White and 7000K Cool White(warm white vs cool white, 3000K vs 4000K vs 6000K vs 7000K, natural white vs daylight white).
►Total lifespan is up to 30000 hours, LED is designed to emit the parallel light, if you need some super slim LED strip light to use for a narrow environment, like the under cabinet lighting, this is a perfect chioce.
Some questions abourt LED lifespan: Are LED strip lights safe, How long do LED strip lights last, Do LED strip lights use a lot of electricity, Are LED Strip Lights sustainable.

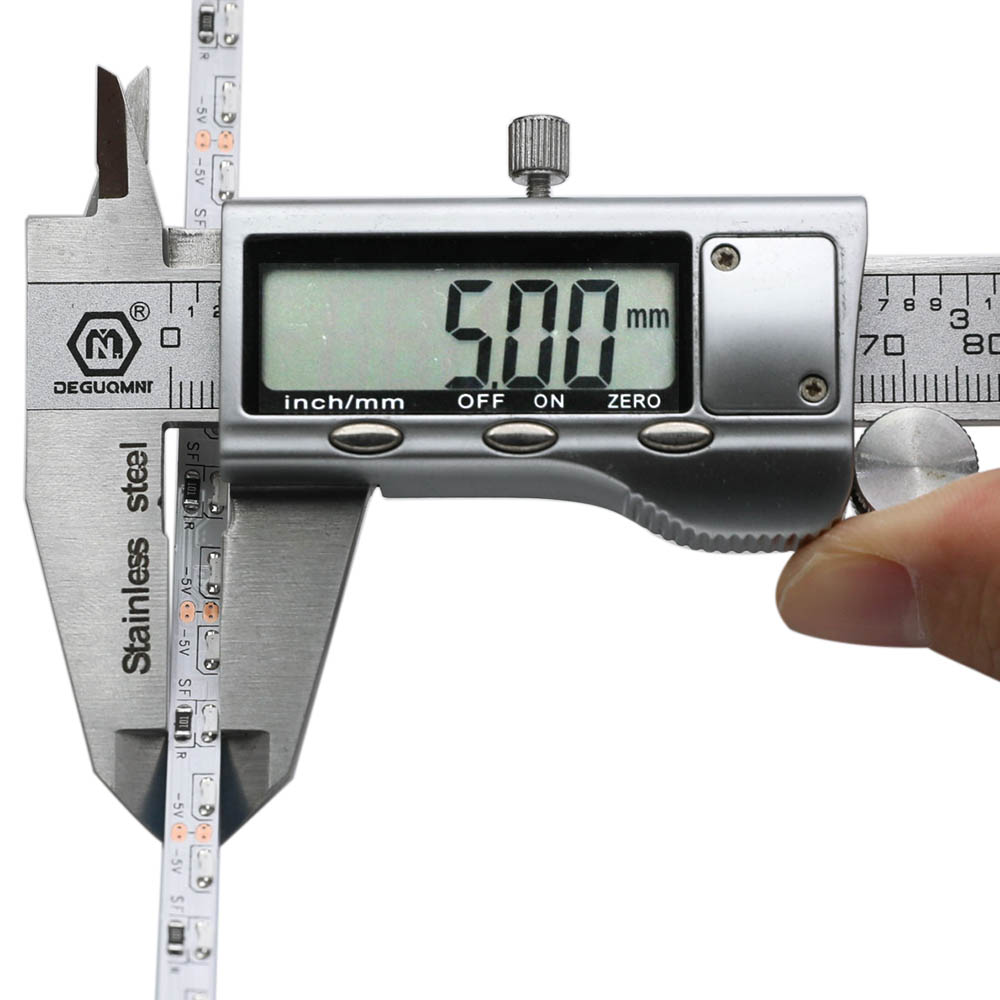

Super slim 5mm/0.20in wide
High density 120LEDs per mter
Multiple color temperature available

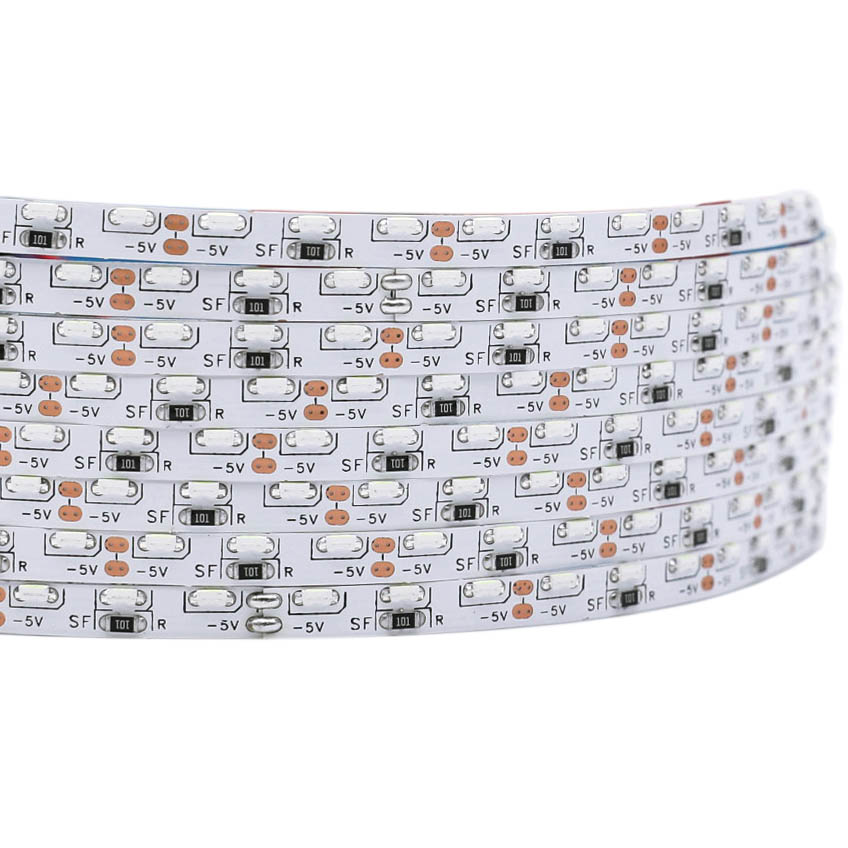

335 Side emitting LED
30000+ hours lifespan
under cabinet lighting
3M tape, easy to install

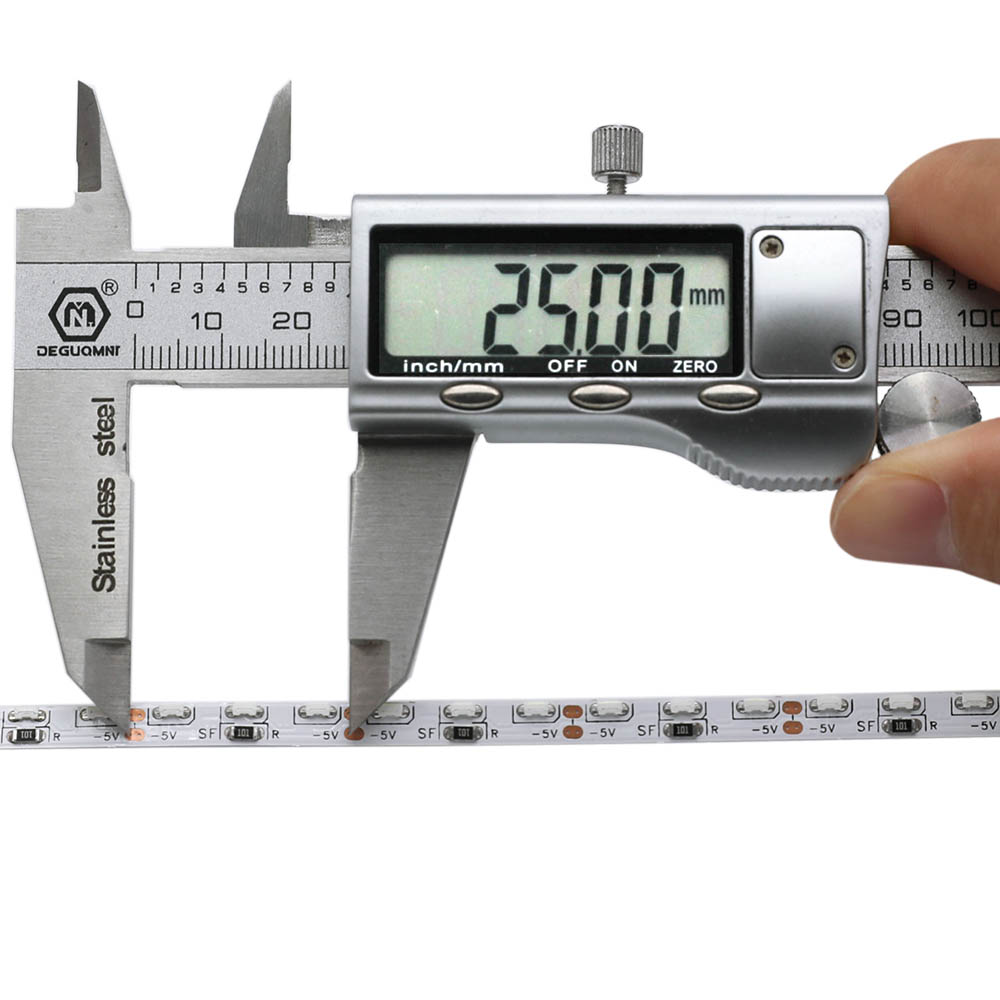

3 LEDs cuttable
Standards and Certifications
LED Strip Type: SMD 335 600PCS/16.4ft
LED Chip: Epistar Chip
Working Temperature: -4°F (-20°C) ~ 122°F (50°C)
Storage Temperature: -40°F (-40°C) ~ 176°F (80°C)
Light Color: Warm White, Daylight White,Cool White, Red, Green, Blue, Amber, Pink, Purple, Ice Blue, Yellow(optional)
Dimension: 16.4ft/roll, every 3 PCS LEDs can be cut
LED Quantity: 120 LEDs/m 37LEDs/Ft
PCB Width: 5mm/0.20in
Input Voltage(V): 5VDC
Working Power: 9.6W/M, 48W /Roll Max
Beam Pattern: 120 degree
Water Proof: Non-Waterproof IP20, waterproof IP67
Color Temperature CCT(White): Warm White(2800-3200k), Daylight White(5500-6500k), Cool White(7500-8000k)
Wavelength NM(RGBY): Red(620-630nm), Green(515-525nm), Blue(465-475nm), Yellow(585-595nm)
1* 5m/16.4Ft super narrow 5mm LED strip light by default.
How to choose the correct LED controller and LED power supply for indoor & outdoor lighting?
|Controller||V1 + RT1||CONSC-RF161|
If you purchase the MW UL-Listed LED power supply, we will also send you an AC plug.
LED density usually has a positive correlation with LED brightness. The higher the LED density, the higher the LED brightness.
For this side emitting LED strips, we provide a variety of color temperature options. For single-color LED strips, you can use an LED power supply or LED dimming driver to control separately.
If you need multiple functions such as strobe/dimming, you can choose from our single color LED dimmer controller series.
For connecting multiple LED strips, you can contact us for soldering or use our super slim 5mm/0.20in solderless LED fast connectors
How to Use LED Strip Lights?
You can cut the flex LED strip lights every few inches(individual LED), allowing you to freely design your lighting project without worrying about space requirements to many different surfaces.

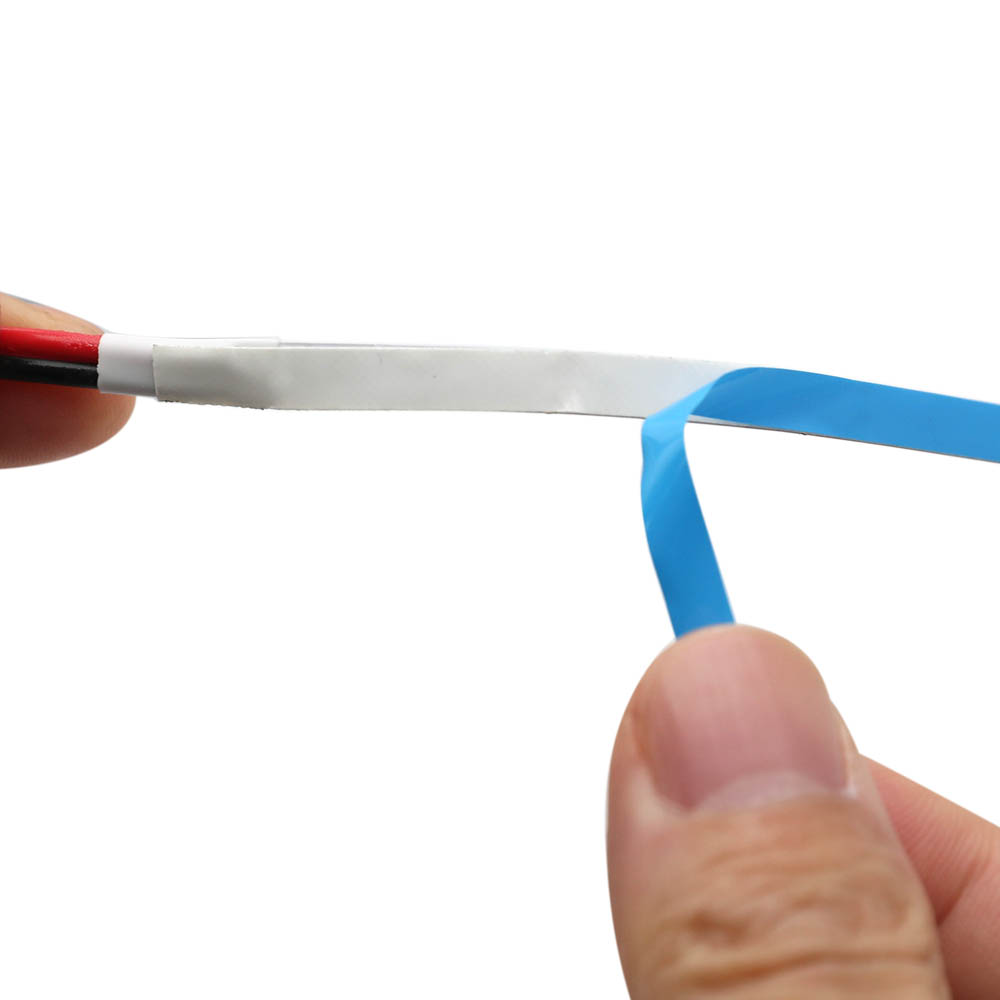

The back of the LED strip is fitted with a strong 3M tape, allowing you to peel and stick the LED lights to anywhere.
IP67/IP68 LED waterproof type which will come with mounting brackets. And all the LED strip lights can be installed with LED aluminum channel and LED neon tube to get an uniform, soft, and no light spot LED lighting effect.

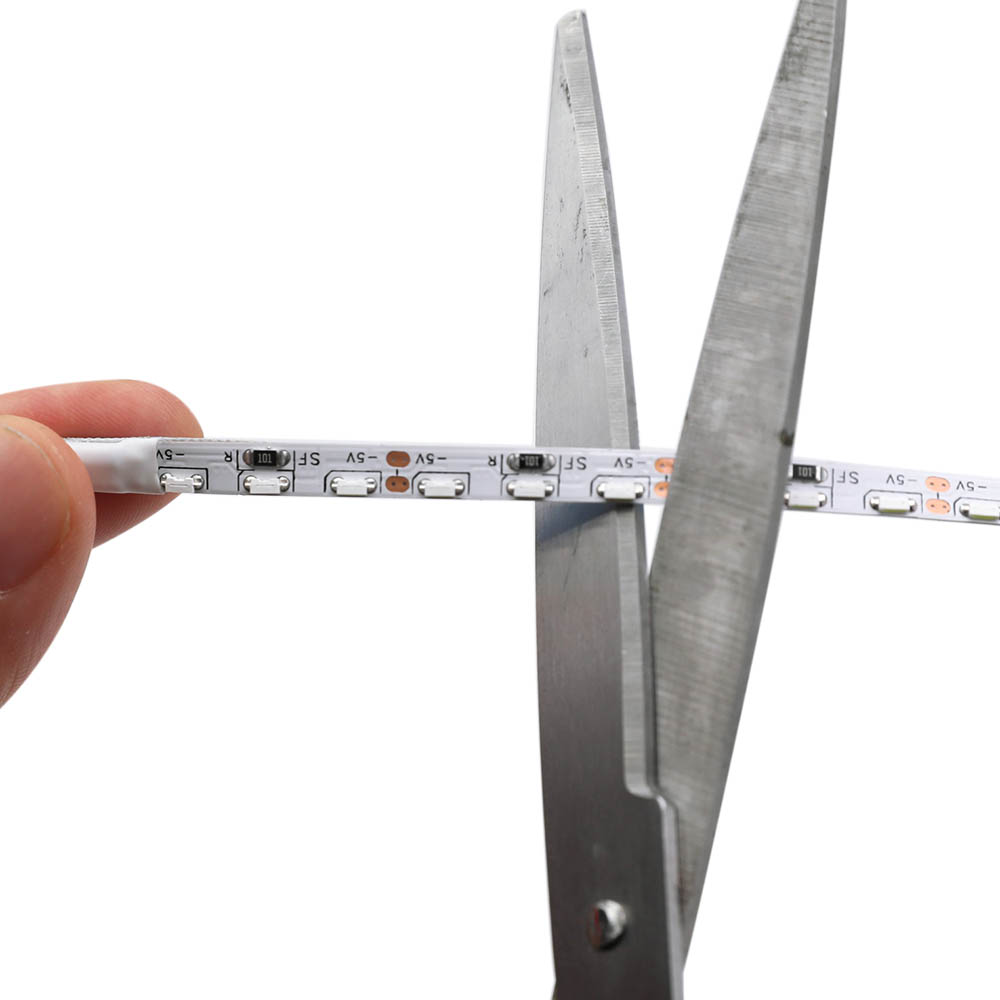

►Can you cut LED light strips and how to reconnect:
►How to install LED light strip:
►Single color LED light strip wiring diagram:
Cove LED lighting
Retail LED lighting
Display case LED lighting
Accent LED lights
Under cabinet lighting
