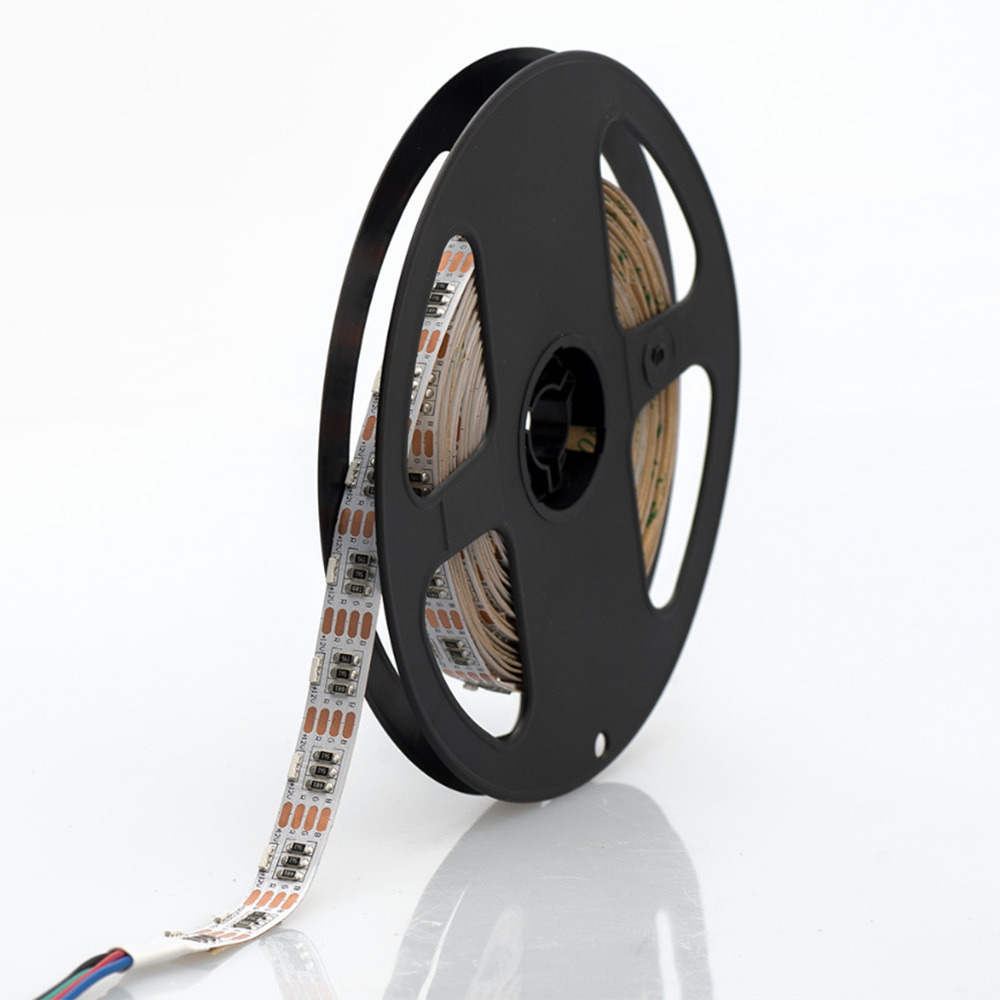

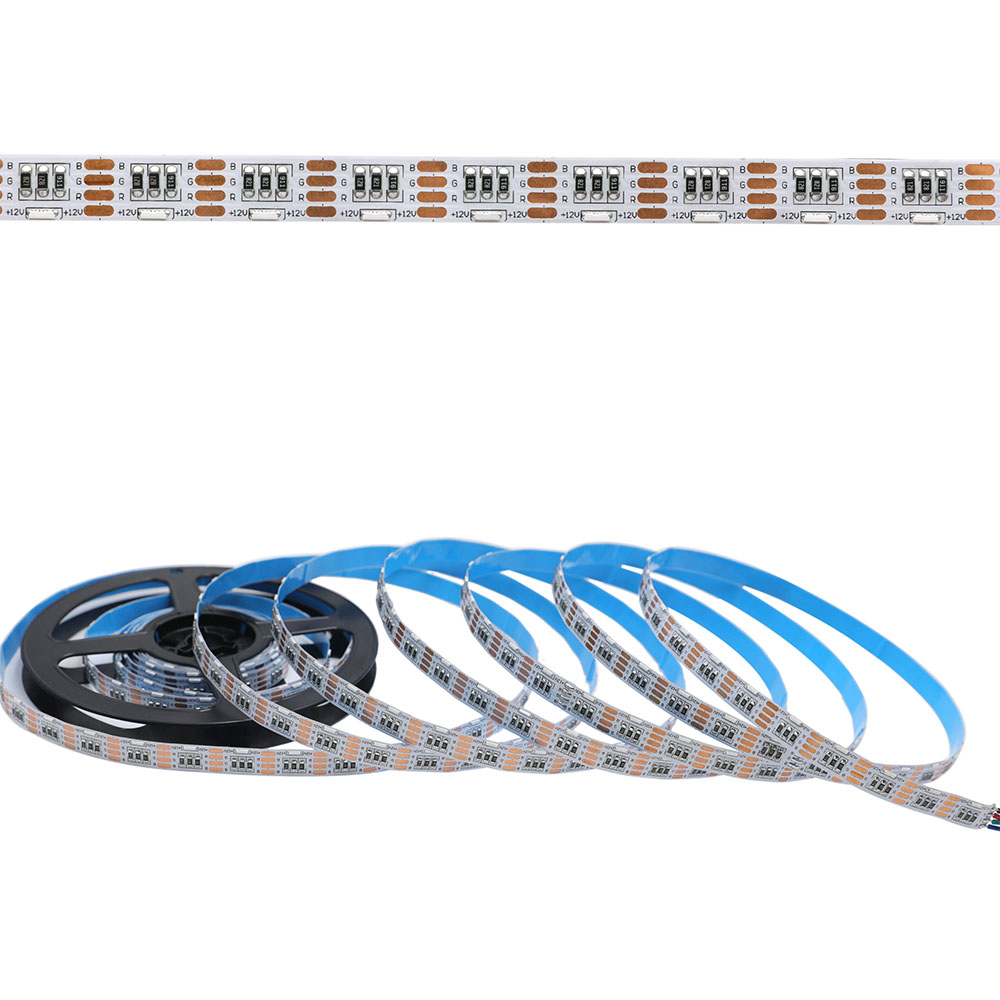

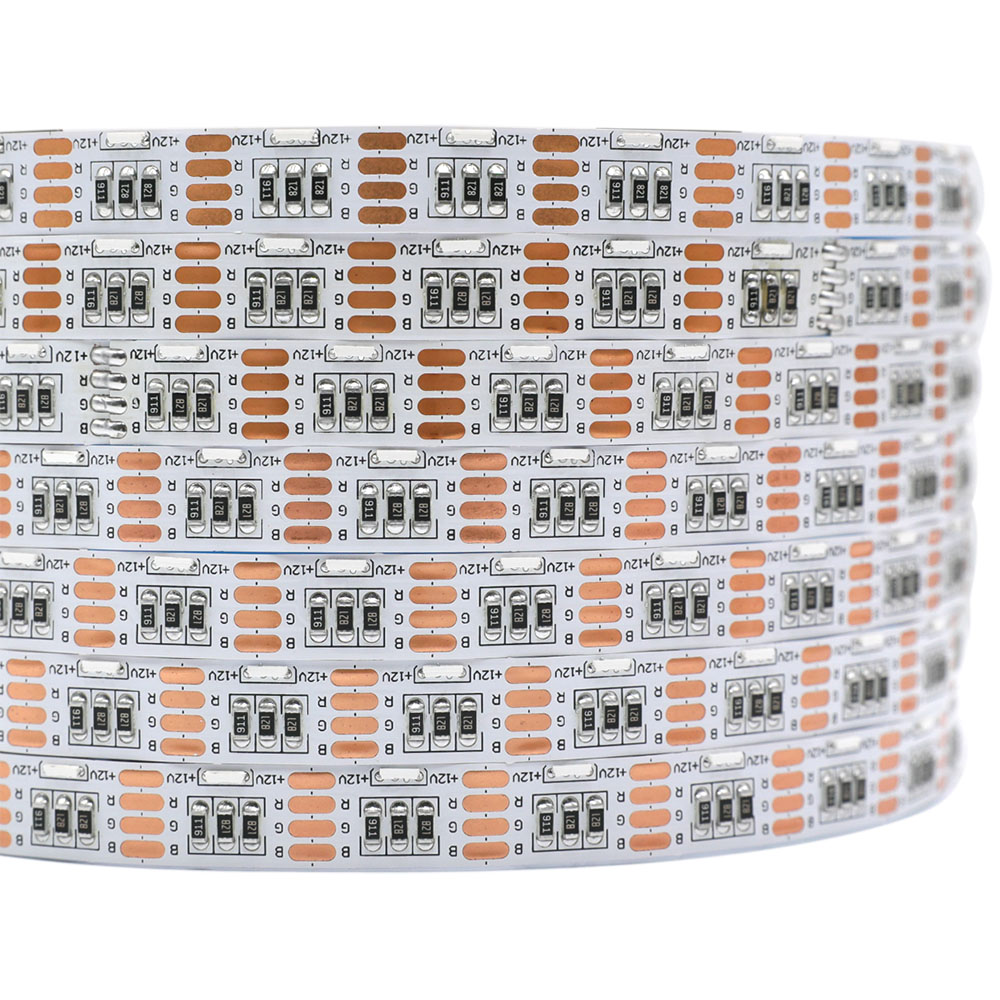

5m Side Emitting LED Strip 12V - RGB LED Color Changing Lights - 60LEDs/m
Side emitting LED strip emits light from the side, the light is parallel to the PCB board, making a side projection of the displayed products, suitable for narrow installation positions of light boxes, counters, gaps, borders, contours, etc.

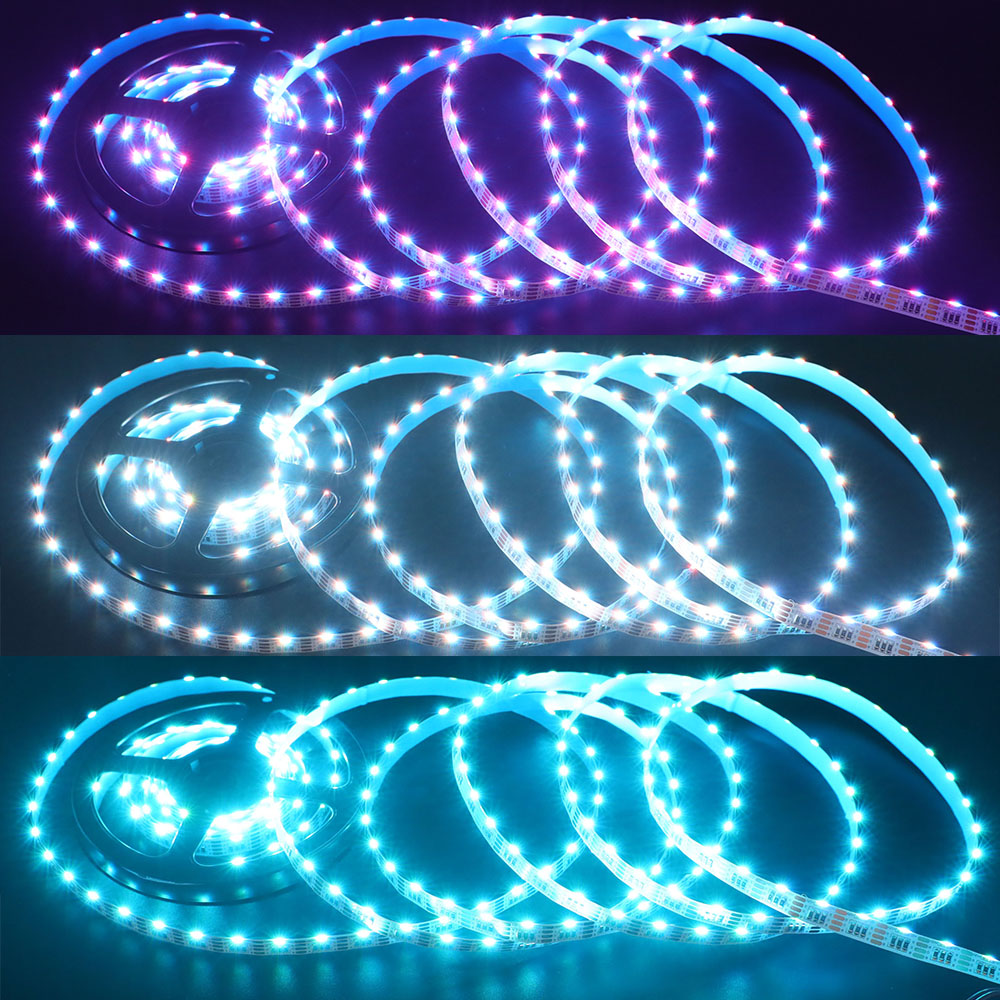

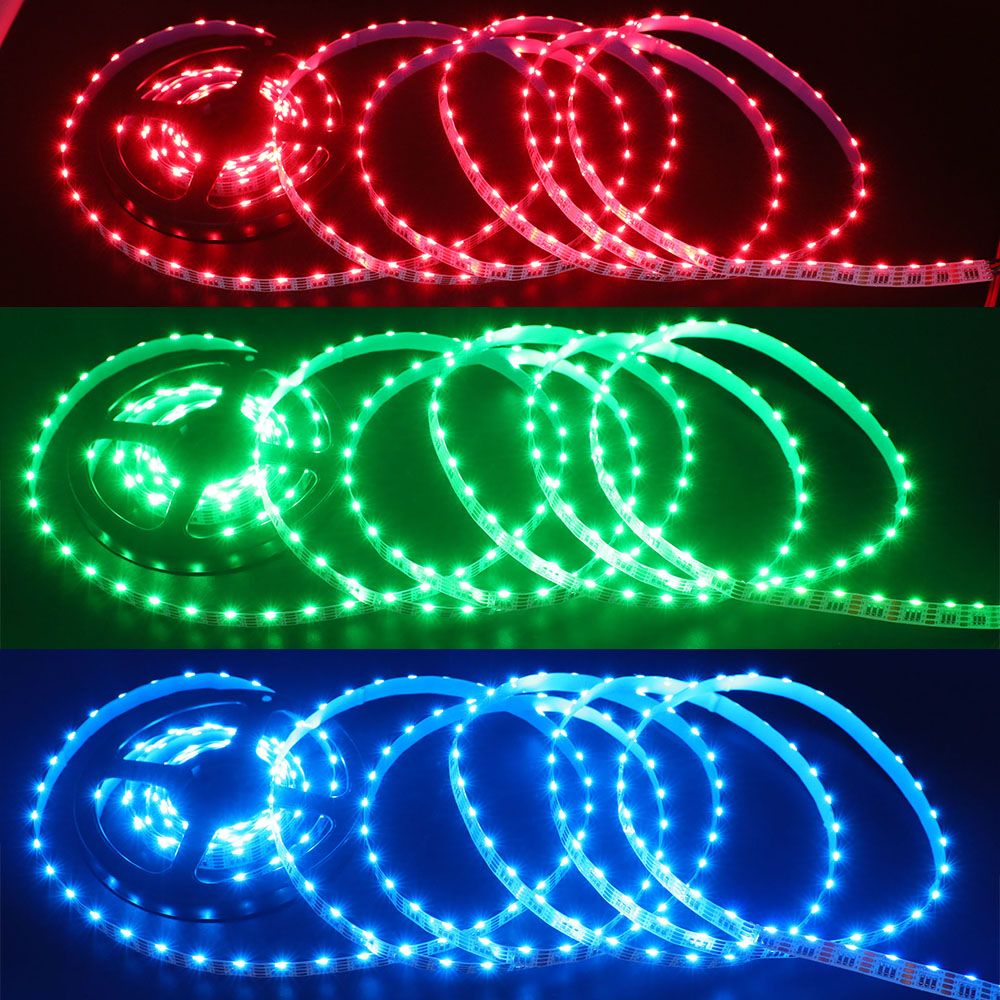

RGB color changing led strip lights use 3-in-1 RGB LEDs, which can display a variety of static colors and dynamic color effects through the control of the RGB controller. Use the mobile APP, remote control, or voice control to change the light color, brightness, and mode. It is the best item to use lights to create an entertainment atmosphere or mood lighting. This RGB led strip uses 12V safe voltage and needs to be driven by an AC to DC LED transformer.

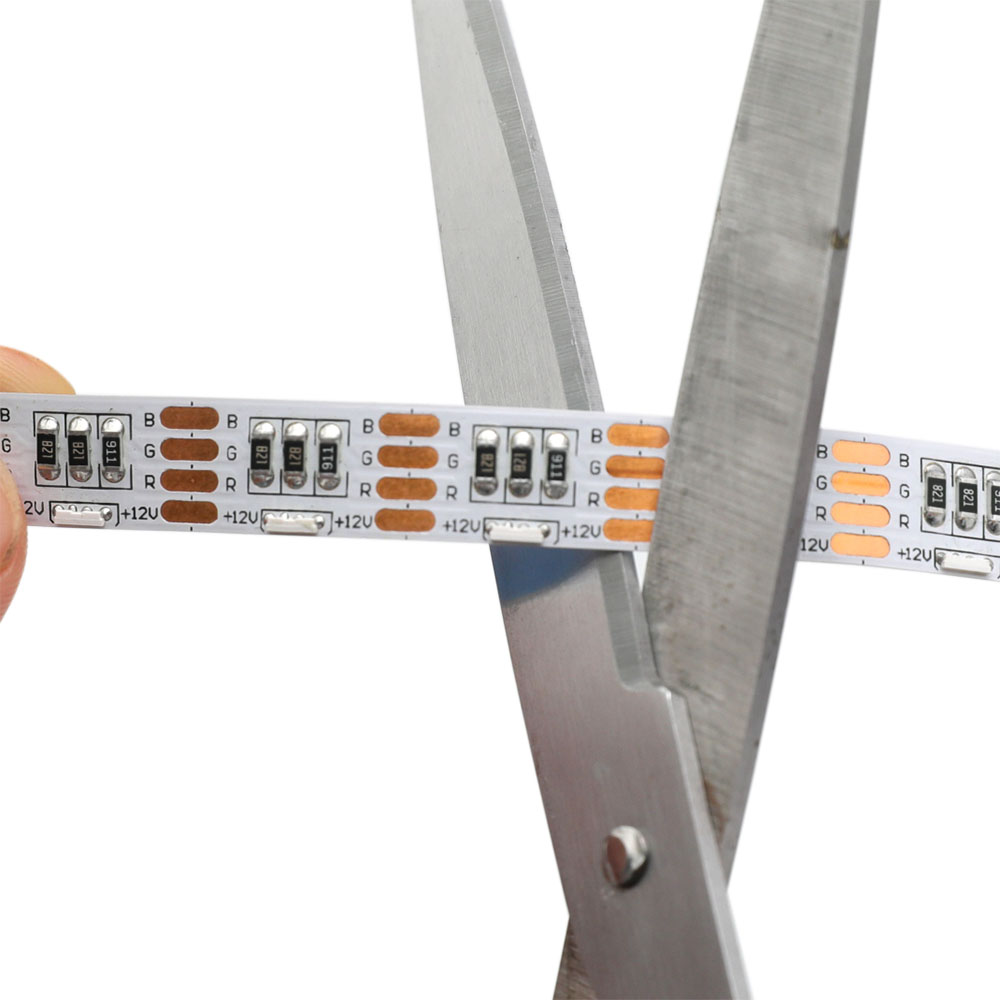

1. 300LEDs per roll, every one RGB LED can be cut, meets your needs for different lengths.
2. 5m/16.4ft in length, suitable for various lighting projects. you can cut and connect the RGB light strip to get your desired strip length.
3. DC12V low voltage, safe and low consumption, unique circuit technology, and high standard anti-static, ensure the life and use of the light.

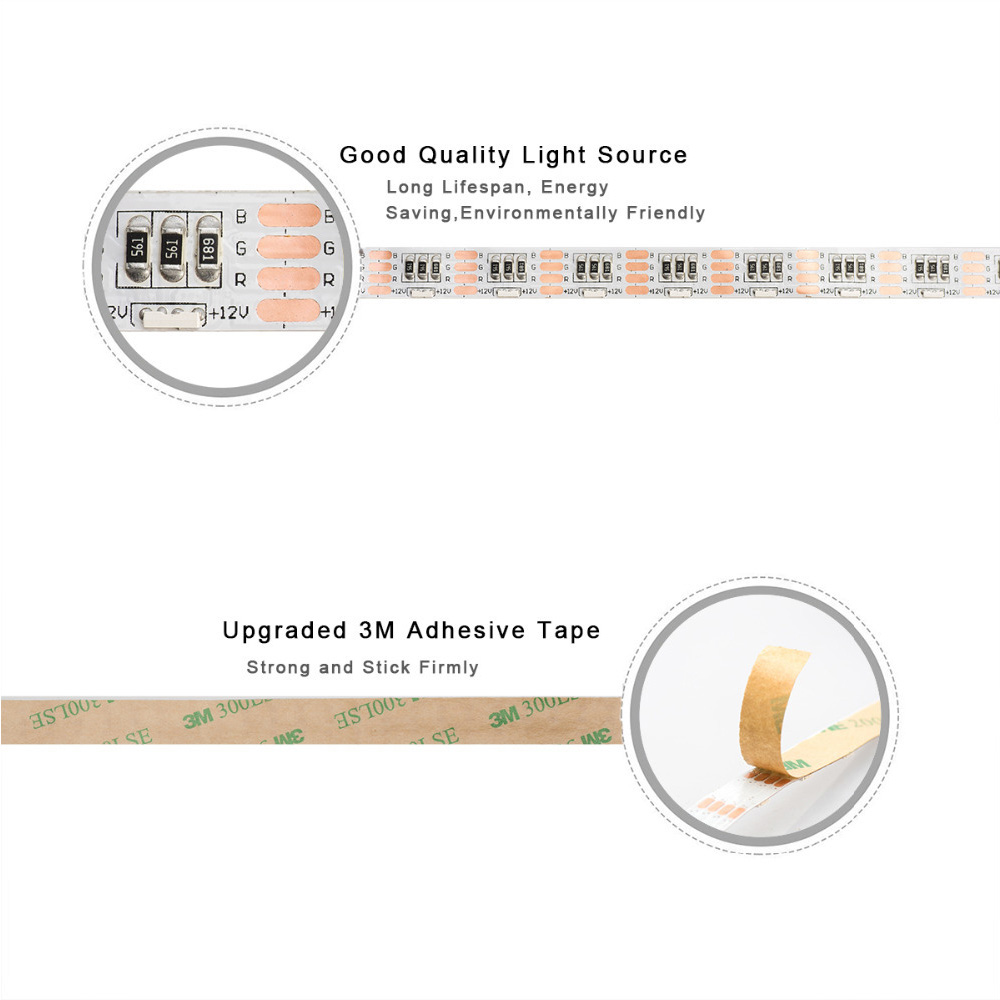

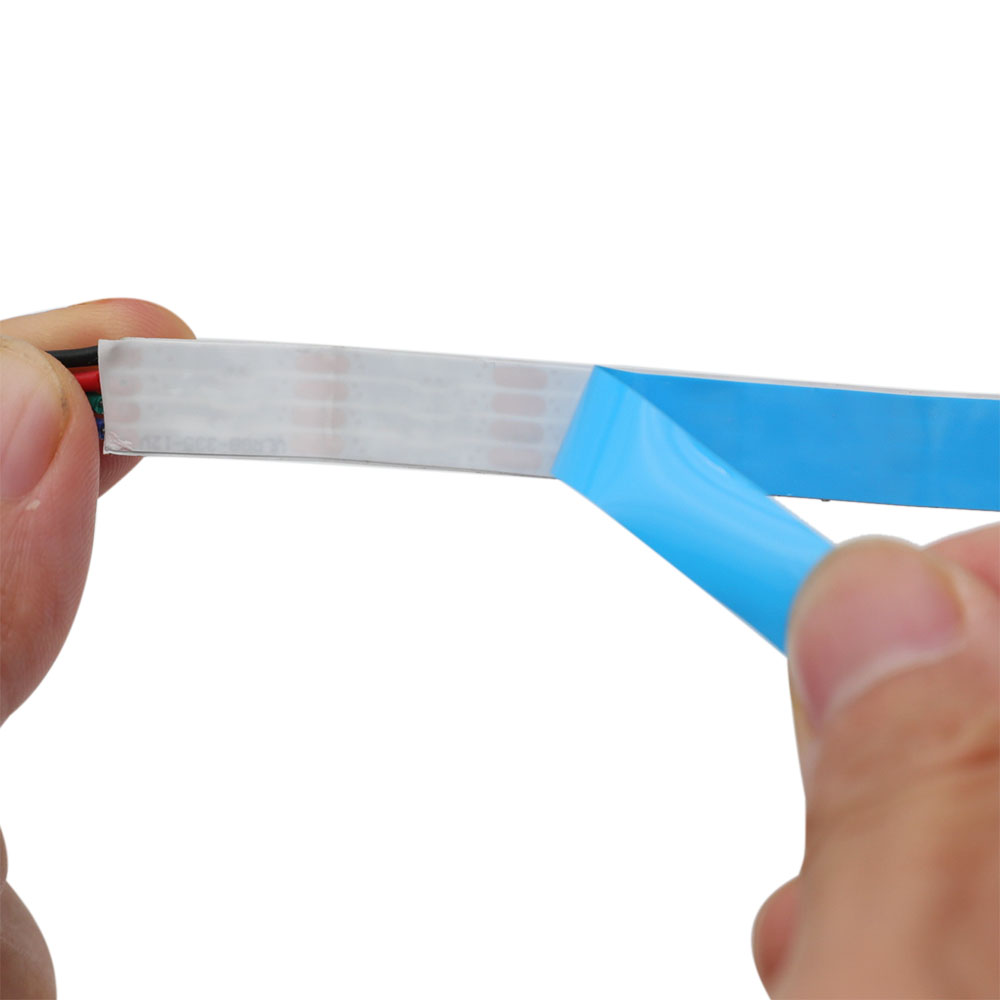

4. With 3M adhesive backing tape, easy to install, high light source brightness, stable performance, and waterproof IP20/IP67 optional, suitable for indoor and outdoor LED lighting projects.
Standards and Certifications
|LED Strip Type:||SMD 020 300PCS/16.4ft|
|LED Chip:||Epistar Chip|
|Working Temperature:||-4°F (-20°C) ~ 122°F (50°C)|
|Storage Temperature:||-40°F (-40°C) ~ 176°F (80°C)|

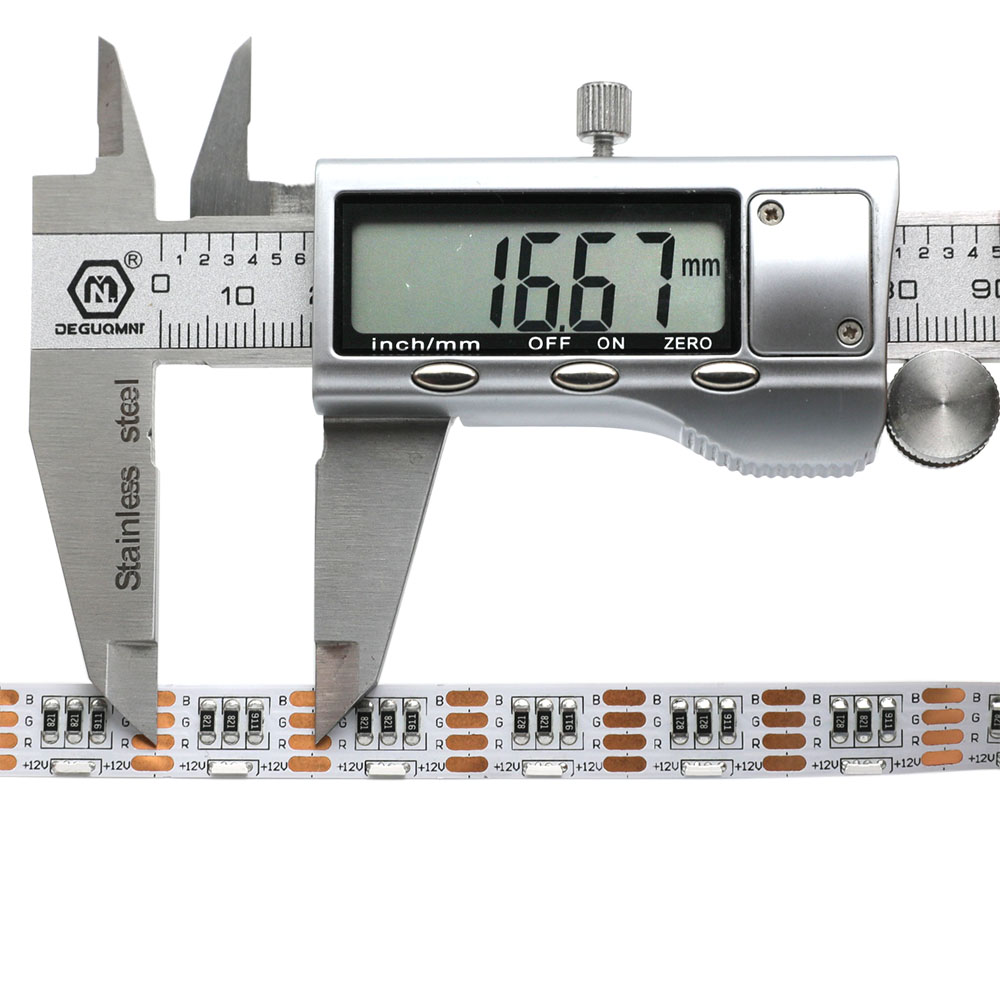

|Dimension:||16.4ft/roll, every 1 PCS LED can be cut|
|LED Quantity:||60 LEDs per 1meter (3.28 ft)|

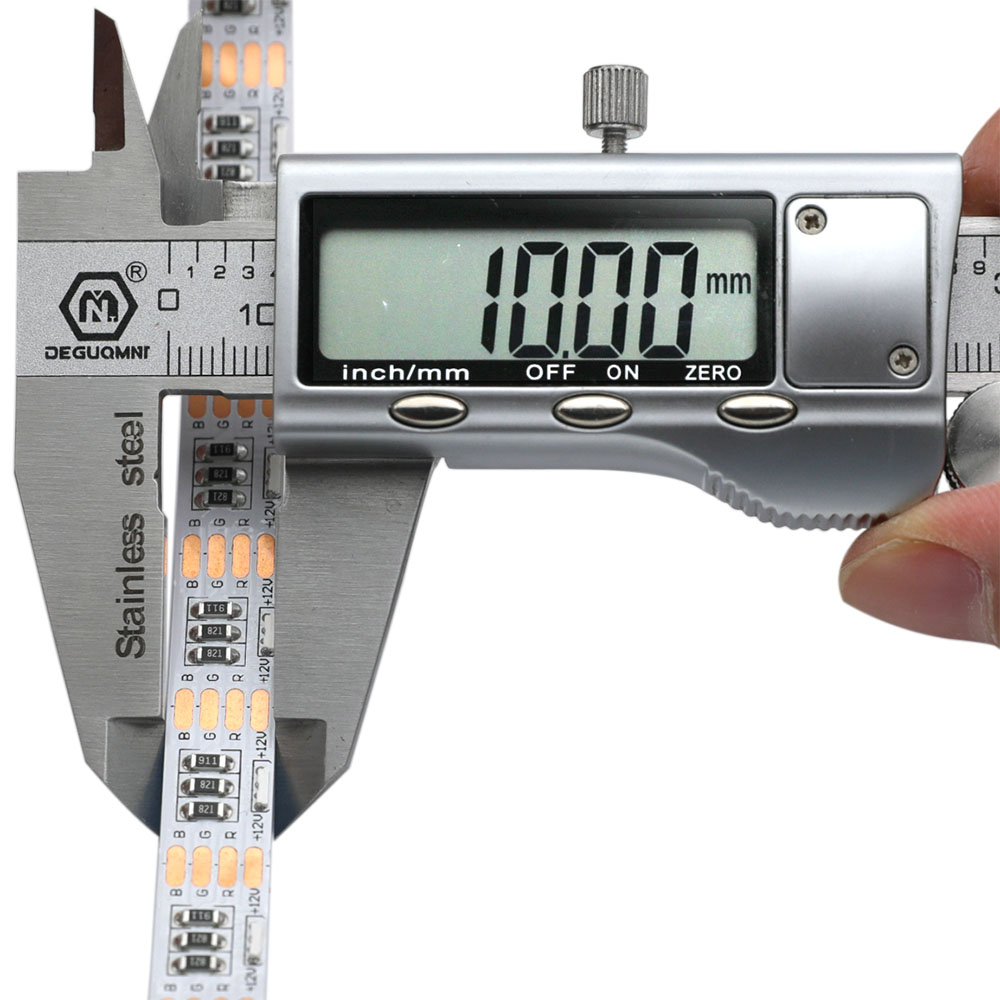

|Dimensions:||L500cm(196.8 in ) x W1.0cm(0.39 in ) x H0.20cm(0.08 in )|
|Input Voltage(V):||12 VDC|
|Working Power:||6A 72W /16.4ft Max|
|Lamp Luminous Flux(lm):||5-6 lm/LEDs 1800 lm/16.4ft|
|Wavelength NM(RGBY):||Red(620-630nm), Green(515-525nm), Blue(465-475nm), Yellow(585-595nm)|
|Beam Pattern:||120 degree|
|Waterproof:||Non-waterproof IP20, waterproof IP67|
LED Light Strip Accessories
Cove LED lighting
Retail LED lighting
Display case LED lighting
Accent LED lights
Under cabinet lighting
These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!
