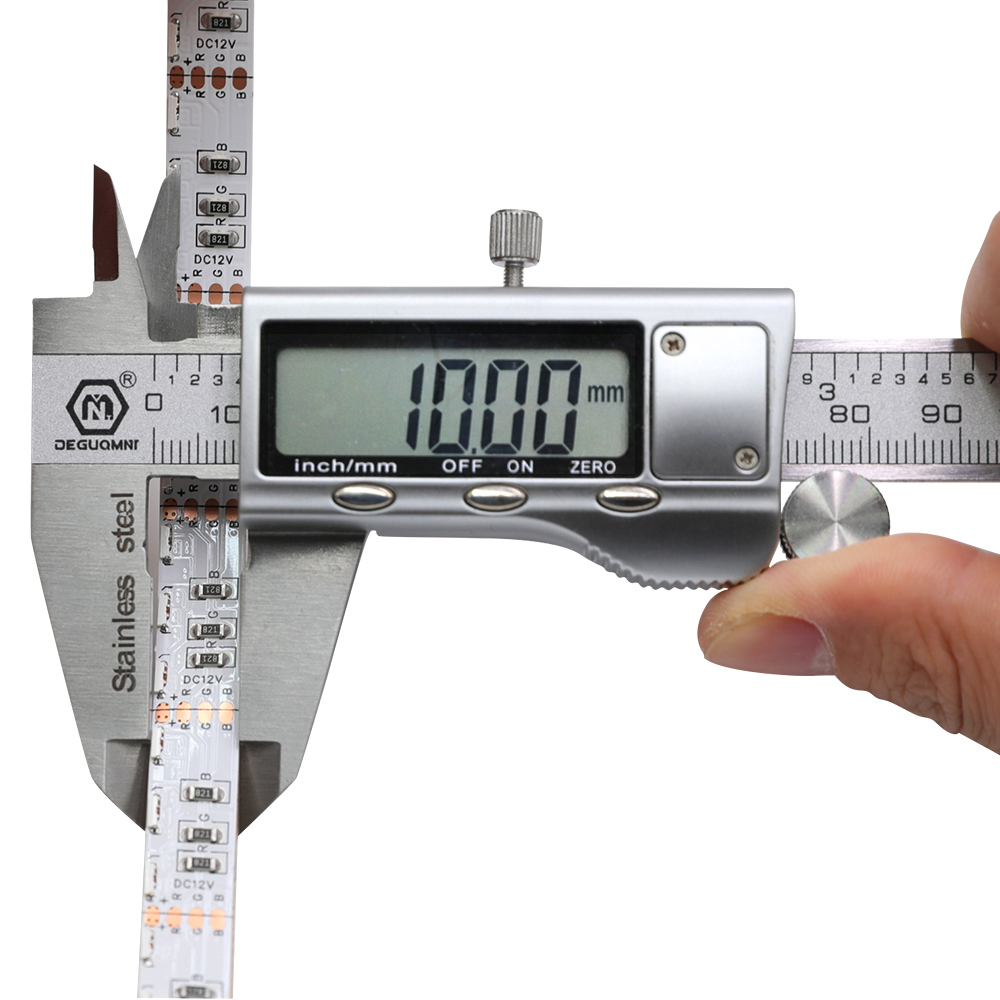

Side Emitting RGB LED Strip - 10mm 12V 020 RGB Lights - 120LEDs/m High Density
Side Emitting RGB LED... $58.98
Mean Well LRS-100-12... $30.00 $25.9813% off
DC12-48V Alexa Voice... $17.98
96W8A DC12V Plastic Shell... $21.99
DC5-24V SP630E 12-in-1... $10.98
Side Emitting RGB LED...
Mean Well LRS-100-12...
DC12-48V Alexa Voice...
96W8A DC12V Plastic Shell...
DC5-24V SP630E 12-in-1...
What is a side emitting led strip? Color changing side emitting RGB light strips emit light from the side, the RGB light is parallel to the PCB board, making a side projection of the displayed products, suitable for narrow installation positions of light boxes, counters, gaps, borders, contours, etc.

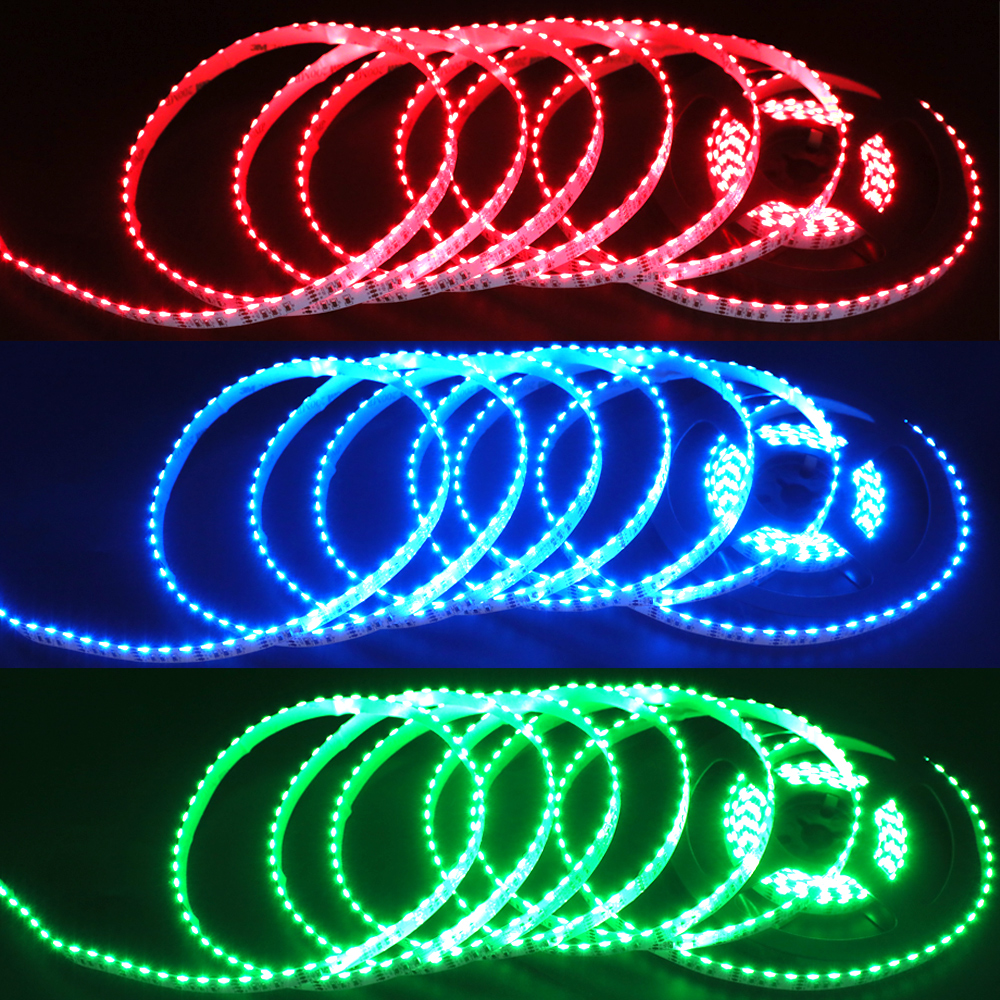

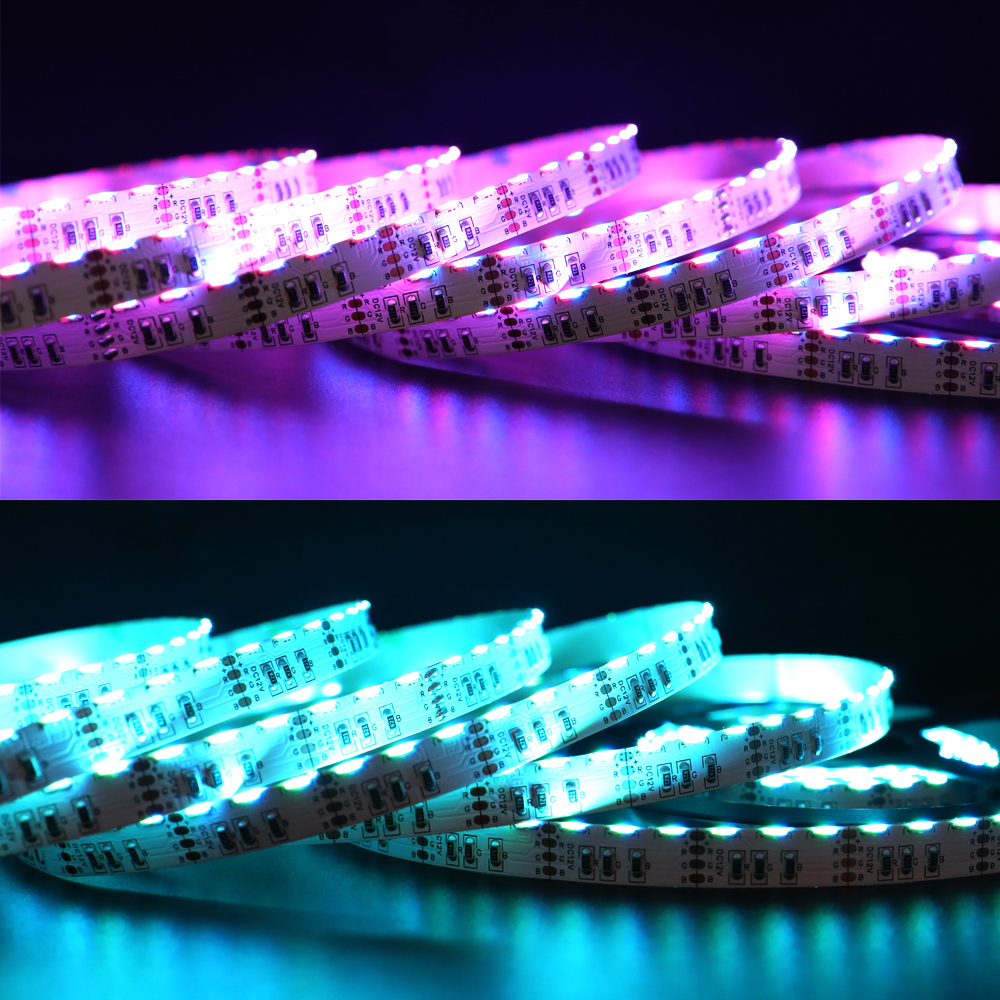

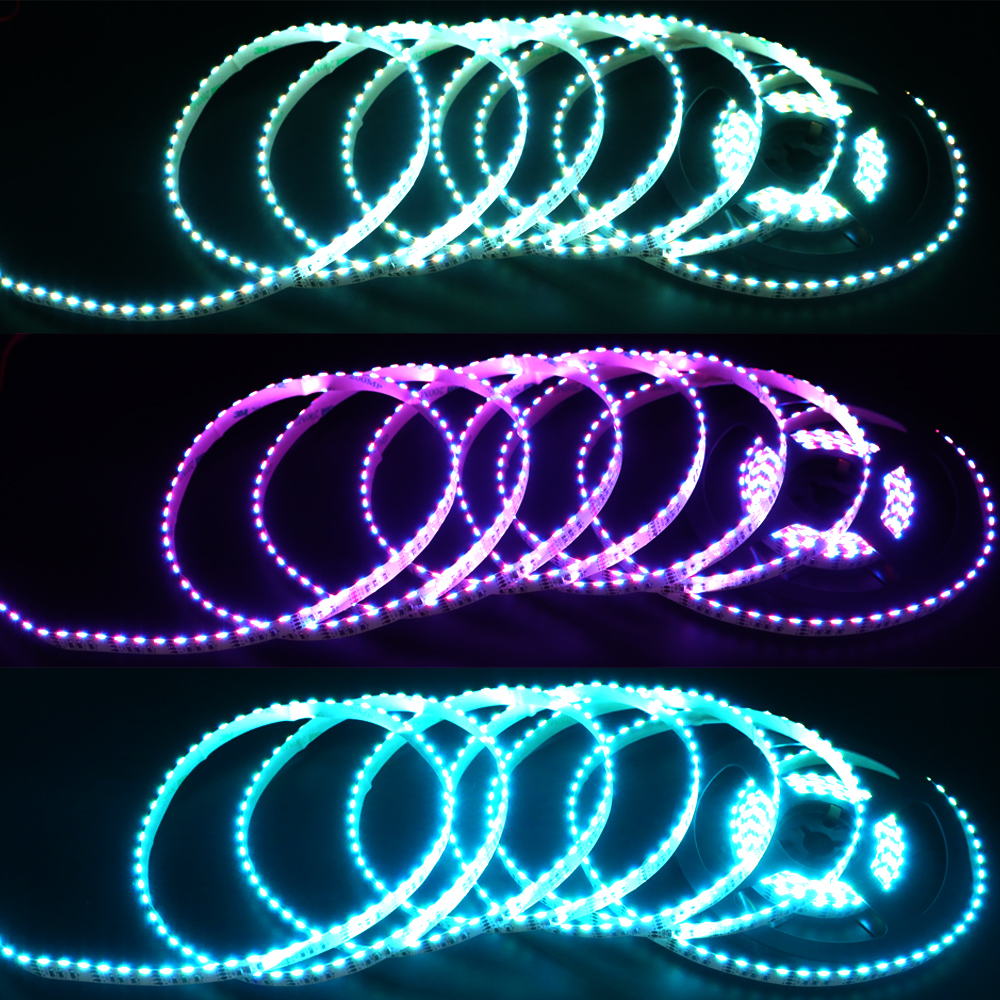

LED color changing RGB light strips use 3-in-1 RGB LEDs, which can display a variety of static colors and dynamic color effects through the control of the RGB controller. You can use mobile APP, remote control, or voice control to change the light colors, brightness, and color modes. It is the best item to use lights to create an entertainment atmosphere or mood lighting. This RGB led strip uses 12V safe low voltage and needs to be driven by an 12V LED power supply.

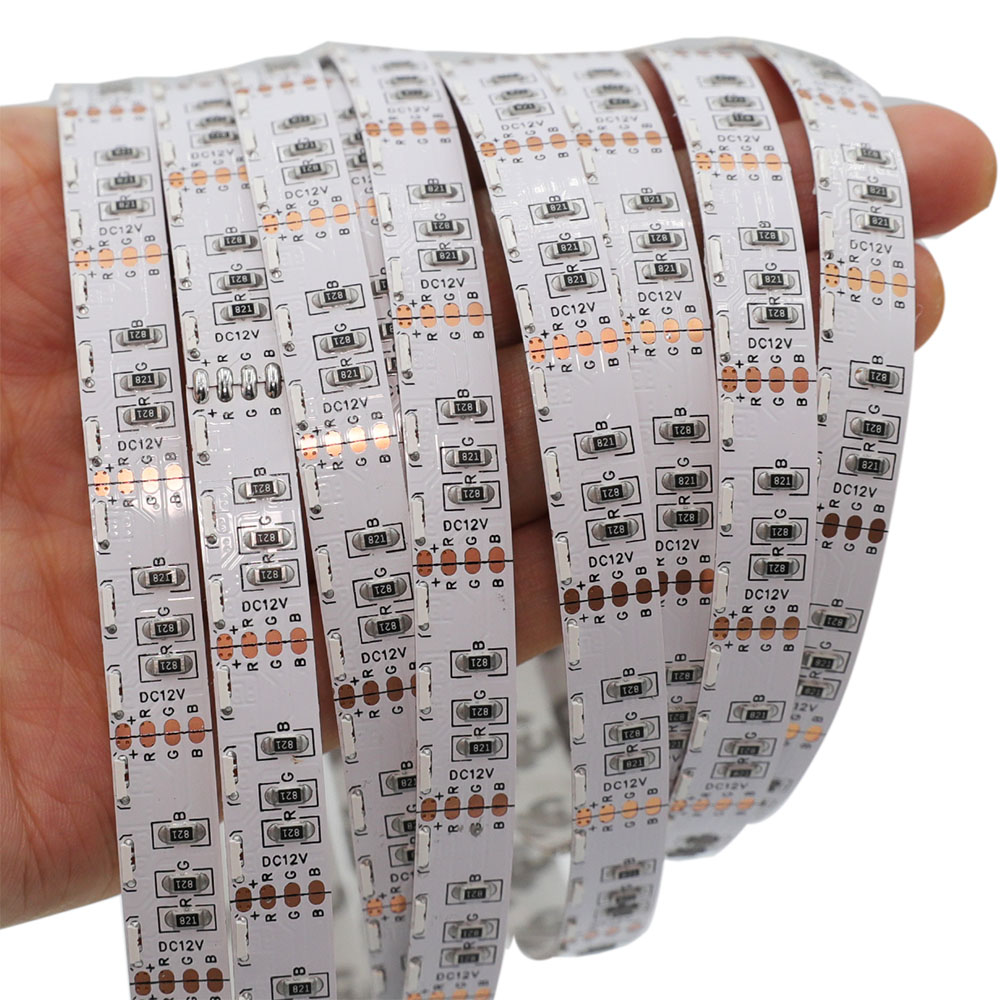

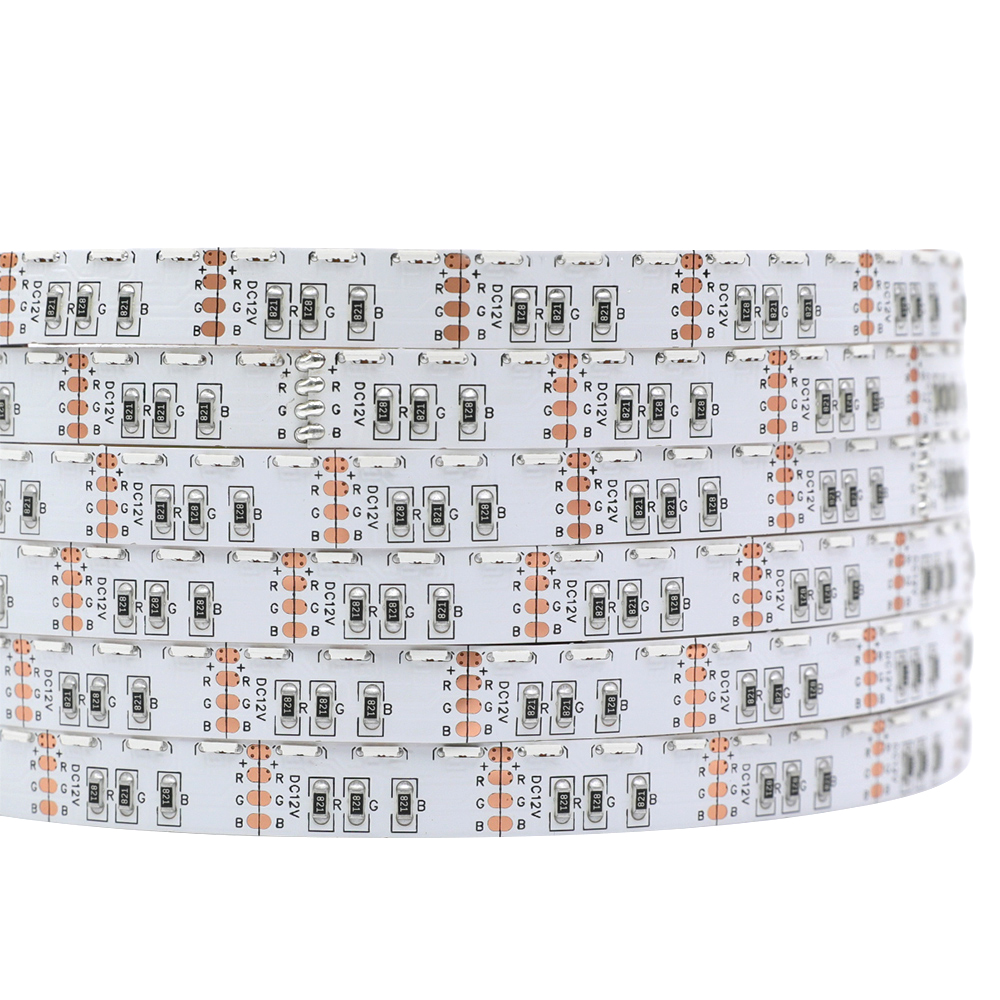

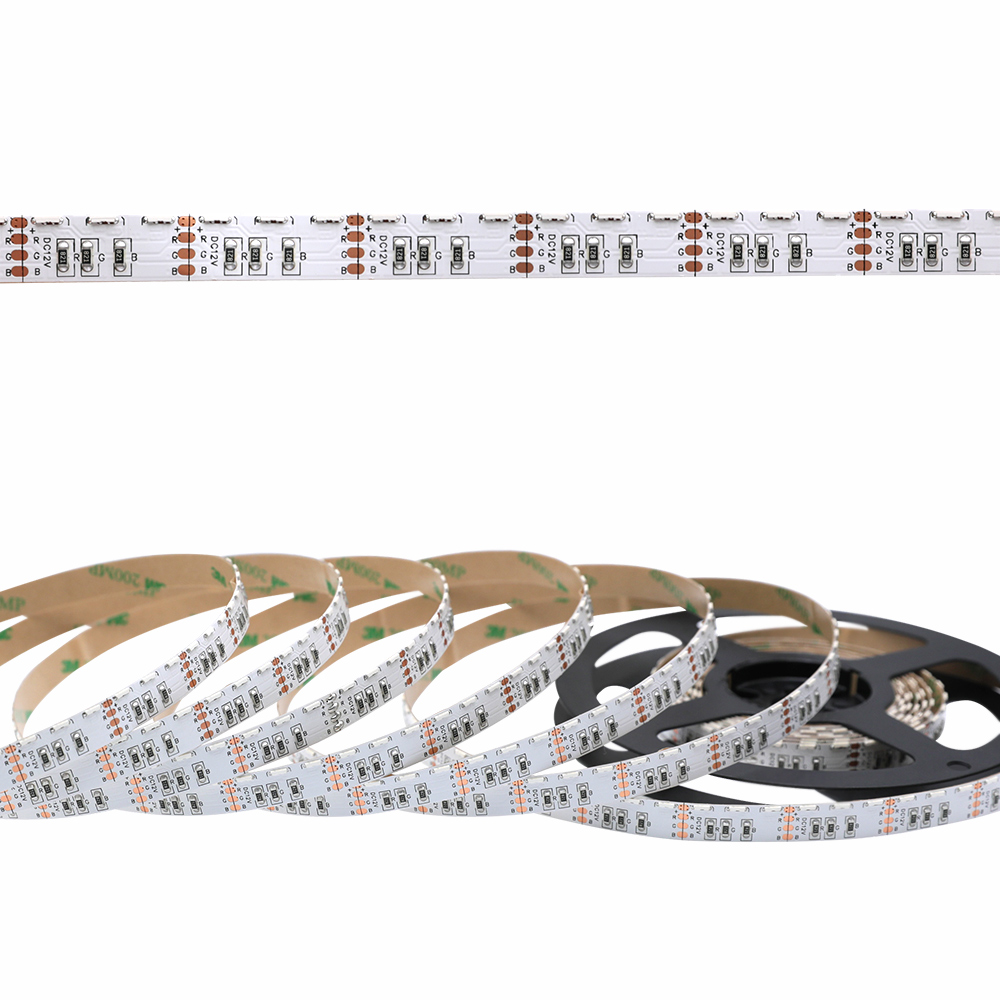

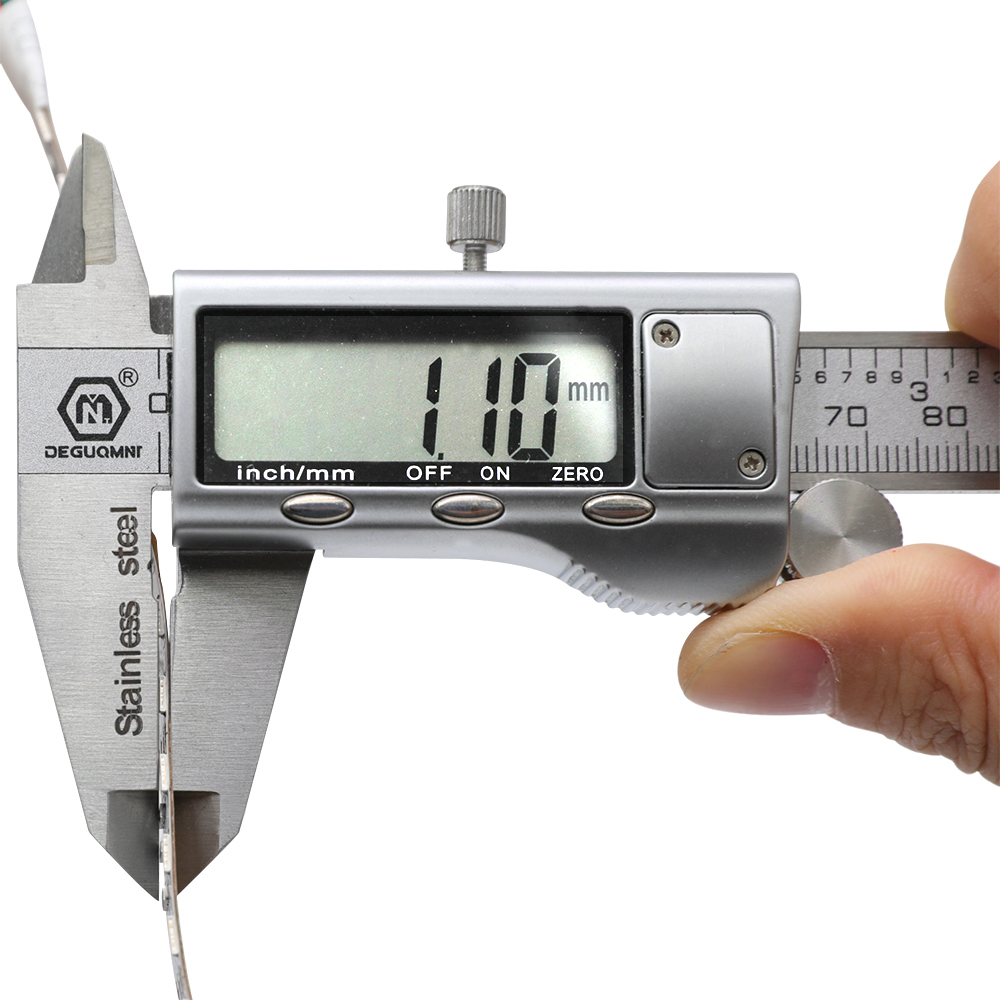

1. Side emitting 020SMD RGB LED, 1.1mm ultra thin FPCB board

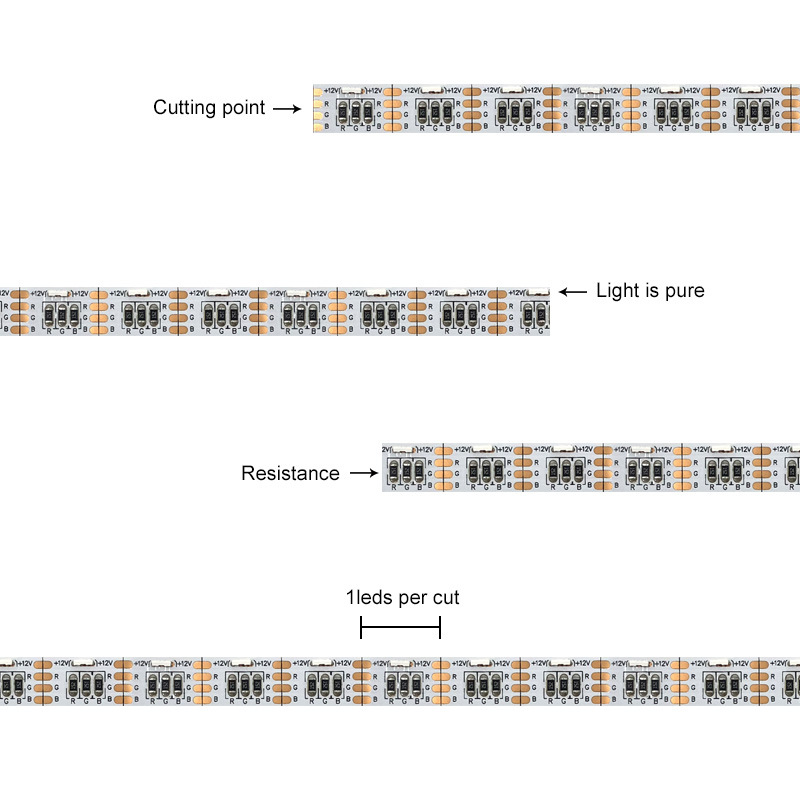

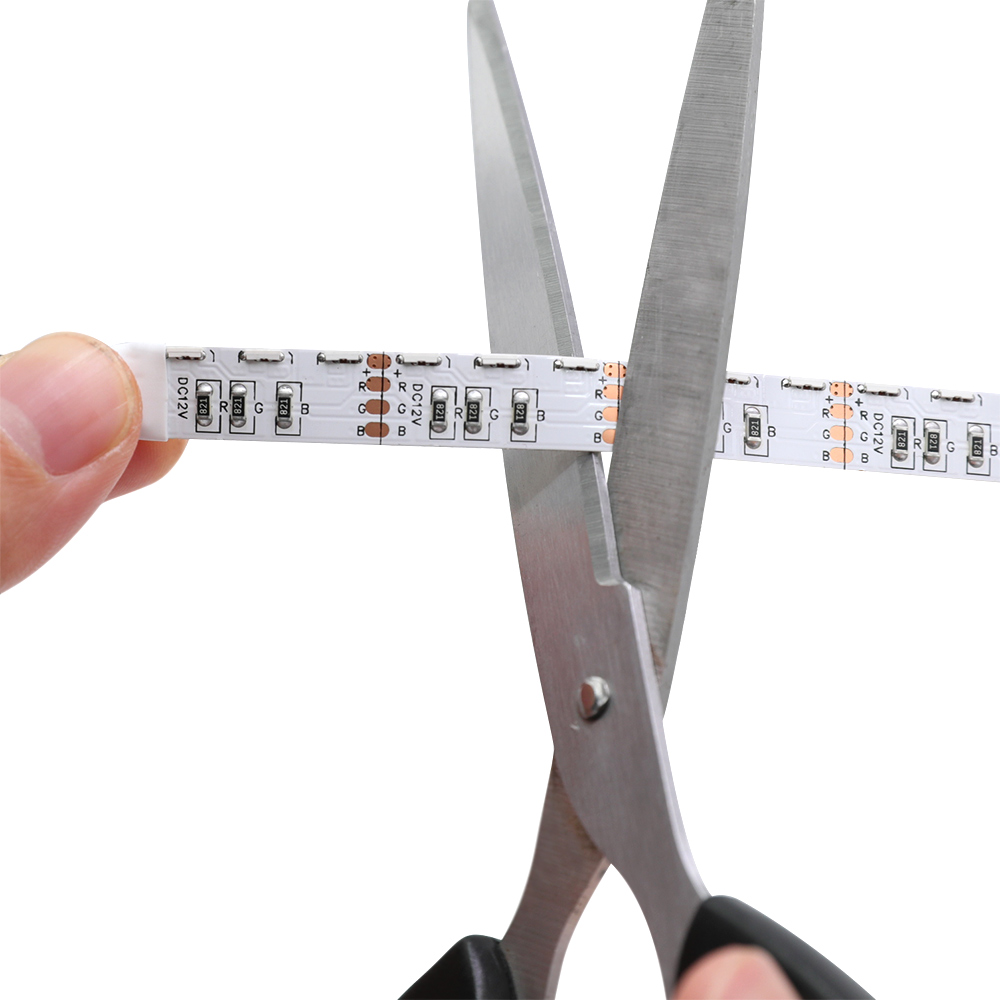

2. 600LEDs per roll, every 3 LEDs can be cut
3. DC12V low voltage, safe and low consumption

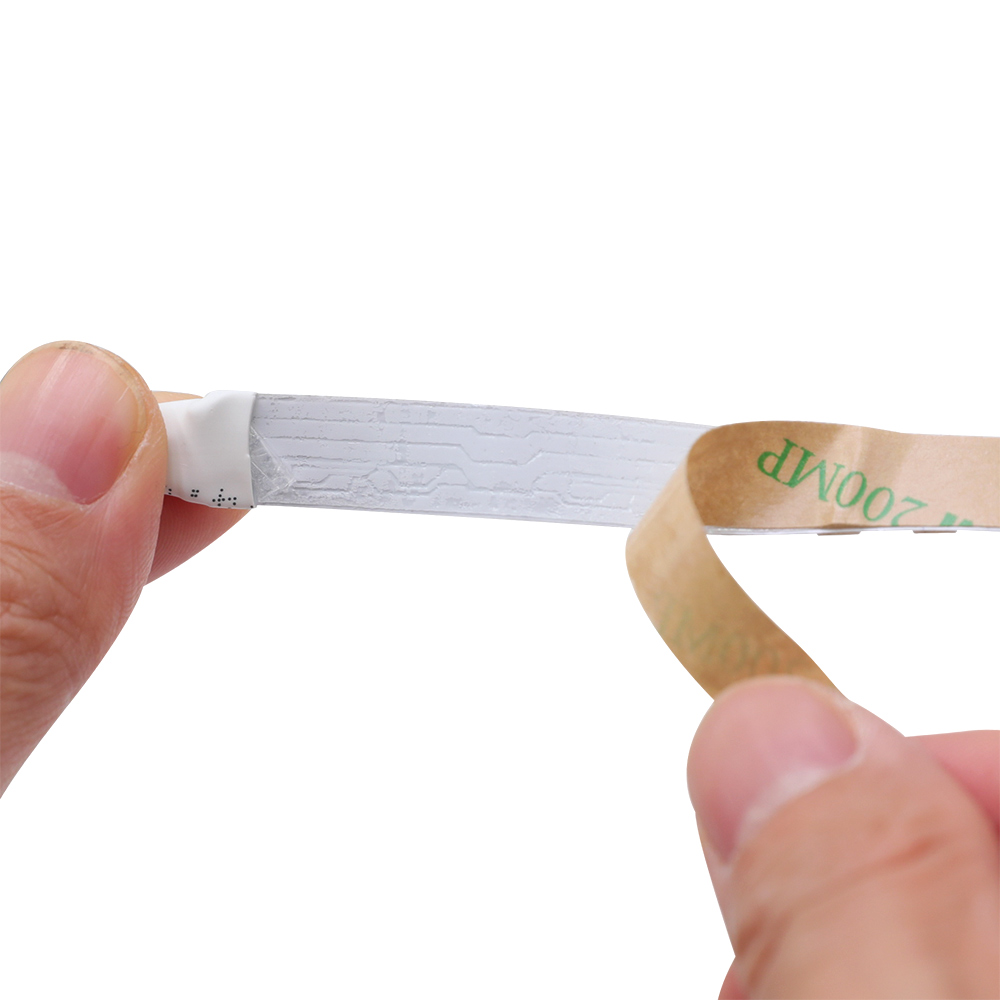

4. With 3M adhesive backing tape, easy to install
5. Waterproof rating IP20/IP67 optional, suitable for indoor and outdoor LED lighting projects.
Standards and Certifications
|LED Strip Type:||Side Emitting SMD 020 RGB 600LEDs/16.4ft|
|LED Chip:||Epistar Chip|
|Working Temperature:||-4°F (-20°C) ~ 122°F (50°C)|
|Storage Temperature:||-40°F (-40°C) ~ 176°F (80°C)|
|Light Color:||RGB Color|
|Dimension:||16.4ft/roll, every 3 PCS LED can be cut|
|LED Quantity:||120 LEDs per 1meter (3.28 ft)|
|Input Voltage(V):||12 VDC|
|Working Power:||6.7A 80W /16.4ft Max|
|Lamp Luminous Flux(lm):||5-6lm/LEDs 3600lm/16.4ft|
|Wavelength NM(RGBY):||Red(620-630nm), Green(515-525nm), Blue(465-475nm), Yellow(585-595nm)|
|Beam Pattern:||120 degree|
|Waterproof Rating:||Non-waterproof IP20, waterproof IP67|
How To Wire RGB LED Strip Lights?
1. RGB led strip wiring diagram:
