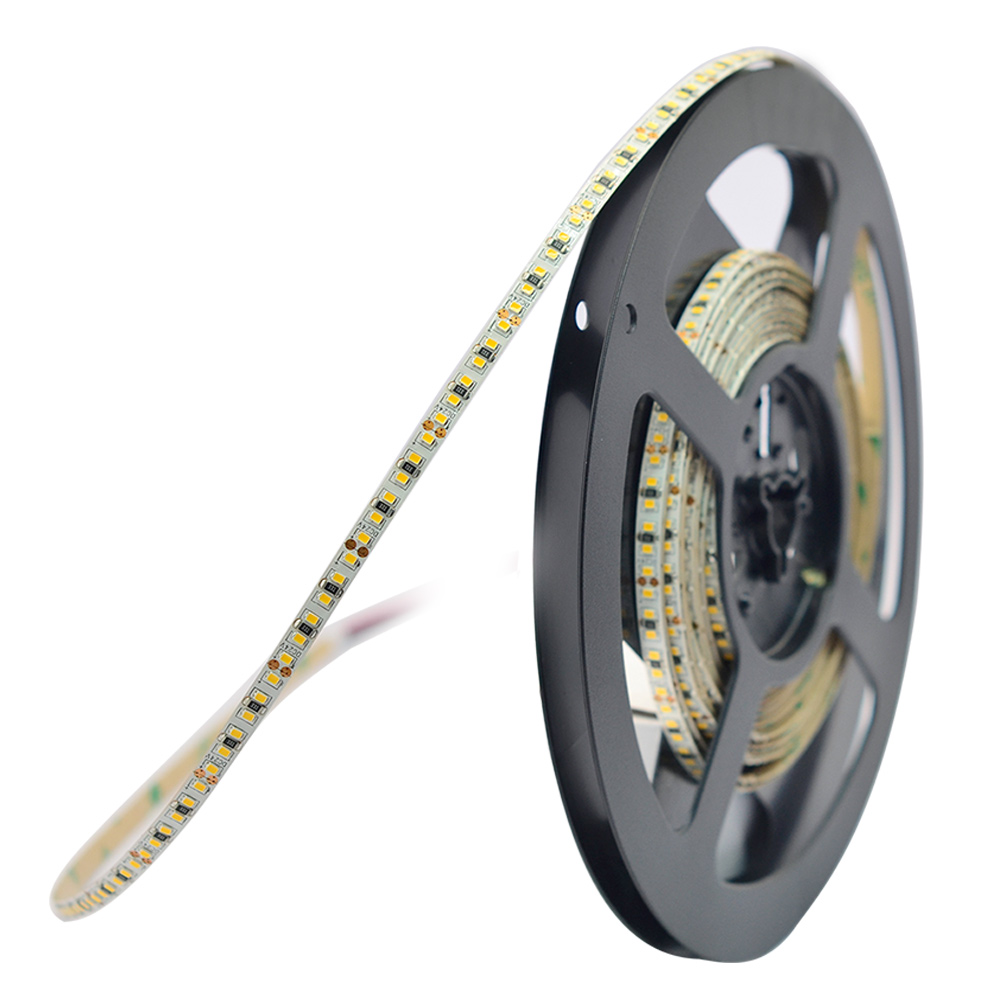

Super Narrow 5mm 2216SMD 240LEDs/M Flexible White LED Strip Lights - DC24V
2216SMD narrow flexible white LED strip lights are the newest production in 2019. This ultra narrow versatile white light LED strip is in 10W/M (3.1 Watts foot), supports 3000K warm white, 4000K natural white, and 6000K daylight white color. - 3000K warm white vs 4000K natural white vs 6000K pure white.

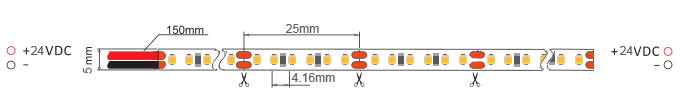

This ultra thin white LED strip has very High-Density lighting with 240 diodes per meter or (73/ft). It is cuttable every 6 white LED chips or 0.98"(25mm) for 24VDC.

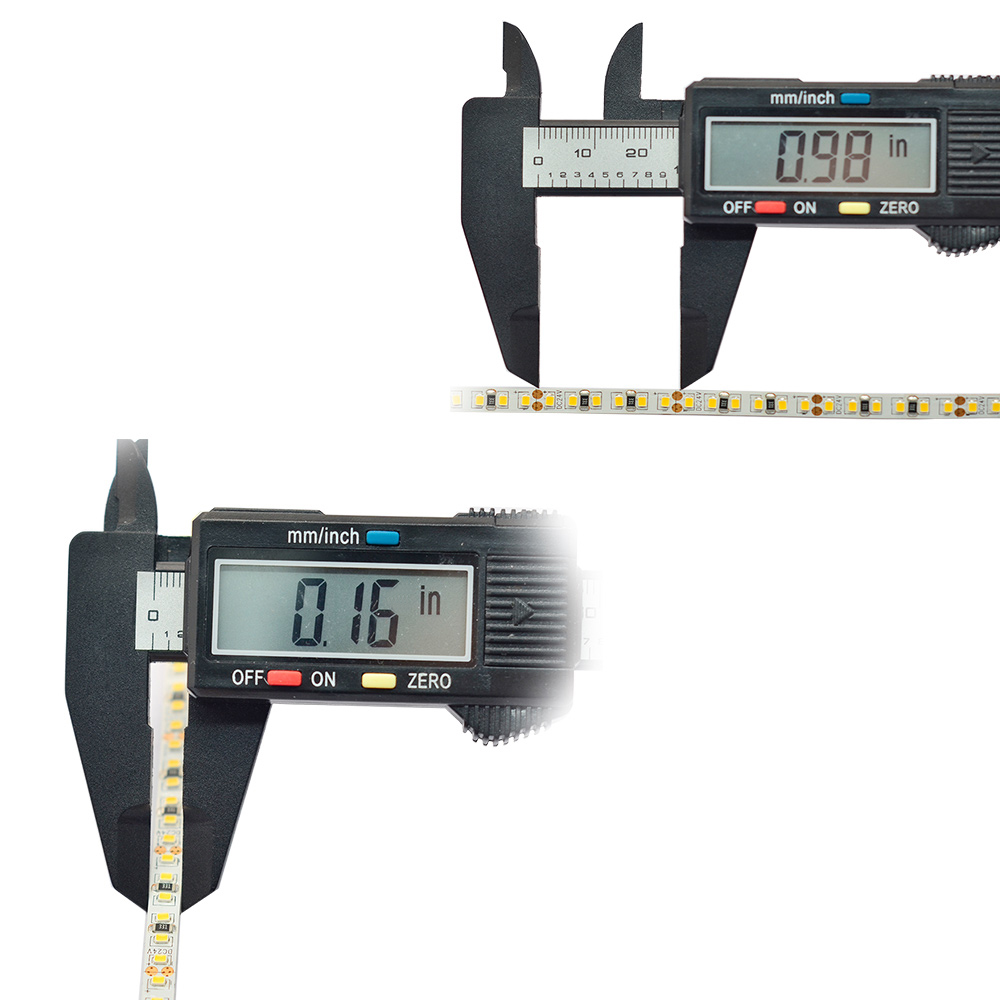

The PCB width of this white color thin led strip light is 5mm. It is very suitable for LED aluminum profiles in a smaller size. Because of LED high density, the LED light through the PC cover is fairly uniform without lighting spots.
IP67 waterproof ultra narrow led light strip is available, suitable for indoor & outdoor lighting environments.
If you seek a higher density, we can customize it for you. Our PCB factory will make a quick response.
►Everything you need to know before buying led strip lights:
Standards and Certifications
LED Strip Type: SMD 2216 1200PCS/16.4ft
LED Chip: Epistar Chip
Working Temperature: -4°F (-20°C) ~ 122°F (50°C)
Storage Temperature: -40°F (-40°C) ~ 176°F (80°C)
Light Color: Warm White, Daylight White,Natural White (optional)
Dimension: 16.4ft/roll, 6 PCS LED can be cut ( cut length: 25mm/0.98" )
LED Quantity: 240 LEDs per 1meter (3.28 ft)
Warantty: 3 years
Dimensions: L500cm(196.8 in ) x W0.5cm(0.20 in ) x H0.20cm(0.08 in )
Input Voltage(V): 24VDC
Working Power: 2.08A 50W /16.4ft Max
Lamp Luminous Flux(lm): 3~4lm/LEDs 3075Lumens/16.4ft, 188Lumens/Ft, 62Lumens/watt
Color Temperature CCT(White): Warm White(2700-3200k), Natural White(4000-5000k), Daylight White(5500-6500k)
Wavelength NM(RGBY): Red(620-630nm), Green(515-525nm), Blue(465-475nm), Yellow(585-595nm)
Beam Pattern: 120 degree
Water Proof: Non-Waterproof , Waterproof IP67
CRI (Ra>): 95
Color Temperature And CRI
Choosing the correct color temperature lights for your project is very important, and as important as the brightness you choose. Consider the look and feel you want your project to have.
What other color lights will be present? What material and color are the materials you wish to light?
Waterproof Level Description
IP20 Non-waterproof (The PCB [Printed Circuit Board] surface of the bare, with a self-adhesive back, For Indoor);
IP67 Waterproof (Silicon sleeve waterproof, PCB is encapsulated with silicon tube, with a plastic fastener, better waterproof, For Outdoor);
IP67 waterproof narrow led strip will affect the color temperature due to the material problem, resulting in an increase of about 1000K. If you want to purchase the waterproof LED strips and have requirements on the color temperature, please note when placing the order.
You will need a led strip light, a power supply(Please use a DC24V 75Watt power supply), and a way to attach the two to make your lights turn on. The size and type of power supply unit will depend on the type of LED strip light, the length required, and dimming option required. We are always here to assist in your selection.
►Detail knowledge about choosing a suitable LED strip light power supply:
►Single color led strip lights wiring diagram
*Click the wiring diagram picture to know more detail.

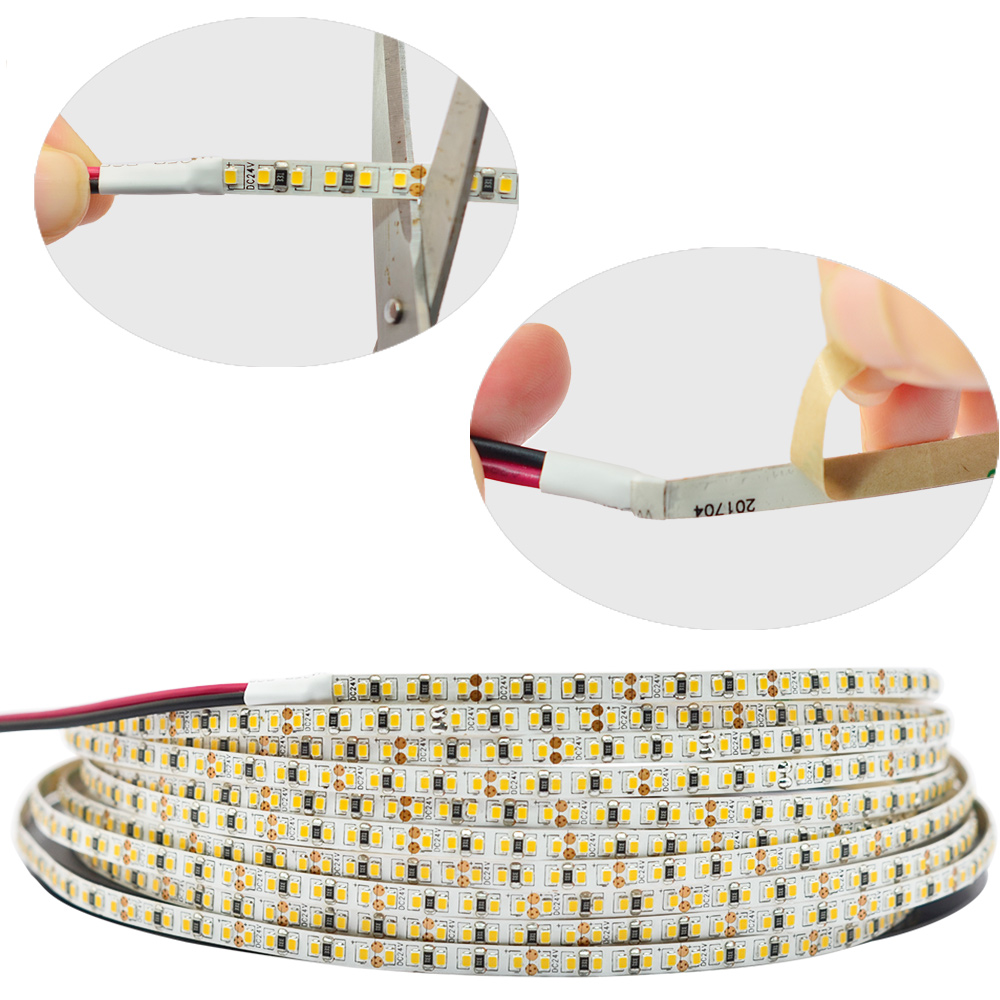

|You can cut the white led light strip every few inches, allowing you to freely design your lighting project without worrying about space requirements to many different surfaces.||The back of the white led strip is fitted with a strong 3M tape, allowing you to peel and stick LED lights.||
IP67/IP68 waterproof white led light strip type which will come with mounting brackets.
