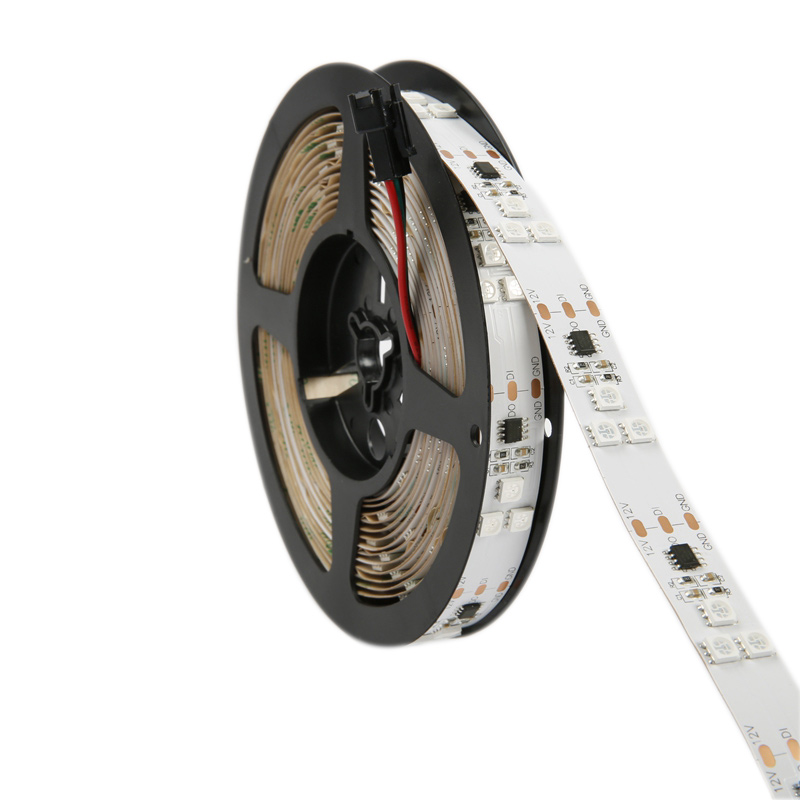

UCS1903 DC12V 15MM Series Flexible LED Strip Lights, Programmable Pixel Full Color Chasing, Indoor Use, 300LEDs 16.4ft Per Reel By Sale
1. Universal UCS1903 dynamic color chasing, sequencing, changing, and also static color modes available on the Full-Color Controller and dream color Strip. individually addressable LEDs allow for sequencing modes. Silicone Encased Non-waterproof flexible LED light strip with 300 LEDs high power 5050SMD(Surface Mounted Devices) RGB LEDs programmable for chasing patterns. UCS1903 IC chip control. 5meter(16.45ft) Per Reel By Sale.
2. This programmable led strip is an intelligent control LED light source that the control circuit and RGB chip are integrated into a package of 5050 components. It internal include intelligent digital port data latch and signal reshaping amplification drive circuit. Also include a precision internal oscillator and a 12V voltage programmable constant current control part, effectively ensuring the pixel point light color height consistent. The data transfer protocol uses a single NZR communication mode. After the pixel power-on reset, the DIN port receives data from the controller, the first pixel collects initial 24bit data then sent to the internal data latch, the other data which reshaping by the internal signal reshaping amplification circuit sent to the next cascade pixel through the DO port. After transmission for each pixel，the signal to reduce 24bit. pixel adopt auto reshaping transmit technology, making the pixel cascade number is not limited the signal transmission, only depend on the speed of signal transmission. You can get the required program and colors use with LED Edit2014 software together. - Connect led DMX Digital Display Controllers
3. This strips soft and easy bent for installation. Available in 5 meters (197 in) Non-Waterproof flexible light strips with adhesive backing and can be stuck just about anywhere (except IP67 type which will come with mounting brackets). can be cut into 3-LED segments, so you could cut a different length for your project and request. The led strip has low light decline and long lifespan，LED with the low driving voltage, environmental protection and energy saving, high brightness,scattering angle is large, good consistency, low power, long life, and other advantages. The control chip integrated into LED above becoming more simple circuit, small volume, convenient installation. The12VDC operation, Low carbon, no radiation, no flicker, and no pollution to human and environment, Safe and stable. Used in advertising signs, LED digital screen display, backlighting decoration. Color Program Controllable - Connect LED Smart Full Color Controllers.
Standards and Certifications
Waterproof Level Description
IP20 Non-waterproof (The PCB [Printed Circuit Board] surface of the bare, with a self-adhesive back, For Indoor);
IP65 Waterproof (Epoxy cover waterproof, Epoxy Resin, PCB surface is encapsulated with plastic Gel, with self-adhesive 3M back, For Outdoor & Indoor) ;
IP67 Waterproof (Silicon sleeve waterproof, PCB is encapsulated with silicon tube, with a plastic fastener, better waterproof, For Outdoor);
LED programmable digital display
Hotels decoration use
Concealed lighting, Cove decoration
Theaters, clubs, shopping malls lighting
Architectural decorative lighting
Boutique atmosphere lighting
Auditorium walk stairway lighting
Hidden groove, Wine cabinet decoration
Show exhibition decoration
Less than 32.8ft(<10 meter) led strip lights connection diagram
50ft ~ 164ft(15~50 meter) led strip lights connection diagram
