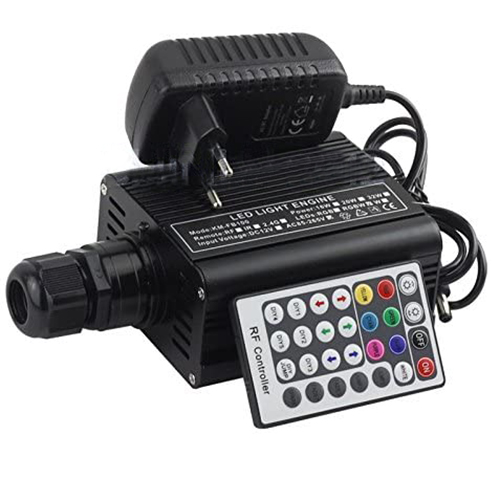

DC12V 16W 6 Channels DMX RGBW LED Fiber Optic Engine With 28 Keys RF Remote Controller
Application: Widely used to make curtain, screen, ceiling sky decoration. Pools, KTVs, Sauna, Sitting Room, Living Room, Bedroom, Kitchen, Dining Room, Home
This fiber optic transmitter does not contain any fiber optic cables, you need to buy fiber optic cables separately

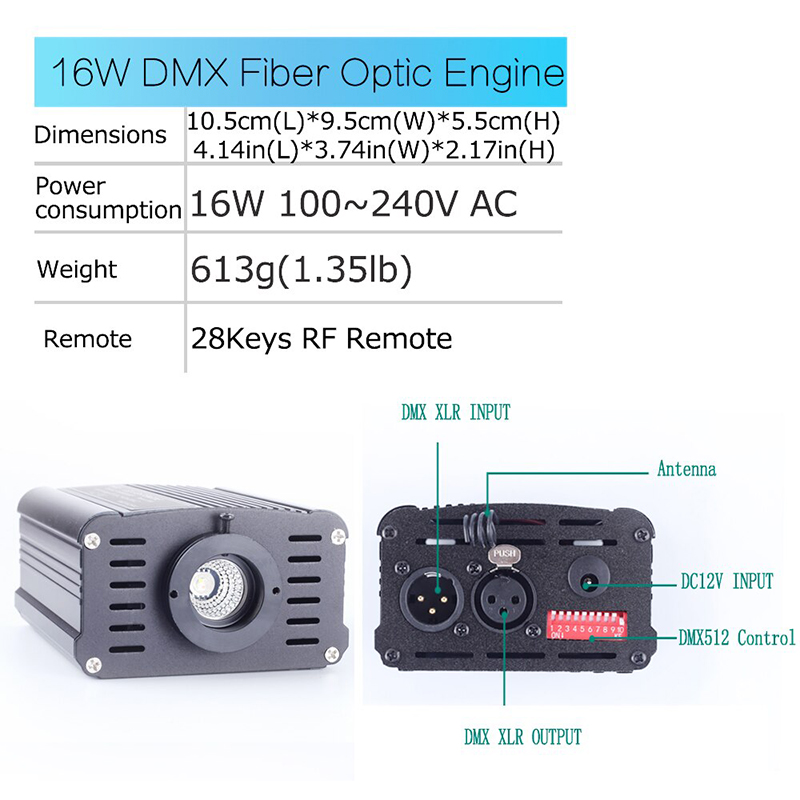

Input voltage: DC12V
Output grayscale: 256

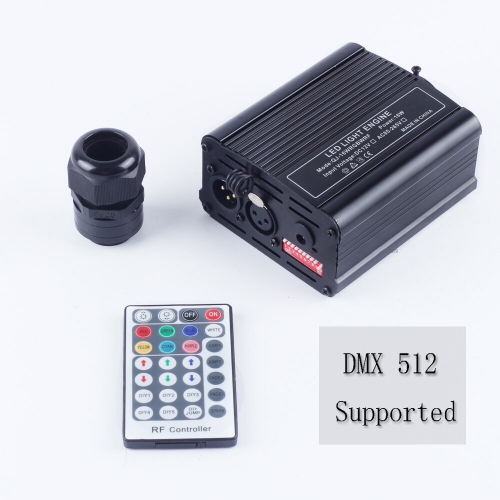

Input signal: DMX512/1990
Output DMX: 6 channels

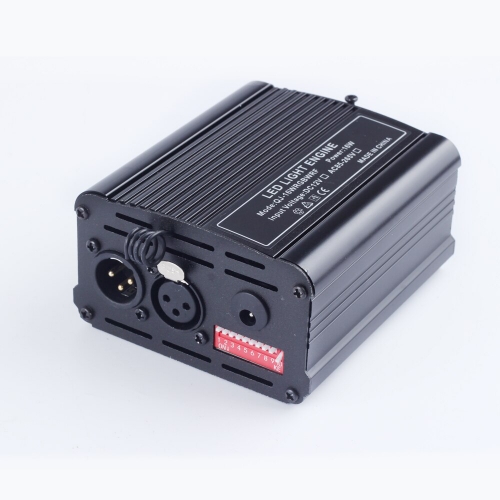

DMX interface: XLR head
Light source specifications: 115*95*55mm
Material: Aluminum alloy

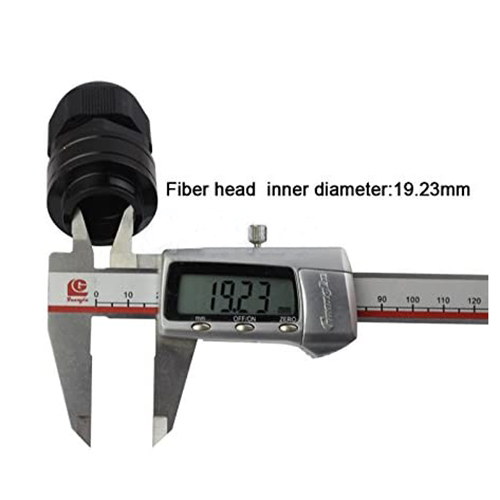

Inner diameter of optical fiber head: 16-20mm
Life time: 50000h
1x 16w RGBW light engine

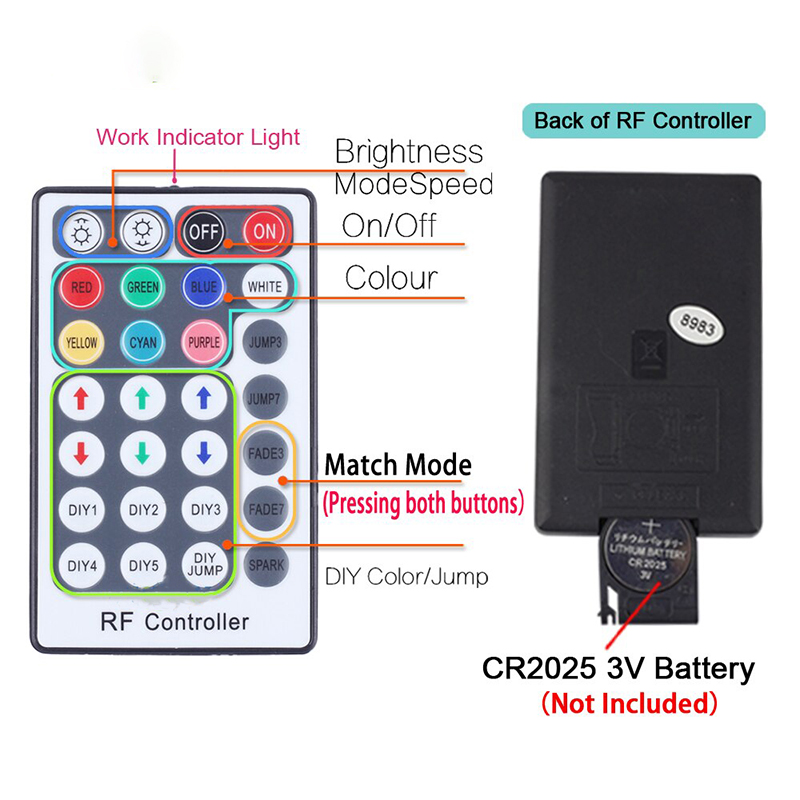

1x 28key RF remote control
1 x Power adapter
1 x User Manua
