Product Information

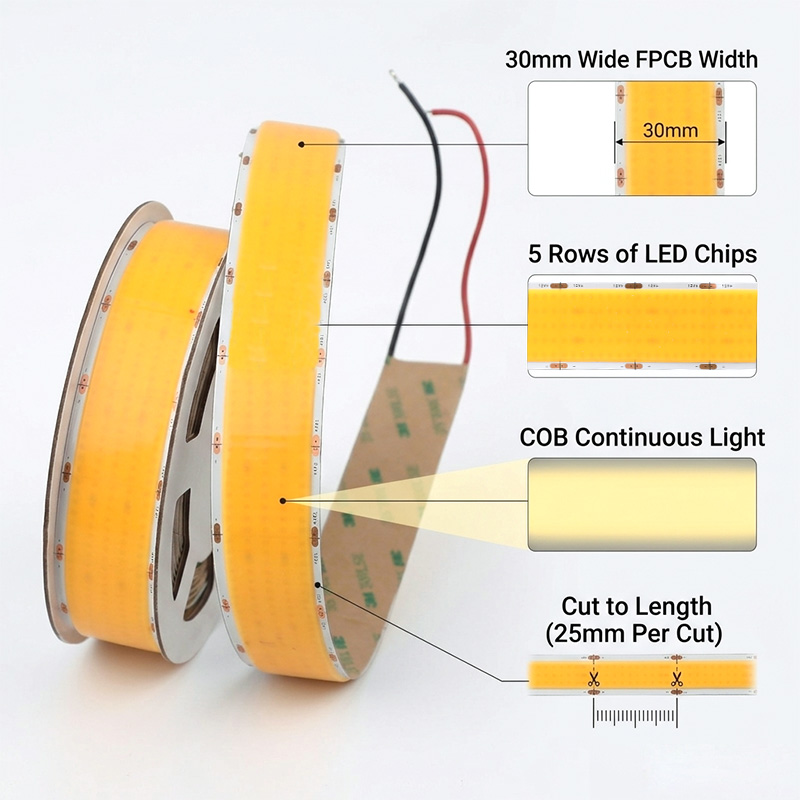

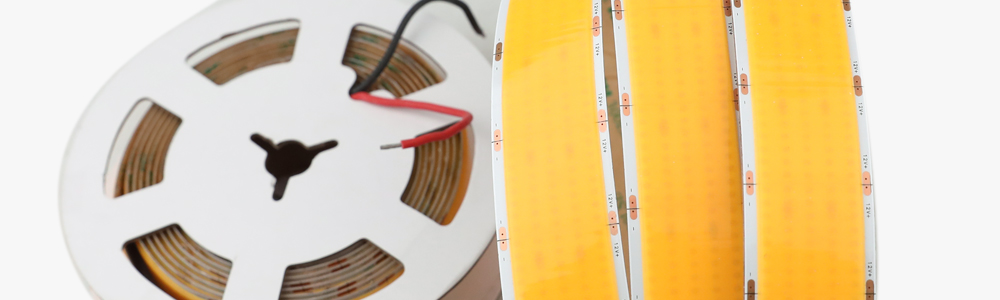

Experience unprecedented brightness with the FSLCOB-5R-W30X1600-12V, our most powerful 12V 5 row COB LED strip. Engineered for professional applications requiring maximum illumination, this strip features five parallel rows of high-density COB LEDs, totaling an incredible 1600 LEDs per meter. The unique 30mm wide PCB design not only accommodates the high LED count but also ensures superior heat dissipation for stable, long-term performance. At 40W/m, this 12V ultra bright led strip is the definitive choice for high-impact task lighting, architectural reveals, and custom fixture fabrication where a completely uniform, intensely bright line of light is essential. Its 12V DC input makes it compatible with a wide range of power systems, ideal for both commercial and advanced DIY projects.
Key Features
Extreme Brightness

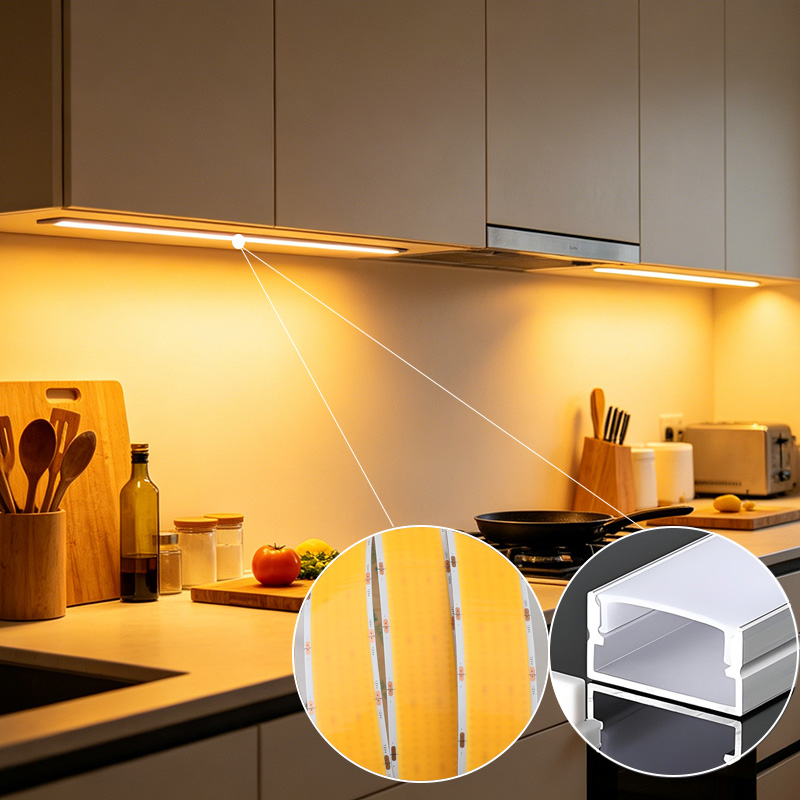

Five rows of COB LEDs deliver a powerful, uniform light output of 40W per meter, ideal for demanding task lighting such as under-cabinet lighting, and suspended fixtures.
Seamless COB Light
With a density of 1600 LEDs/m, this COB strip produces a flawless, continuous line of light.
Multiple CCT & IP Options
Choose from 3000K, 4000K, and 6000K color temperatures and IP20, IP67, or IP68 ratings to fit any project.
Product Specifications
| Parameter | Details |
|---|---|
| Product Model | FSLCOB-5R-W30X1600-12V |
| Input Voltage | DC 12V |
| Power Consumption | 40 W/meter |
| LED Rows | 5 |
| LED Type | Chip-on-Board (COB) |
| PCB Width | 30mm |
| LED Density | 1600 LEDs/meter |
| Reel Length | 5 meters (16.4 feet) |
| Max Run Length (Single Feed) | 2-3 meters |
| Color Temperature (CCT) | 3000K (Warm White) / 4000K (Neutral White) / 6000K (Cool White) options available |
| Color Rendering Index (CRI) | Ra > 90 |
| Operating Temperature | -20°C to +50°C |
| Cutting Interval | 25mm |
| Beam Angle | 180° |
| IP Rating Options | IP20 (Non-waterproof), IP67 (Silicone Tube), IP68 (Silicone Injection) |
| Adhesive | Double-Sided Tape |
Application Scenarios

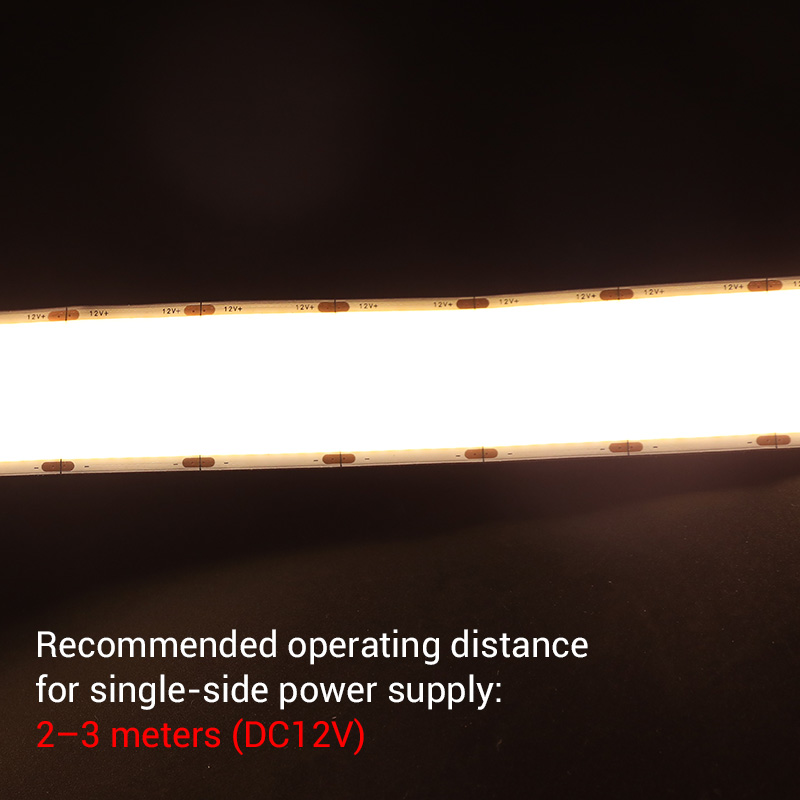

- CRITICAL: Due to high power (40W/m), do not exceed a 2-3 meter run when powering from a single end. For the full 5m reel, power must be injected from both ends or the center to ensure even brightness.
- Always use a 12V DC power supply with a wattage rating at least 20% higher than the total load of the strip segment.
- Do not bend the strip tighter than its minimum bend radius to avoid damaging the PCB and components.
- Ensure adequate ventilation. Do not operate in a fully enclosed, unventilated space as the strip generates significant heat.
- For outdoor or wet locations, you must use the IP67 or IP68 rated versions and seal all connections appropriately.
Frequently Asked Questions
Q: Is this ultra bright LED strip dimmable?
A: Absolutely. It is fully dimmable when used with a compatible 12V DC low-voltage PWM (Pulse Width Modulation) LED dimmer.
Q: What is the maximum continuous length I can run?
A: Due to its very high power draw, the maximum recommended length for a single power feed is 2-3 meters. To use the full 5-meter reel, you must provide power to both ends of the strip (or power from the center) to prevent voltage drop and ensure even brightness.
Q: Can I use this COB LED strip outdoors?
A: Yes, but you must select the IP67 or IP68 waterproof versions. The standard IP20 version is for indoor, dry locations only.
Q: Why is the PCB 30mm wide?
A: The wide 30mm PCB is necessary to accommodate the five rows of LEDs and, more importantly, to effectively dissipate the heat generated by the high power consumption, which ensures the strip's stability and long lifespan.
