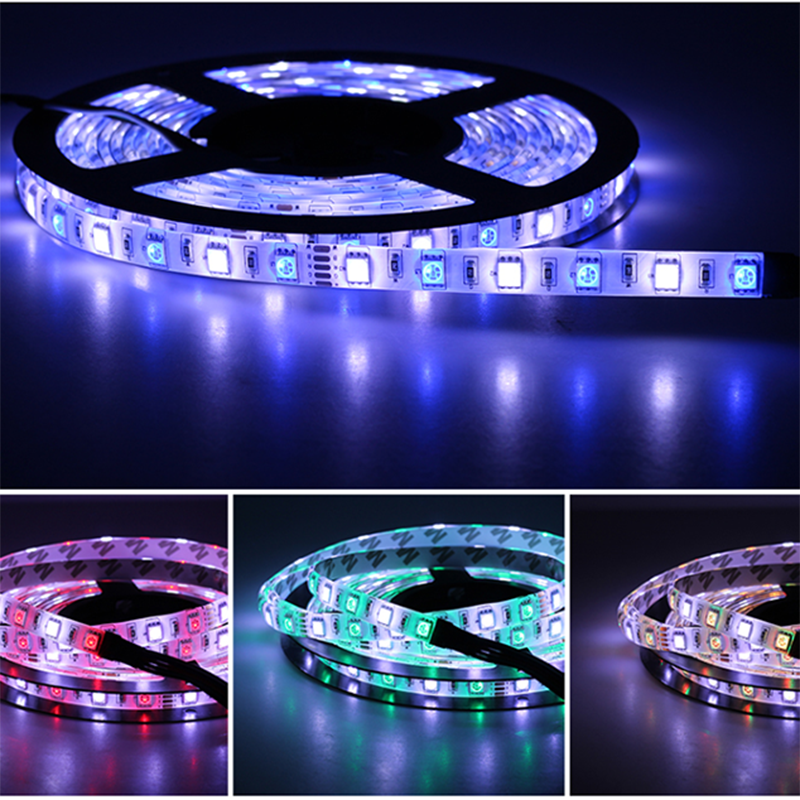

1903 Color Chasing LED Strip Light Waterproof Kit 16.4ft/5m - Arrow LED Lights
DC12V SMD 5050 133 Mode Symphony Full-Color LED Light Strip Kit has many changes, probably there are 94 different changes in the built-in controller, flashing, chasing, jumping, clockwise running, counterclockwise running, monochrome running, color-changing running, single chase from scratch to Tail, running water, simulated lightning, etc. The control principle of this flexible light bar is: a circuit (3 LEDs) has an IC, which can control the circuit in the FPCB through the controller to control the IC, thereby controlling the LED light bar, The change effect of this light bar is not limited to the current built-in effect of the controller, you can write your own program with SD card writing function according to customer needs!

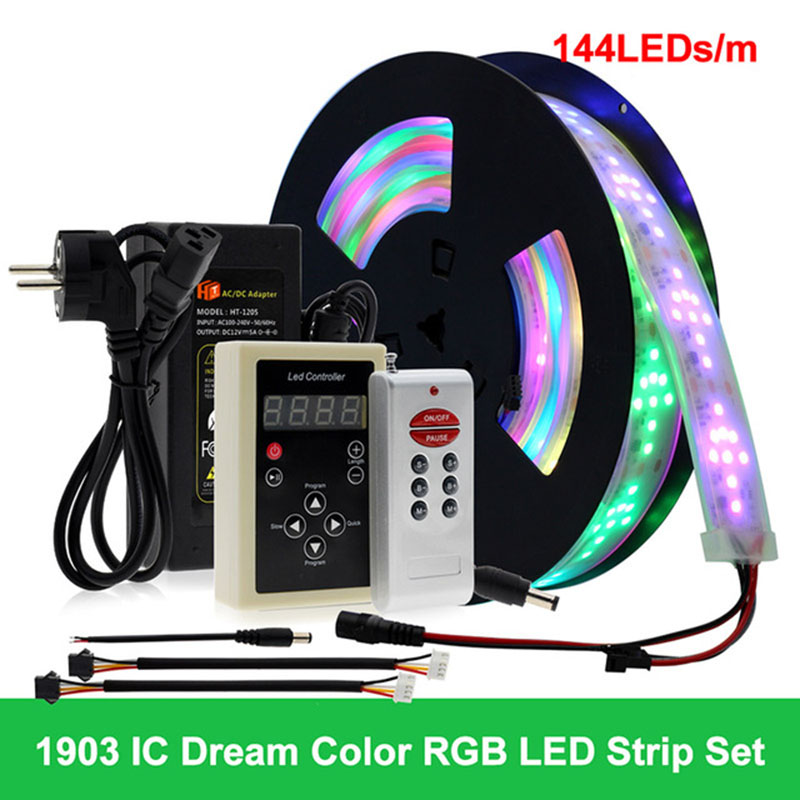

1903 144LED-M Set:

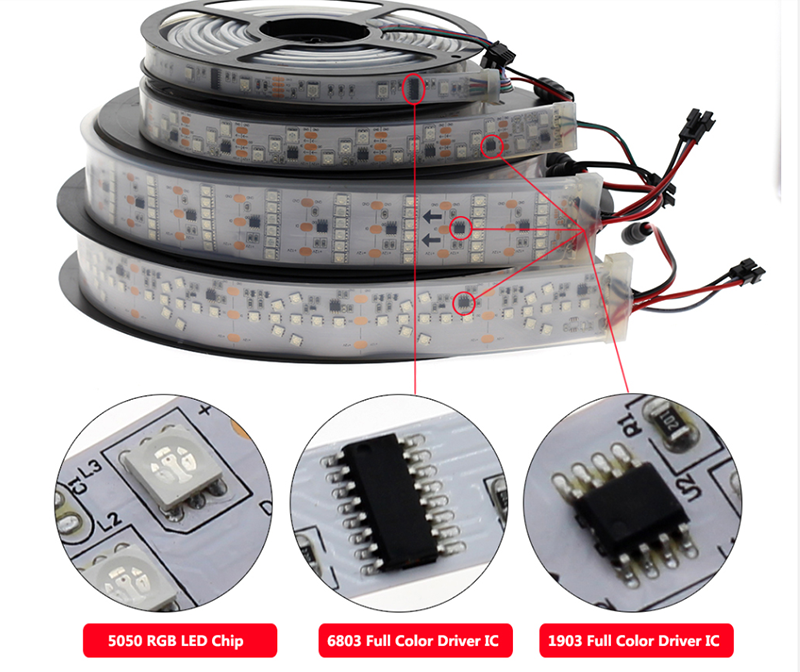

1.Model Number:1903 IC 5050 Digital RGB Strip
2. LED Type: 1903 Control IC, RGB Color Runing Changea LED Strip 5050
3. LED Quantity: 144LEDs/m, 5m/roll,every 3 lights can be cut as a unit
4. Power: 7.2W ± 10% / meter
5. Color: RGB Runing Changeable
6.Luminous color: can be adjusted to white, red, yellow, blue, green, etc. by the controller.
7. Waterproof method and waterproof grade: not waterproof (IP20) / waterproof (IP65)/waterproof (IP67)
8.FPCB color: white, yellow, black (other than the white need to be customized)

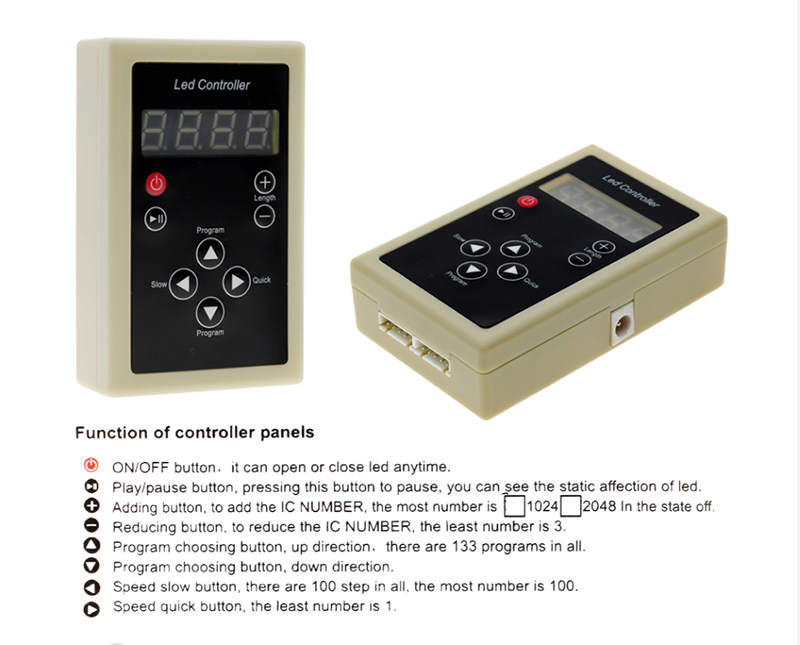

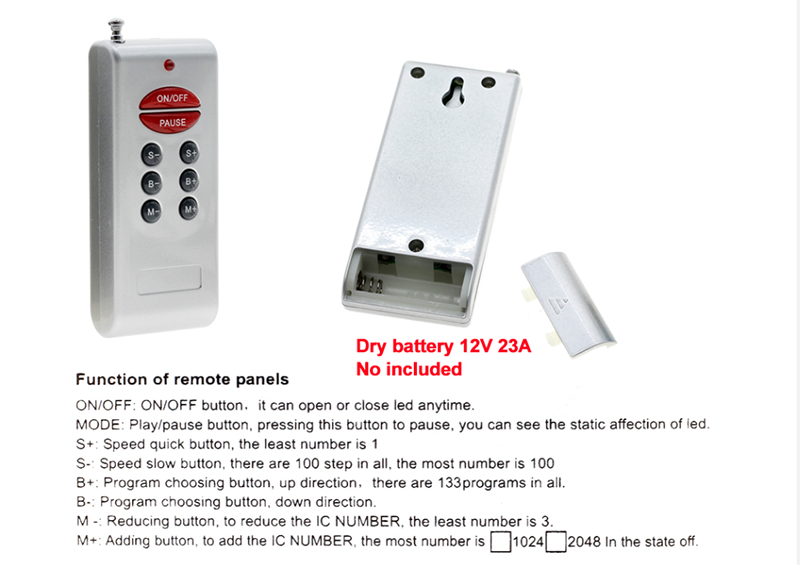

9.Controller: 133 Program RF Magic Controller
10. Power Adapter: Input: AC90-240V Output: DC12V 8A
1* 16.4ft/32.8ft led strip light
