24 Volts TM1934 120 LED/m RGB 2835 8mm Digital Tape Light

Model: TM1934-2835RGB-120W8-24V Review stars 0.0 (0 Reviews) Various options in stock
Starting at: $41.98
Qty Discounts Off Price
1-4
$41.98		 5-19
$41.14		 20-49
$40.30		 50+
$39.04
* Discounts may vary based on options below
Select Specifications:
Select Length:
Qty: -+
Free shipping over $299Ships via DHL / UPSWarranty covered

Accept the project customization, please contact us for commercial offers and technical support.

  • Product Information
  • Reviews
  • Downloads
  • Images
  • LED Strip Light Guide

Product Information

Customized for your Addressable Lighting Project

As a leading wholesale addressable led strip supplier, this 8mm addressable rgb 120 LED/m high density tape strip is designed to meet customer requirements for programmable projects with low energy consumption, signal stability and light uniformity. Powered by 24V, the TM1934 4-wire digital led strip can easily cope with phantom RGB lighting over a distance of up to 10 meters, with 10.8 watts per meter low electricity consumption to achieve high brightness output, energy efficient in the long run, making your investment worthwhile. The breakpoint transmission technology protects your lighting system, even if individual LEDs fail, the whole 8mm digital tape will still work normally, so that your project will always be brilliant. Pair it with a waterproof silicone led channel compatible with 8mm PCB to achieve spotless illumination for outdoor use.



Product Specifications

CE FCC RoHS ISA SGS ISO LIFETIME warranty waterproof

LED Strip Type:  High Density 120 LED/m RGB Digital LED Tape
LED Chip:  TM1934 + SMD2835
Input Voltage:  DC24V
Power:  10.8W/m, 3.3W/ft, 54W/Reel
LED Color:  RGB
PCB Width:
IP20/65 8mm/0.3", IP67/68 10mm/0.4",
LED Quantity:  120 LEDs/m
IC Quantity:   20 IC/meter (1 IC drives 6 leds), 100/Reel
Cuttable:  6-LED, 50mm/1.97"
Length:  5m 16.4ft
Connector:  4pin JST male and female connectors
Pins:  Positive, data, backup data, nagetive
Gray Scale:  256
Waterproof Rating:  Non-waterproof IP20 / Indoor waterproof IP65 / Outdoor Waterproof IP67 IP68
Working Temperature:  -20℃ ~ +45℃
Beam Angle:  120°



4 Pin TM1934 RGB LED Strip Wiring

Connect "24V+" wire of the strip to "VCC" port of the X7 WiFi SPI controller (controller in the kit), data wire "Di/Do" to "DAT" port, backup date wire "Fi/Fo" to "DAT" or "GND" port, "GND" wire to "GND" port. Then power the controller and digital tape with DC 24V power supply like LRS-100-24 in the kit.

how to connect ws2813 ws2815 led strip



Reviews

Customer Experience

Your feedback is important to us! Share your thoughts and photos with other customers.

Write a Review & Upload Photos

Downloads

Files for TM1934-2835RGB-120W8-24V
PDFTM1934-2835RGB-120W8-24V product data sheetFull specifications, dimensions, cut points, wiring and IP options — the same details shown on this page, laid out for printing and engineering review.PDF · generated from the current product page · opens in a new tabOpen PDF
Need this page for a project file or an engineering check? Click Open PDF, then save or print it from your browser. For CAD drawings, IES files or a signed test report, contact our engineers and quote the model number.

Images

These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!

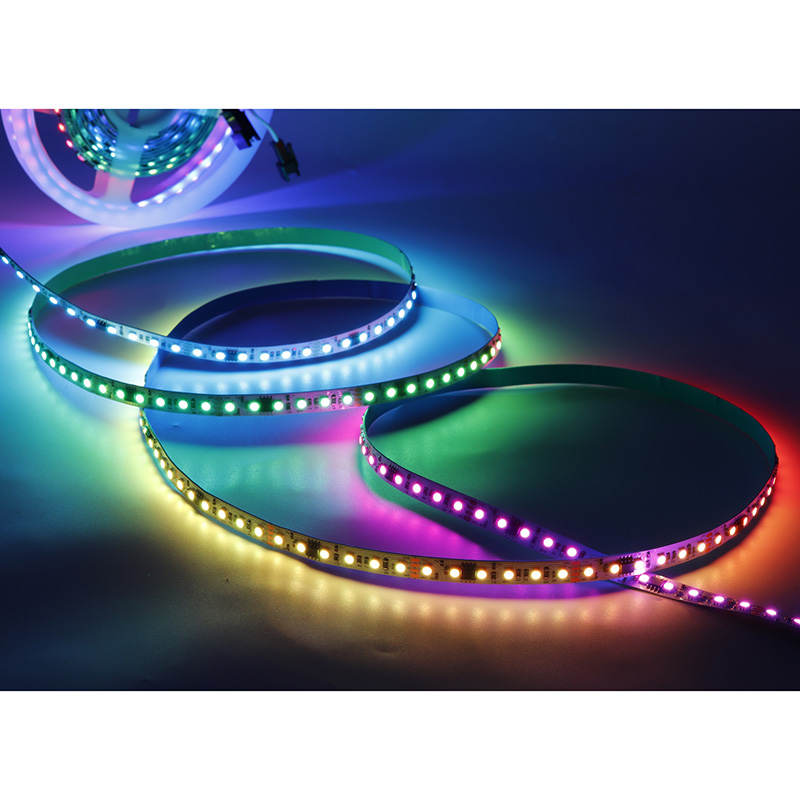

24 Volts TM1934 120 LED/m RGB 2835 8mm Digital Tape Light24 Volts TM1934 120 LED/m RGB 2835 8mm Digital Tape Light24 Volts TM1934 120 LED/m RGB 2835 8mm Digital Tape Light

LED Strip Light Guide

Common questions about this type of product, answered against this model’s own options. For full figures see the specification above or the spec sheet for this model.

Which controller does this LED strip light need?
Addressable LED strip lights take a data signal, so they need an SPI (pixel) controller that supports this IC — an ordinary RGB controller will not drive them. Data flows one way: connect the controller to the input end marked with the arrow. Wiring addressable LED strip lights
Do I need power injection?
5 V addressable LED strip lights lose voltage fastest, so longer runs need power fed in at both ends and at intervals along the run; 12 V and 24 V versions carry further. Keep the data line short between controller and first pixel. Choosing an addressable LED strip light
Which waterproof rating should I choose?
Available on this model: Underwater IP68 - Adhesive Back · Surface Glued IP65 - Adhesive Back · Outdoor Silicone Tube IP67 - Adhesive Back · Non-Waterproof IP20 - Adhesive Back. IP20 is for dry indoor use, IP65 handles splashes, IP67 suits outdoor and wet areas, IP68 is for continuous submersion. Choosing a waterproof rating
Can I cut it to length?
Yes. Cut only on the marked cut lines between the copper pads — the cut interval for this model is on its spec sheet. Rejoin with solder or a solderless connector. Cutting LED strip lights · we can also cut to length and fit your connector before shipping: custom LED strip light assembly.
What size power supply do I need?
Take the watts per metre from the specification above, multiply by the length you are running, then add about 25% headroom. Power calculation guide · Choosing a power supply
