Product Information
Feature

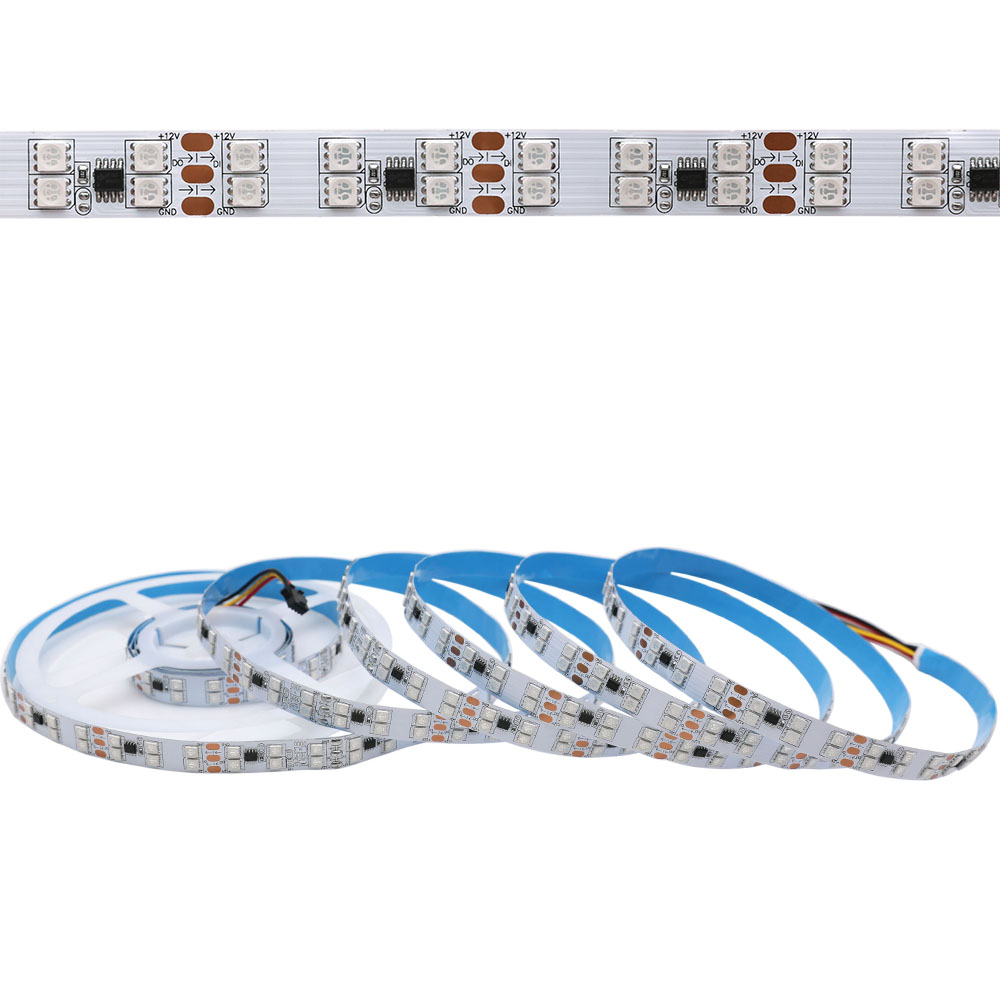

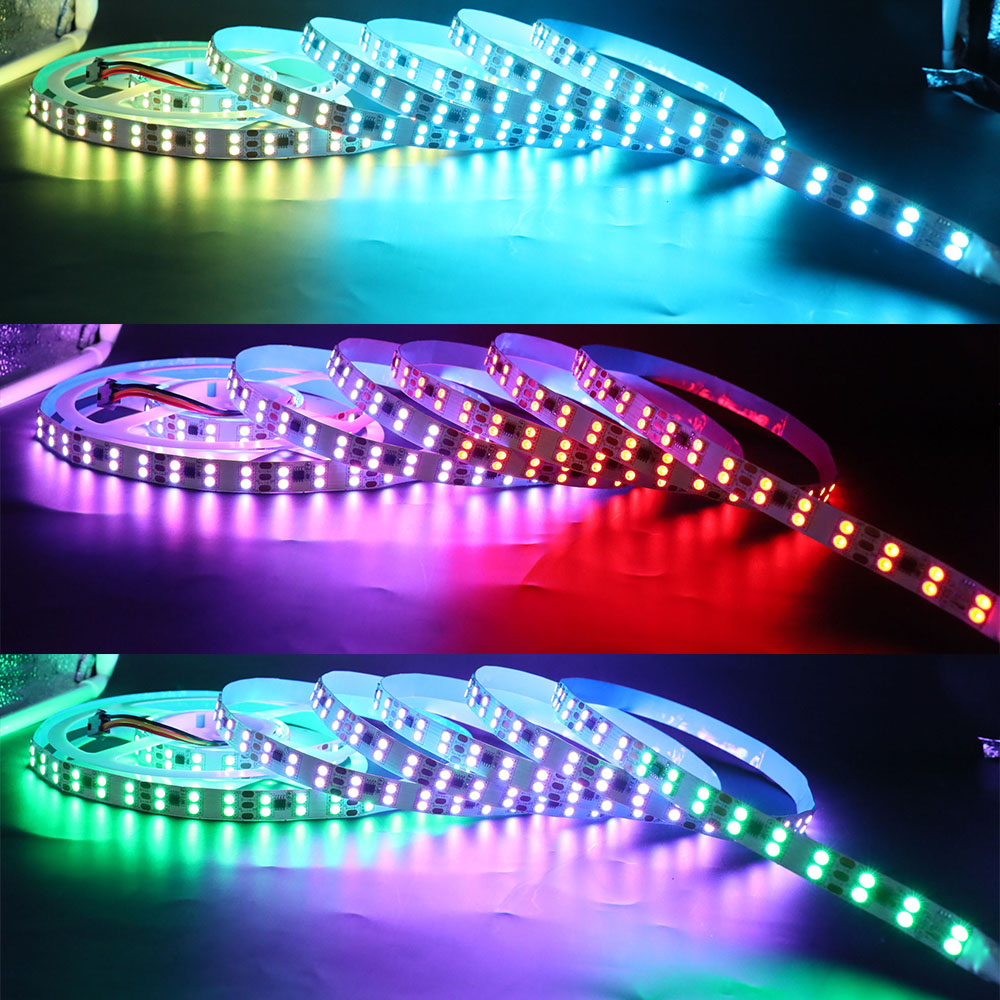

1. Universal WS2811 dynamic color chasing, sequencing, changing, and also static color modes available on the Full-Color Controller and dream color Strip. Addressable LEDs allow for sequencing modes. Flexible LED light strip with 300 LEDs high power 5050SMD(Surface Mounted Devices) RGB LEDs programmable for chasing patterns. WS2811 IC chip control, 16.4ft Per Reel By Sale.
2. This programmable led strip is an intelligent control LED light source that the control circuit and RGB chip are integrated into a package of 5050 components. It internal include intelligent digital port data latch and signal reshaping amplification drive circuit. Also include a precision internal oscillator and a DC12V voltage programmable constant current control part, effectively ensuring the pixel point light color height consistent.
3. This strips soft and easy bent for installation. Available in 5 meters (196.8 in) Waterproof flexible light strips with adhesive backing and can be stuck just about anywhere (except IP67 type which will come with mounting brackets). can be cut into 3-LED segments, so you could cut a different length for your project and request.
4.The led strip has low light decline and long lifespan, LED with low driving voltage, environmental protection and energy saving, high brightness, scattering angle is large, good consistency, low power, long life, and other advantages. The control chip integrated into LED above becoming more simple circuit, small volume, convenient installation.
5.The 12VDC operation, Low carbon, no radiation, no flicker, and no pollution to human and environment, Safe and stable. Used in advertising signs, LED digital screen display, backlighting decoration. Color Program Controllable.
6. The WS2811 chip has a built-in 1.2mhz high-speed 7-bit PWM for each channel - meaning it can provide each LED with 21-bit color (in a way that is easier to recognize than the eyes). Once the LED brightness level is set, your microcontroller can turn off and perform other operations without constant updates.

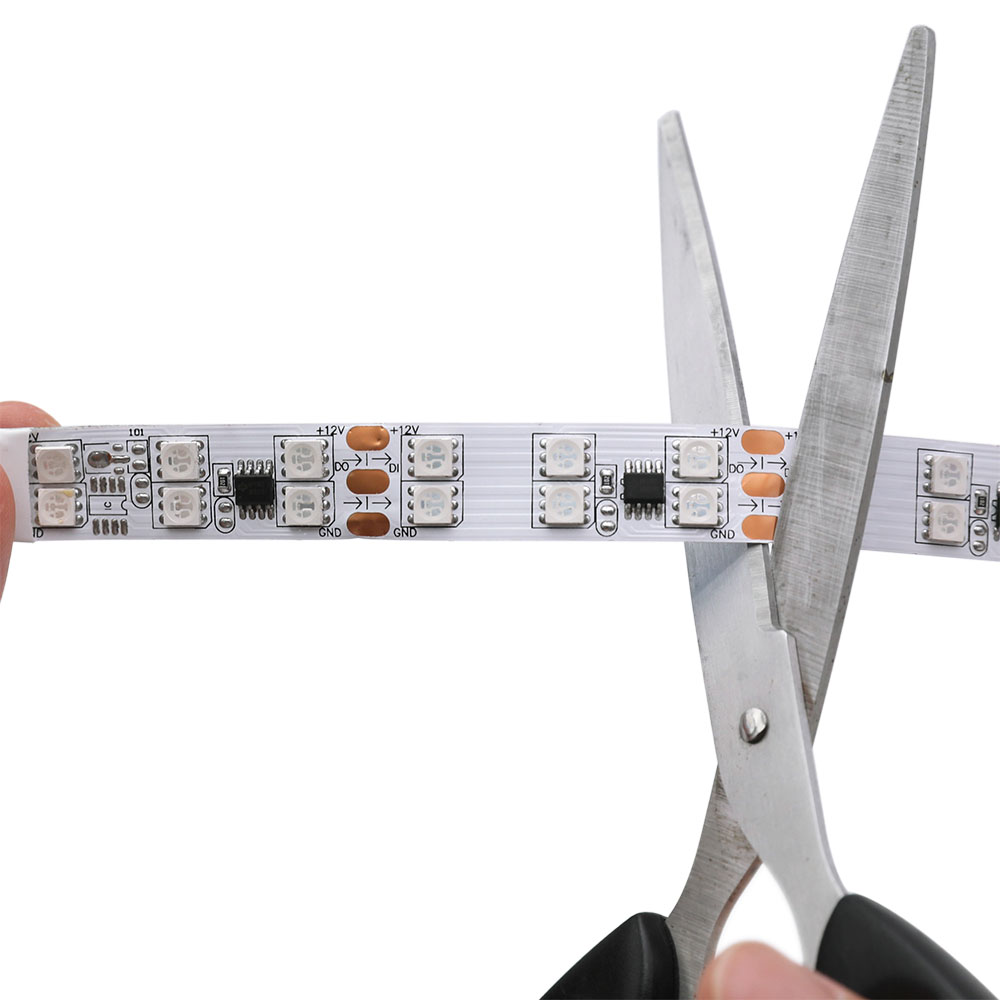

7. It comes with a 3-pin connector and a separate power/ground wire at each end. Each 3LED can be cut without damaging the rest of the strip. If desired, you are free to shorten, lengthen, or bend it.
8. PWM refresh rate: 800kHz, transfer speed 800k bps
9. It comes in 1 meters per reel with 3Pin female/male JST SM connector on both end and separated Power / Ground Wires. Customized length is workable.
10. Pure copper bracket and pure gold wire for 5050 RGB led chip
11.2unce PCB board with double cooper layer(hongqi brand 35um copper)
12.doublesides membrane cover the pcb board. make sure the copper no drop from the pcb board

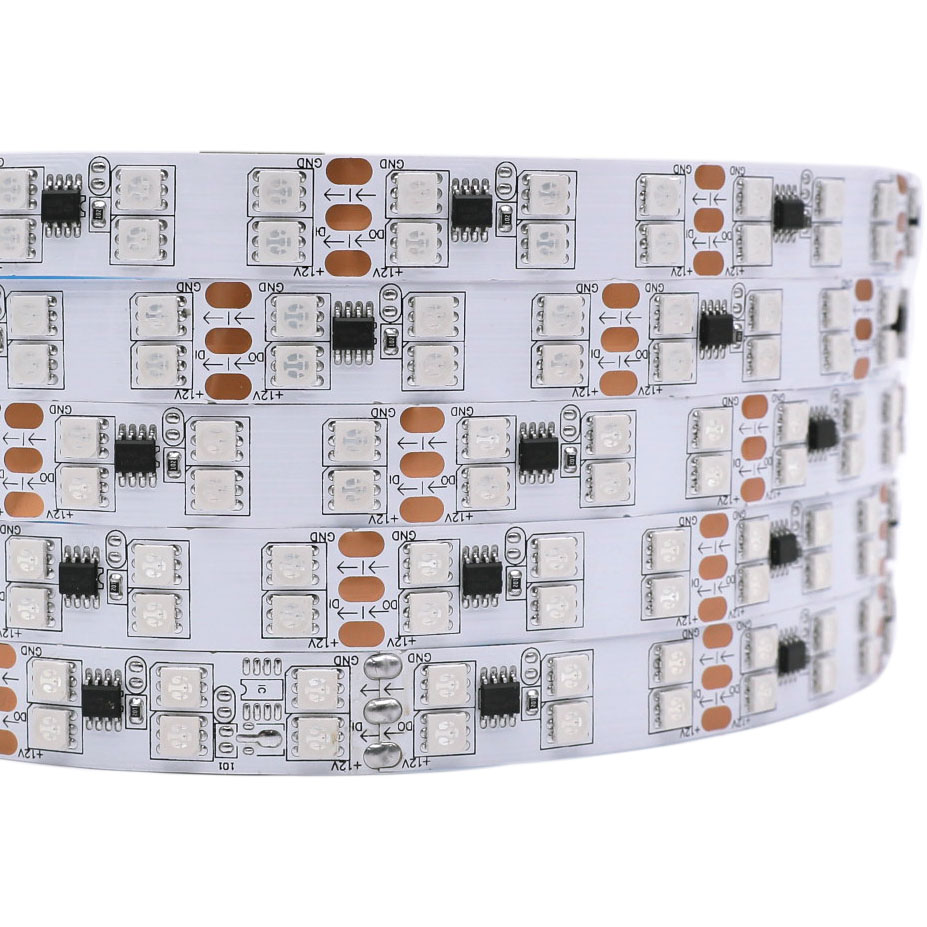

13. 120leds and 20pixels per meter,One IC control six leds,
14. 12V low voltage inputted, don’t over 13V, otherwise you will destroy the entire strip.

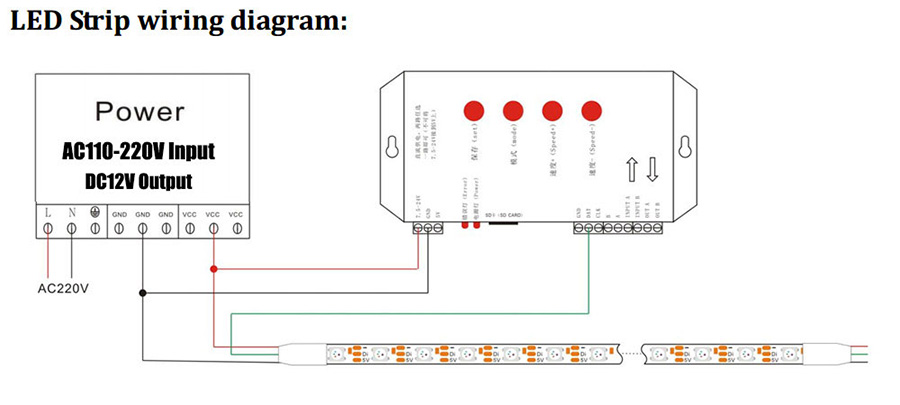

15. Controller System: SD controller, DMX controller, Artnet and so on.(SPI protocel)
16. Installing: screw+silicon clipand 3M adhesive on back side for sticky
WS2811 Chips Specifications Download
Standards and Certifications
LED Strip Type: SMD 5050 DreamColor
LED Chip: WS2811 IC super brights Chip
Working Temperature: -4°F (-20°C) ~ 122°F (50°C)
Storage Temperature: -40°F (-40°C) ~ 176°F (80°C)

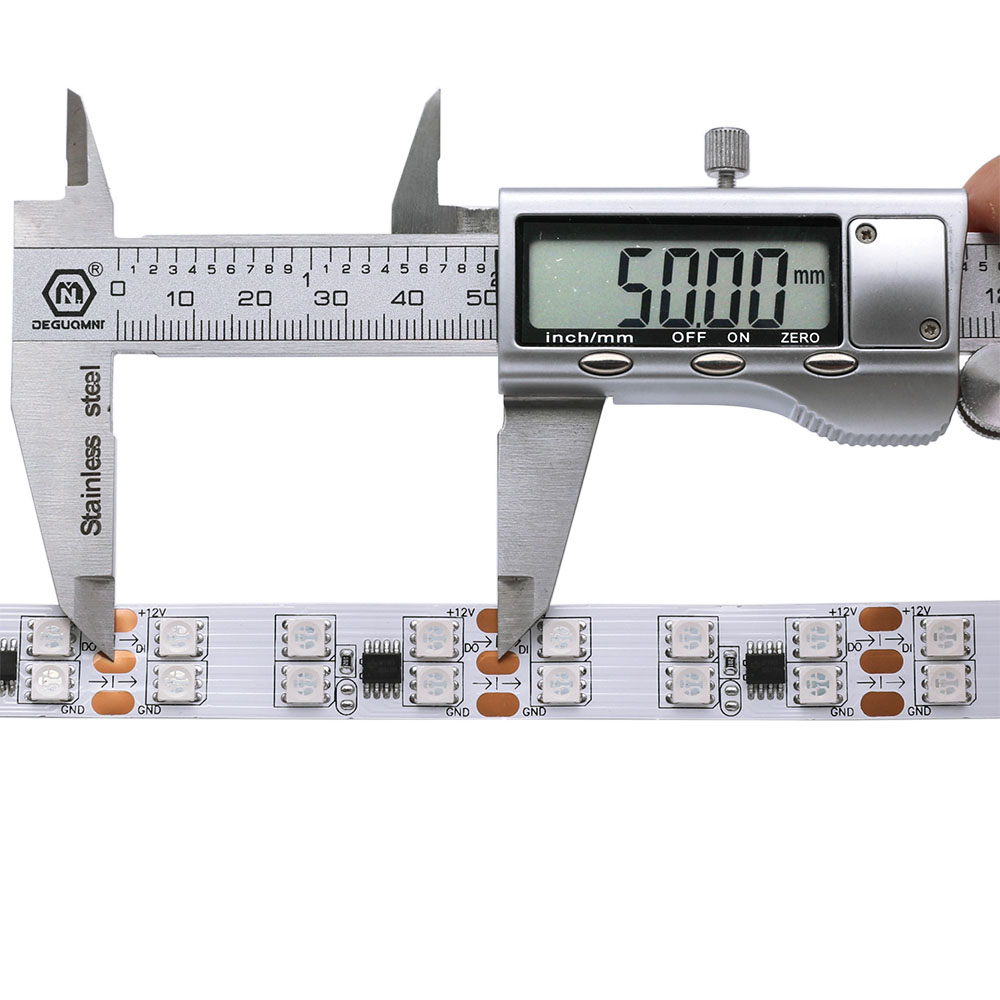

Dimension: 16.4ft/roll, every 6 PCS LED can be cut
LED Quantity: 120 LEDs per 1meter (3.28 ft) , 600LEDs/roll(16.4Ft)
IC Quantity: 20 LEDs per 1meter (3.28 ft)
Length: 5m/16.4Ft

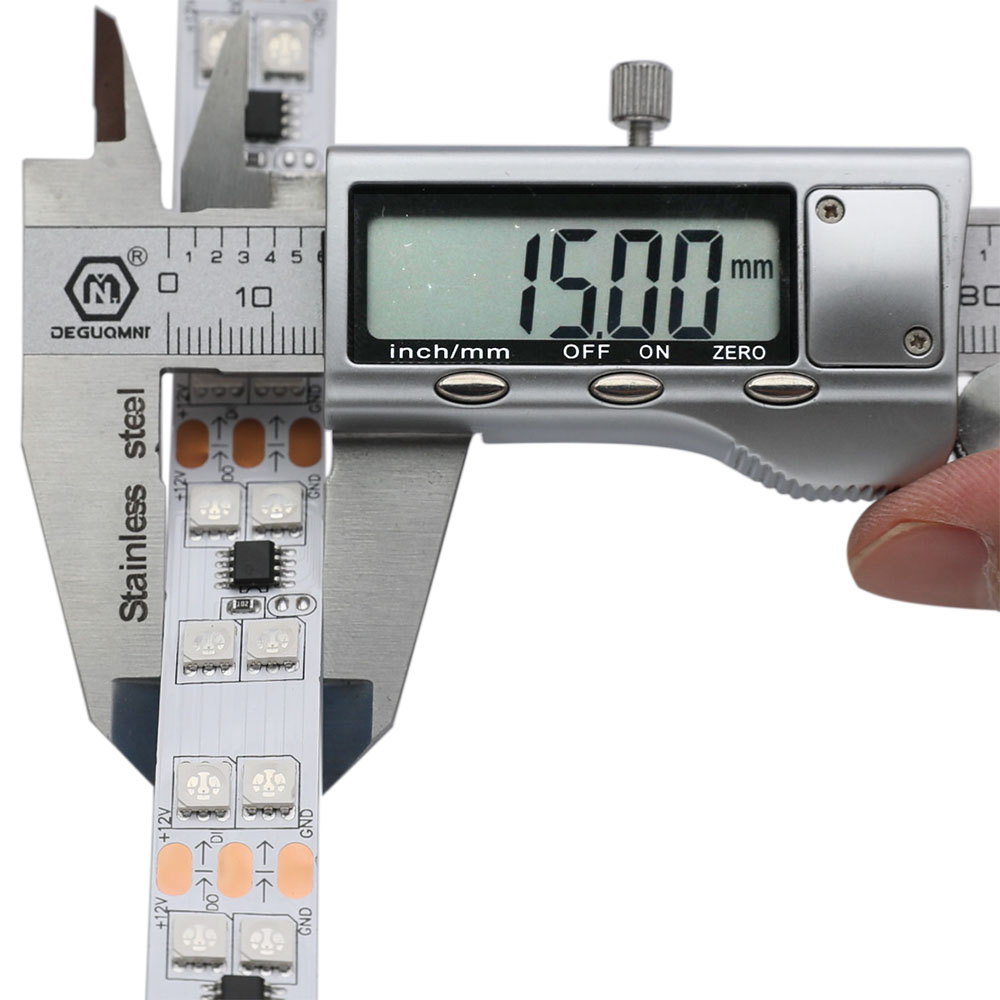

PCB Board: 15mm/0.59 in or 20mm/ 0.79 in
Lifespan: 50,000+hours
Warantty: 3 years
Input Voltage(V): 12VDC
Working Power: 180W/16.4ft Max
Beam Pattern: 120 degrees
Water Proof: Waterproof IP20/IP67
Applications
-
LED programmable digital display
-
Hotels decoration use
-
Backlighting decoration
-
Concealed lighting, Cove decoration
-
Theaters, clubs, shopping malls lighting
-
Architectural decorative lighting
-
Boutique atmosphere lighting
-
Auditorium walk stairway lighting
-
Hidden groove, Wine cabinet decoration
-
Show exhibition decoration
Waterproof Level Description
IP20 Non-waterproof (The PCB [Printed Circuit Board] surface of the bare, with a self-adhesive back, For Indoor);
IP65 Waterproof (Epoxy cover waterproof, PCB surface is encapsulated with plastic Gel, with self-adhesive 3M back, For Outdoor & Indoor);
IP67 Waterproof (Silicon sleeve waterproof, PCB is encapsulated with silicon tube, with a plastic fastener, better waterproof, For Outdoor);
IP68 Waterproof (Fully waterproof plastic irrigation, PCB both surface and back are encapsulated with plastic Gel, with a plastic fastener, the top level of waterproof, For Outdoor);
Installation Instruction
You can cut the strip every few inches, The back of the strip is fitted with a strong IP67/IP68 type which will come with
allowing you to freely design your project 3M tape, allowing you to peel and stick lights mounting brackets
without worrying about space requirements
to many different surfaces.
