24V Underwater IP68 COB Neon LED Strip Light for Pools Top Emitting

Model: FSLCOB-NEON1005-IP68 Review stars 0.0 (0 Reviews) Various options in stock
Starting at: Can.$38.10
Qty Discounts Off Price
1-19
Can.$38.10
20-49
Can.$37.34
50-79
Can.$36.58
80+
Can.$35.82
* Discounts may vary based on options below
Select Specifications:
Qty: -+
Free shipping over $299Ships via DHL / UPSWarranty covered

Accept the project customization, please contact us for commercial offers and technical support.

  • Product Information
  • Reviews
  • Downloads
  • Images
  • LED Strip Light Guide

Product Information

IP68 Water Submersible Cob Diffused Chip-on-Board LED Strip Light

IP68 cob led strip is specially designed for underwater lighting projects, perfect for illuminating the edges of fishtanks, swimming pools, ponds or fountains. Besides, this outdoor cob led strip can also be used to decorate cruise ships. To ensure excellent illumination without any hot spots, submersible LED strip lights for pools, adopting COB technology, has a very high density of 560 LEDs per meter. The interior of dotless linear led strip lights is filled with solid silicone to better protect the strip during bending and the surface is made of frosted silicone, helping to disperse light more evenly. Due to the combination of COB technique and silicone material, this led tape is also called cob led neon strip.



Features of the IP68 COB neon LED strip light

1. IP68 waterproof, can be immersed in water for long term use.

2. COB technology, high density of 560 LEDs per meter, dotless illumination.

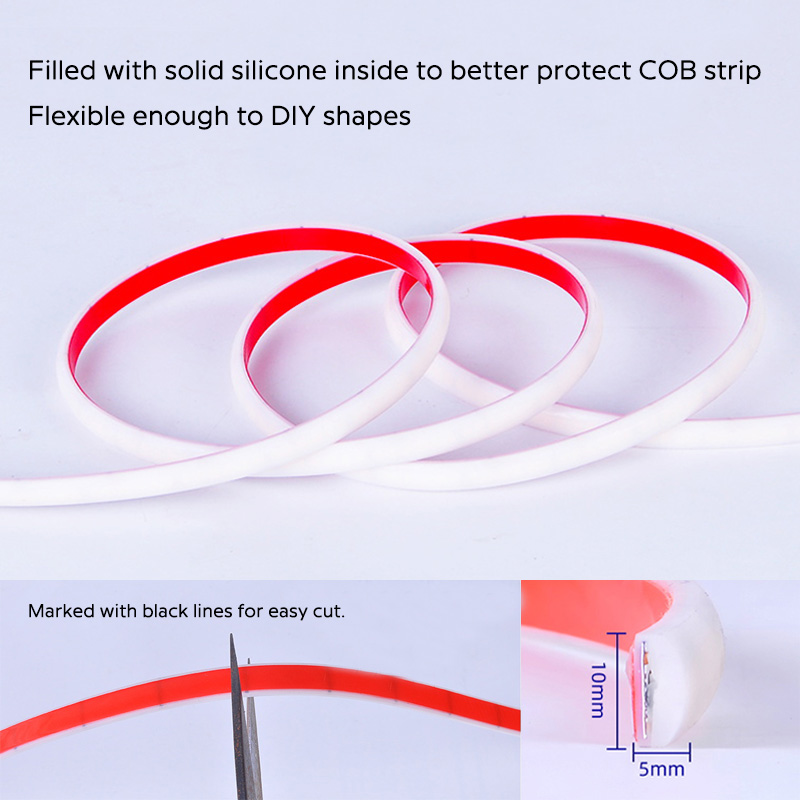

3. Superior flexibility with solid silicone filled inside to protect strip during bending.

4. 10mm/0.39" wide and 5mm/0.19" high, easy to fit into tight spaces.

5. Multiple color options including warm white 3000K, natural white 4000K, daylight white 6500K, ice blue, blue, yellow, red, green and purple.

6. Adhesive backing and every 25mm/0.98" can be cut for accurate length control.

7. Wide temperature tolerance, can work in -40°C to 150°C environments.

8. 24V power supply from one end can run this strip up to 10m without voltage drop.

Note:This light strip has non-waterproof red and black wires coming out of one end. To safeguard the connection between the light strip and the wire against water exposure, please apply a layer of silicone sealant for a waterproof seal.

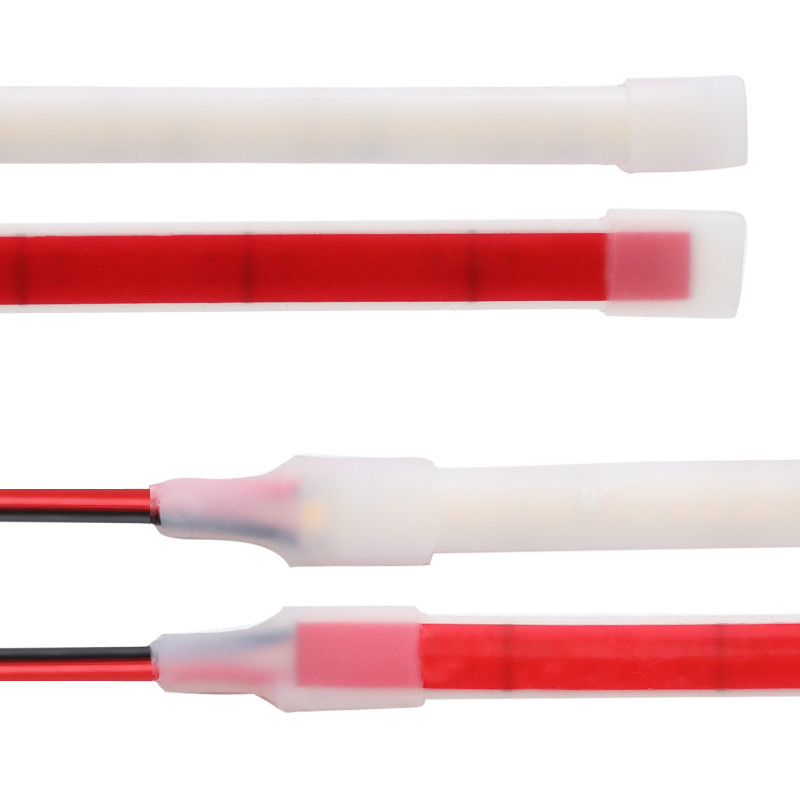

Underwater IP68 COB Neon LED Strip Light Ends



Available Waterproof LED Strip Kit Prodcuts

If the 5-meter length of this waterproof COB light strip meets your needs, consider purchasing the V1-WPM outdoor wireless dimmer and the 100-watt IP67 24V power supply to withstand humid environments and enable remote control via handheld R6-1 or panel TW1.

Wiring Diagram

Currently, we do not offer dedicated high-power waterproof dimmers for lengths between 10 and 20 meters.

However, you can connect the 10-meter length using a 24V 200W waterproof dimmable power supply paired with a Triac/0-10V/PWM dimmer. For 15-meter or 20-meter lengths, use a 24V 300W waterproof dimmable power supply with a Triac/0-10V/PWM dimmer.



Product Specification

LED Strip Type:  24V Underwater IP68 COB Neon LED Strip Light for Pools
LED Chip:  Chip-on-board LEDs
Lighting Direction: Top Emitting
LED Color:

3000k Warm white/ 4000k Natural white/ 6500k Daylight white

Ice blue/ Blue/ Yellow/ Red/ Purple/ Green

Input Voltage:  DC24V
Power:
14W/m, 70W/16.4ft
Working Temperature:  -40℃~+150℃
Storage Temperature:  -20℃~+60℃
Height: 5mm/0.19"
Width:  10mm/0.39"
LED Quantity:
560 Chips/m, 2800 Chips/16.4ft
Waterproof Rating:  IP68
Cut Length:
25mm /0.98" cuttable
Color Rendering Index:  Ra>95
Beam Angle:  120°
Length:  5m/16.4ft per reel
Lumen: 840 lm/m



Neon flex ip68 rope led, featuring sleek design, has 10mm/0.39” width and 5mm/0.19” height, making it easy to fit into the groove and provides illumination with minimal presence. A variety of colors are available to add fun to different scenes, and with a CRI index higher than 95, the color is superb and vivid. This ip68 led tape comes with strong adhesive backing and can be cut every 2.5cm, simplifying the installation process, making length control more precise.

IP68 COB Neon LED Strip Details

IP68 COB LED Neon Strip Customer Feedback Images

24V Underwater IP68 COB Neon LED Strip Light for Pools Lighting Effect

Flexible 24V Underwater IP68 COB Neon LED Strip Light for Pools

Red and Purlple Light : Different Surface

Reviews

Customer Experience

Your feedback is important to us! Share your thoughts and photos with other customers.

Downloads

Files for FSLCOB-NEON1005-IP68
Need this page for a project file or an engineering check? Click Open PDF, then save or print it from your browser. For CAD drawings, IES files or a signed test report, contact our engineers and quote the model number.

Images

These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!

24V Underwater IP68 COB Neon LED Strip Light for Pools Top Emitting24V Underwater IP68 COB Neon LED Strip Light for Pools Top Emitting24V Underwater IP68 COB Neon LED Strip Light for Pools Top Emitting24V Underwater IP68 COB Neon LED Strip Light for Pools Top Emitting24V Underwater IP68 COB Neon LED Strip Light for Pools Top Emitting24V Underwater IP68 COB Neon LED Strip Light for Pools Top Emitting24V Underwater IP68 COB Neon LED Strip Light for Pools Top Emitting

LED Strip Light Guide

Common questions about this type of product, answered against this model’s own options. For full figures see the specification above or the spec sheet for this model.

Can I cut it to length?
Yes. Cut only on the marked cut lines between the copper pads — the cut interval for this model is on its spec sheet. Rejoin with solder or a solderless connector. Cutting LED strip lights · we can also cut to length and fit your connector before shipping: custom LED strip light assembly.
What size power supply do I need?
Take the watts per metre from the specification above, multiply by the length you are running, then add about 25% headroom. Power calculation guide · Choosing a power supply
Which colour is right?
This model comes in Ice Blue · Purple · Yellow · Green · Blue · Red. Warmer whites suit living spaces, cooler whites suit task and display lighting. Screens do not show colour temperature accurately — order a sample if the room matters. Warm white vs cool white
