$35.98- Special Price: $60.98
This technique provides a superior waterproof seal, achieving a fully submersible IP68 rating perfect for pools and water features. The robust, gas-phase silica gel construction is UV, acid, and alkali resistant, ensuring long-term performance in the most demanding environments. Available in a wide array of colors, including dynamic RGB and DMX512 options, this neon flex is the ultimate solution for high-end architectural accents, custom signage, and immersive landscape lighting.
Key Features
Seamless Injection Molding

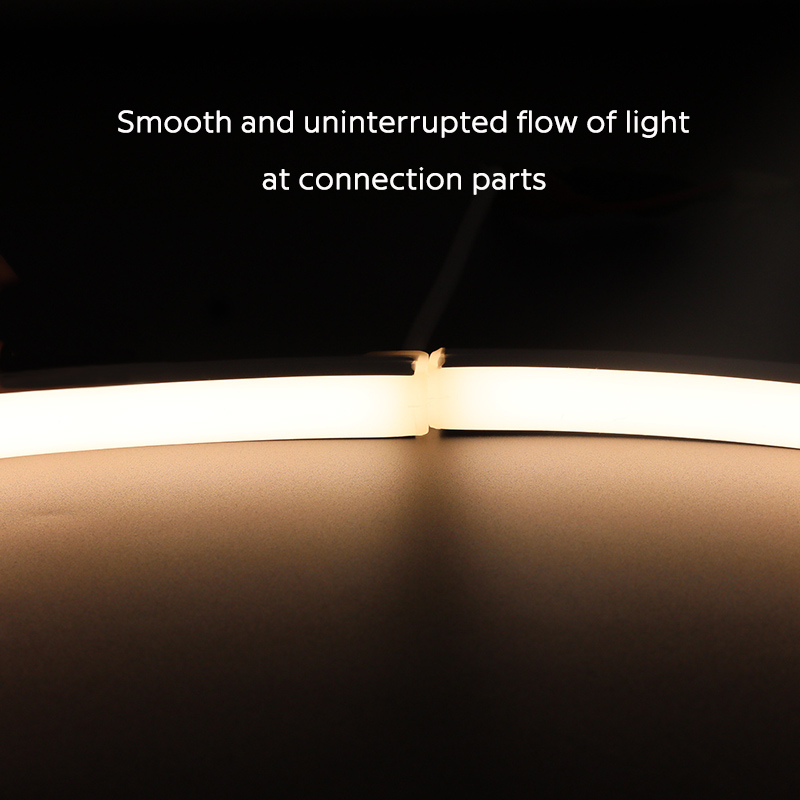

One-piece molding process fuses the end caps to the neon body, creating an invisible seal for a continuous, uniform glow from end to end.

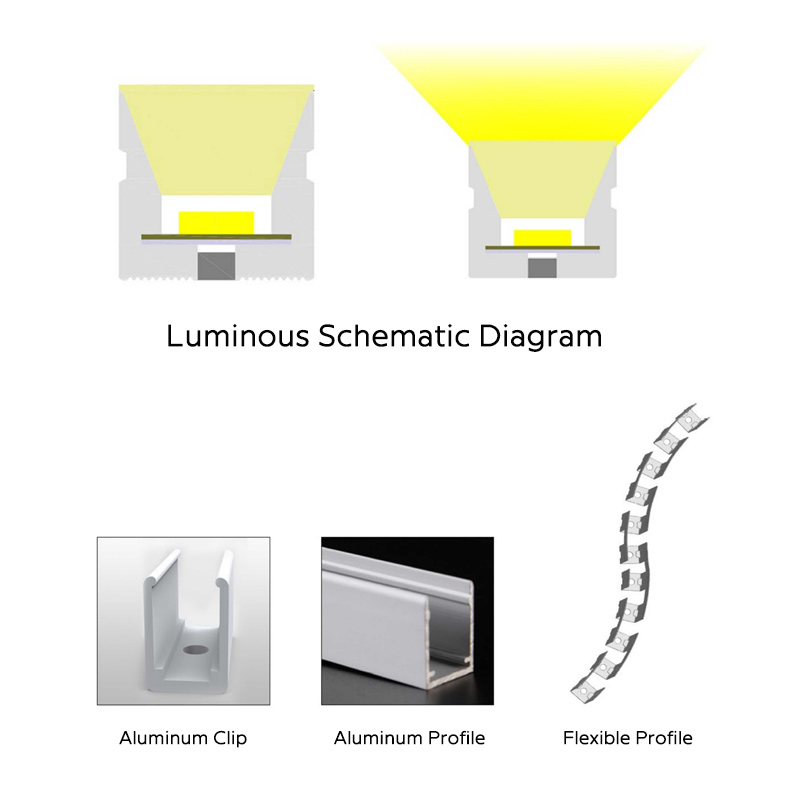

Top-Emitting Profile
The 16x16mm square profile emits light directly from the top surface, delivering a powerful and uniform line of light ideal for direct-view applications.
Extensive Color & Control Options
Choose from a spectrum of 10 options, including warm and cool whites, vibrant static colors, dynamic RGB, and individually addressable DMX512 RGB.

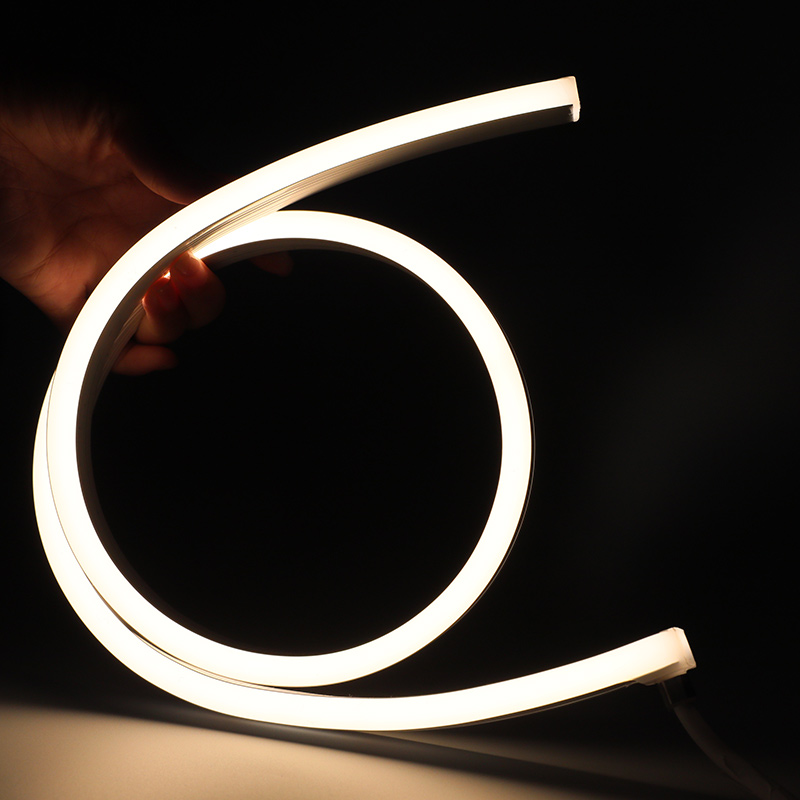

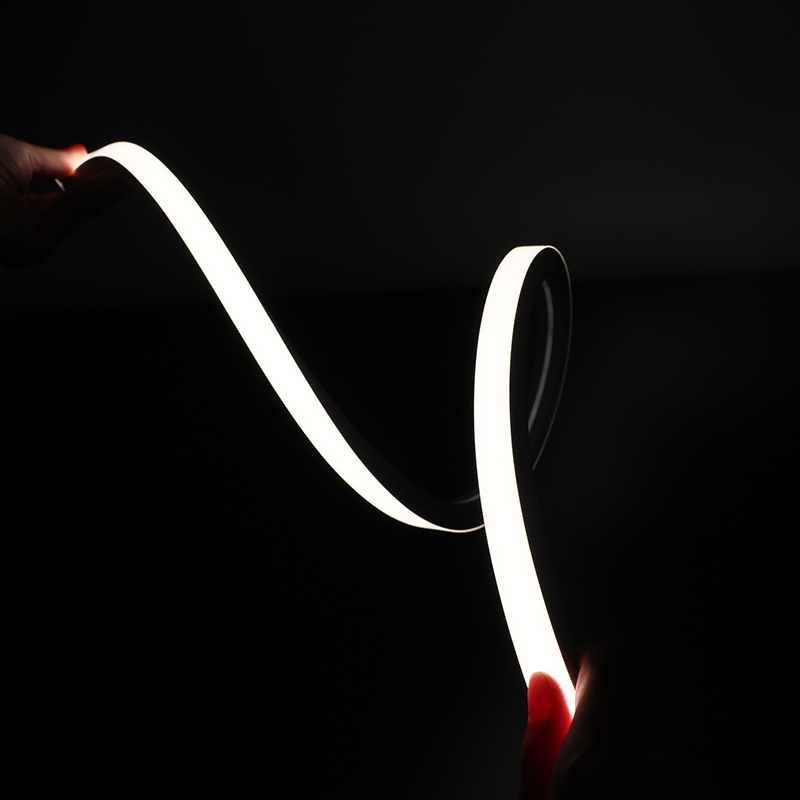

Flexible & Resilient Design
Crafted from high-grade silicone that allows for smooth bending, fortified with an internal impact-resistant sheet to protect the PCB.
Optimized for Long Runs
Available in DC12V and DC24V. The 24V option is recommended for the full 5-meter length to ensure consistent brightness without voltage drop.
Technical Highlights
- One-piece silicone extrusion and injection molding for a seamless, fully sealed body.
- High-density SMD2835 LEDs (120/m for single color) for uniform, bright illumination.
- High Color Rendering Index (CRI >90) ensures true-to-life color representation.
- Small cutting units (25mm for 12V, 50mm for 24V) for precise length customization.
Product Specifications
| Parameter | Details |
|---|---|
| Product Model | INJECTION-NEON-1616 |
| Product Type | Injection Molding Flexible Neon LED Strip Light |
| Section Size | 16mm x 16mm (0.63in x 0.63in) |
| Lighting Direction | Top Emitting |
| Material | Gas-phase silica gel |
| Input Voltage | DC12V / DC24V |
| Power Consumption | Single color: 10W/m (50W/roll) | RGB/DMX: 14.4W/m (72W/roll) |
| LED Chip | SMD2835 |
| LED Quantity | Single Color: 120 LEDs/m | RGB/DMX: 60 LEDs/m |
| Beam Angle | 120° |
| Available Colors | Amber(1800K), Warm White (2300K, 2700K, 3000K), Natural White (4000K, 5000K), Daylight White(6000K), Cool White (7500K), RGB, DMX512 RGB |
| CRI (Ra) | >90 |
| Warranty | 2 years |
| Cutting Unit | Every 25mm (12V) or 50mm (24V) |

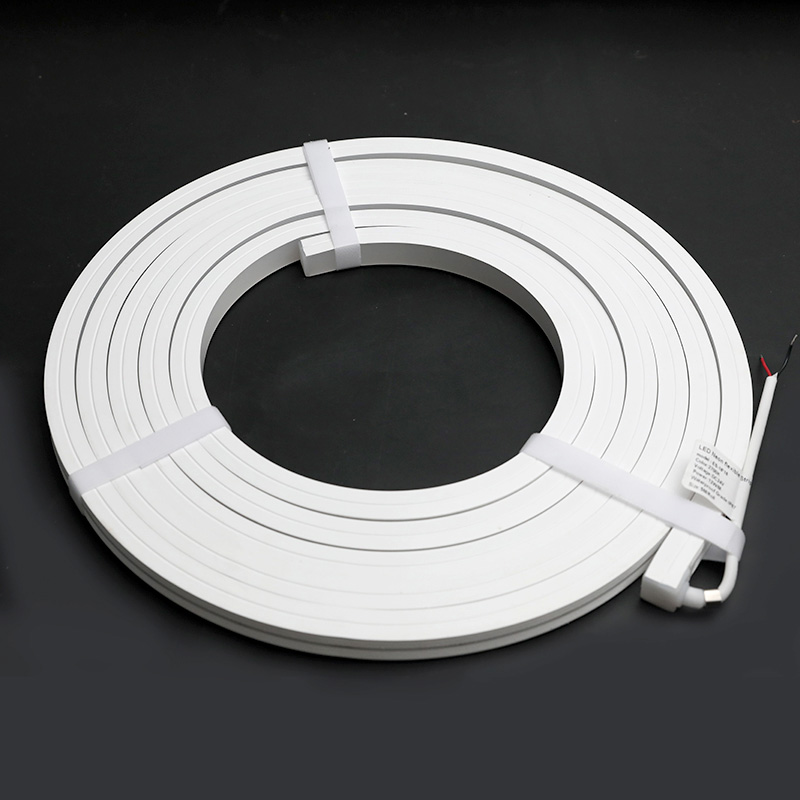

| Reel Length | 16.4ft / 5 meters |
| Waterproof Rating | IP67 (Outdoor Use) / IP68 (Underwater Use) |
| Wire Outlet Options | Side Out, Straight Out, Bottom Out (Both Ends) |
| Lifespan | 50,000+ hours |

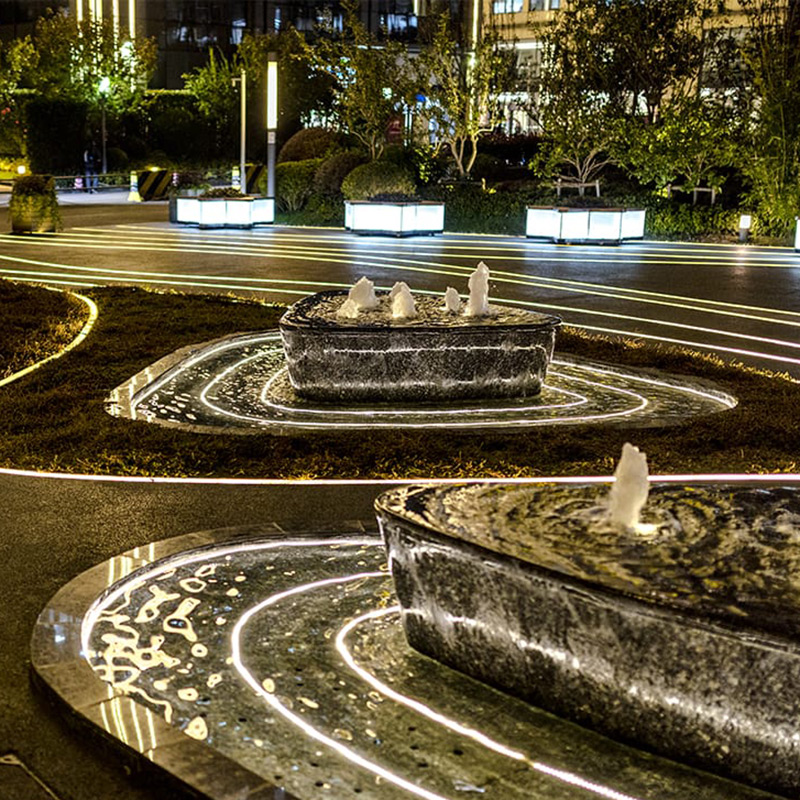

Application Scenarios
How to Install & Use This LED Neon Light
- Plan your layout and measure the required length. For full 5-meter runs, we strongly recommend the 24V version for optimal, consistent brightness.

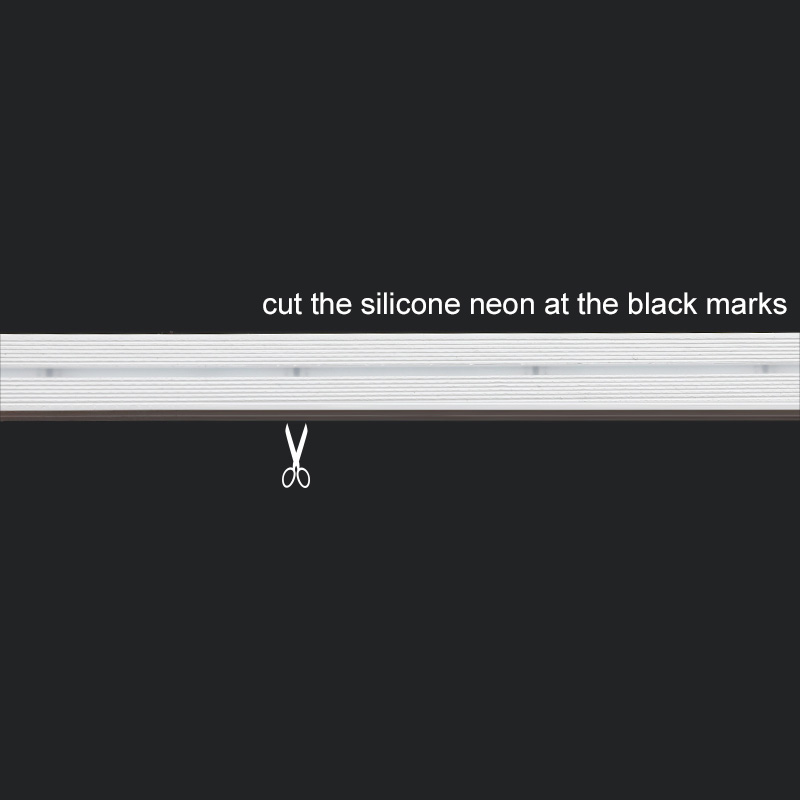

- If needed, cut the neon strip ONLY on the designated cutting marks printed on the side of the strip.
- Secure the neon strip in place using aluminum mounting channels or clips. Installation accessories are here to buy.
- Connect the strip's wires to a compatible DC power supply. Ensure the power supply wattage exceeds the total wattage of the strip by at least 20%.
- For RGB versions, connect to an RGB controler. For the DMX512 version, connect to a DMX controller or decoder.
- If you have cut the strip, you must seal the new end with a compatible end cap and silicone adhesive to restore its water resistance. The factory-molded end cap provides the highest IP68 rating.
- Voltage Drop Warning: The 12V version may experience a slight drop in brightness towards the end of a full 5-meter (16.4ft) roll. For perfectly uniform brightness, select the 24V option.
- Do not bend the strip sharper than its recommended minimum bend radius to avoid damaging the internal PCB.
- Always disconnect the power supply before cutting or making connections.

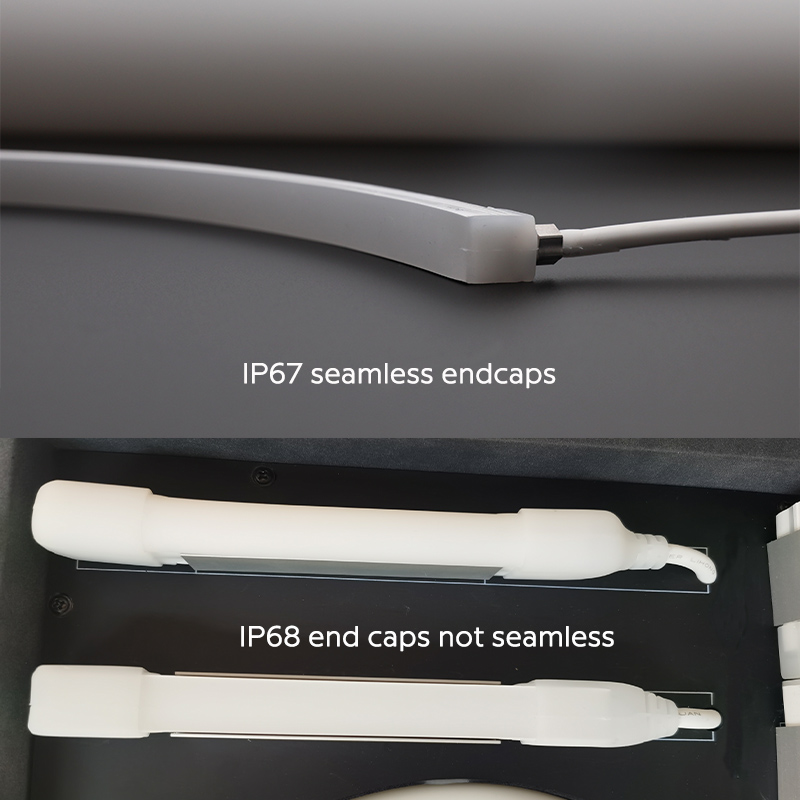

- The factory IP68 rating applies to the uncut strip with its injection-molded ends. Any user-made cuts must be properly re-sealed to be waterproof.
Frequently Asked Questions
Q: What is the main benefit of an 'injection molded' neon strip?
A:Injection molding creates a seamless, factory-sealed end cap that is fused with the neon body. This provides a cleaner aesthetic and a more reliable, higher-grade waterproof seal compared to traditional glued-on caps.
Q: Can I really put this light strip in my swimming pool?
A:Yes, the IP68-rated version is specifically designed and tested for continuous underwater submersion, making it ideal for pools, ponds, and fountains.
Q: Should I choose the 12V or 24V version for a 5-meter (16.4ft) installation?
A:For a full 5-meter length, we highly recommend the DC24V version. It minimizes voltage drop, ensuring consistent and even brightness from the beginning of the strip to the end.
Q: How do I cut the neon strip to a custom length?
A:The strip can be cut at the designated cut marks, which are typically indicated by a scissor icon on the side. After cutting, you must seal the end with an end cap and silicone glue to protect it from moisture.
Q: What is the difference between the IP67 and IP68 options?
A:IP67 is rated as waterproof for outdoor use, protecting against rain and temporary immersion. IP68 is fully submersible, designed for continuous use underwater.
