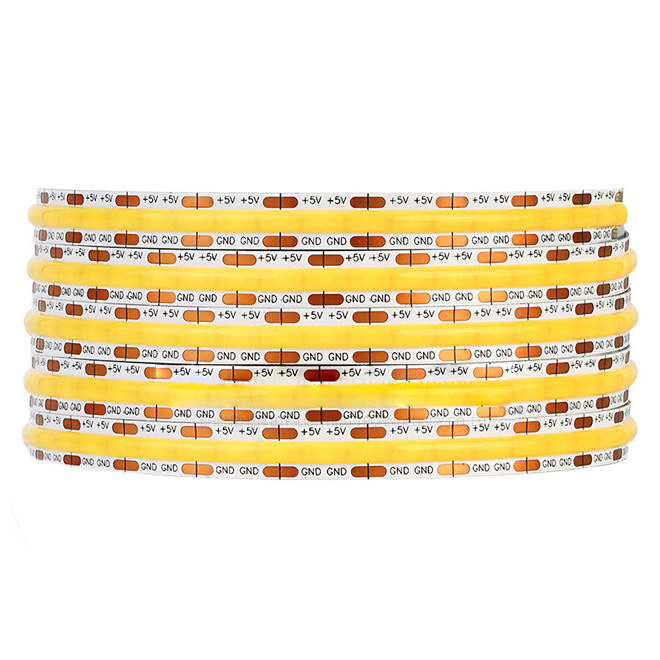

90CRI DC5V USB 320 Chips/M High Density Flexible FCOB LED Light Strip

Model: FSLDRCOB-5V-USBX5
90CRI DC5V USB 320 Chips/M High Density Flexible FCOB LED Light Strip
  • 90CRI DC5V USB 320 Chips/M High Density Flexible FCOB LED Light Strip
  • 90CRI DC5V USB 320 Chips/M High Density Flexible FCOB LED Light Strip
  • 90CRI DC5V USB 320 Chips/M High Density Flexible FCOB LED Light Strip
  • 90CRI DC5V USB 320 Chips/M High Density Flexible FCOB LED Light Strip

Select Specifications:

Starting at: $9.99 $4.9850% off

Free worldwide shipping on orders over $199

Various options in stock
Qty Discounts Off Price
1-49
$4.98
50-99
$4.73
100-199
$4.53
200+
$4.33
* Discounts may vary based on options above
Qty: -+

DHL, UPS and USPS are delivered to your door, any needs please note at checkout.

Accept the project customization, please contact us for commercial offers and technical support.

  • Product Information
  • Reviews
  • Accessories
  • Images
  • LED Strip Lights Guide

    Product Description

    1. Support DC5V low voltage input, safe and stable, harmless to the human body, matching USB connector plug and play, convenient and fast.

    2.180 degrees emitting angle + high quality LED, the LED quantity up to 320chips/m, the whole roll has no light spots; LED is wrapped with the phosphor layer, which can extend the lighting time of the LED.

    3.90+ CRI, 3000/4000/6000K can be selected, highly restore the original appearance of the environment, and create different lighting atmospheres

    4. IP67 waterproof is optional, and various lengths are available and customized LED light strip lengths are provided, suitable for outdoor lighting.

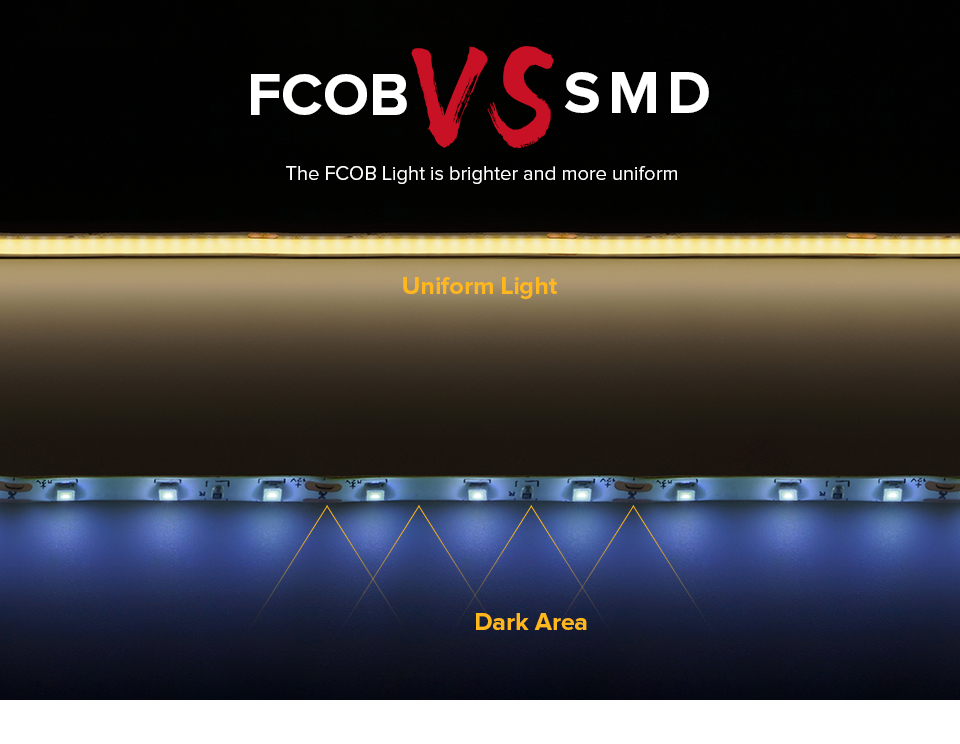

    5. COB light strips are more flexible than other light strips and can be bent at will. With 3M tape attached to the back, it can be installed in complex working environments.



    Product Feature

      ►DC5V plug and play

      ►320Chips/m high density

      ►Multiple color temperature optional

      ►90+ CRI

      ►180 degrees emitting angle

      ►IP67 waterproof available

      ►Customize length

      ►3M tape, easy to install

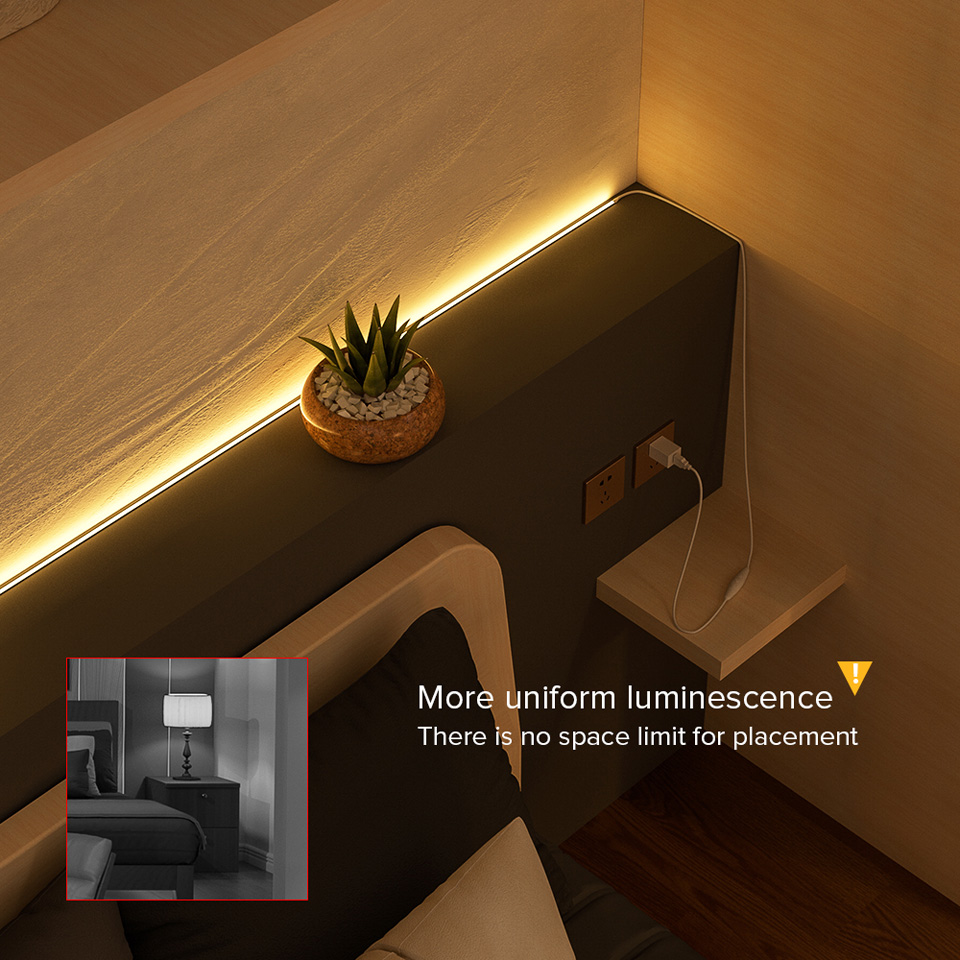

      ►Suitable for home lighting

      LED Task Lighting

      Art Gallery Lighting

      Off-Grid Lighting

      Indoor Photography Lighting

      Exhibition Lighting

      Studio Office Lighting

      Retail Shop Lighting

      Cove Lighting

      Museum Lighting

      Bias Lighting

      Trade Show Lighting



    Standards and Certifications





    Product Specification

    LED Strip Type COB LED (COB Flexible led strip light specification )
    LED Chip Epistar Chip
    Input Voltage DC5V
    Storage Temperature -20℃~+60℃
    Power 8W/M, 40W/Roll.
    PCB Width 8mm/0.31in
    LED Quantity 320 Chips/M
    Light Color Warm white(3000K), Nature whtie(4000K), Daylight White(6000K) Red/Green/Blue/Ice Blue/Pink/Yellow
    Connector Type DC/USB
    PCB color White
    Color Rendering Index Ra>90
    Beam Angle 180°
    Length 1m/3.28Ft, 2m/6.56Ft, 5m/16.4Ft optional
    Lifespan 30,000+hours
    Waterproof Rating

     IP20 Non-waterproof (The PCB [Printed Circuit Board] surface of the bare, with a self-adhesive back, For Indoor);

     IP67 Waterproof (Silicon sleeve waterproof, PCB is encapsulated with silicon tube, with a plastic fastener, better waterproof, For Outdoor);



    How to choose LED strip lights kit?

    You can choose the controller or power supply or controller plus power option for this COB LED strip. Of course, only the COB LED light is also completely possible. The difference is whether you need to control the LED brightness change of the COB strip and whether you can supply power to the light strip.

    In the following table, we list for you which products you will get if you choose the kit. If you have other needs, please check our product categories.

    LED Strip

    Kit Knowledge
    5m/16.4Ft COB LED Strip

    Controller: RF203, More choices are from Single Color Dimmer Series.

    Power supply: 5V 50W power supply adapter

    How to choose led strip light controllers?

    How to calculate power for led strip lights?

    How to choose led strip light power supply?

    if you have any requirements for other types of the LED Power Supply, you can visit our UL-LIsted LED power supply series and Waterproof LED power supply series






    Color Temperature and CRI

    Choosing the correct color temperature lights for your project is very important, and as important as the brightness you choose. Consider the look and feel you want your project to have.

    •  Warm white 3000K LED light is similar to the color of sunset, giving people a warm and comfortable feeling, suitable for installation in the living room, bedroom and other places.

    •  Natural white 4000K LED light is suitable for task lighting like kitchens or offices and is closer to white than 3000K. Requires more precision for lighting objects, 4000K light strips are more suitable for you than 3000K.

    •  Daylight white 6000K LED light shows more details and create a clear and transparent environment, suitable for working and task lighting.

    CRI (Color Rendering Index) is a measure of how well a particular light source renders vivid, natural color. Lamps, led tubes, or led bulbs with an index of greater than 90 are generally considered High CRI light sources, and will make food, jewels, or any other product come alive with bright, natural color.








    Installation Instruction: How to Install LED Strip Lights?


     You can cut the strip every few inches, allowing you to freely design your project, without worrying about space requirements to many different surfaces.


      The back of the strip is fitted with a strong 3M tape, allowing you to peel and stick lights


     IP67/IP68 waterproof type which will needs LED mounting brackets




    Don't know how to wire? please read the following articleHow to wire the single color LED strip light

    single color led strip light wiring diagram

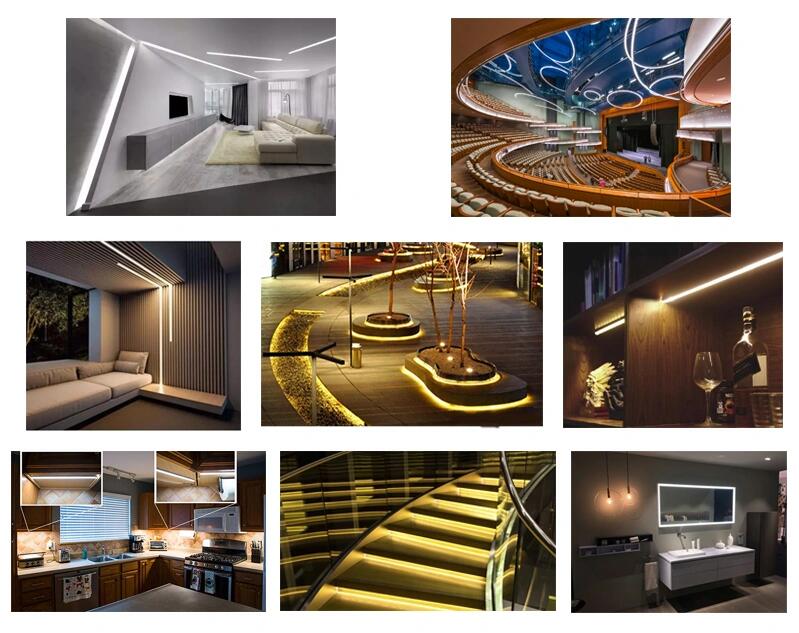

    Application
      Trademark lighting           Logo lighting
      Channel letters lighting        Lightboxes lighting
      Sign cabinets        Channel lights
      Cove LED lighting     Edge lit signs
      Canopy illumination    Off-grid lighting
