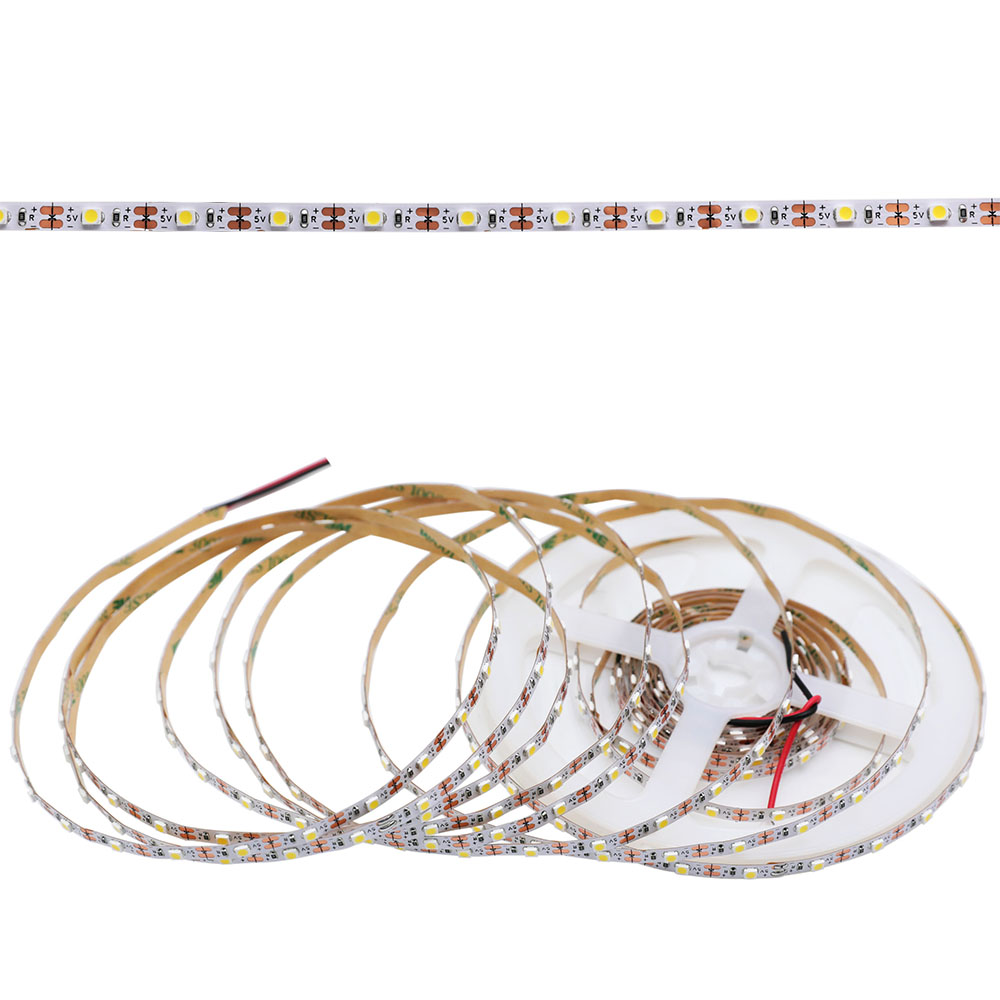

Single Color Series 3528 Flexible LED Light Strip - Low Voltage DC5V 300LEDs Lighting
1. Low Voltage DC5V Single color 3528 SMD(SMD: Surface Mounted Devices) Flexible LED Tape strips, Epistar chip, 300LEDs/16.4ft, 16.4ft(5 meters) Per Reel By Sale. 5V DC operation.
Red, blue, yellow, green, 3000K warm white, 4000K natural white, 6000K daylight white, 7000K cool white light color optional. To help you choose the right white light: 3000K vs 4000K vs 6000K vs 7000K, warm white vs cool white, natural white vs daylight.
2. Our brightest super flexible LED Solid Color light Strips soft and easy bent for installation. Available in 5 meters (197 in) flexible light strips with adhesive backing and can be stuck just about anywhere. can be cut into 3-LED segments, so you could cut a different length for your project and request.
This LED Light strip is perfect for retail shops, supermarkets, museums, galleries, photography or any indoor applications where presentation, appearance, and depth of color are critical, Suitable for the average home lighting as well as lighting professionals.
3. High color rendering index (+95 CRI) enhances vibrant colors more than traditional LEDs nearly matching the color quality of incandescents.
►Everything you need to know before buying led strip lights:
Top 6 Considerations Before Buying LED Strip Lights(What is 3528SMD LED, IP20 non-waterproof vs IP65 vs IP67 vs IP68 outdoor waterproof LED lighting strips)
►Choose a suitable LED power supply and an LED dimmer controller:
Standards and Certifications

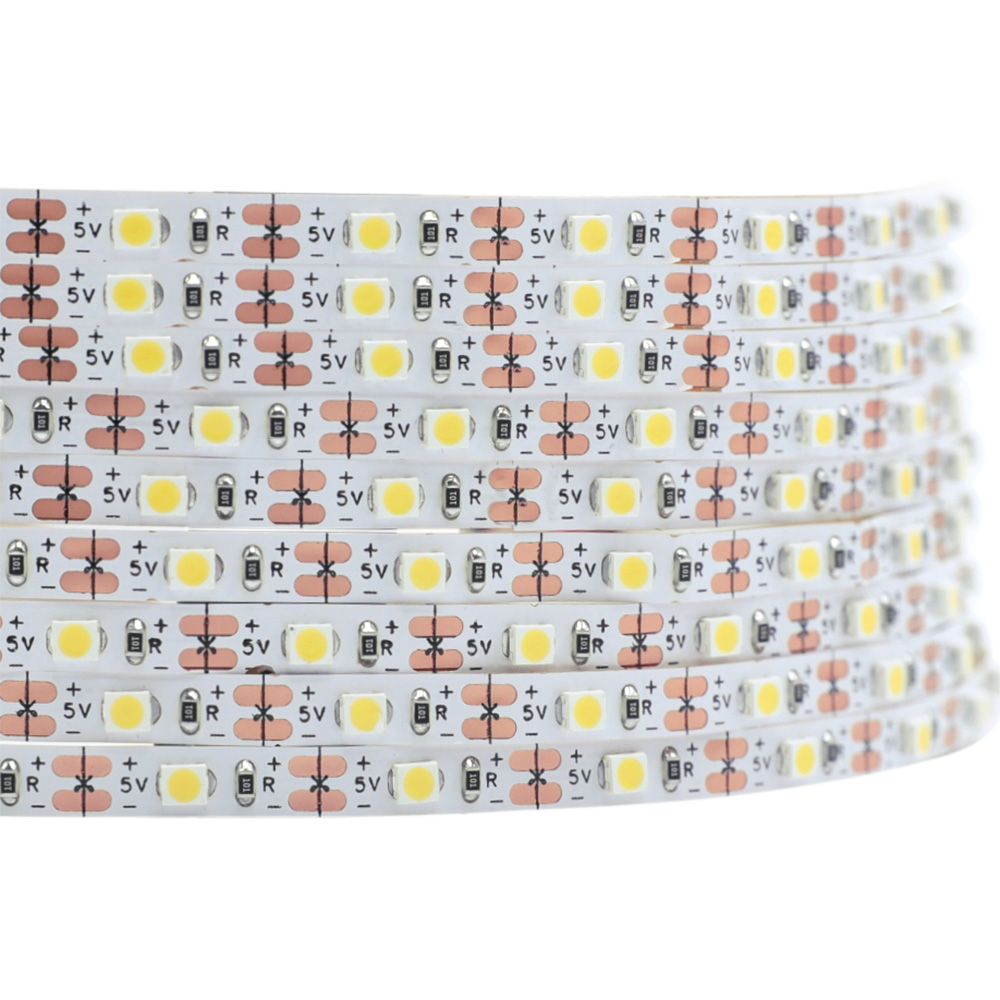

LED Strip Type: SMD 3528 300PCS/16.4ft
LED Chip: Epistar super brights Chip
Working Temperature: -4°F (-20°C) ~ 122°F (50°C)
Storage Temperature: -40°F (-40°C) ~ 176°F (80°C)
Light Color: Warm White, Nature White, Daylight White, Cool White, Red, Green, Blue, Yellow(optional)
Dimension: 16.4ft/roll, every 3 PCS LED can be cut
LED Quantity: 60 LEDs per 1meter (3.28 ft)
Warantty: 3 years

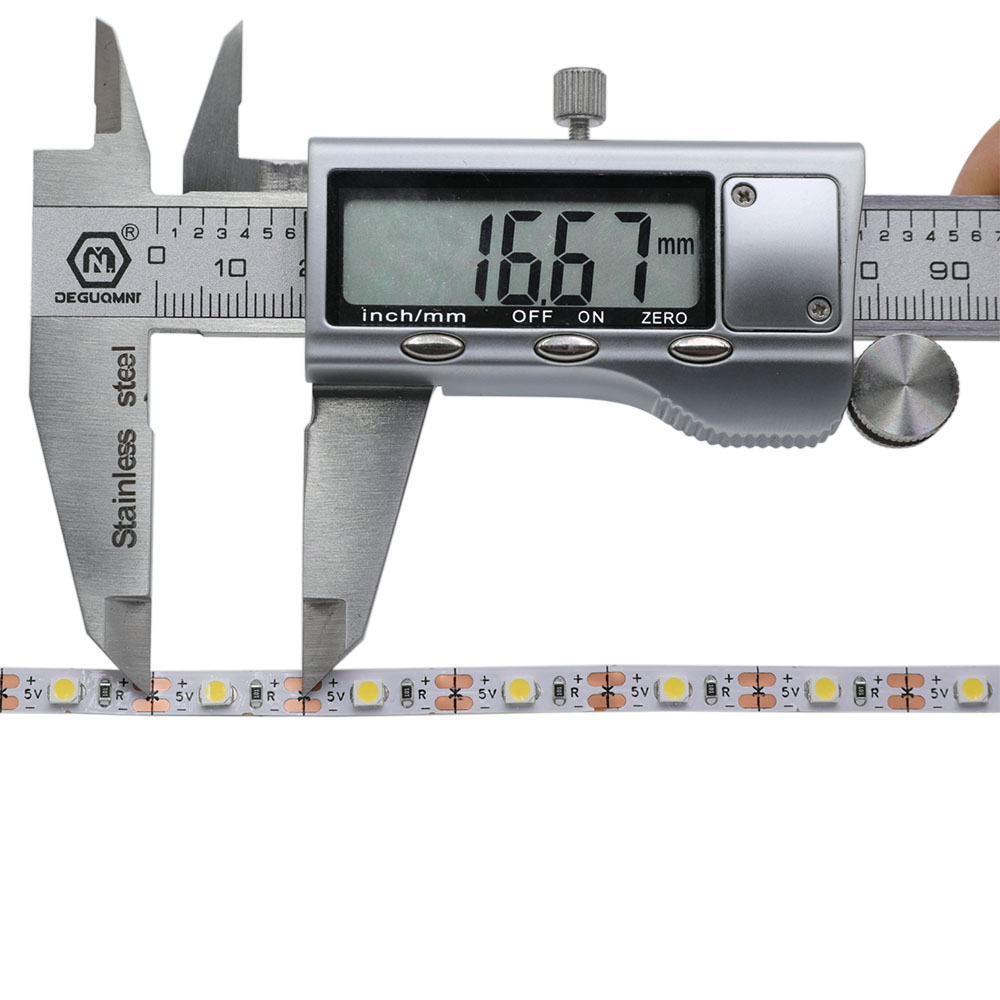

Dimensions: L500cm(196.8 in ) x W0.5cm(0.19 in ) x H0.20cm(0.08 in ) or L500cm(196.8 in ) x W0.8cm(0.31 in ) x H0.20cm(0.08 in )
Input Voltage(V): 5VDC
Working Power: 4.8A 24W/16.4ft Max
Lamp Luminous Flux(lm): 6lm/LED 1800lm/16.4FT
Color Temperature CCT(White): Warm White(2800-3600k), Daylight White(5200-6600k), Cool White(7600-9500k)
Wavelength NM(RGBY): Red(620-630nm), Green(515-525nm), Blue(465-475nm), Yellow(585-595nm)
Beam Pattern: 120 degree
Waterproof: Non-Waterproof IP20, Waterproof IP65/IP67/IP68
CRI (Ra>): 95
*The blue font can be clicked to jump to related content articles.
How to Install DC5V single color LED Light Strip?

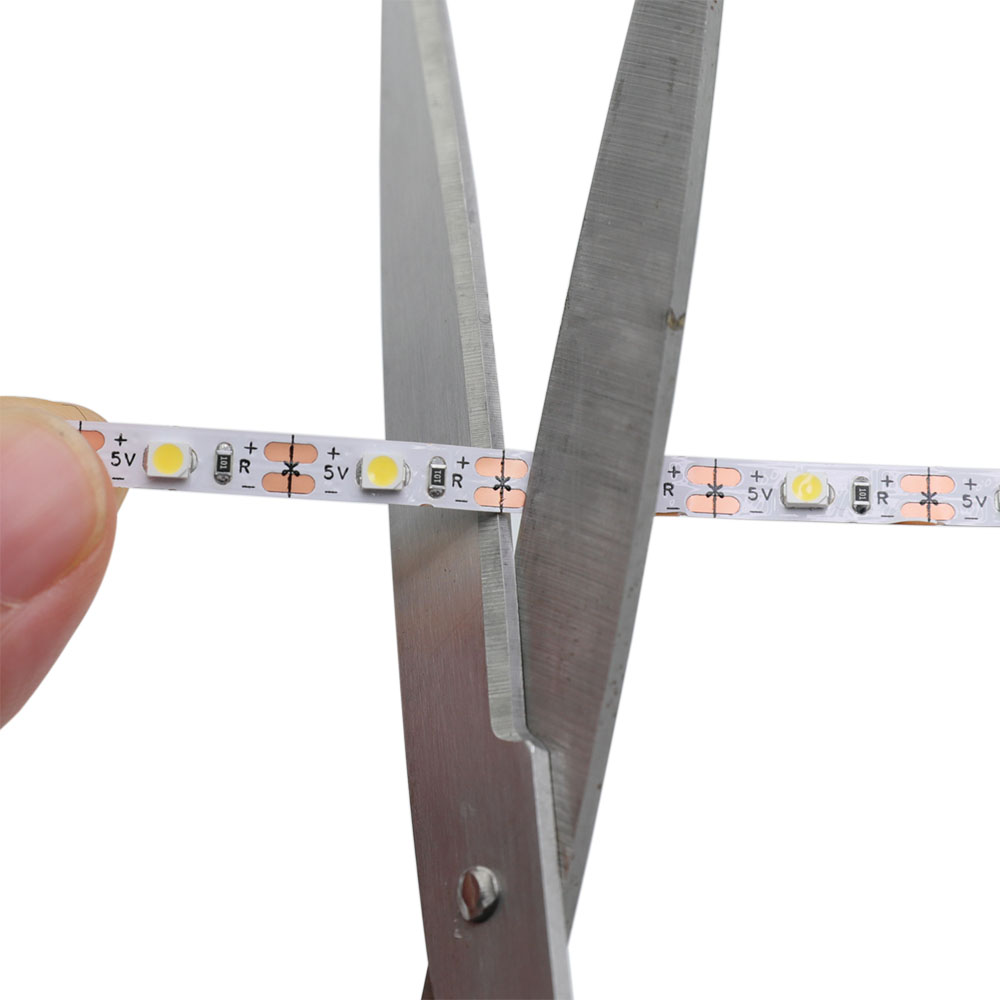

You can cut the flex LED strip lights every few inches(individual LED), allowing you to freely design your lighting project without worrying about space requirements to many different surfaces.

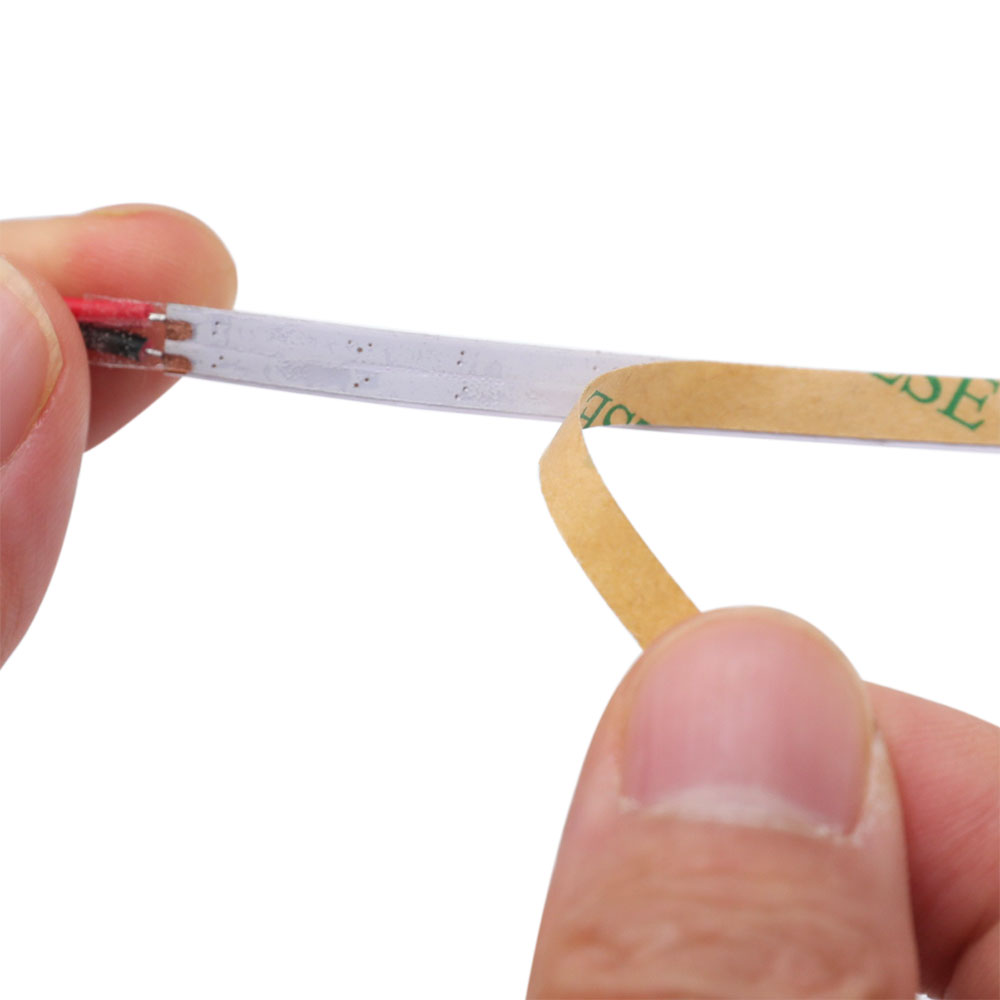

The back of the LED strip is fitted with a strong 3M tape, allowing you to peel and stick the LED lights to anywhere.
IP67/IP68 LED waterproof type which will come with mounting brackets. And all the LED strip lights can be installed with LED aluminum channel and LED neon tube to get an uniform, soft, and no light spot LED lighting effect.
►Can you cut LED light strips and how to reconnect:
►How to install LED light strip:
►Single color LED light strip wiring diagram:
