DMX512 Dream Color Spectrum Music LED Controller

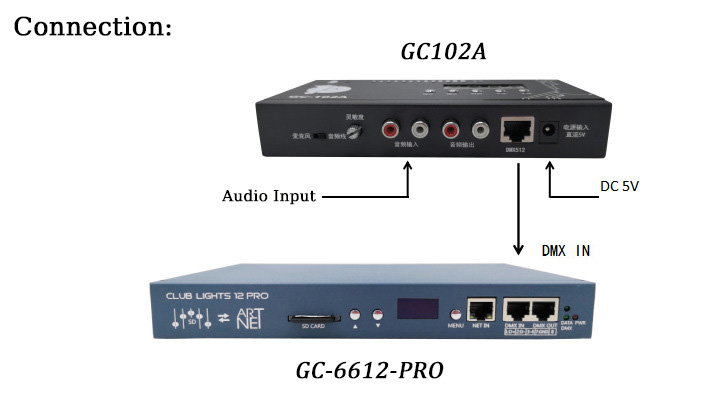

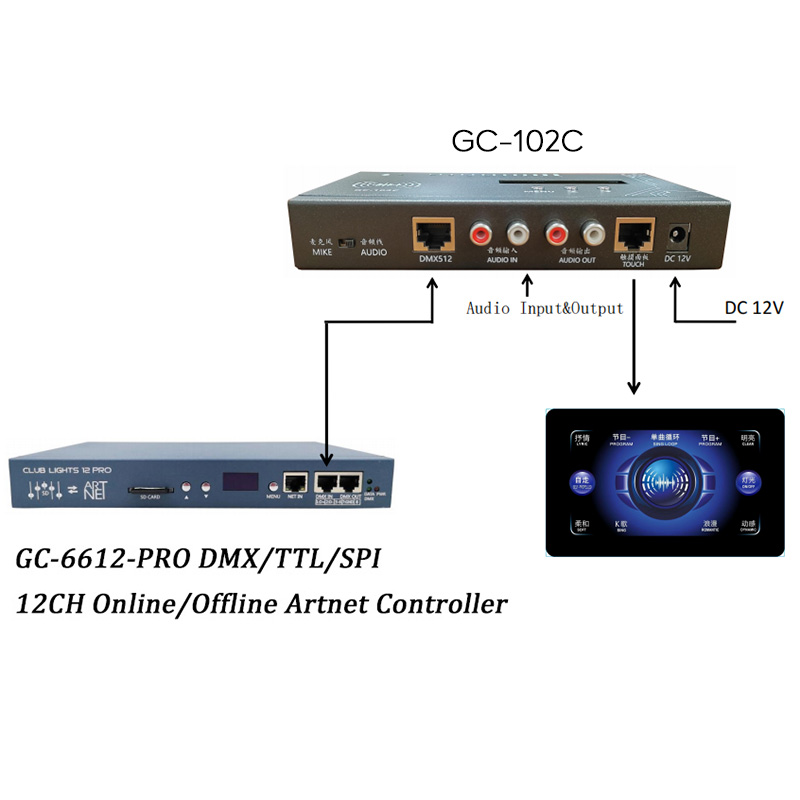

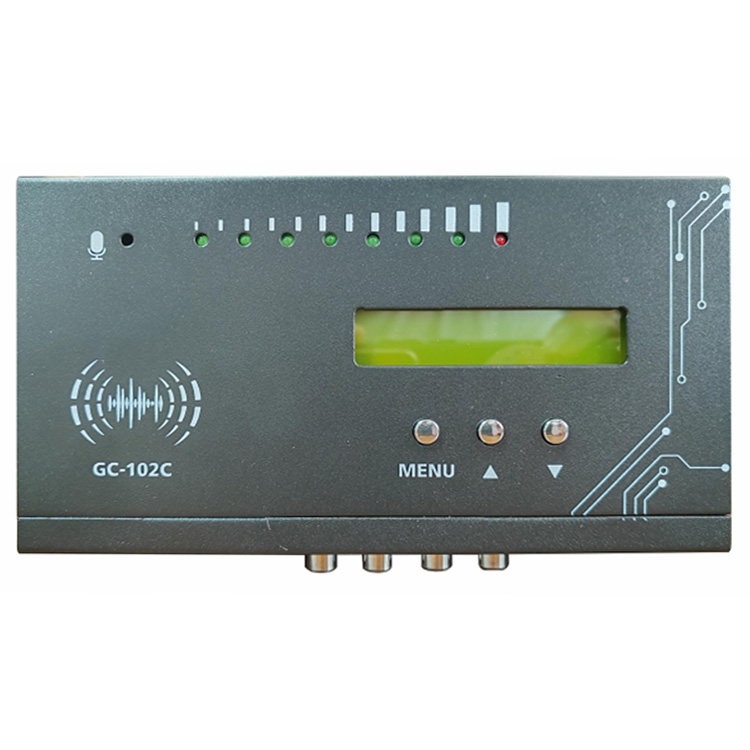

GC-102A is a high-precision audio spectrum recognition music controller, cooperates with addressable led strip lights to achieve sound and light linkage effects, suitable for KTV, supermarket, and other entertainment venues to create an atmosphere. It collects and analyzes input audios, identifies low-frequency drum beats, and converts them into high-speed DMX512 digital signals. This dream color LED controller is equipped with buttons and a display interface, which can quickly set parameters such as working mode, trigger delay, and the number of scenes. Used with GC-6612-PRO 12CH DMX/TTL/SPI Artnet LED Controller which supports MADRIX online and SD Card offline control.
There are several modes to choose from:
1. Sound and light linkage mode
2. Voice control brightness mode
3. Voice control speed mode
4. Voice control brightness + speed combination mode
5. Automatic overall loop (no longer recognizes sound)
6. Soft mode (only loop the first 5 programs)
The first one: mode selection (use the "mode" button to select)
The second digit: trigger delay, which represents the time when each low-frequency drum beat triggers the light (selected by the "time" button)
The delay is divided into ten gears, the numbers 0 to 9 represent: 0.3 seconds, 0.5 seconds, 0.7 seconds, 1 second, 1.3 seconds, 1.5 seconds, 1.7 seconds, 2 seconds, 2.5 seconds, and 3 seconds.
The third and fourth digits: the total number of programs (select with the "ones and ten" buttons)
It is necessary to set the number of programs in the light strip controller here. For example, there are 60 programs on the SD card of the LED controller, and then set the two digits to 60 by pressing the one-digit and ten-digit buttons.
Power input: DC 5V
Power consumption: 2W

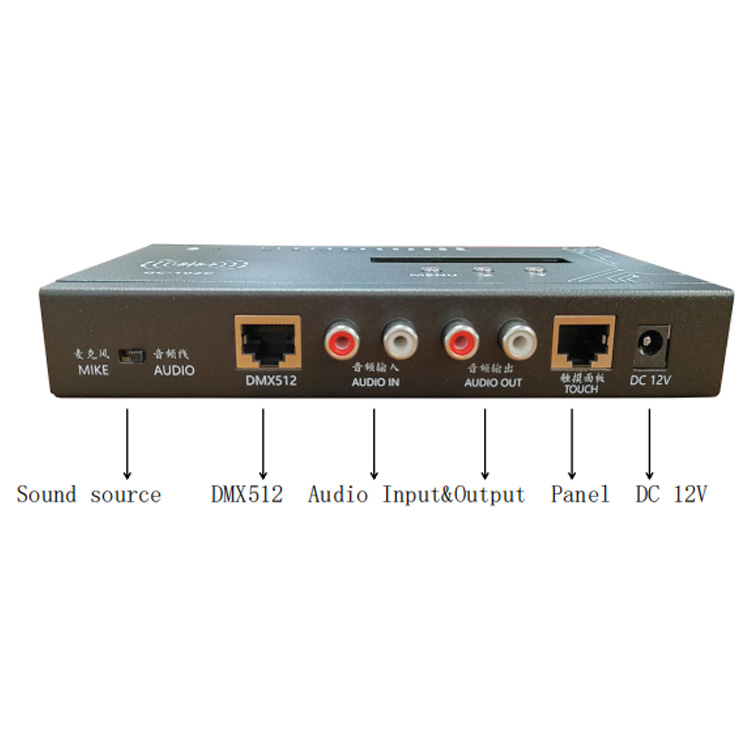

Input trigger interface: audio interface + microphone
Output interface: RJ45 network cable interface
Output signal: DMX512
Working temperature: -20℃～65℃
Product size: L68×W95×H26 mm
Weight (gross weight): 0.6 Kg
