CS8805 RGB 2020SMD Digital Intelligent Addressable LED Chip, DIY LED Chip, 500PCS By Sale
CS8805-2020 is a 3-channel LED drive control chip with a single-wire transmission, using a unipolar return-to-zero code data protocol.
The CS8805-2020 includes a power supply module, a signal decoding module, an oscillation module, a data regeneration module, and an output current drive module. Among them, the data regeneration module automatically reshapes and forwards the cascaded output data after receiving the data from the chip to ensure that the data is not attenuated during the serial transmission.
CS8805-2020 has a built-in output current setting module, and the default output current of the OUT R/G/B port is 5mA.
The IC control circuit and the LED point light source share the same power supply.
Power input voltage: 3.7V-5.5V.
The working current of each channel is 5mA.

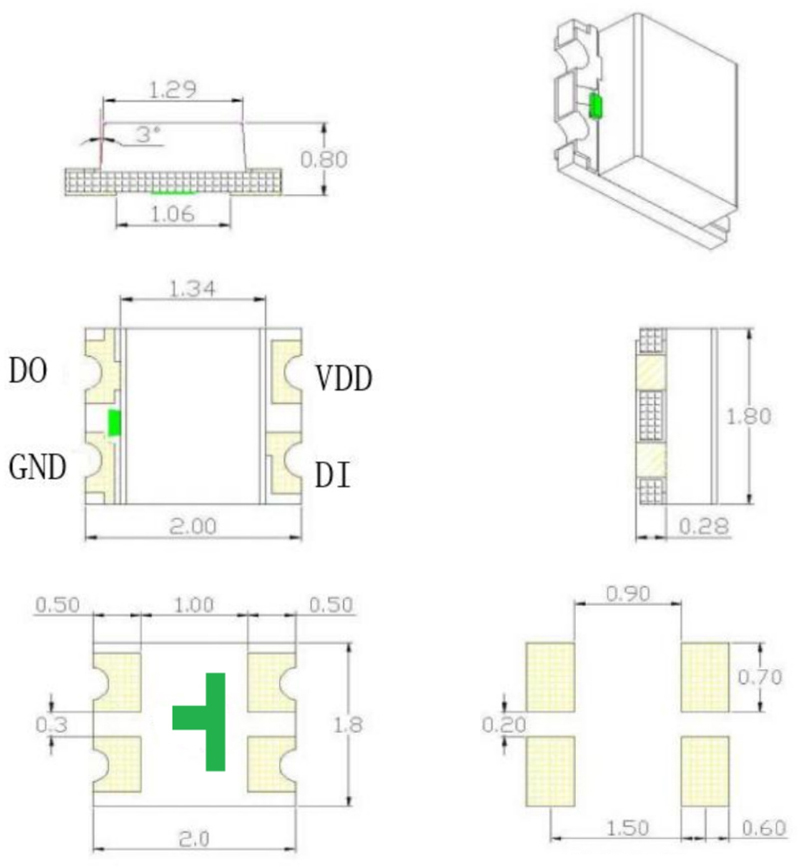

The control circuit and the RGB chip are integrated into a 2020 packaged component to form a complete external control pixel.
OUT R/G/B output grey level: 256 levels.
OUT R/G/B power-on state: closed by default.
Data transmission in series.
DIN supports MCU 3.3V signal level input.
The cascaded data is output after shaping to prevent data attenuation.
Data transmission rate: 800Kbps.
Standards and Certifications

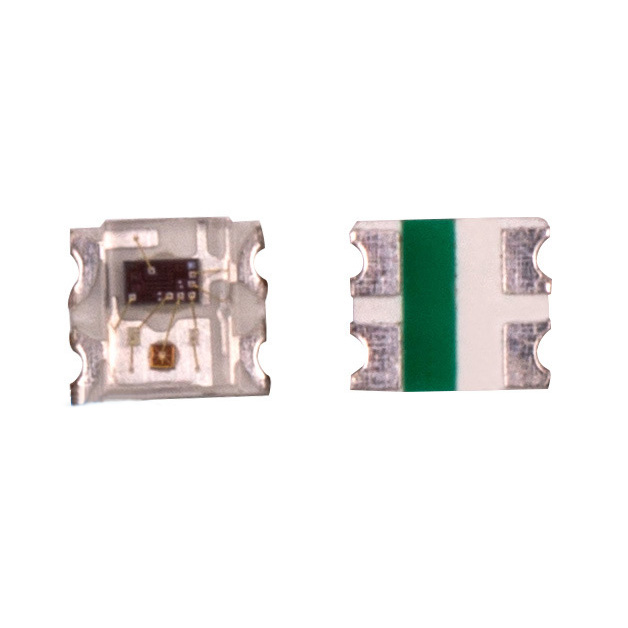

LED Chip Model: SMD 2020RGB
LED Resource: CS8805 LED
IC Type: CS8805 IC
PCB Color: White Available
Protection Rate: Non-waterproof
Input Voltage: DC5V
Working Temperature: -20~50°C
Lifespan: 50000 hours
Beam Angle: 120°
LED Quantity: 500pcs
1* 500pcs CS8805 2020SMD LED Chip
