24V Long LED Light Strips 65.6ft, Solid Colors/RGB 5050 LED
- $170.00 $138.9818% off
- $10.00 $7.9920% off
- $1.20 $0.9918% off
- $50.00 $45.988% off
Special Price: $170.00 $138.9818% off

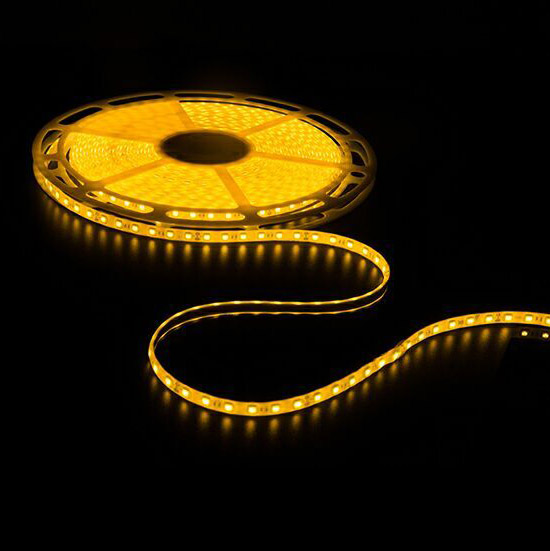

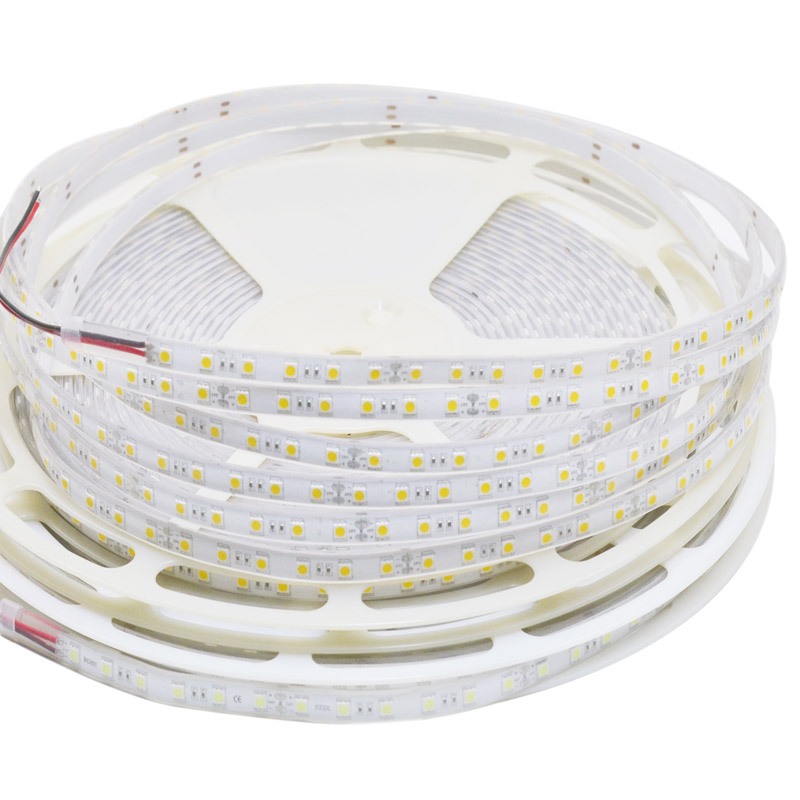

This is a 20m (65.6ft) led strip for long running projects, compatible with various single colors and RGB color. There is no voltage drop in the LEDs over the 20m (65.6ft) or 10m (32.8ft) strip run length with a single-sided power supply, ensuring stable brightness and color performance.
With 24-volt input and 60 lights per meter, it provides even light distribution for your space. This 20m (65.6ft) long led light strip has a default waterproof rating of IP20, with IP67 and IP68 outdoor waterproof long led light strips available.
Standards and Certifications
LED Strip Type: SMD 5050 1200PCS/65.6ft
LED Chip: Epistar Chip
Working Temperature: -4°F (-20°C) ~ 122°F (50°C)
Storage Temperature: -40°F (-40°C) ~ 176°F (80°C)
Light Color: Warm White, Daylight White,Cool White, Red, Green, Blue, Amber (optional)
Dimension: 65.6ft/roll, every 6 PCS LED can be cut
LED Quantity: 60 LEDs per 1meter (3.28 ft)
Warantty: 3 years
Dimensions: L2000cm(788 in ) x W1.0cm(0.39 in ) x H0.25cm(0.10 in )(single color); L2000cm(788 in ) x W1.2cm(0.47 in ) x H0.25cm(0.10 in )(RGB)
Input Voltage(V): 24V DC
Working Power: 24V 12A 288W Max
Lamp Luminous Flux(lm): 24~26lm/LEDs 31200lm/65.6ft
Color Temperature CCT(White): Warm White(2800-3500k), Daylight White(5000-6500k), Cool White(7500-10000k)
Wavelength NM(RGBY): Red(620-630nm), Green(515-525nm), Blue(465-475nm), Yellow(585-595nm)
Beam Pattern: 120 degree
Water Proof: Non-Waterproof and Waterproof IP67， IP68
CRI (Ra>): 95
Waterproof Level Description
IP20 Non-waterproof (The PCB [Printed Circuit Board] surface of the bare , with self-adhesive back, For Indoor);
IP65 Waterproof (Epoxy cover waterproof, Epoxy Resin,PCB surface is encapsulated with plastic Gel, with self-adhesive 3M back, For Outdoor & Indoor);
IP67 Waterproof (Silicon sleeve waterproof,PCB is encapsulated with silicon tube, with plastic fastener, better waterproof, For Outdoor);
IP68 Waterproof (Fully waterproof plastic irrigation,PCB both surface and back are encapsulated with plastic Gel, with plastic fastener, top level of waterproof, For Outdoor);
The waterproof grade of IP65, IP67, and IP68 will affect the color temperature due to the material problem, resulting in an increase of about 1000K. If you want to purchase the waterproof LED strips and have requirements on the color temperature, please note when placing the order.
These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!
