Product Information

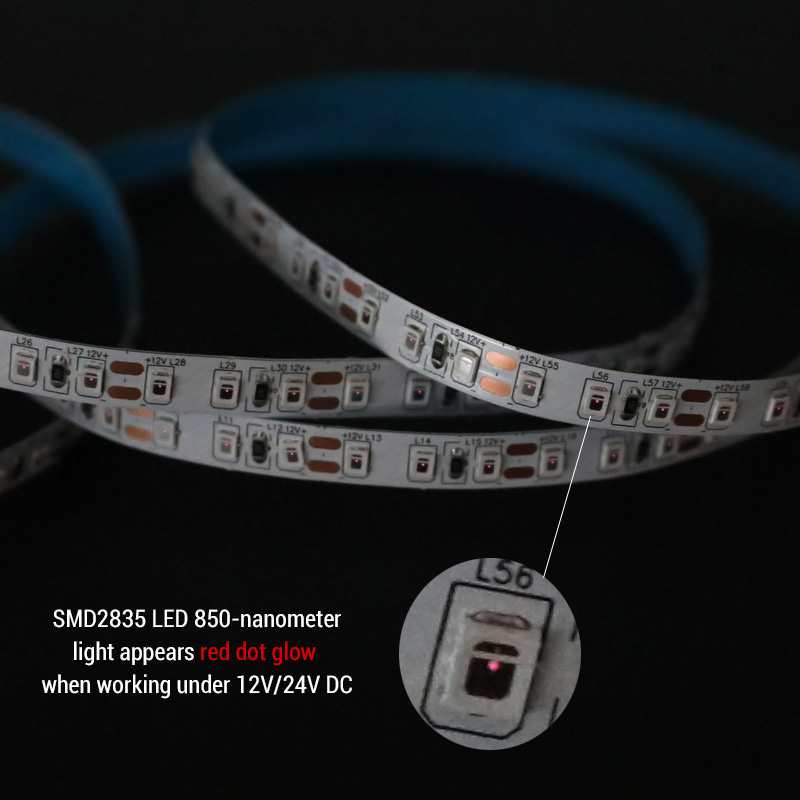

This 850nm security near-infrared (NIR) floodlight tape (600-LED 2835 IR Tape, DC12/24V power supply, 8mm width, 120 LEDs per meter, SMD2835 chip) is primarily designed for stealth illumination scenarios. Its wavelength lies outside the human visible spectrum (approximately 700-1100nm), making it nearly invisible to the naked eye yet highly detectable by infrared-sensitive devices such as night vision cameras. It is particularly suitable for the following applications:
► Security Surveillance Systems: Serves as night vision auxiliary lighting when installed near cameras, providing wide-angle flood coverage to enhance imaging quality in low-light environments without revealing positions or disrupting normal visible light conditions. The 850nm wavelength is most common in surveillance due to its balanced illumination intensity and stealth.
► Hunting and Outdoor Activities: Used in night hunting gear or wildlife observation, providing an invisible infrared light source to assist night vision goggles or thermal imagers without alerting targets.
► Medical and Biological Applications: Integrated into pulse oximeters, phototherapy devices, or bioimaging systems, leveraging near-infrared light's penetrating properties for non-invasive monitoring or treatment.
► Research Laboratories: Serving as spectral indicators or auxiliary light sources for scientific experiments, plant growth monitoring, or infrared imaging testing.
Compared to the 120/m 3528 infrared LED, the SMD2835 LED is inherently better suited for constructing high-efficiency infrared flood light sources due to its physical structure and optical characteristics. Its light-emitting surface is rectangular, and the light source sits close to the PCB substrate, enabling light to spill out evenly over a large area.
Product Specification
| LED Strip Type: | 850nm Security Near Infrared Flood Light Strip |
| LED Type: | 1-core SMD2835 |
| Input Voltage: | DC12V, DC24V |
| Power: | 12W/m, 60W/reel max |
| Light Wavelength: | 850/940 nanometers |
| LED Color: | Red dot glow (850nm), complete invisible (940nm) |
| PCB Width: | 8mm |
| LED Quantity: | 120 LEDs/m |

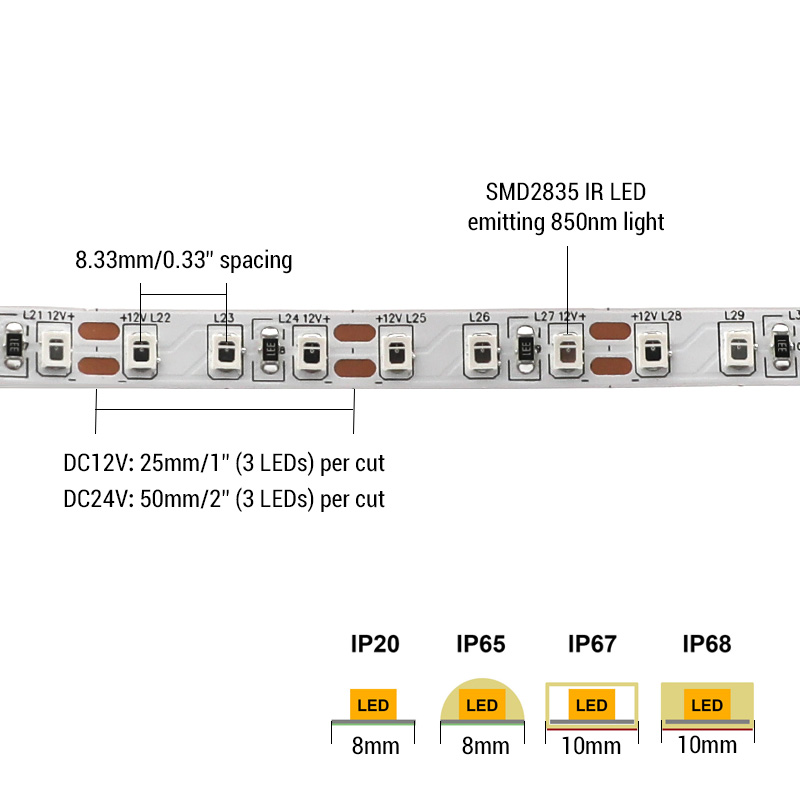

| Cuttable: |
12V - 3 LEDs, 25mm/1"
24V - 6 LEDs, 50mm/2"
|
| Waterproof Rating: | Non-waterproof IP20 / Waterproof IP65 IP67 IP68 |
| Beam Angle: | 120° |
| Length: | 16.4ft (5 meters) |
| Wire Outlet: | 2-pin red and black wires / DC female black connector |
Package List
1* 16.4ft SMD2835 LED 850 nanometer infrared light strip with wires or DC connectors (12V or 24V, IP20 or IP65 or IP67 or IP68)
1* 72W AC-DC power adapter (optional, black color)
