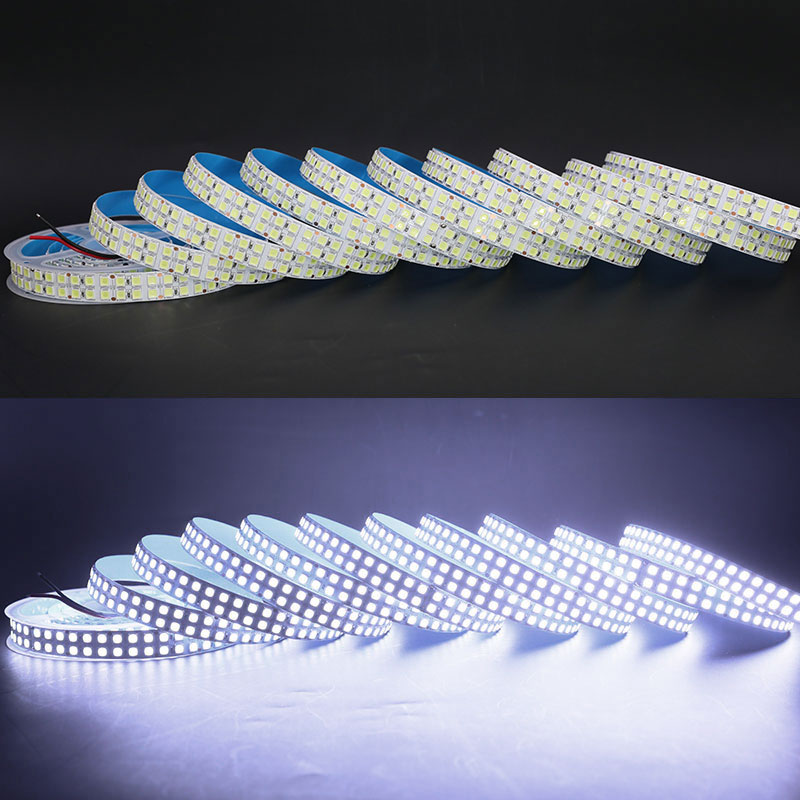

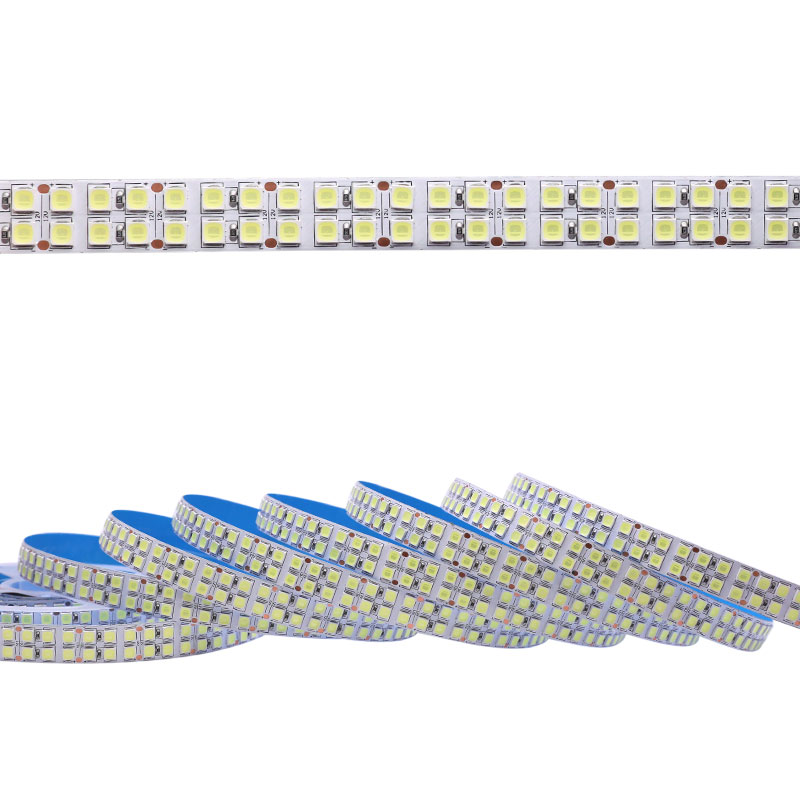

DC12V SMD5054 Dual Row High Density 3000K 9000K White LED Strip Lights 240LEDs/m
Two-row SMD5054 LED design makes this led light strip with higher density and higher brightness to suit your task lighting and accent lighting. It is bright to illuminate your kitchen island, backlighting, and more.
White led strip lights are widely used for lighting projects. Your place with different LED color temperatures will give you different feelings. Pure white and warm white are two different things.
9000K cool white (pure white) creates a bright and cool environment, while 3000K soft white (warm white) help people get rid of fatigue in a relax atmosphere. Choose the right one for your room.
Placing double row led strip lights in led channel for better thermal management is a good idea. The PC diffuser cover will evenly distribute LED light, thus, you can get a continuous linear light without dots.
Standards and Certifications
|LED Strip Type:||White LED Strip Lights|
|LED Chip:||SMD5054 Epistar Chip|
|Working Temperature:||-4°F (-20°C) ~ 122°F (50°C)|
|Storage Temperature:||-40°F (-40°C) ~ 176°F (80°C)|
|Light Color:||9000K cool white, 3000K warm white|

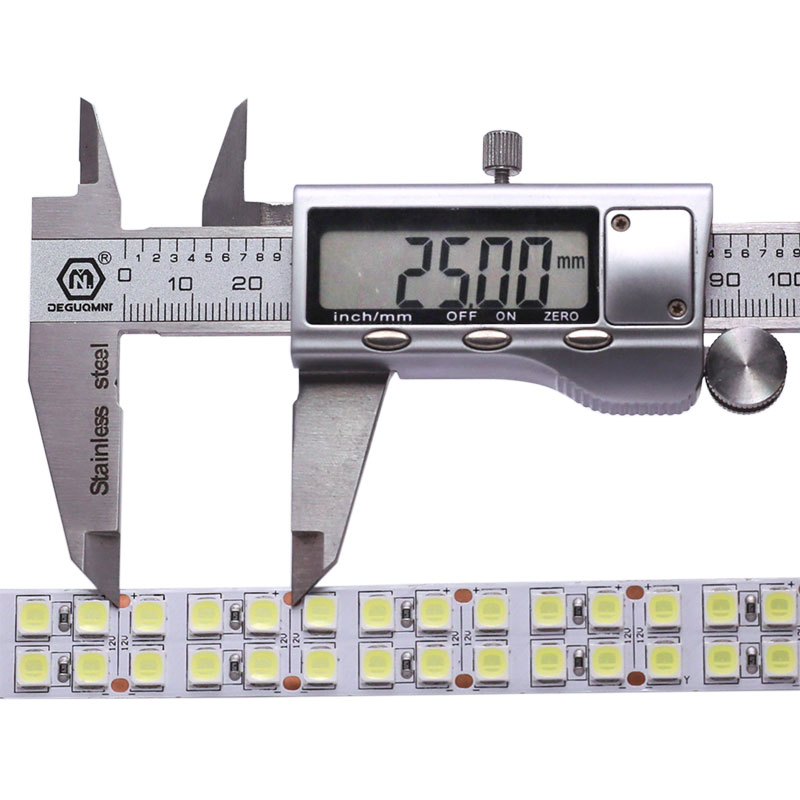

|Dimension:||16.4ft/roll, every 6 PCS LED can be cut|
|LED Quantity:||240 LEDs per meter, 1200LEDs/roll|

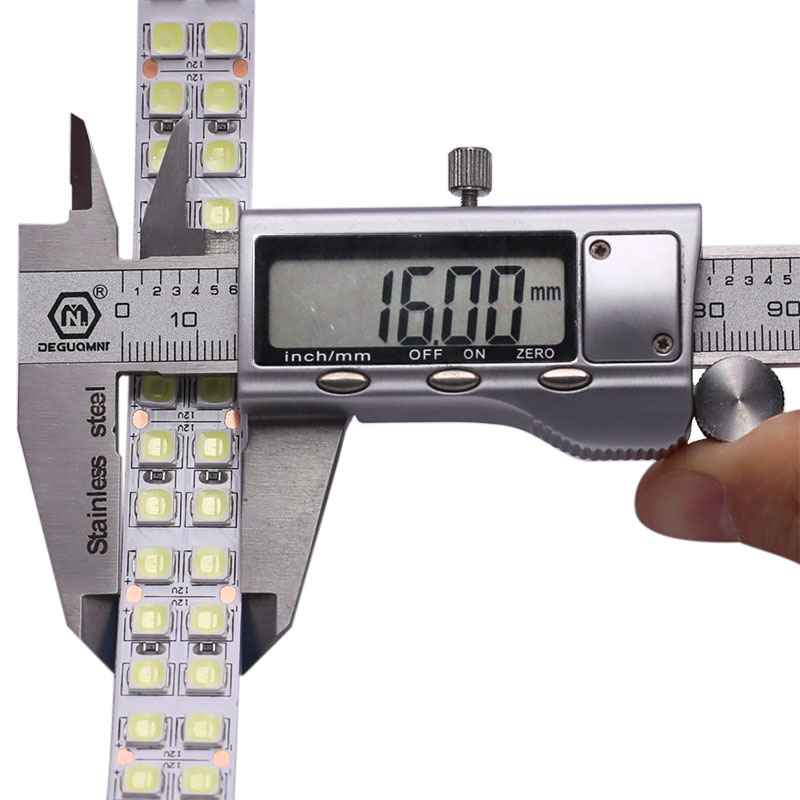

|Dimensions:||L500cm(196.8 in ) x W1.6cm(0.63 in ) x H0.25cm(0.10 in )|
|Input Voltage(V):||12 VDC|
|Working Power:||11W/m, 55W /16.4ft Max|
|Beam Pattern:||120 degree|
|Waterproof:||Non-Waterproof IP20, waterproof IP67|
How to connect white led strip lights:
