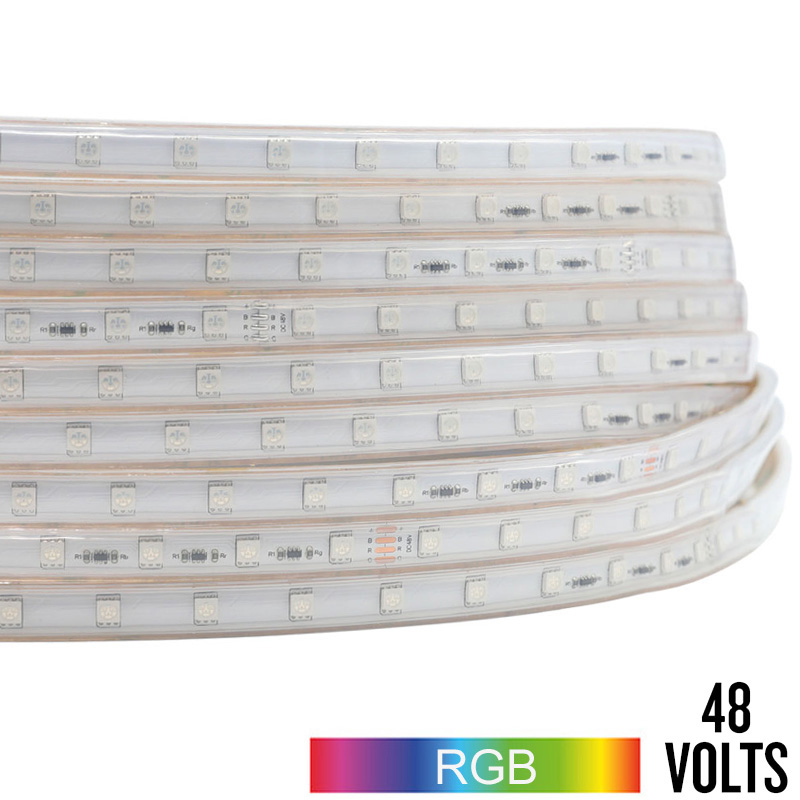

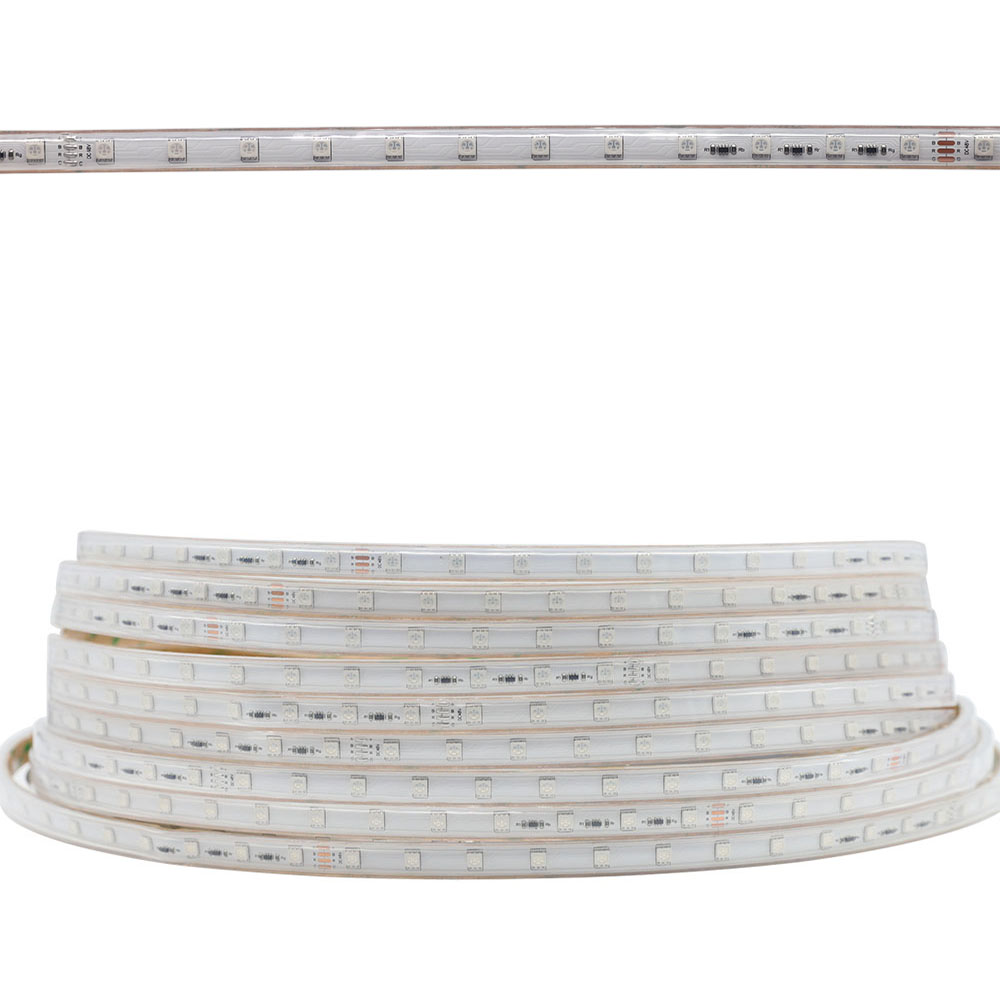

DC48V 5050SMD Changing Color RGB LED Light Strips - Constant Current Flexible LED Strip - 65.6 to 98.4 Ft Optional

Name: DC48V 5050SMD Changing Color RGB LED Light Strips - Constant Current Flexible LED Strip - 65.6 to 98.4 Ft Opti
Brand: SuperLightingLED
SKU: FSLCCRGB-30M-5050X54
Price: 164.98 USD
Availability: InStock

Model: FSLCCRGB-30M-5050X54 Review stars

0.0 (0 Reviews) Various options in stock

Starting at: $229.98 $164.9828% off

Qty Discounts Off Price
1-9 $164.98	10-19 $223.08	20-49 $213.88	50+ $183.98
* Discounts may vary based on options below

Select Specifications:

Select PCB Width:

10mm (0.39in)

Select Length:

Select Waterproof Rating:

Select LED Quantity:

54 LEDs/m

Qty: -+

Free shipping over $299Ships via DHL / UPSWarranty covered

Accept the project customization, please contact us for commercial offers and technical support.

Product Information

Features

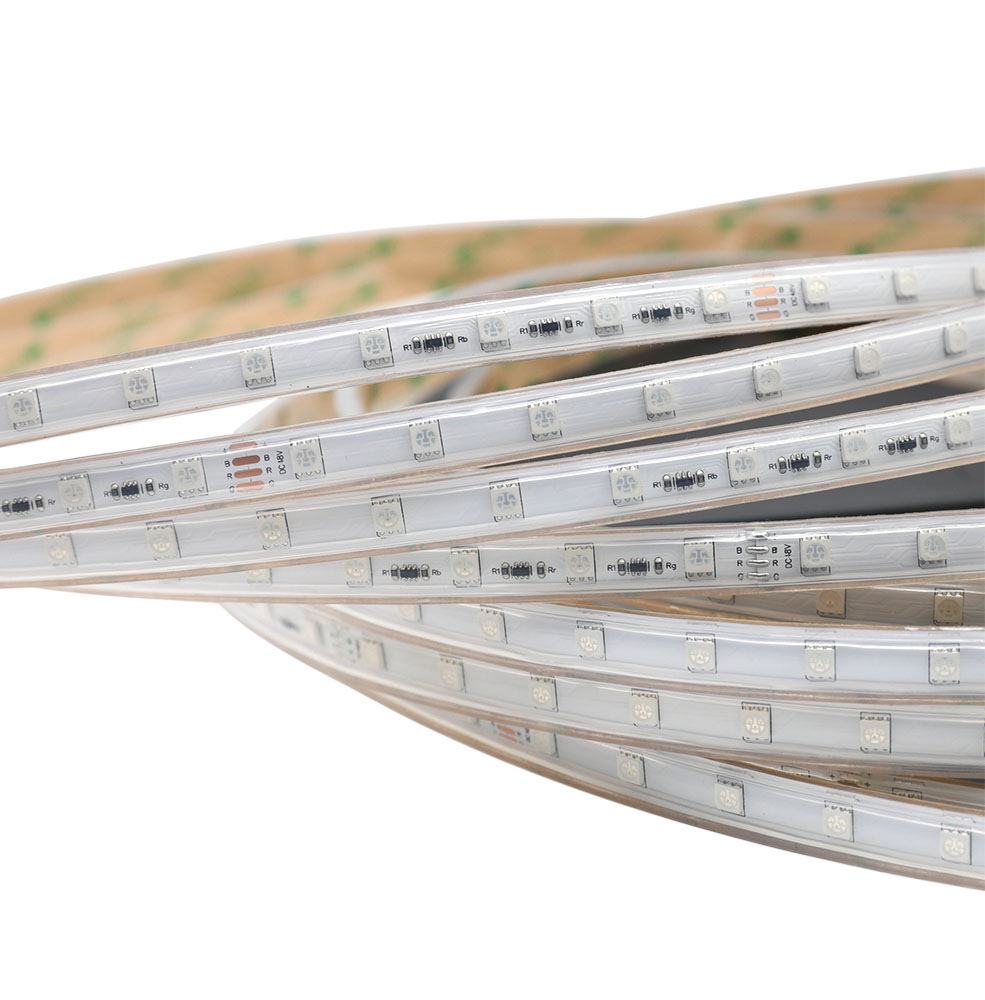

1. Adopt high bright 5050SMD LED chips, with the constant current circuit, making the Ultra long 30m/98.4ft RGB LED strip lights.

2. DC48V, 54LEDs per meter, every 12 LEDs can be cut, easy to get the length you need, flexible FPCB board, can bend to the shape you need, convenient to install.

3. We have the length options of 20m/65.6ft and 30m/98.4ft, offering more choice for different distance LED lighting projects.

4. Non-waterproof IP20, waterproof IP65, IP67, IP68 available, apply for indoor and outdoor LED lighting.

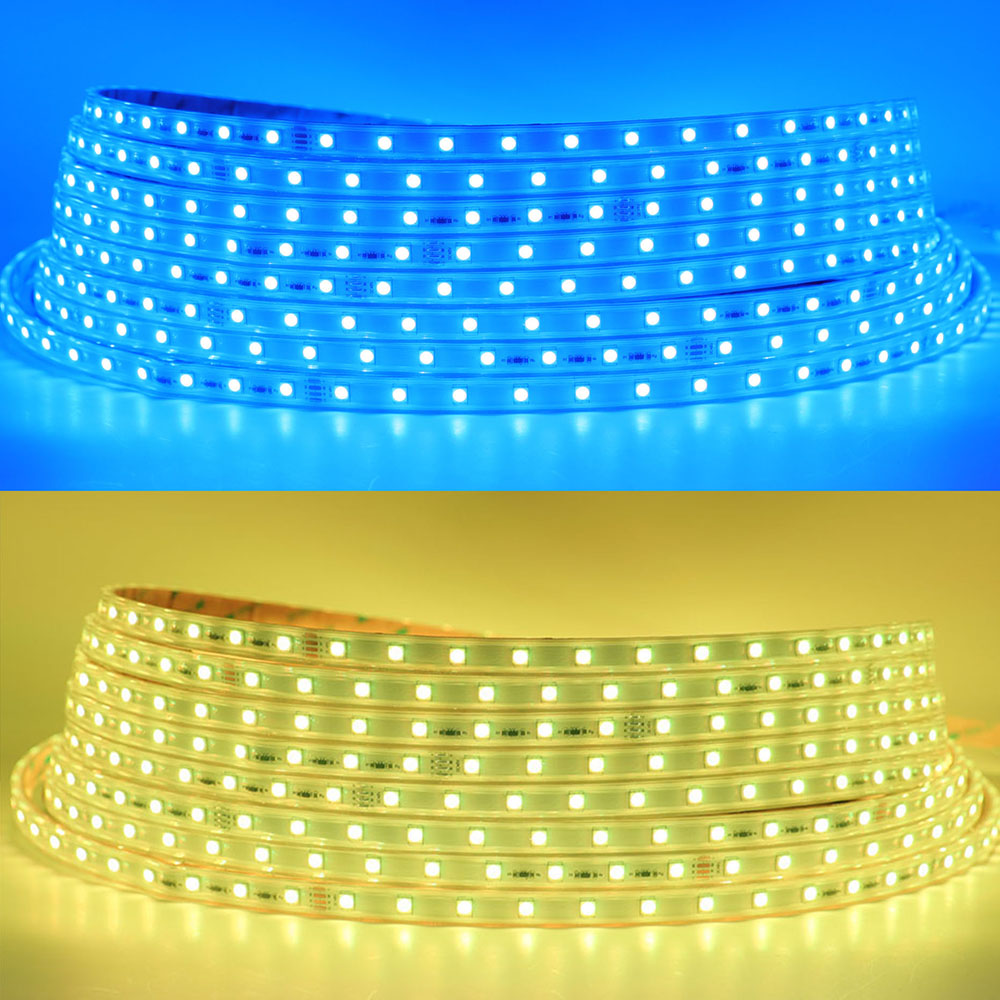

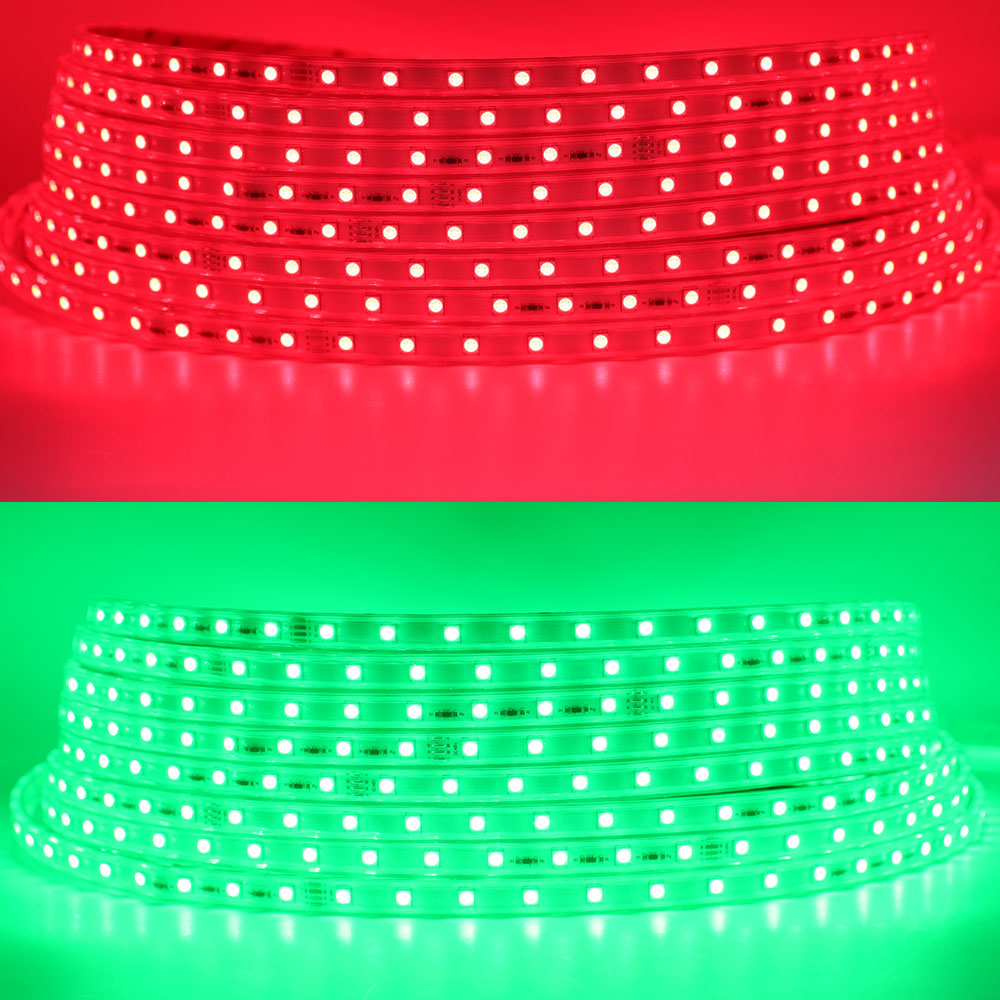

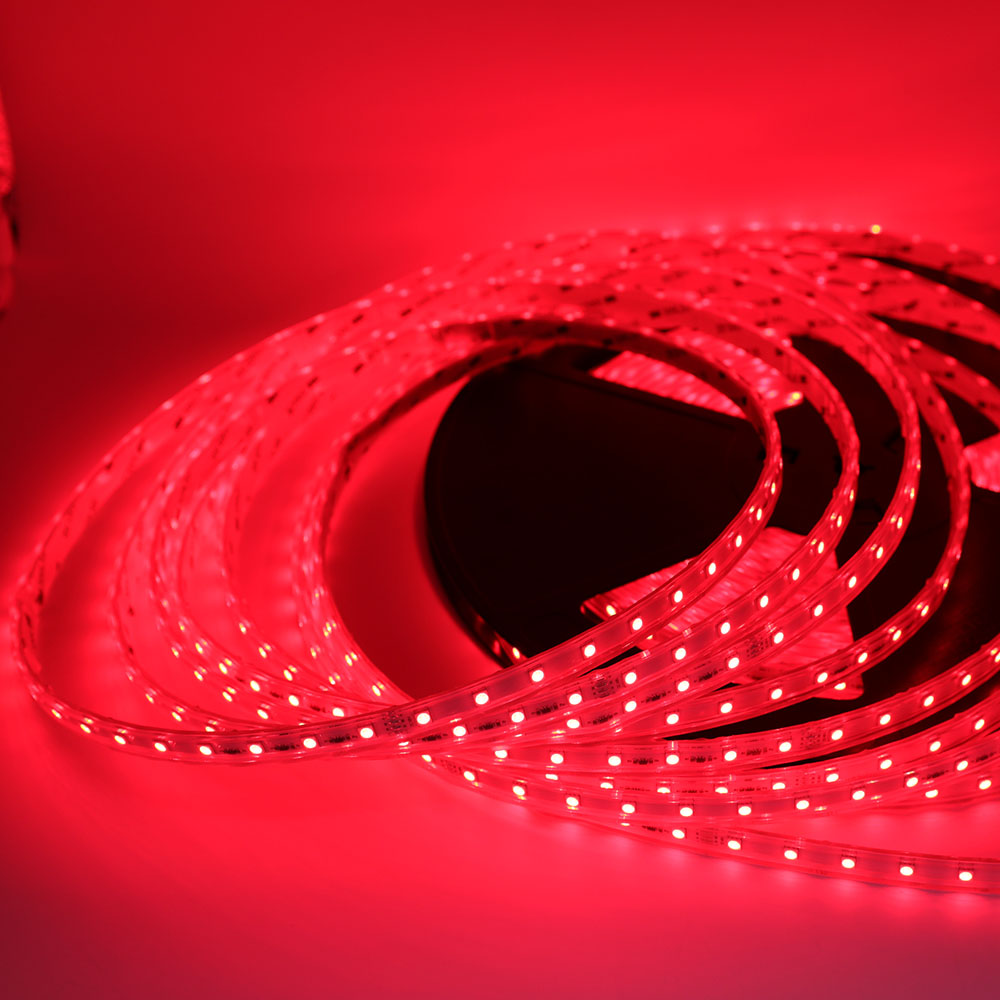

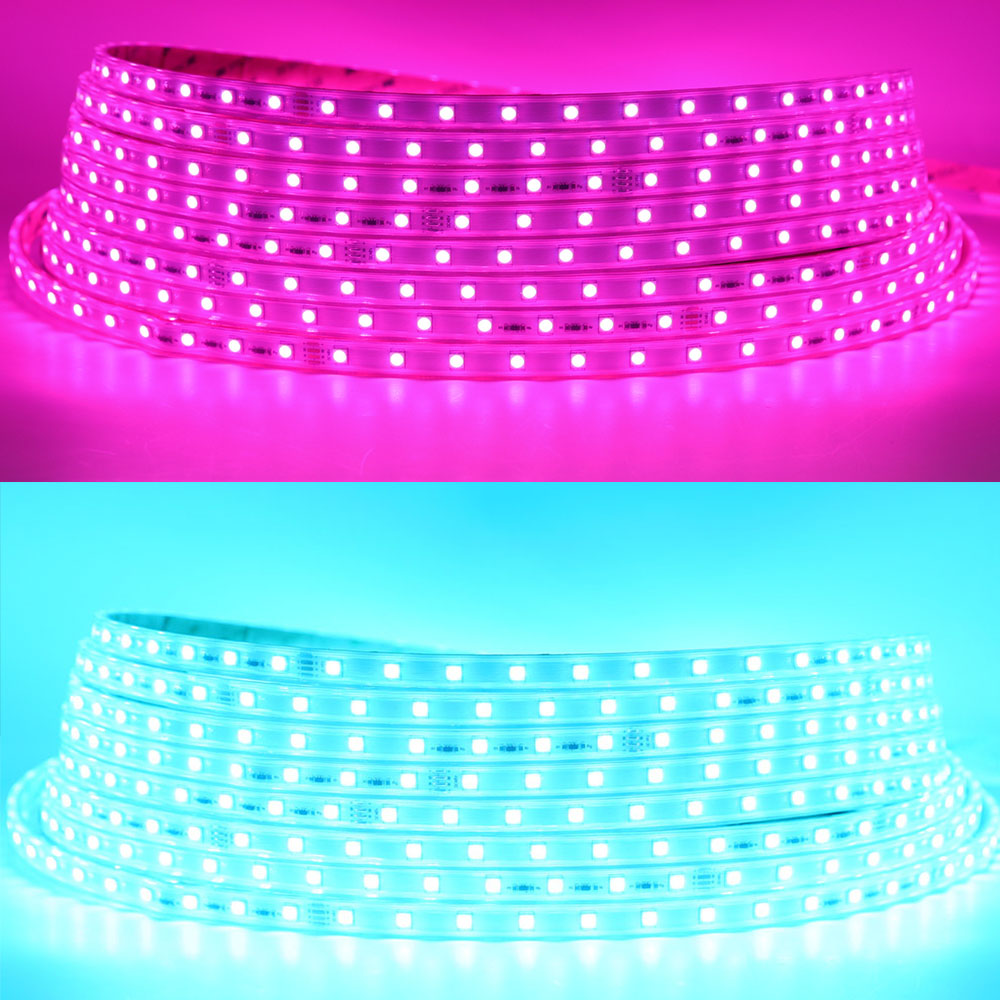

5. Easy to control, just need to use the RGB LED controller, then the lights will show you various color effects.

Product Specification

LED Strip Type: 30 meters(98.4Ft ) 5050SMD constant current RGB LED strip light

LED Chip: Epistar super brights Chip

Working Temperature: -4°F (-20°C) ~ 122°F (50°C)

Storage Temperature: -40°F (-40°C) ~ 176°F (80°C)

LED Quantity: 54 LEDs per meter

Lifespan: 50,000+hours

Dimension: 65.6/98.4 ft per roll, every 12 PCS LED can be cut

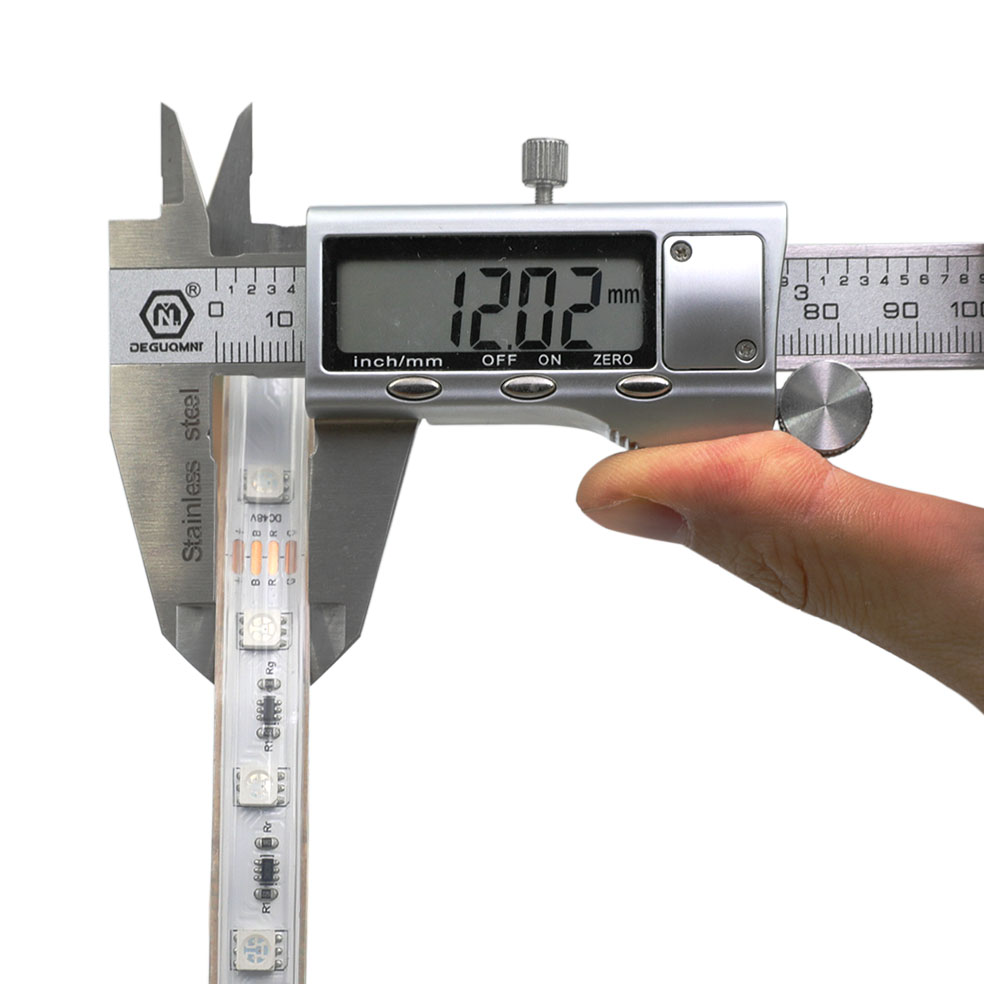

PCB Dimensions: W10mm x H0.2mm

Input Voltage(V): 48VDC

Working Power: 9W/m, 270W/98.4ft Max

Lumen Per LED: 423Lumen/m 8460Lumen/65.6ft 12690Lumen/98.4ft

Wavelength NM(RGBY): 2000-2500mcd

Beam Pattern: 120 degree

Water Proof: Non-waterproof IP20, Waterproof IP65, IP67, IP68

led strip waterproof level

Reviews

Customer Experience

Your feedback is important to us! Share your thoughts and photos with other customers.

Write a Review & Upload Photos

Downloads

Files for FSLCCRGB-30M-5050X54

PDFFSLCCRGB-30M-5050X54 product data sheetFull specifications, dimensions, cut points, wiring and IP options — the same details shown on this page, laid out for printing and engineering review.PDF · generated from the current product page · opens in a new tabOpen PDF

Need this page for a project file or an engineering check? Click Open PDF, then save or print it from your browser. For CAD drawings, IES files or a signed test report, contact our engineers and quote the model number.

Images

These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!

LED Strip Light Guide

Common questions about this type of product, answered against this model’s own options. For full figures see the specification above or the spec sheet for this model.

Why a constant current LED strip light?

Each section regulates its own current, so brightness stays even over long runs where a constant voltage LED strip light would dim towards the far end. Use a constant voltage power supply of the rated voltage. What makes a quality LED strip light

Which waterproof rating should I choose?

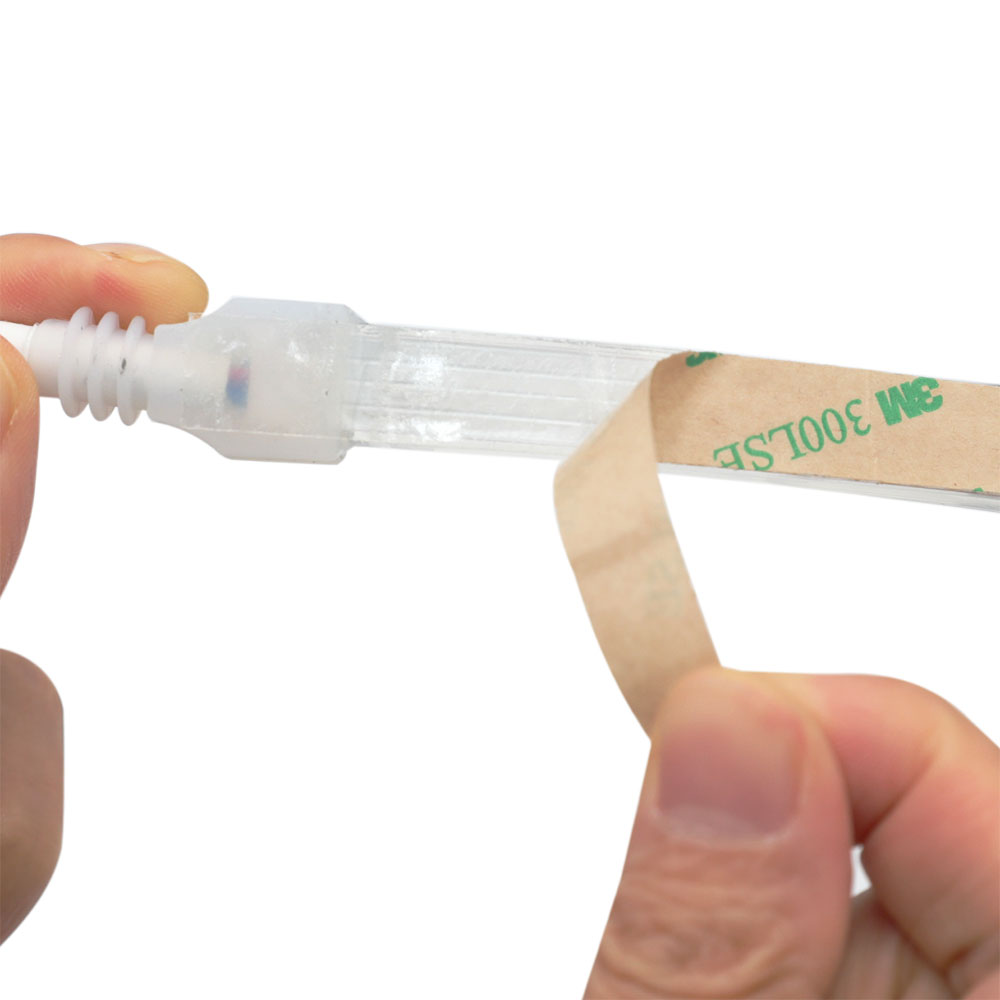

Available on this model: Underwater IP68 - Adhesive Back · Outdoor Silicone Tube IP67 - With Brackets · Surface Glued IP65 - Adhesive Back · Non-Waterproof IP20 - Adhesive Back. IP20 is for dry indoor use, IP65 handles splashes, IP67 suits outdoor and wet areas, IP68 is for continuous submersion. Choosing a waterproof rating

Can I cut it to length?

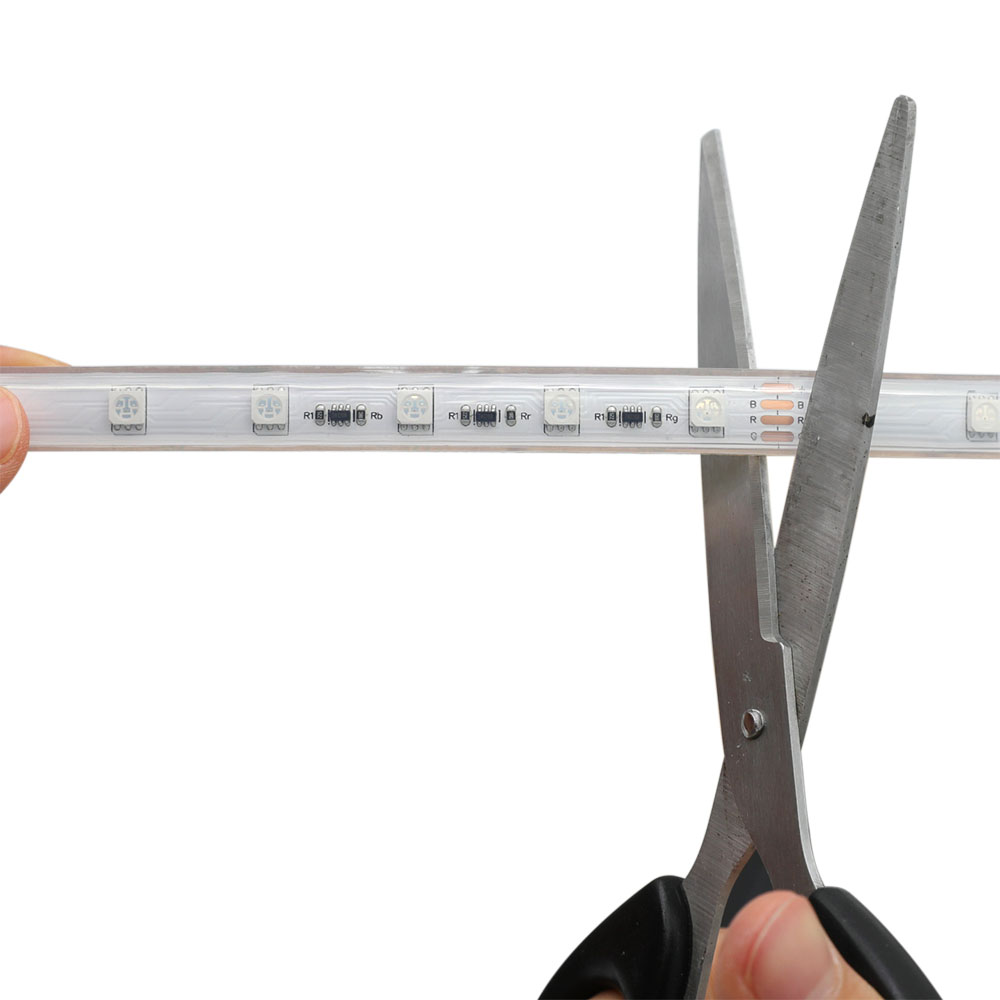

Yes. Cut only on the marked cut lines between the copper pads — the cut interval for this model is on its spec sheet. Rejoin with solder or a solderless connector. Cutting LED strip lights · we can also cut to length and fit your connector before shipping: custom LED strip light assembly.

What size power supply do I need?

Take the watts per metre from the specification above, multiply by the length you are running, then add about 25% headroom. Power calculation guide · Choosing a power supply

Will it fit an aluminium profile, and how dense are the LEDs?

PCB width 10mm (0.39in) · LED density 54 LEDs/m. Choose a profile whose inner width is at least the PCB width; denser LEDs give a smoother line close to a diffuser. LED aluminium profiles
